AIMS Power PICOGLF60W48V240VS 6000W Low-Frequency Pure Sine Inverter Charger | 48 Vdc, 120/240 Vac Split Phase
$2,491.00
44 people are viewing this product right now
- Continuous output: 6,000 W
- Surge: 18,000 W (20 s)
- Battery voltage: 48 Vdc
- AC output: 120/240 Vac split phase
- Charger: 60 A
Ordering: freight is quoted by CSE Solar USA. Request a Quote

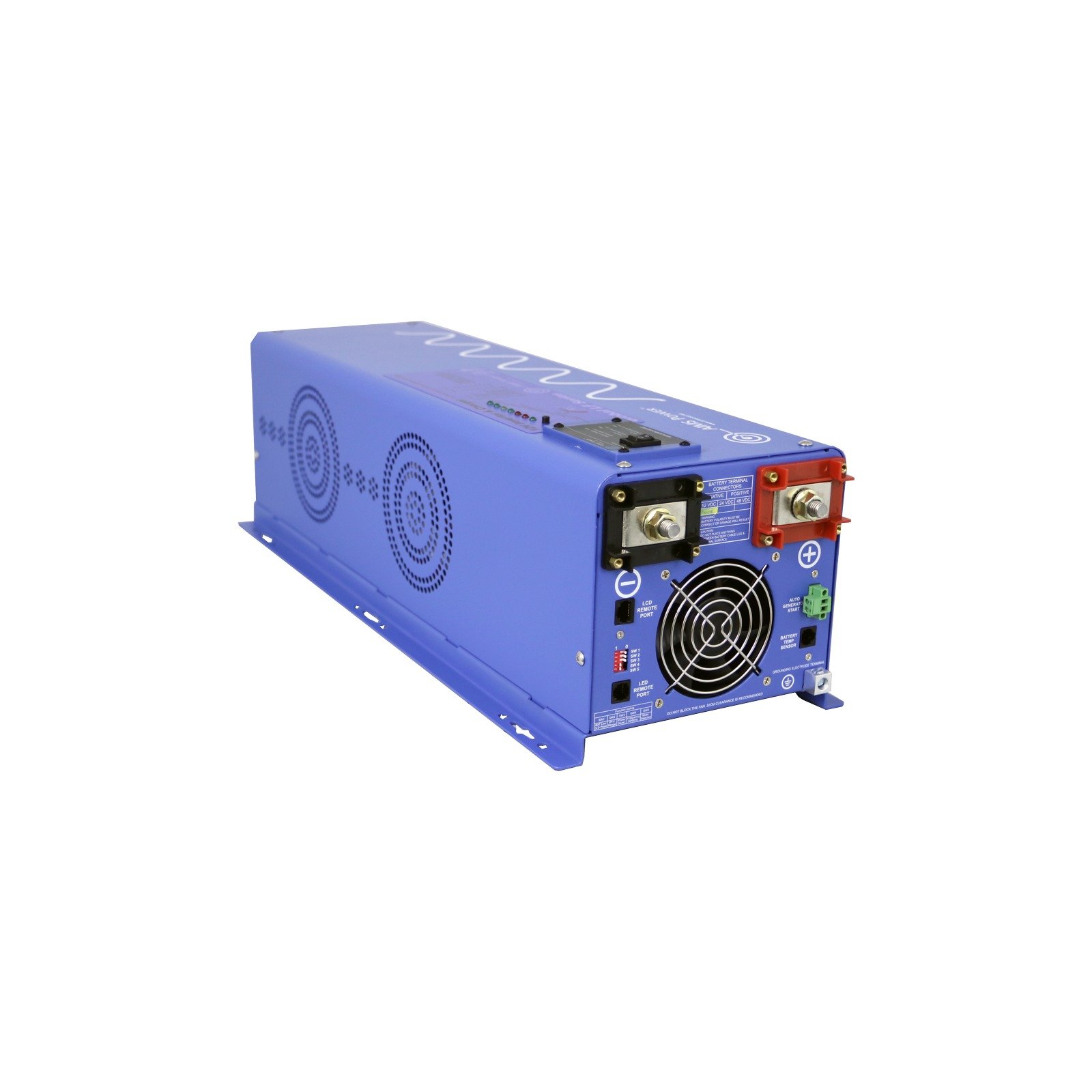

AIMS Power PICOGLF60W48V240VS 6000W Low-Frequency Pure Sine Inverter Charger
The AIMS Power PICOGLF60W48V240VS is a 6,000 W low-frequency pure sine inverter charger built around a 48 Vdc battery bank. It delivers 120/240 Vac split-phase power for a smaller whole home, an office or a large RV, surges to 18,000 W for 20 seconds to start pumps, compressors and motors, and includes a 60 A four-stage smart charger with an automatic transfer switch that hands loads from the grid or a generator to the batteries in about 10 ms.
Auto generator start, battery-priority mode, 50/60 Hz auto frequency detection and marine-coated boards make it a dependable core for off-grid and backup systems. AIMS Power backs it with a 3-year warranty and lifetime tech support. CSE Solar USA is an authorized AIMS Power distributor.

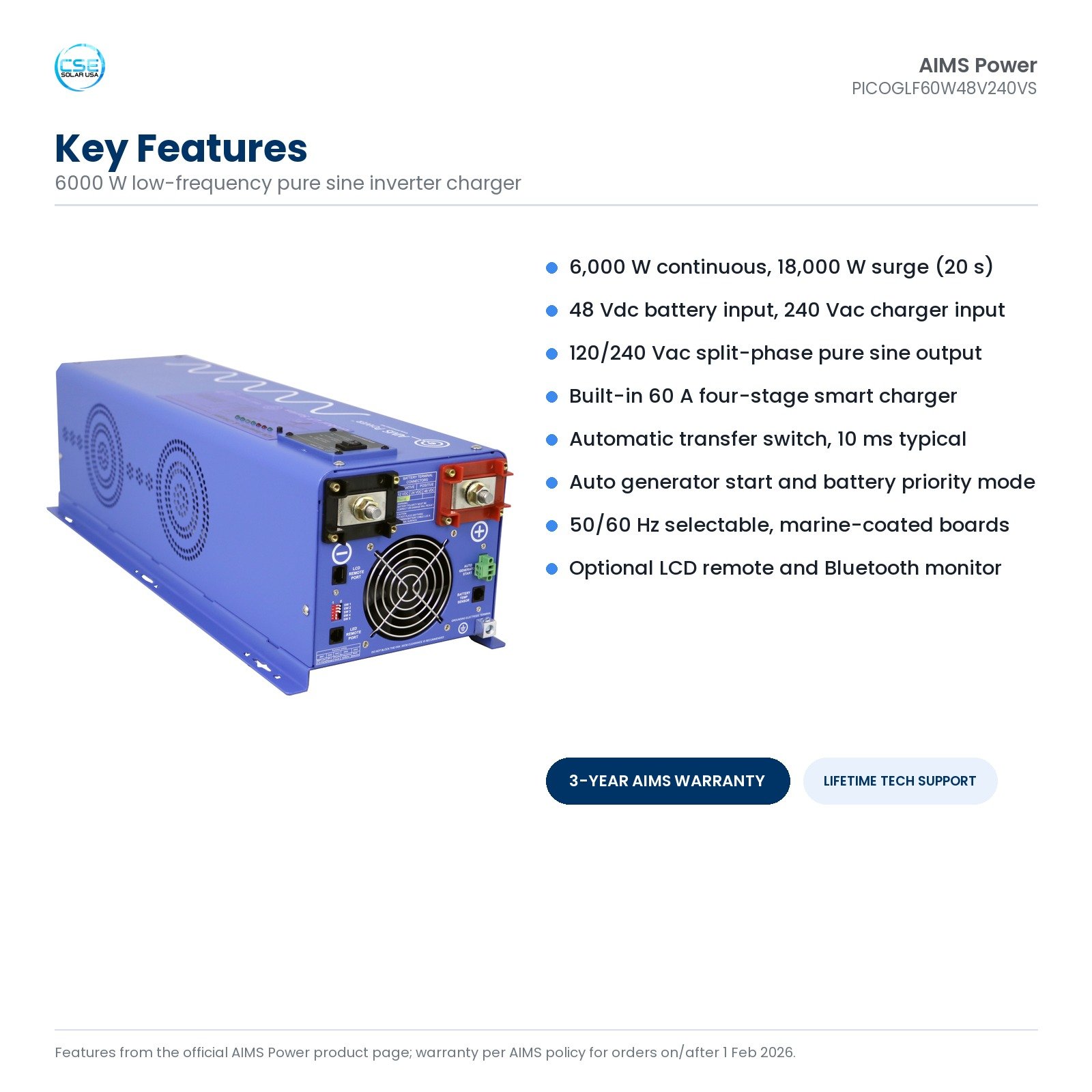

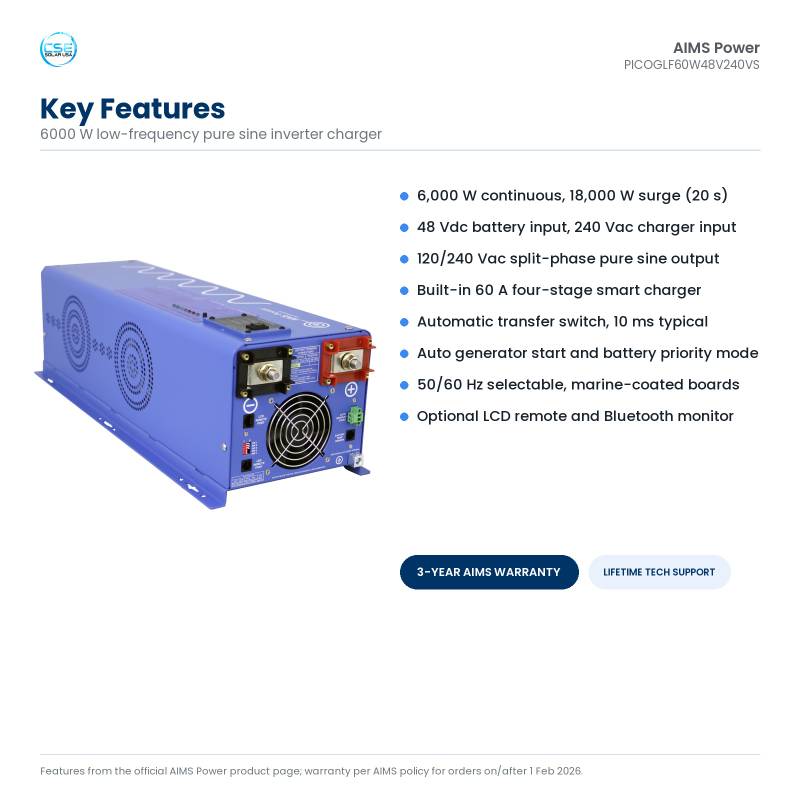

Key features
- 6,000 W continuous, 18,000 W surge (20 s)
- 48 Vdc battery input, 240 Vac charger input
- 120/240 Vac split-phase pure sine output
- Built-in 60 A four-stage smart charger
- Automatic transfer switch, 10 ms typical
- Auto generator start and battery priority mode
- 50/60 Hz selectable, marine-coated boards
- Optional LCD remote and Bluetooth monitor

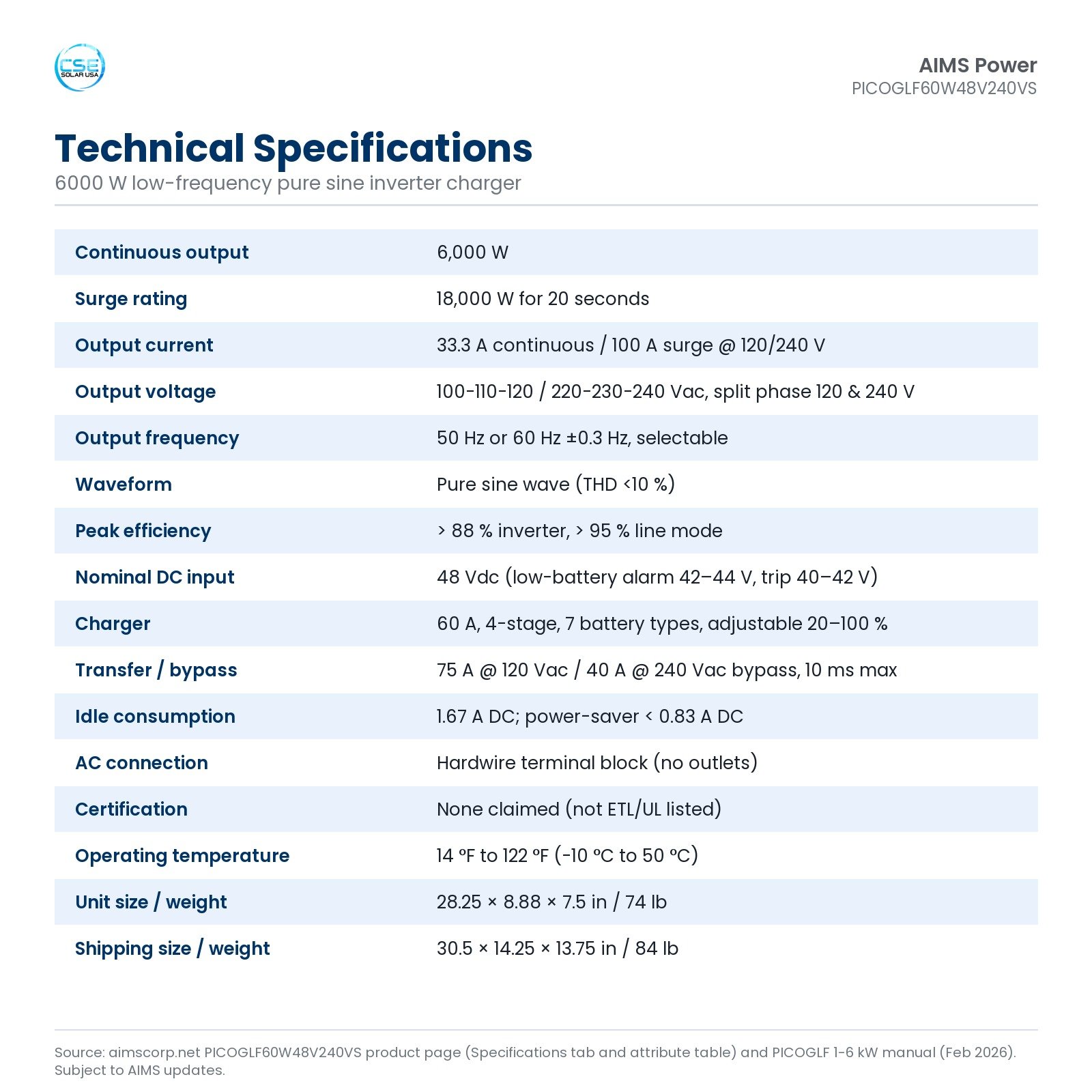

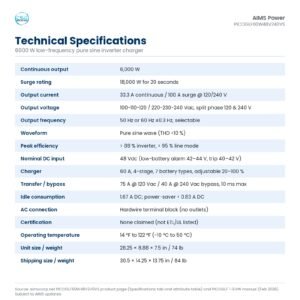

Specifications (official AIMS Power data)
| Continuous output | 6,000 W |
|---|---|
| Surge rating | 18,000 W for 20 seconds |
| Output current | 33.3 A continuous / 100 A surge @ 120/240 V |
| Output voltage | 100-110-120 / 220-230-240 Vac, split phase 120 & 240 V |
| Output frequency | 50 Hz or 60 Hz ±0.3 Hz, selectable |
| Waveform | Pure sine wave (THD <10 %) |
| Peak efficiency | > 88 % inverter, > 95 % line mode |
| Nominal DC input | 48 Vdc (low-battery alarm 42–44 V, trip 40–42 V) |
| Charger | 60 A, 4-stage, 7 battery types, adjustable 20–100 % |
| Transfer / bypass | 75 A @ 120 Vac / 40 A @ 240 Vac bypass, 10 ms max |
| Idle consumption | 1.67 A DC; power-saver < 0.83 A DC |
| AC connection | Hardwire terminal block (no outlets) |
| Certification | None claimed (not ETL/UL listed) |
| Operating temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Unit size / weight | 28.25 × 8.88 × 7.5 in / 74 lb |
| Shipping size / weight | 30.5 × 14.25 × 13.75 in / 84 lb |

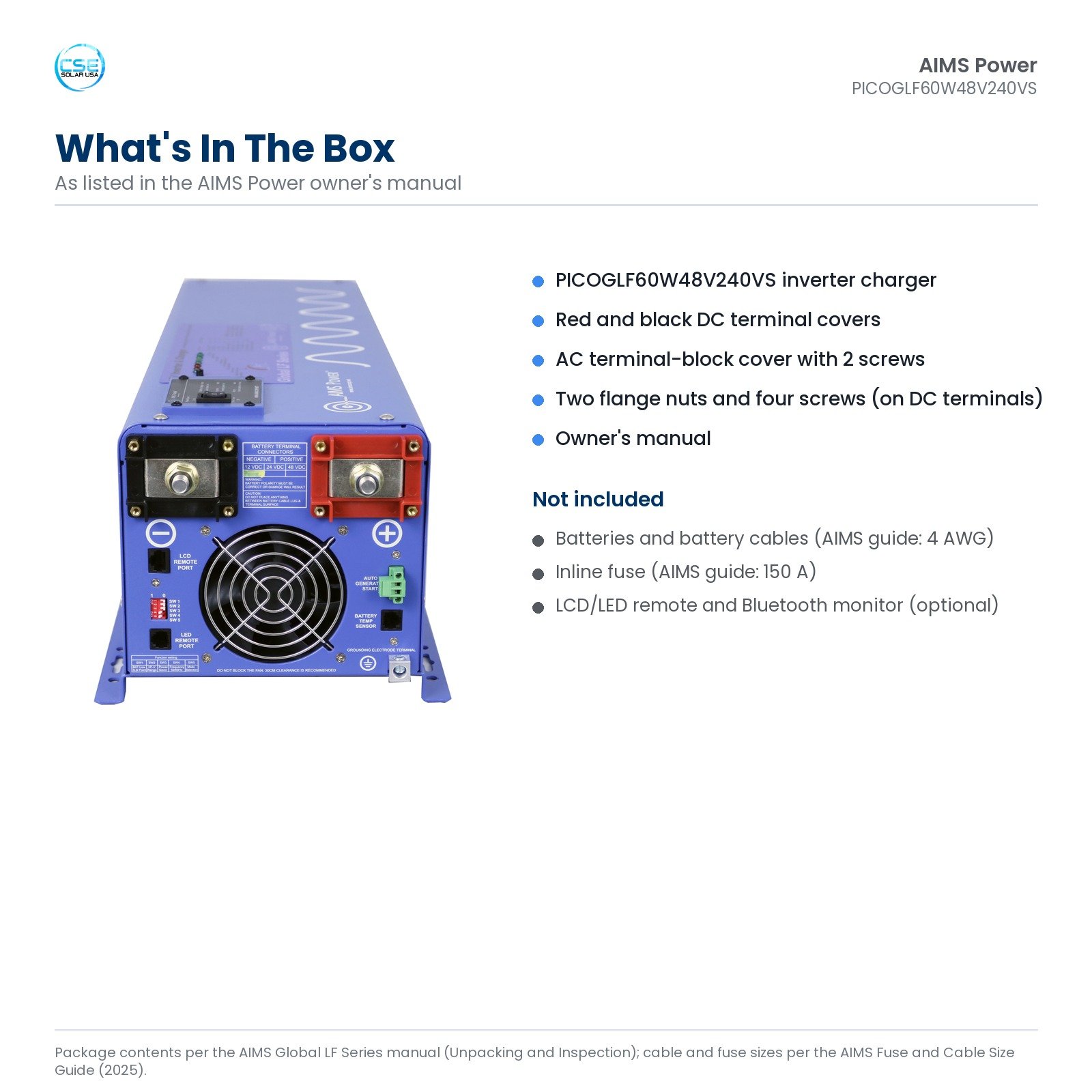

What’s included
- PICOGLF60W48V240VS inverter charger
- Red and black DC terminal covers
- AC terminal-block cover with 2 screws
- Two flange nuts and four screws (on DC terminals)
- Owner’s manual
Not included: Batteries and battery cables (AIMS guide: 4 AWG); Inline fuse (AIMS guide: 150 A); LCD/LED remote and Bluetooth monitor (optional).
Applications
- Whole-home backup: Keeps 120 V and 240 V circuits running from a 48 V battery bank when the grid drops, with a 10 ms transfer.
- Off-grid homes & remote sites: Runs a home, cabin or work site from batteries charged by solar, wind or a generator with auto-start.
- Business & facility backup: Backup for offices, shops and equipment; charges from the grid or a generator and inverts on demand.
Requires a 48 V battery bank (lithium, AGM, GEL or flooded). Size batteries and wiring to your loads; installation by a qualified electrician.

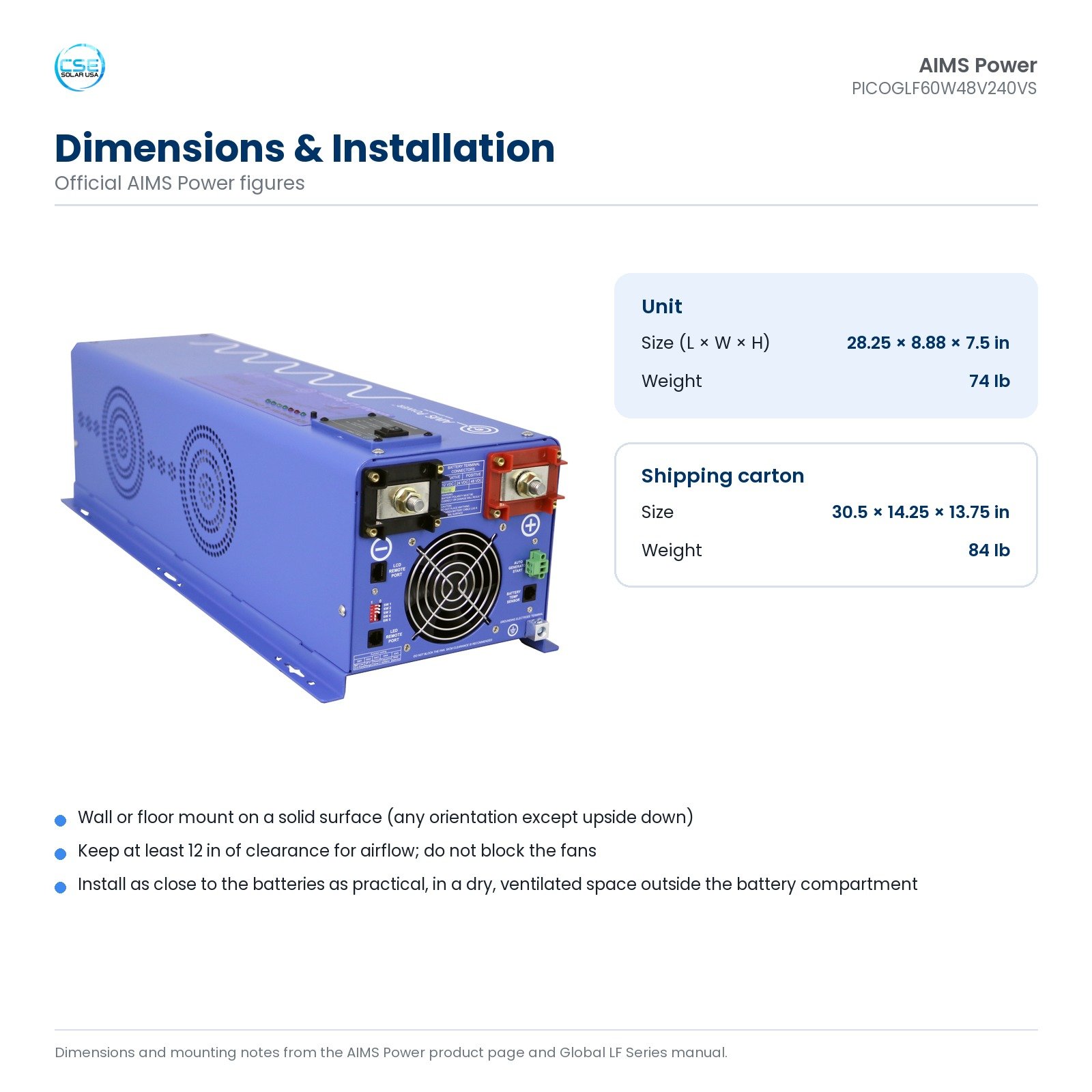

Dimensions and weight
| Unit — Size (L × W × H) | 28.25 × 8.88 × 7.5 in |
|---|---|
| Unit — Weight | 74 lb |
| Shipping carton — Size | 30.5 × 14.25 × 13.75 in |
| Shipping carton — Weight | 84 lb |
- Wall or floor mount on a solid surface (any orientation except upside down)
- Keep at least 12 in of clearance for airflow; do not block the fans
- Install as close to the batteries as practical, in a dry, ventilated space outside the battery compartment
Warranty
3-year AIMS Power warranty on low-frequency inverter chargers (orders on or after 1 February 2026) plus lifetime tech support. Warranty covers the original purchaser; service is handled by AIMS Power in Reno, NV. CSE Solar USA is an authorized AIMS Power distributor.
Shipping
Nationwide shipping. Freight quotes on request for large or multi-unit orders. Ships from AIMS Power stock through CSE Solar USA; lead times confirmed at order.
Downloads (official AIMS Power documents)
Frequently asked questions
Is the PICOGLF60W48V240VS ETL or UL listed?
No. AIMS lists this 6 kW model without third-party certification. If you need an ETL-listed unit in this family, see the 8 kW and 12 kW PICOGLF models, which are ETL listed to UL 1741.
Can it run 240 V loads like a well pump?
Yes. The output is 120/240 Vac split phase with 6,000 W continuous and 18,000 W surge for 20 seconds, which AIMS rates for compressors, pumps and motors. Size the battery bank and wiring to the load.
Which remote works with it?
The optional AIMS REMOTELF LCD remote (up to 60 ft), the REMOTELFLED remote and the BT-AIMS-PRO Bluetooth monitor, all sold separately.
Does CSE Solar USA sell this as an authorized AIMS Power distributor?
Yes. CSE Solar USA is an authorized AIMS Power distributor, so this unit is covered by AIMS Power’s current warranty and supported by AIMS’ lifetime technical support.
What is the warranty?
AIMS Power covers its low-frequency inverter chargers with a 3-year warranty for orders placed on or after 1 February 2026, plus lifetime tech support. Warranty service is handled by AIMS Power in Reno, Nevada.
Are batteries, cables or a fuse included?
No. The inverter charger ships with its terminal covers, hardware and manual. Batteries, DC cables and the DC fuse or breaker are sold separately; AIMS’ cable and fuse guide is linked in the Downloads section.
How does ordering and shipping work?
Request a quote or an order through CSE Solar USA; we confirm availability and freight before invoicing. Nationwide shipping with freight quotes on request. No free-shipping claim is made for this product.
Specifications and included components are taken from the official AIMS Power product page, current warranty policy and manuals for PICOGLF60W48V240VS; subject to AIMS updates.
| Weight | 84 lbs |
|---|---|
| Dimensions | 30.5 × 14.25 × 13.75 in |
| MPN | PICOGLF60W48V240VS |
| Continuous output | 6,000 W |
| Surge | 18,000 W (20 s) |
| Battery voltage | 48 Vdc |
| AC output | 120/240 Vac split phase |
| Charger | 60 A |
| Warranty | 3 years (AIMS Power) |
