AIMS Power PV-6X250RACK Ground Mount Solar Rack | Fits 6 Panels 190–380 W, Aluminium with Pre-Assembled Legs

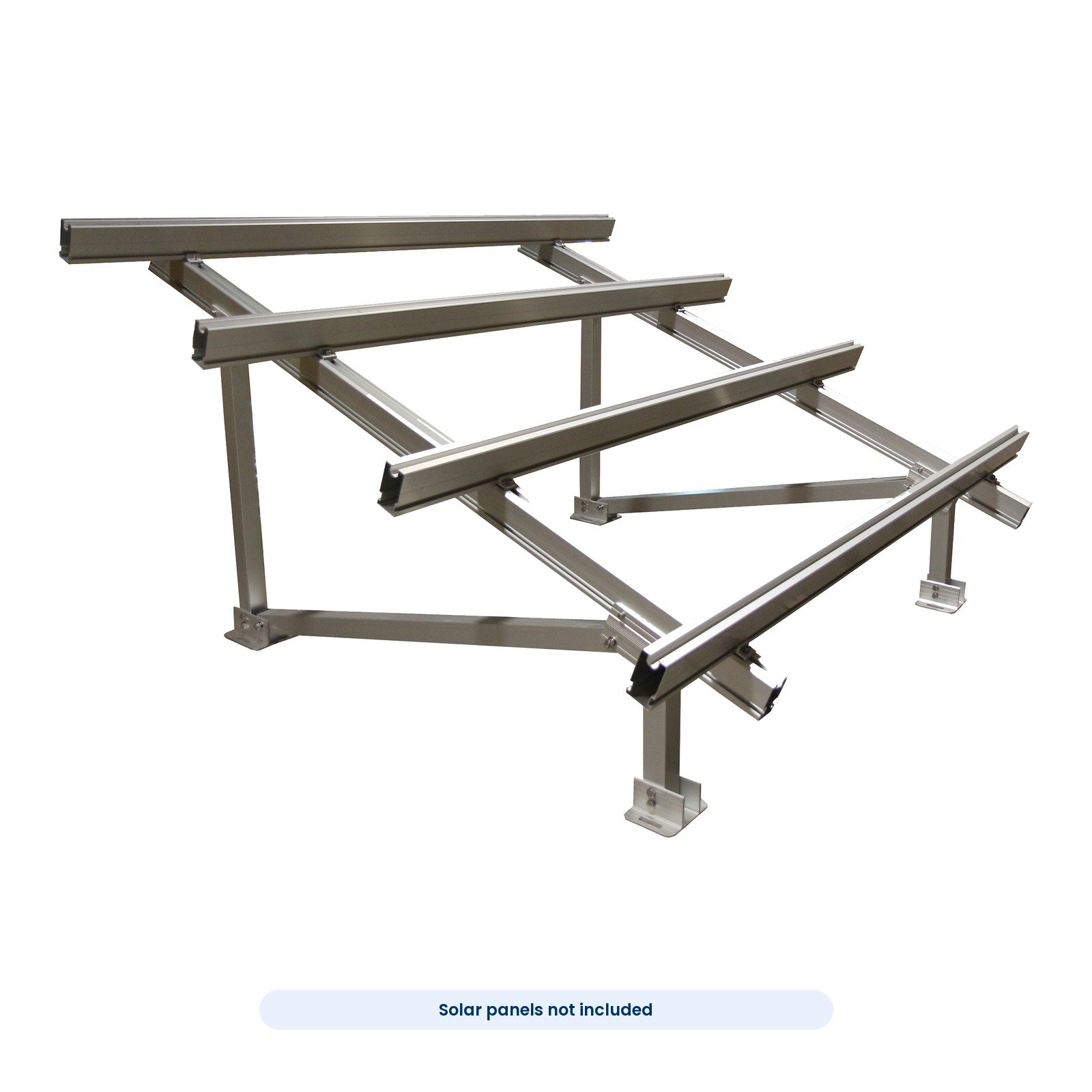

AIMS Power PV-6X250RACK Ground Mount Solar Rack

The AIMS Power PV-6X250RACK is a ground-mount rack for up to six 190–380 W solar panels in portrait. Built from 6005-T5 aluminium rails and pre-assembled folding legs with SUS304 stainless hardware, it goes together with slide-in clamps and no custom engineering drawings, sits at a maximum 20° pitch and is designed for a 25-year service life.

AIMS includes four HD rails, nine end clamps, nine mid clamps, sixteen HD rail clamps and two pre-assembled legs. Anchors, foundation, wiring and solar panels are not included; AIMS’ manual recommends M10 anchor studs with chemical anchoring in concrete. A 12-panel two-pack (PV-6X250RACK-2PK) is also available. CSE Solar USA is an authorized AIMS Power distributor.

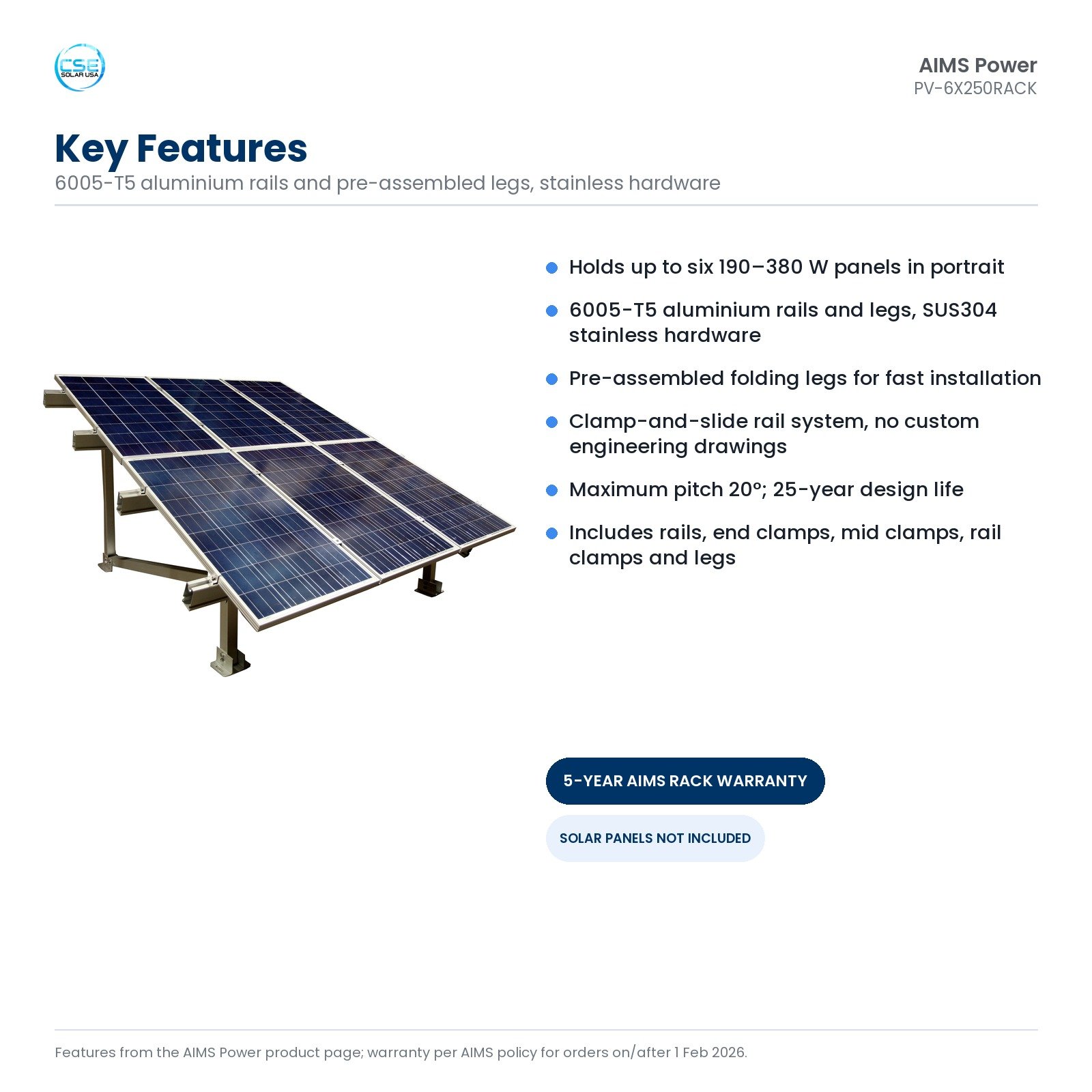

Key features

• Holds up to six 190–380 W panels in portrait
• 6005-T5 aluminium rails and legs, SUS304 stainless hardware
• Pre-assembled folding legs for fast installation
• Clamp-and-slide rail system, no custom engineering drawings
• Maximum pitch 20°; 25-year design life
• Includes rails, end clamps, mid clamps, rail clamps and legs

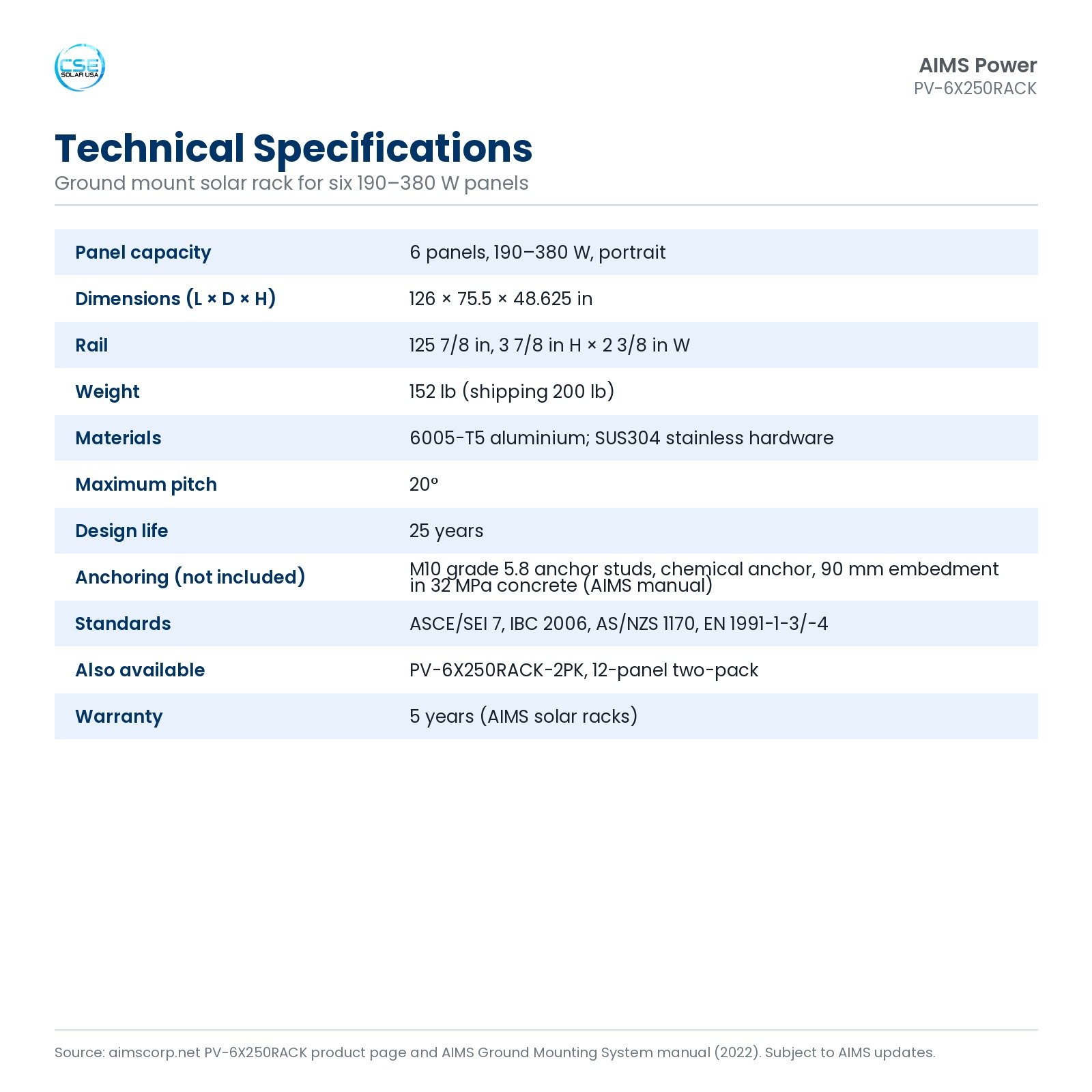

Specifications (official AIMS Power data)

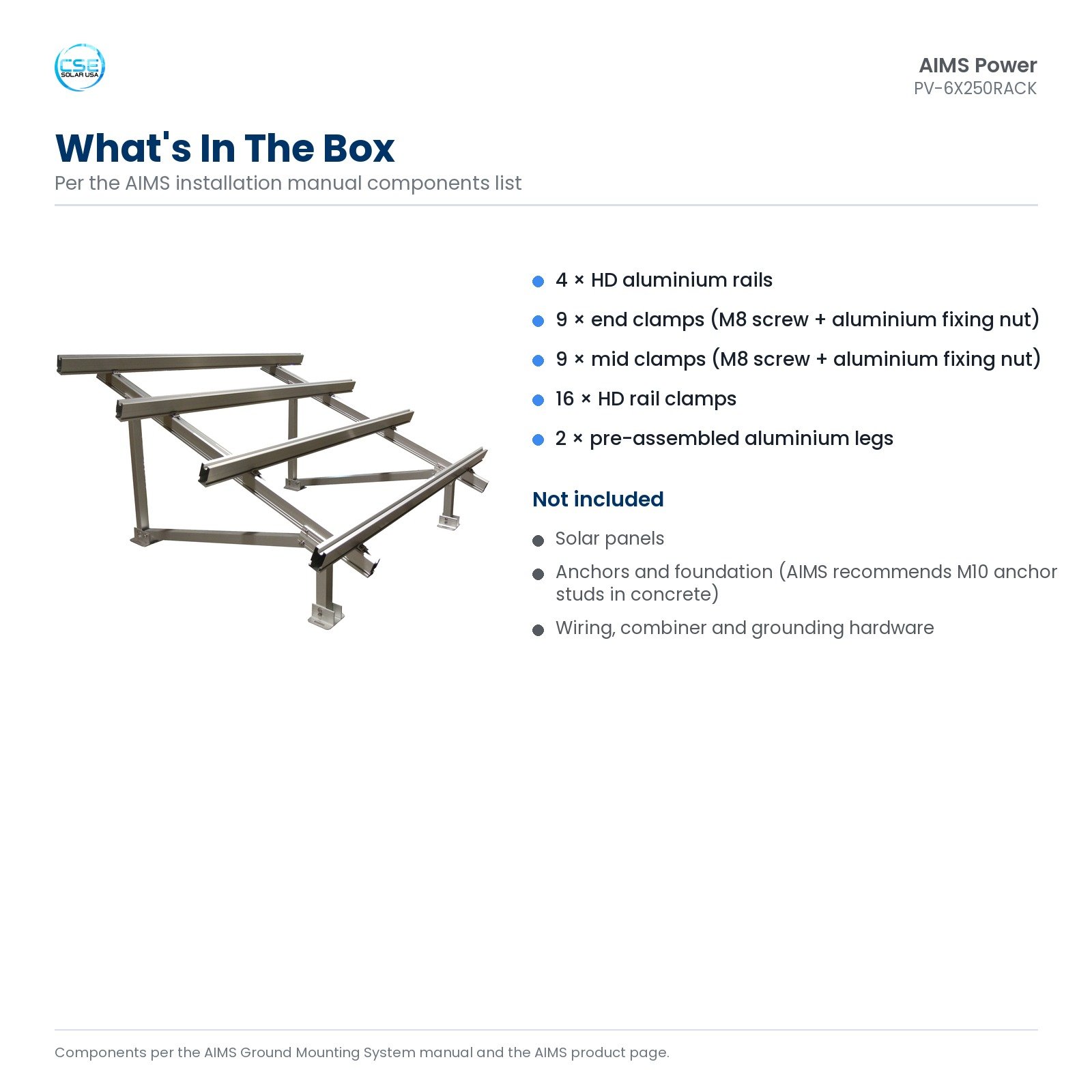

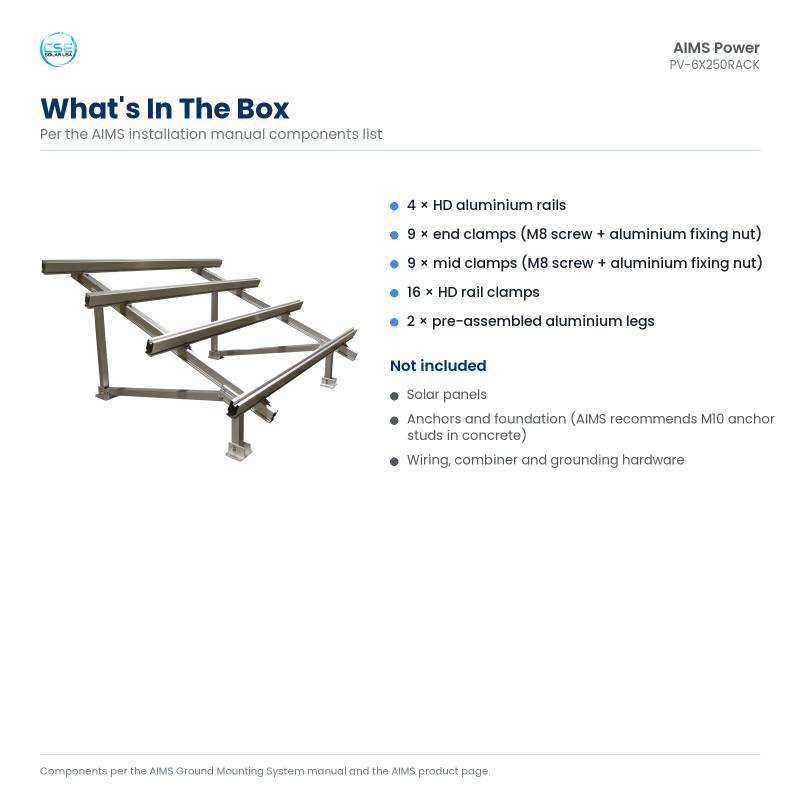

What’s included

• 4 × HD aluminium rails
• 9 × end clamps (M8 screw + aluminium fixing nut)
• 9 × mid clamps (M8 screw + aluminium fixing nut)
• 16 × HD rail clamps
• 2 × pre-assembled aluminium legs

Not included: Solar panels; Anchors and foundation (AIMS recommends M10 anchor studs in concrete); Wiring, combiner and grounding hardware.

Applications

• Ground arrays: A low, sturdy platform for six panels on a slab, footings or approved base — no roof penetrations.
• Off-grid and remote: Quick bolt-up assembly with pre-assembled legs for cabins, pump stations and work sites.
• Expandable rows: Add racks side by side or choose the 12-panel two-pack for larger arrays.

Solar panels, anchors/foundation and wiring are not included. Check local permitting, soil and wind requirements before installation.

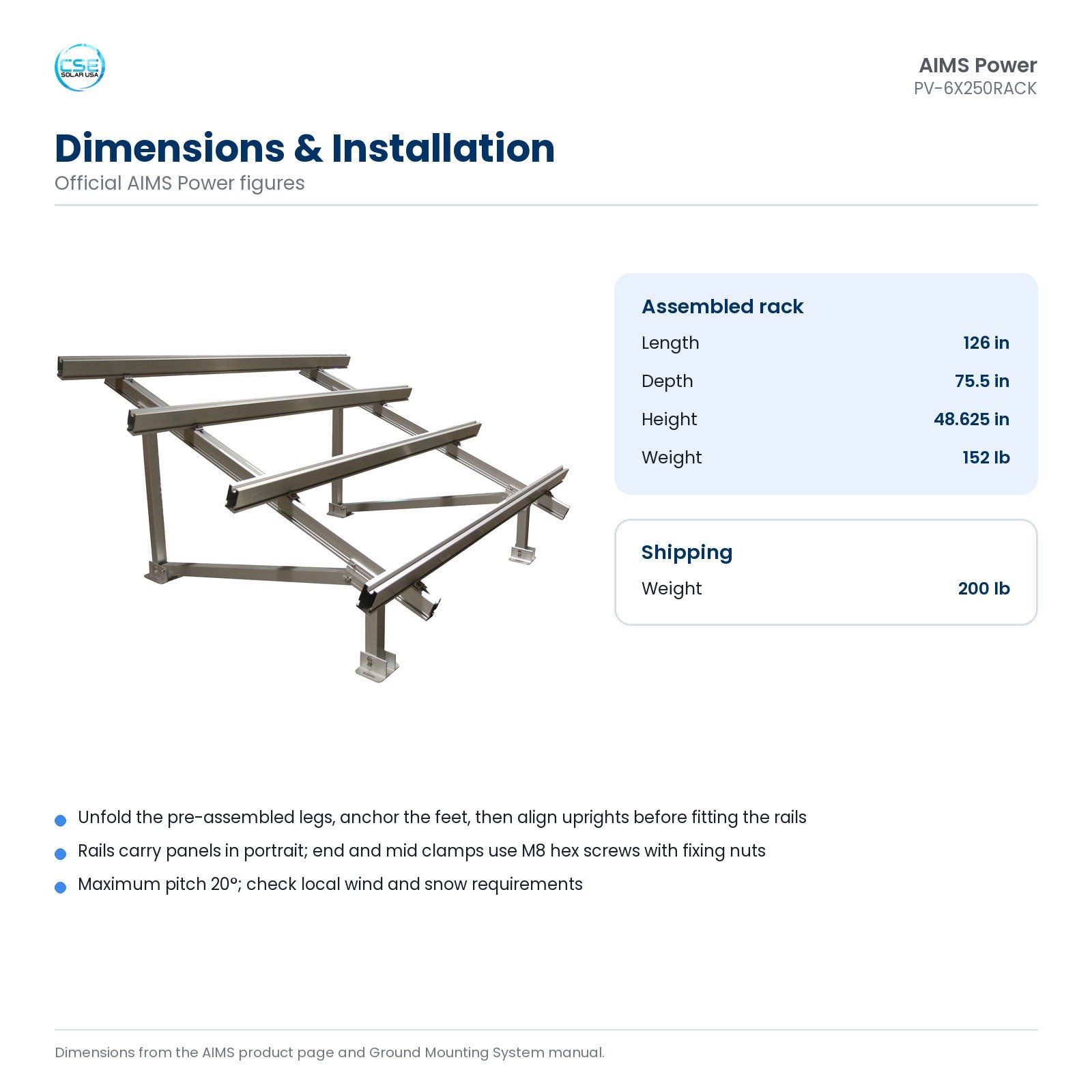

Dimensions and weight

• Unfold the pre-assembled legs, anchor the feet, then align uprights before fitting the rails
• Rails carry panels in portrait; end and mid clamps use M8 hex screws with fixing nuts
• Maximum pitch 20°; check local wind and snow requirements

Warranty

5-year AIMS Power warranty on solar racks (orders on or after 1 February 2026). CSE Solar USA is an authorized AIMS Power distributor.

Shipping

Nationwide Freight Shipping — Request a Freight Quote. Shipping weight about 200 lb.

Downloads (official AIMS Power documents)

Frequently asked questions

Specifications and included components are taken from the official AIMS Power product page, current warranty policy and manuals for PV-6X250RACK; subject to AIMS updates.
