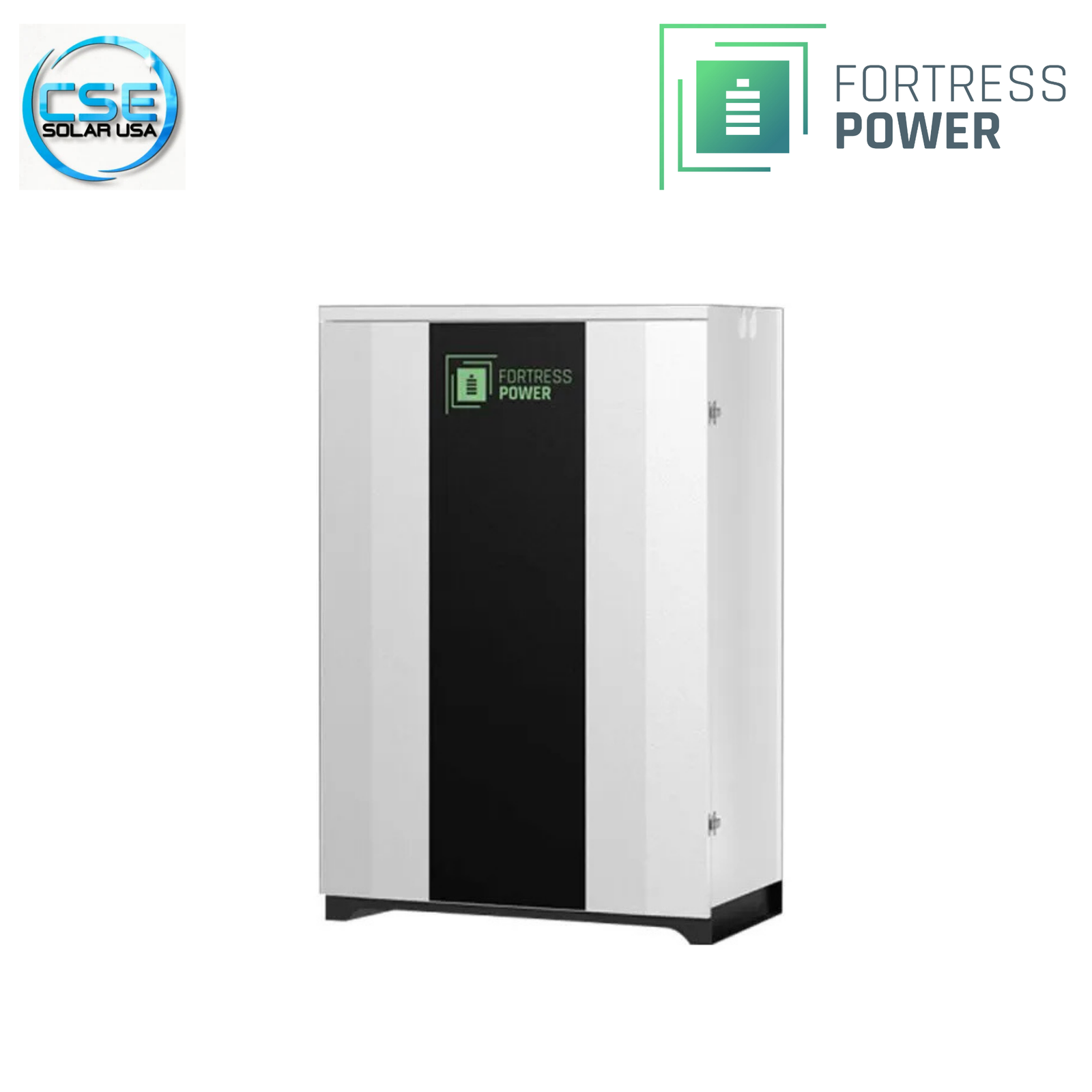

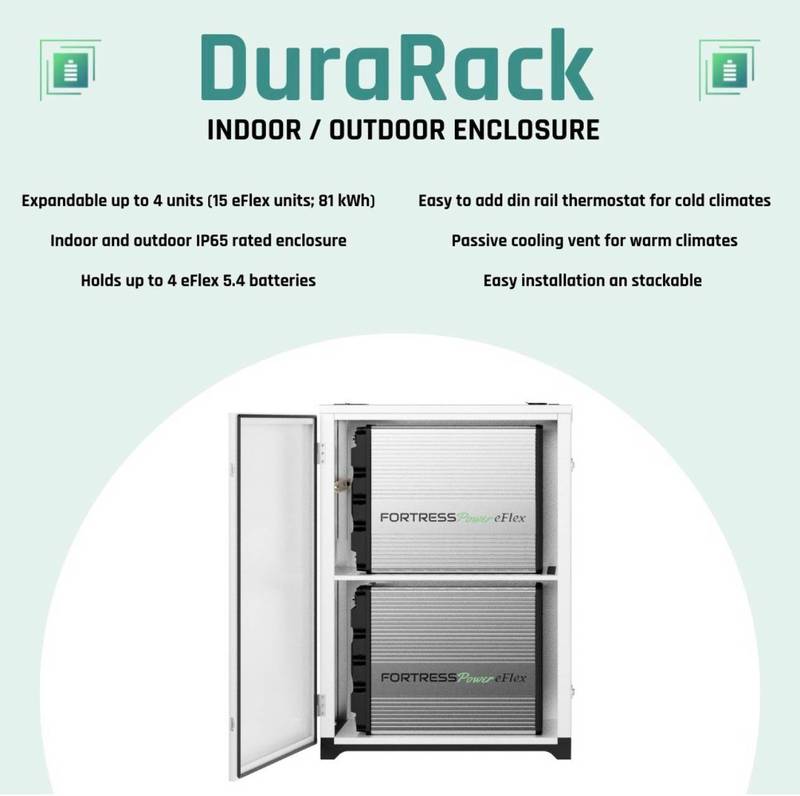

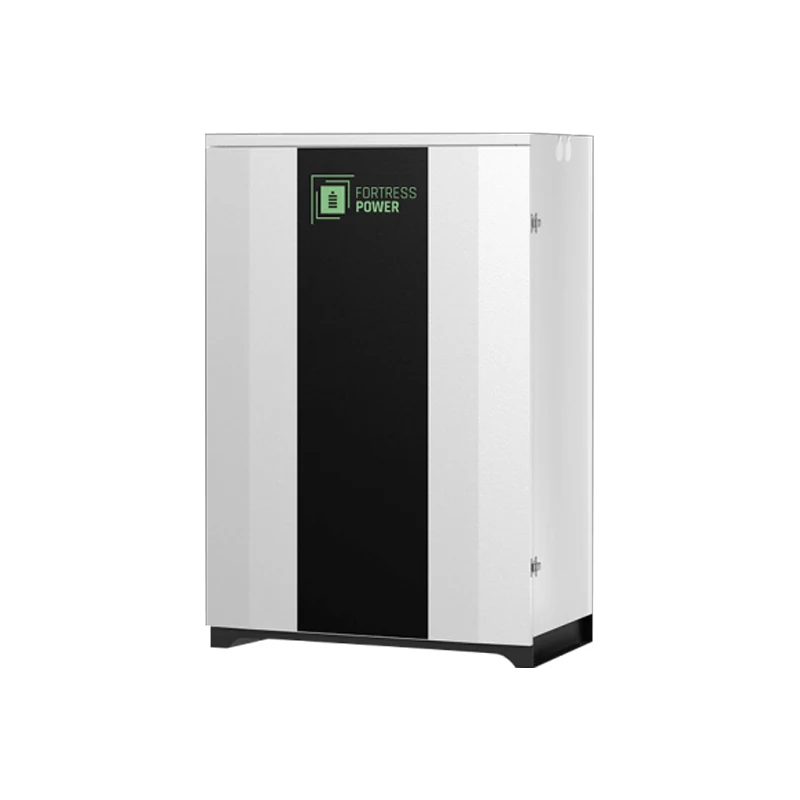

Benefits of DuraRack

• Outdoor Versatility: The IP65-rated welded steel enclosure protects against rain, snow, dust, and humidity, allowing for flexible installation locations outside the main property.

• Rapid Installation: It comes pre-wired with heavy-duty busbars and battery cables, significantly reducing the time and labor required to connect multiple battery modules.

• Active Climate Control: An integrated thermostat-controlled fan cap automatically vents heat, ensuring the batteries remain at optimal operating temperatures even in warmer climates.

• Enhanced Security: Features a lockable front door to prevent unauthorized access, theft, or tampering, providing peace of mind for outdoor or accessible installations.

General Data

• Dimensions (W x H x D): 29.29 x 41.34 x 18.03 in (744 x 1050 x 458 mm)

• Weight (Empty): 59.6 kg / 153.2 lbs

• Weight (Loaded): Approx. 600 lbs (with 4 batteries)

• Enclosure Rating: IP65 / NEMA 3R equivalent

• Finish: Outdoor Powder Coat (White/Grey)

• Compliance: NEC 110.26 (Working Space)

Frequently Asked Questions

Q1: Which batteries fit inside the DuraRack?

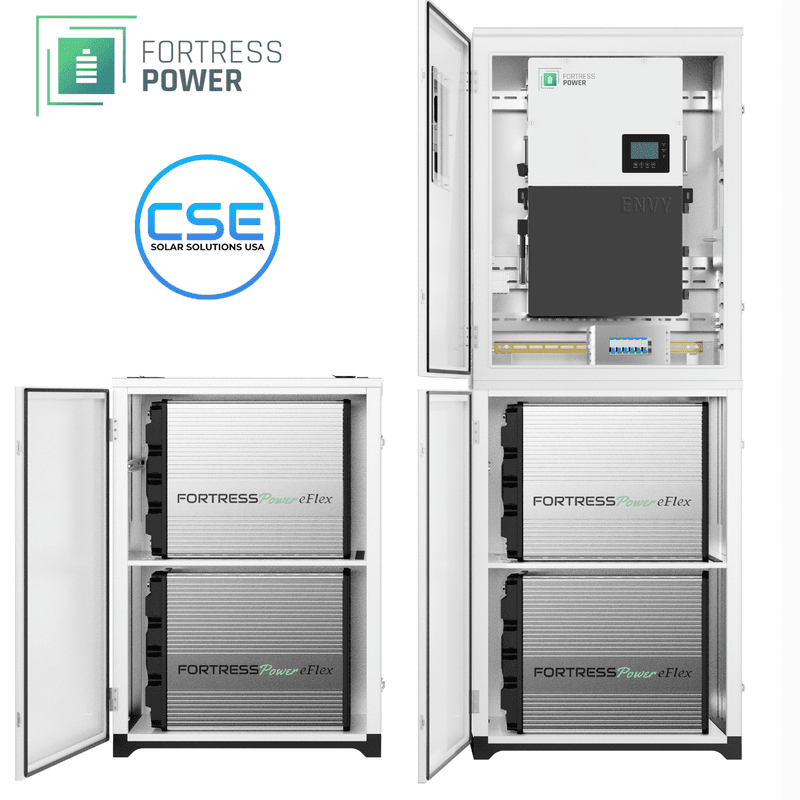

The DuraRack is specifically engineered to house the Fortress Power eFlex 5.4kWh and eFlex MAX battery modules. Standard 19-inch server rack batteries from other brands may not fit the mounting rails or cabling layout.

Q2: Is it fully waterproof?

Yes, the enclosure is IP65 rated, meaning it is dust-tight and protected against low-pressure water jets from any direction. It is designed for outdoor installation, though placing it under an awning or shade is recommended to reduce thermal load.

Q3: Does it come with the batteries?

No. The DuraRack is sold as an empty enclosure with internal wiring hardware. The eFlex battery modules must be purchased separately.

Q4: How does the cooling work?

The cabinet features a 48V DC fan integrated into the door or top cap, powered directly by the battery bank. It uses a thermostat to turn on automatically when the internal temperature rises, pulling cool air in through filtered vents.

Q5: Can I stack multiple DuraRacks?

You cannot stack them vertically, but you can place multiple DuraRacks side-by-side. You would then wire the main output of each DuraRack to a separate external combiner box or directly to the inverter, depending on the system size.
