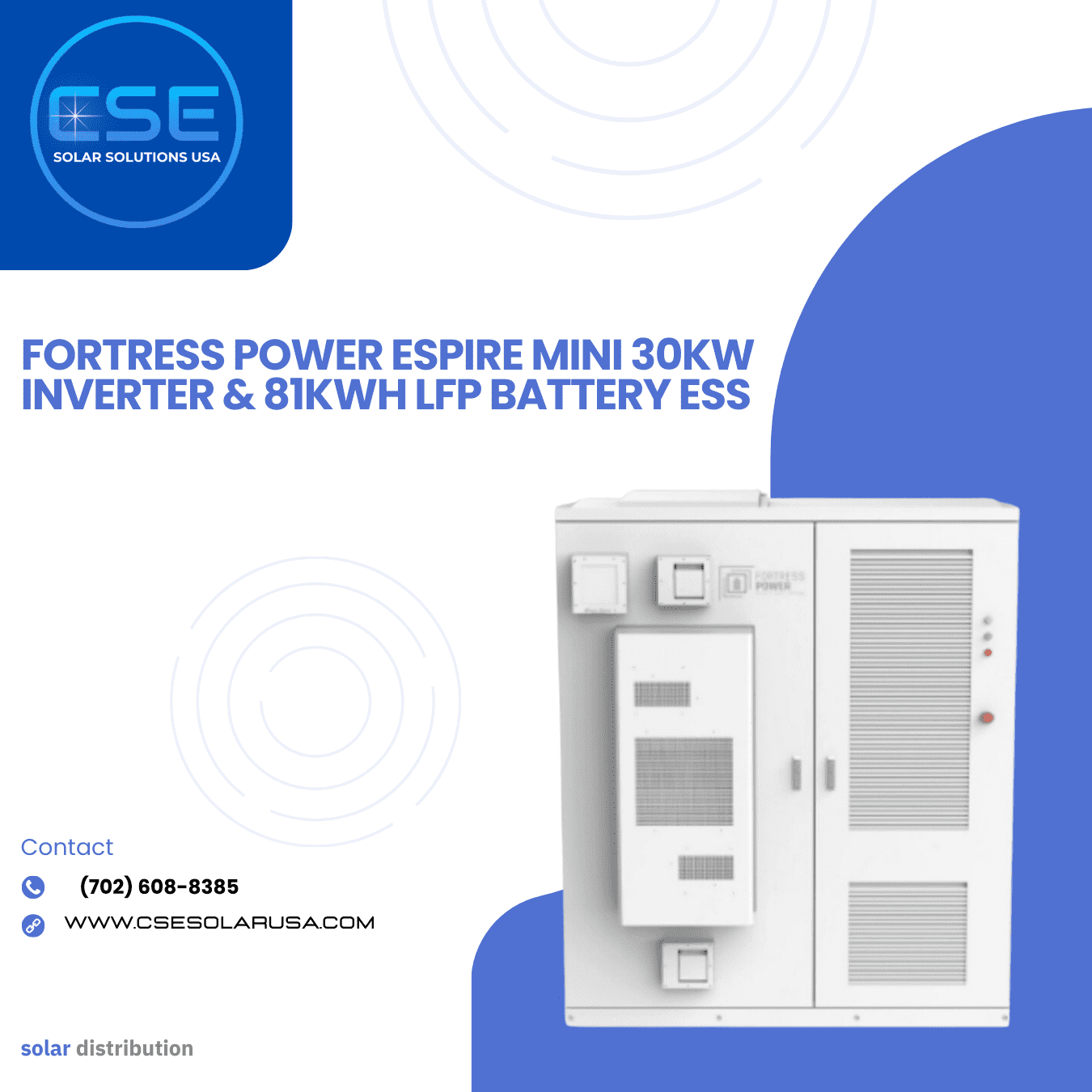

Fortress Power ESpire Mini 30kW Inverter & 81kWh LFP Battery ESS
$99,000.00
14 people are viewing this product right now
- Select Wire/ACH at checkout to save $150.00!
Pricing for base 81kWh and 30 kW 208V an 60kW 480V.
Additional costs for islanding, plus model, monitoring, data plan, warranty extensions, integration fees,
90kW, and 122-266kWh expansion options.
Reach out to info@csesolarusa.com to get a quote on any of these upgrades.
The equipment included:
a) eSpire mini outdoor rated ESS cabinet(e) includes:
– Battery Inverter (480VAC or 208VAC), AC or DC coupled
– LFP battery system with CATL battery cells
– Active Cooling & Heating system
– Fire suppression system to meet NEC code
– 100KW Automatic Transfer Switch (ATS) for seamless backup
– Integrated AC and DC breakers for plug & play
b) 1 eGauge Meter & 9 CTs
Fully integrated, pre-configured energy storage solution
• Large Residential – Light Commercial (3Ph 208/480Vac @ 60Hz)
• Microgrid, Backup, Off-Grid, Peak Shaving, Time of Use, Self-Supply, Demand Response, and VPP
• AC and DC Coupling Options
• Scalable Energy Storage Capacity (81 – 266 kWh per unit)
• Indoor and Outdoor Installation
Product Features
Turnkey Solution for Fast Install:
Fully integrated, pre-configured package system reduces on-site installation time; includes inverter(s), battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and outdoor rated enclosure.
Built-in Microgrid Controls
Ability to integrate with solar, genset, wind, micro-turbines, utility, or other distributed energy resources.
Adaptive Intelligent EMS / Fleet Management
Intelligent software to reduce electricity cost, prepare for resiliency, and maximize return on investment. Remote operation and maintenance for multiple sites.
Safe Technology & Multi-level Protection
Tier 1 Lithium Iron Phosphate (LFP) chemistry for the highest level of safety, thermal stability, and reliability; An integrated, multi-level Battery Management System (BMS) monitors, optimizes, and balances the system.
Easy & Flexible to scale (Easy scalability)
This outdoor rated, modularsolution can be expanded depending on the energy and power requirement at either 208Vac or 480Vac with a maximum of 2 units in parallel.
Excellent Local Support
Their US based technicalsupport team can help you from project design to completion.
Characteristics
- Manufacturer: Fortress Power
- Model: FP-MINI-ESS
- Rated Power Output [W]: 30000
- Length [mm (in)]: 2100 mm (82.7 in)
- Width [mm (in)]: 1300 mm (51.18 in)
- Depth [mm (in)]: 2465 mm (97.05 in)
- Weight [kg (lb)]: 2322.39 kg (5,120 lb)
- Wormanship Warranty Period [Years]: 10
- Battery Power [kW]: 30000
- Battery Energy Capacity [kWh]: 81
Inverters
- CEC weighted efficiency @ 240V [%]: 96.5
- Max. Input Power [W]: 45000
- Max. Input Voltage [V]: 810
- Number of MPP Trackers: 3
- Max. Input Current per MPPT [A]: 35
- Voltage Lower Limit for MPP Range [V]: 200
Documents
