FranklinWH ACCY-SCV2-US Smart Circuits Module
$345.00
17 people are viewing this product right now
Warranty: 12 Years

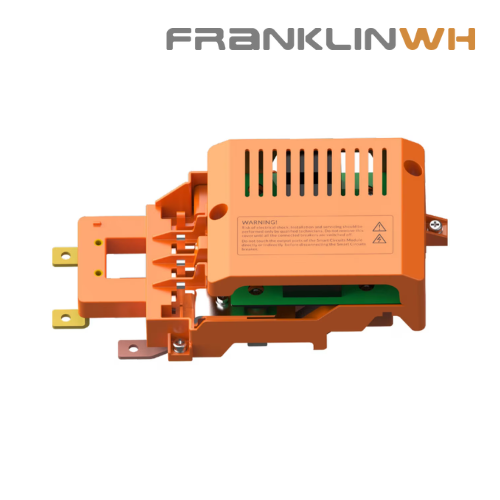

FranklinWH ACCY-SCV2-US Smart Circuits Module
The FranklinWH Smart Circuits Module (ACCY-SCV2-US) is an intelligent load management accessory designed for the Franklin Home Power system. Installed directly inside the aGate, it transforms standard electrical circuits into “smart” loads, giving you granular control to automatically shed power-hungry appliances during outages or schedule them to optimize solar usage.
Product Specifications
-
Number of Controlled Circuits: 3
-
Control Logic: Automatic (State of Charge / Grid Status) or Manual (App)
-
Supported Loads: Split-phase (240V) or Single-phase (120V)
-
Max Breaker Size: Compatible with standard breakers used in aGate (typically up to 60A/80A depending on position)
-
Connectivity: Hardwired integration with aGate controller
General Data
-
Dimensions: Compact internal module (Fits DIN rail/slot inside aGate)
-
Weight: < 1 lb (0.45 kg)
-
Mounting: Internal (aGate Accessory)
-
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
-
Compliance: UL1741, FCC Part 15 Class B
Frequently Asked Questions
Q1: What is the main purpose of this module? It allows you to automatically turn off heavy appliances (like A/C or pool pumps) during a power outage to prevent them from draining your battery too quickly.
Q2: Can I control the circuits manually? Yes. You can turn the connected circuits on or off instantly anytime using the FranklinWH App.
Q3: How many appliances can I control? The module supports 3 independent circuits. If you have a 240V appliance (like a dryer), it uses two breaker slots but counts as one controlled “smart load” if wired accordingly.
Q4: Does this work with older aGate models? It is primarily designed for the aGate X series. Always check compatibility with your installer, but typically it is backward compatible with the standard Franklin Home Power architecture.
Q5: Is it installed inside or outside the aGate? It is installed inside the aGate enclosure, protecting it from the elements and keeping your wall free of extra boxes.
Key Features
- Smart Load Shedding. Extend Backup. The Smart Circuits Module allows you to designate up to three specific circuits—such as electric dryers, EV chargers, or pool pumps—as non-critical loads. When the grid goes down, the system can automatically disconnect these high-draw appliances to preserve battery life for essential needs like refrigeration and lighting, significantly extending your backup duration.
- Time-of-Use Optimization. Beyond emergency backup, this module helps you save money every day. You can schedule these smart circuits to run only during “off-peak” hours when electricity is cheaper, or strictly during the day when your solar panels are producing excess energy. This maximizes your self-consumption and reduces reliance on the grid.
- Seamless & Clean Installation. Designed to fit perfectly within the existing aGate enclosure, the ACCY-SCV2-US module eliminates the need for external sub-panels or “smart plugs.” It connects directly to the aGate’s internal control board, maintaining a clean, professional aesthetic while adding powerful functionality to your energy system.
| Weight | 1 lbs |
|---|---|
| Dimensions | 3.9 × 10.2 × 4.9 in |
| MPN | ACCY-SCV2-US |
