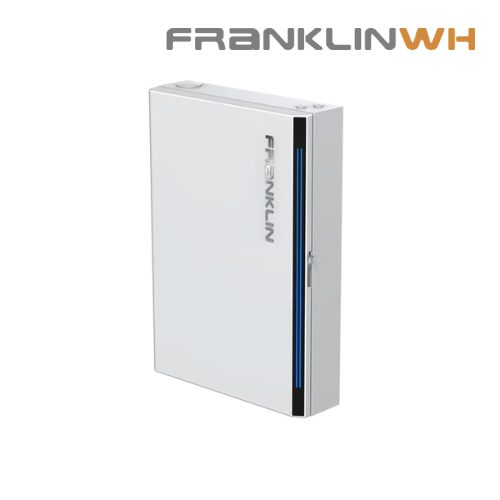

FranklinWH aGate X AGT-R1V1-US Energy Management Device

The FranklinWH aGate X (AGT-R1V1-US), when used with the Franklin Home Power system, acts as the intelligent brain of your energy ecosystem. It seamlessly integrates grid, solar, battery, and generator power, automatically detecting outages to transition your home to backup power in milliseconds. You can monitor performance and manage smart loads directly from the FranklinWH App.

Product Overview

Smart Energy Hub. Complete Integration. The aGate X is a microgrid interconnect device (MID) that unifies all your energy sources. It works with any brand of solar inverter and can integrate standby generators, allowing for true energy independence without being locked into a single ecosystem.

Avoid Panel Upgrades. 280A Busbar. Designed to save installation time and costs, the aGate features a robust 280A busbar rating. This high capacity allows it to handle heavy loads and often eliminates the need for expensive main service panel upgrades (MPU) when adding solar and storage to your home.

Smart Load Control. Intelligent Shedding. With the optional Smart Circuits Module, the aGate AGT-R1V1-US allows you to remotely control and schedule heavy loads (like HVAC or pool pumps). In an outage, it can automatically shed these non-critical loads to extend your battery runtime, giving you control over where your energy goes.

Product Specifications

• Switchover Time: < 16 ms (Grid to Backup)

• Busbar Rating: 280 A

• Max Supply Fault Current: 22 kA

• Solar Integration: AC Coupled (80A Max Breaker)

• Generator Support: Up to 200A (via optional internal module)

• Smart Circuits: Support for 3 circuits (via optional internal module)

General Data

• Dimensions (H x W x D): 31.5″ x 21.7″ x 6.3″ (800 x 550 x 160 mm)

• Weight: 50 lbs (23 kg)
