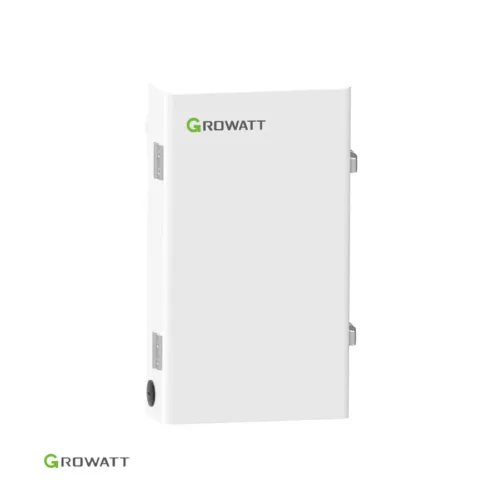

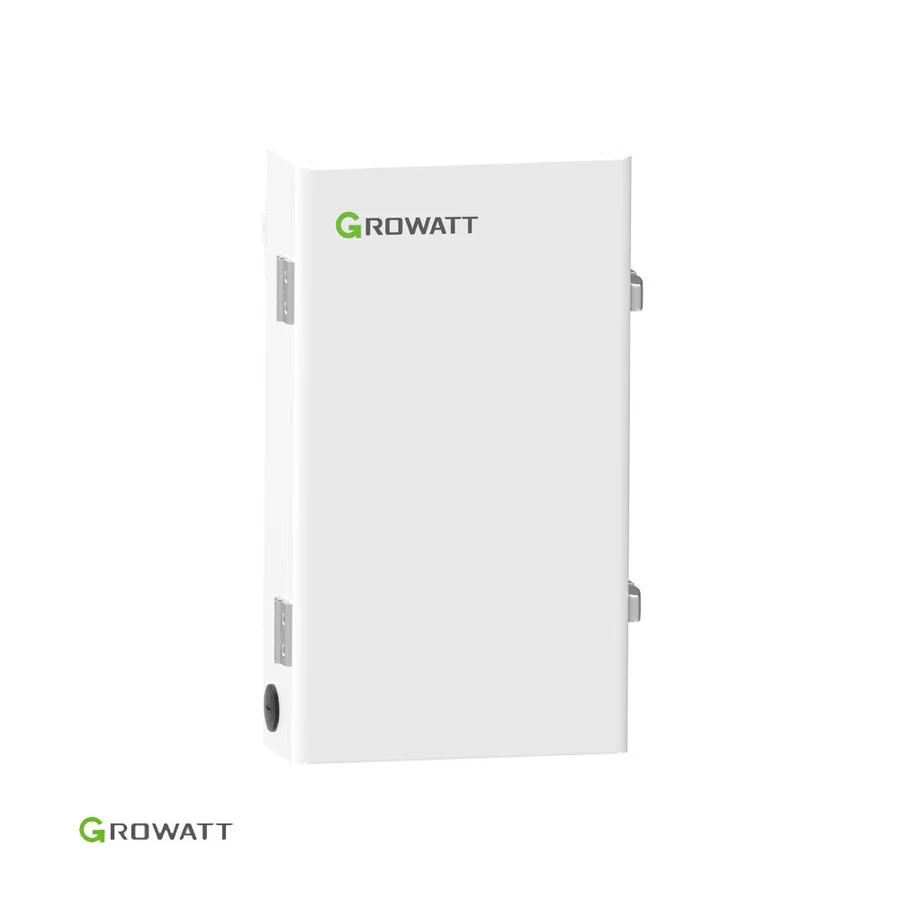

Growatt ATS 5000T-US | 5kW output | works with Growatt MIN series inverter for home energy system
$495.00
15 people are viewing this product right now
Growatt ATS 5000T-US 5kW auto transfer switch and US Split Phase transformer take Single Phase 240Vac (L/N) electricity output and create true Split Phase 120Vac/120Vac (L/L/N).

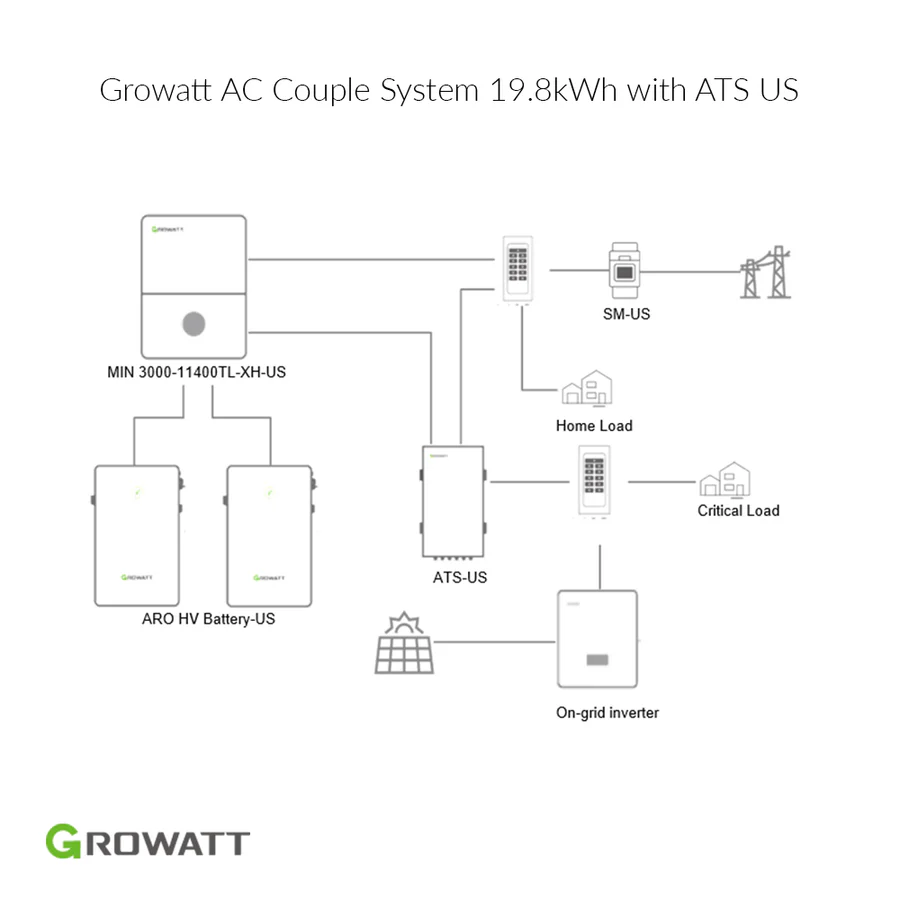

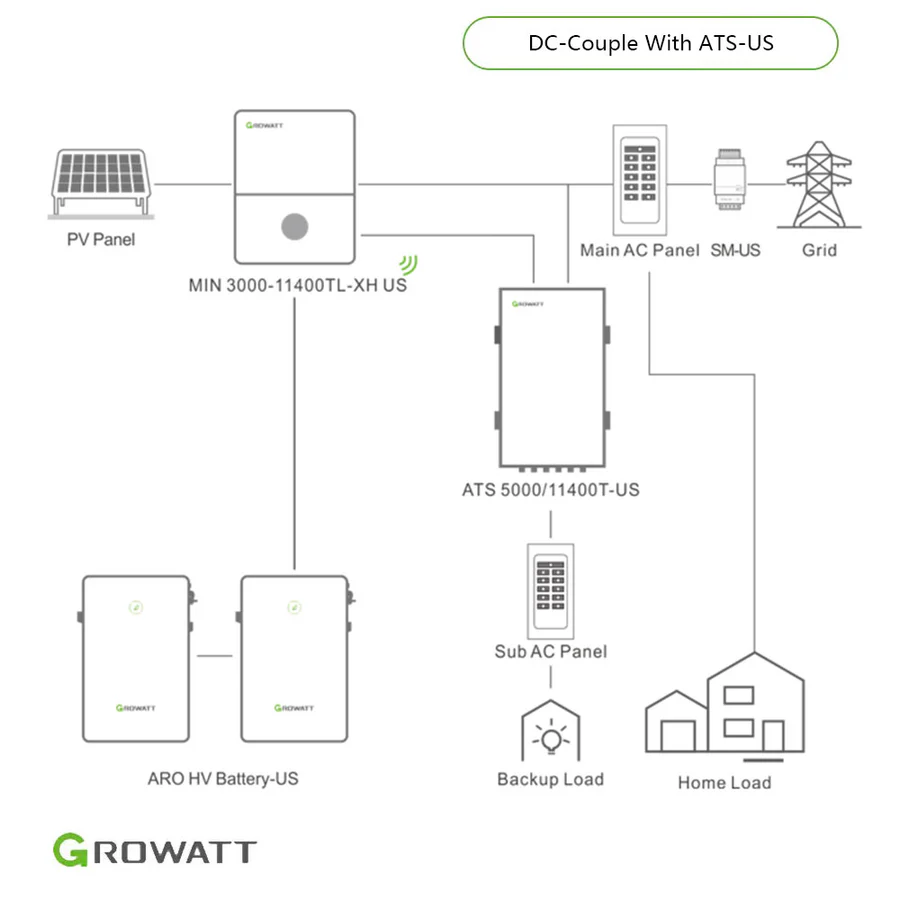

Growatt ATS 5000T-US 5kW auto transfer switch and US Split Phase transformer take Single Phase 240Vac (L/N) electricity output and create true Split Phase 120Vac/120Vac (L/L/N). ATS addition to our line sheet improves safety and ease of use for the user with designated input and output locations to simplify connecting this transformer to your system. This product is typically used to be integrated into the Growatt home battery storage system with MIN series Grid-tie inverter, Growatt APX HV Battery ( or ARO HV Battery ).
* 25A Automatic Transfer Switch for Partial Home Backup
* Compatible with V1/V2 Inverter
Product Overviews
| Manufacturer | Growatt |
| Model | ATS 5000T-US |
| Rated power output | 5000W |
| Output voltage | 120/240Vac |
| Dimensions(W/H/D) | 18.9 / 10.8 / 4.1 inch ( 480 / 275 / 105mm ) |
| Weight | 34.3lbs ( 15.6kg ) |
| Warranty | 10 Years |
Key Features
- Backup Capability
Partial home load backup - Easy Operation
Built-in split-phase transformer for 120v/240v output - Application Flexibility
5kW available
| Weight | 34.3 lbs |
|---|---|
| Dimensions | 18.9 × 10.8 × 4.1 in |
| MPN | S-ATS5000-US |
