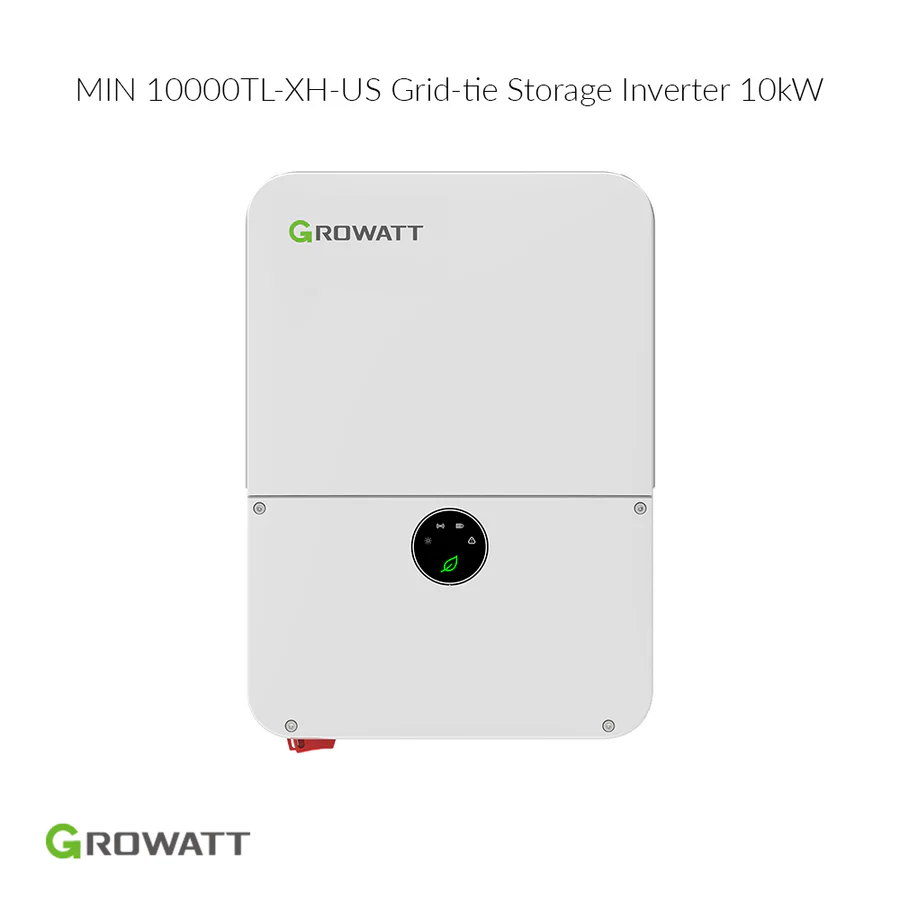

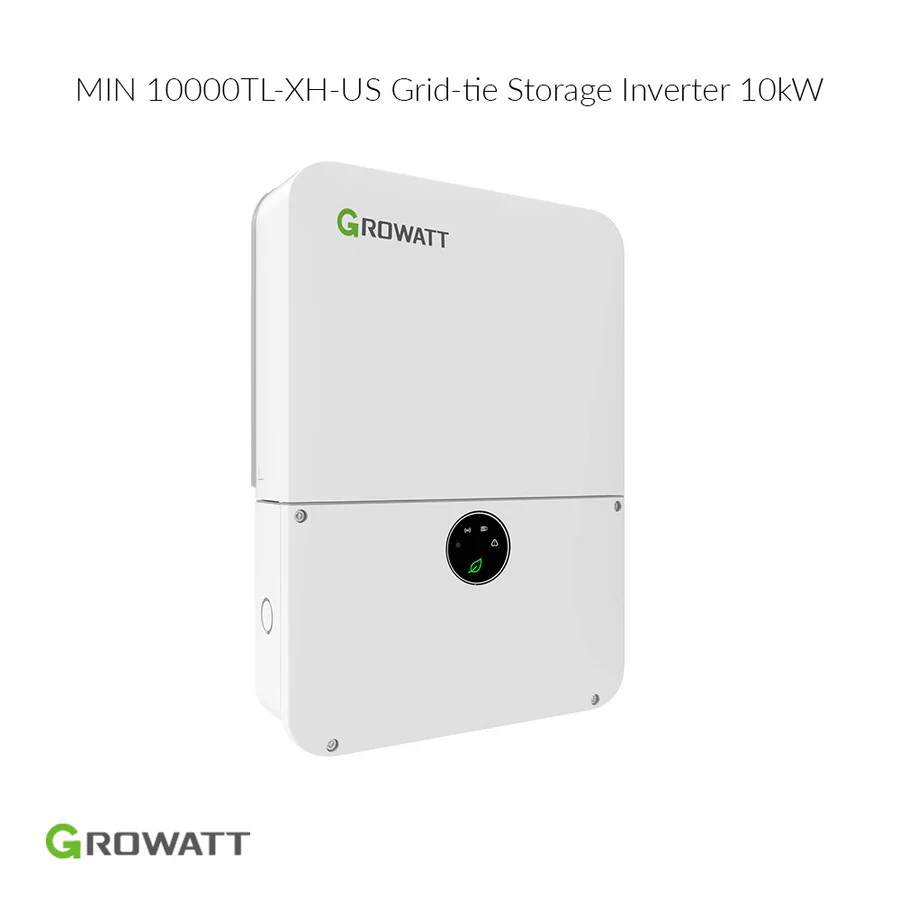

Growatt MIN 10000TL-XH-US 10.0kW Grid-Tie Storage inverter
$1,449.00
45 people are viewing this product right now
- Battery Ready for DC Coupled and AC Coupled systems
- Certificated UL9540 with Growatt ARO/APX battery system.
- High yields:
– DC/AC Ratio up to 2.0
– MPPT trackers up to 4
– Max. efficiency 98.5% - With backup power and dark start operations
- Support RSD and AFCI
- Support multiple energy management modes:
– Self-consumption;
– Zero Export;
– TOU and Off-grid - Comply with UL1741SA/SB, CA Rule 21 & HECO
- V1/V2 pairs with ATS for Partial home backup, V3 pairs with SYN for whole home backup
The Growatt MIN 10000TL-XH-US is a cutting-edge Grid-Tie inverter with multi-functional for building battery storage systems, compatible with Growatt ARO/APX HV battery. This model was designed specifically for residential energy storage systems, it also can support off-grid and solar systems when paired with Growatt ATS(Auto Transfer Switch).
The WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.
Note: we only have the model in stock:
MIN 1000TL‐XH‐US (WG5) (TRS‐T) (RGM) (V2) WIFI/4G + 5 Year Data Plan (WG5)
Product Overviews:
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Storage |
| AC Power | 10.0kW |
| MPP Trackers | 4 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.3% |
| Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
| Electronics Protection Degree | IP65 ( NAMEX4 ) |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
Key Features:
- Leading Functions:
– Whole home backup
– Dark start operation
– Support RSD, AFCI, and RGM meter - High Yields:
– DC/AC Ratio up to 2.0
– Max. efficiency 98.3% - System Compatibility
– DC-Coupled and AC-Coupled systems
– Self-consumption, Zero Export, TOU, and Off-Grid
– UL1741SA/SB, CA Rule 21 & HECO
Product Specifications:
PV INPUT
- Max PV Input Power:20.0 kW
- Max Input Voltage: 600V
- Full load Voltage Range: 210~500V
- Max Input Current per MPTT: 13.5A
- Max Short-circuit Current per MPTT: 16.9A
- MPP Trackers: 4
- Strings per MPP Tracker: 2
Battery Connection
- Battery Voltage Range: 360~550V
- Rated Battery Voltage: 400V
- I/O DC Current: 28.6A
- I/O DC Power: 10.3kW
AC OUTPUT (GRID)
- Nominal Power: 10kW
- Max Output Current: 47A
- Nominal AC Voltage: 208/240V
GENERAL DATA
- Dimensions(W*H*D): 15.8*25.2*7.4 inch( 400*638*187mm)
- Weight: 45.2lbs (20.5kg)
- Installation: Indoor, Outdoor, Wall-mounted
- Monitoring Module: WiFi+ LAN, 4G(Optional)
MIN 7600-11400TL XH-US UL1747 SA
MIN 8200-11400TL-XH-US UL1741SB
| Weight | 45.2 lbs |
|---|---|
| Dimensions | 15.8 × 25.2 × 7.4 in |
| MPN | 10000TL-XH-US |
