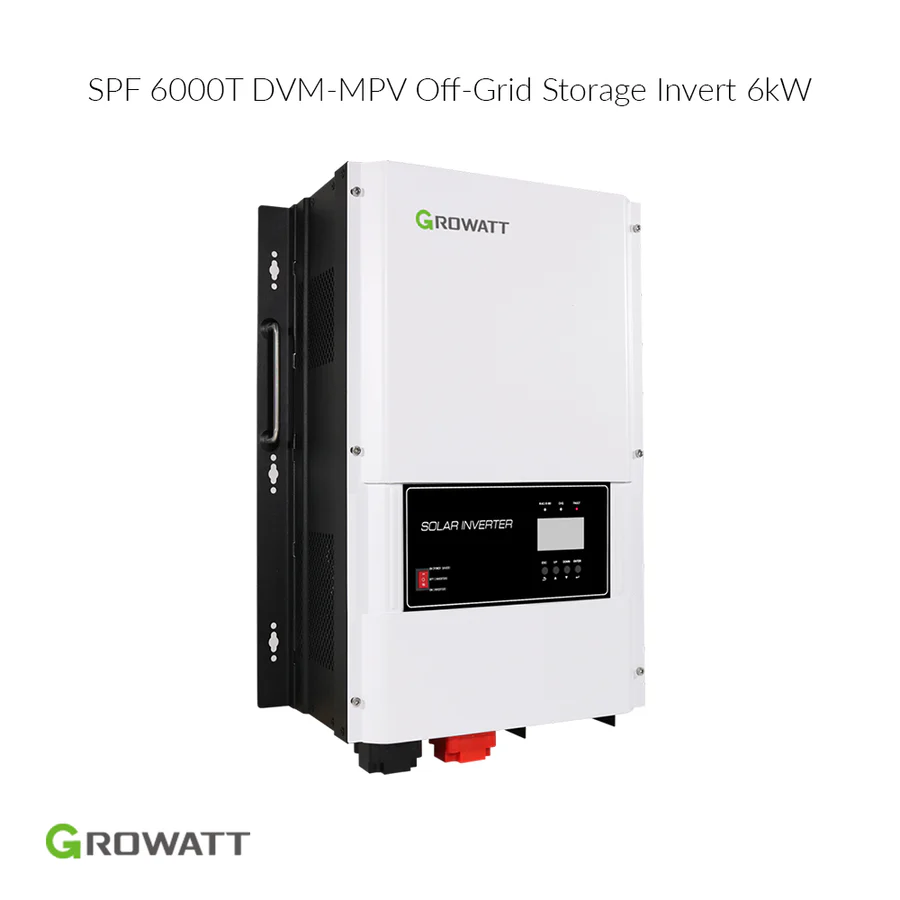

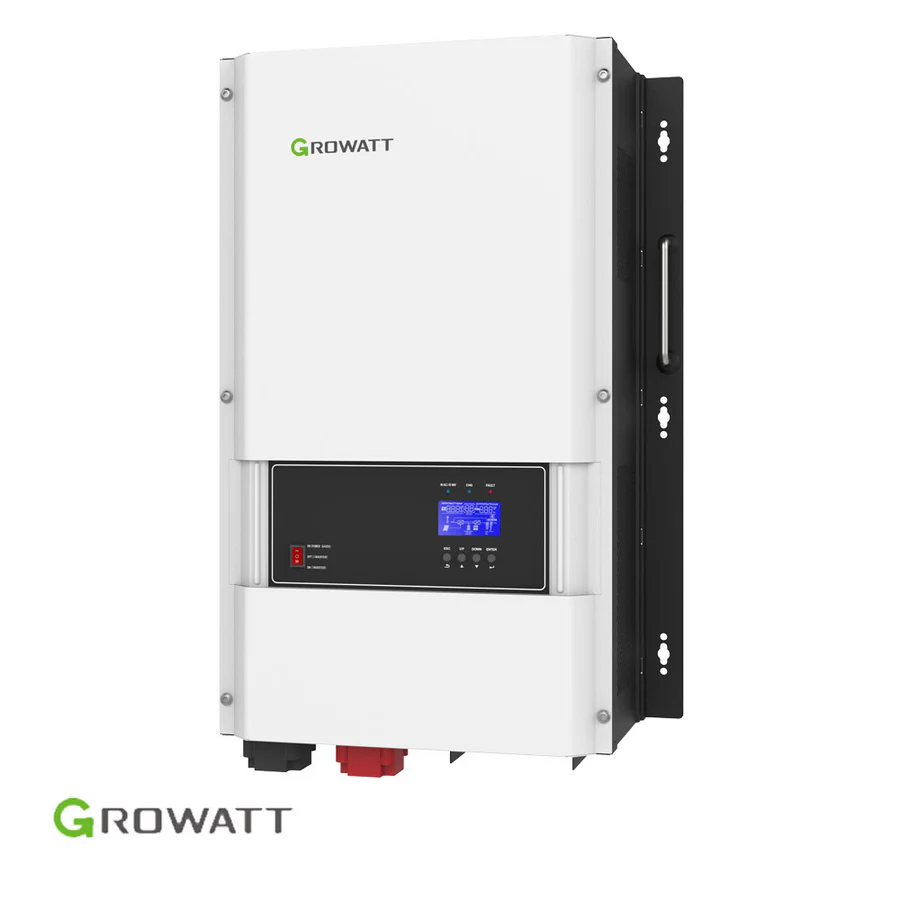

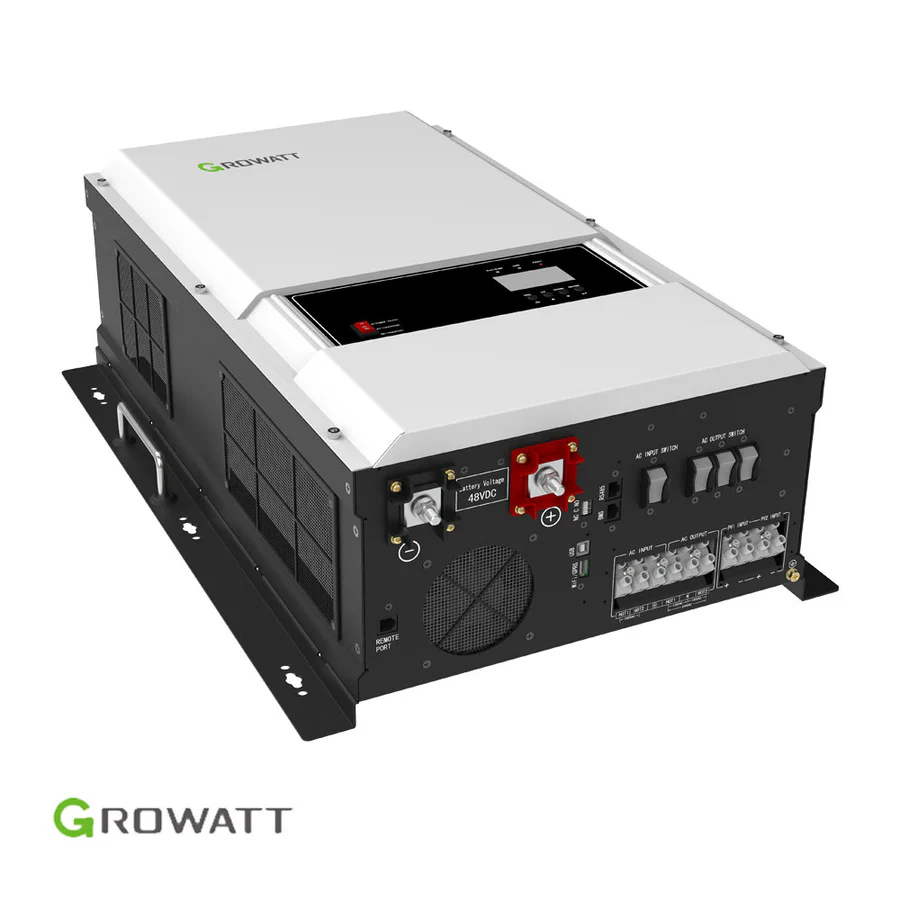

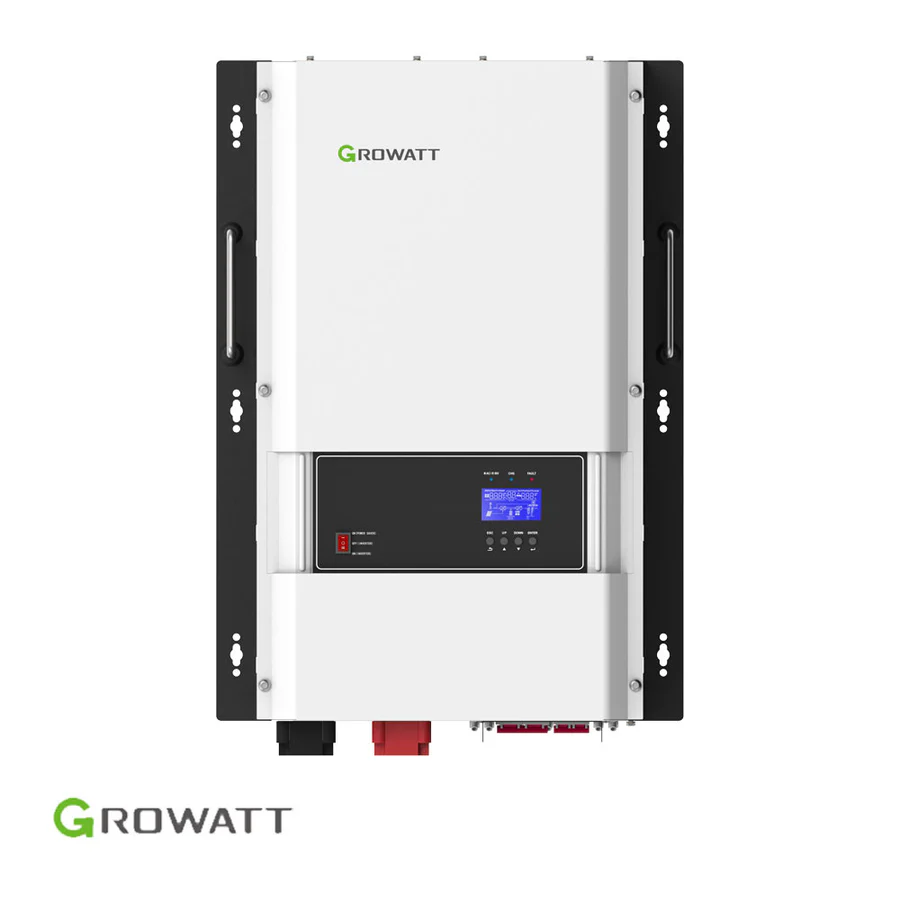

Growatt SPF 6000T 6.0kW Split Phase Off-Grid Storage Inverter | DVM-US MPV

The Growatt SPF 6000T DVM-US MPV, is a 6kW Split Phase Off-Grid Inverter designed to provide reliable and efficient power for off-grid solar systems. With its advanced Dual Maximum Power Point Tracking (DVM-MPV) technology, this inverter can maximize the energy output of your solar panels, ensuring you get the most out of your system. The SPF 6000T is also equipped with a range of protection features, including over-voltage, under-voltage, over-temperature, and short-circuit protection, ensuring your system stays safe and operational even in adverse conditions. With its compact and user-friendly design, the Growatt SPF 6000T is an all-in-one unit that can provide power via solar array, 48v battery bank, or generator/utility.

Product Overviews:

Key Features:

• Scalable & Flexible:
  – Multi-customized modes for diverse scenarios
  – Support Multiple power sources
  PV, Battery, Diesel generator, and utility
  – Compatible with lithium, lead-acid, and GEL batteries
• High Yields:
  – Output power factor up to 1.0
  – 2 times peak power ability
  – Dual voltage output
• Smart & Reliable
  – Support WiFi and GPRS Communication for remote monitoring
  – PV keeper platform for local commissioning
  – Built-in low-frequency transformer

Product Specifications:

 Inverter Output

• Rated Power: 6.0kW
• Surge Rating: 18kW
• Inverter Efficiency(Peak): >85%
• Transfer Time 10ms( max )

AC Input

• Voltage: 240VAC
• Max Charging Current: 60A

Solar Charger

• Maximum PV Charge Current: 80A
• Maximum PV Array Power: 5.0kW
• Maximum PV Array Open Circuit Voltage: 250VDC
• MPPT Range@ Operating Voltage: 60~245VDC
• Maximum Efficiency : >97.5%

GENERAL DATA

• Dimensions(W*H*D):  14.17/21.26/8.58 inches( 360*650*218mm)
• Weight: 114.6lbs (52kg)
• Installation: Indoor, Wall-mount
• Protection Degree: IP20
