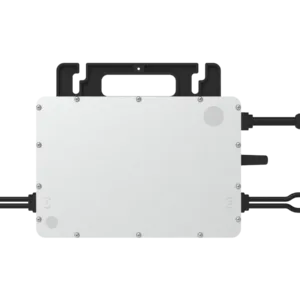

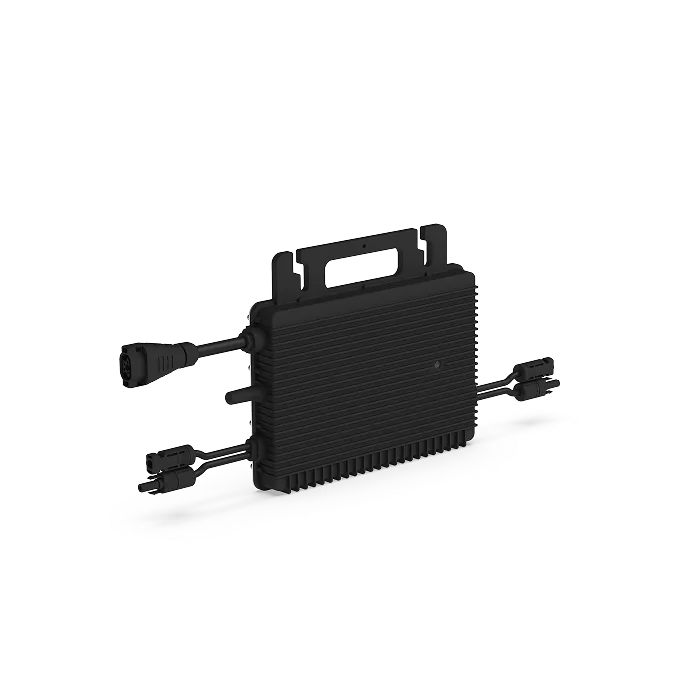

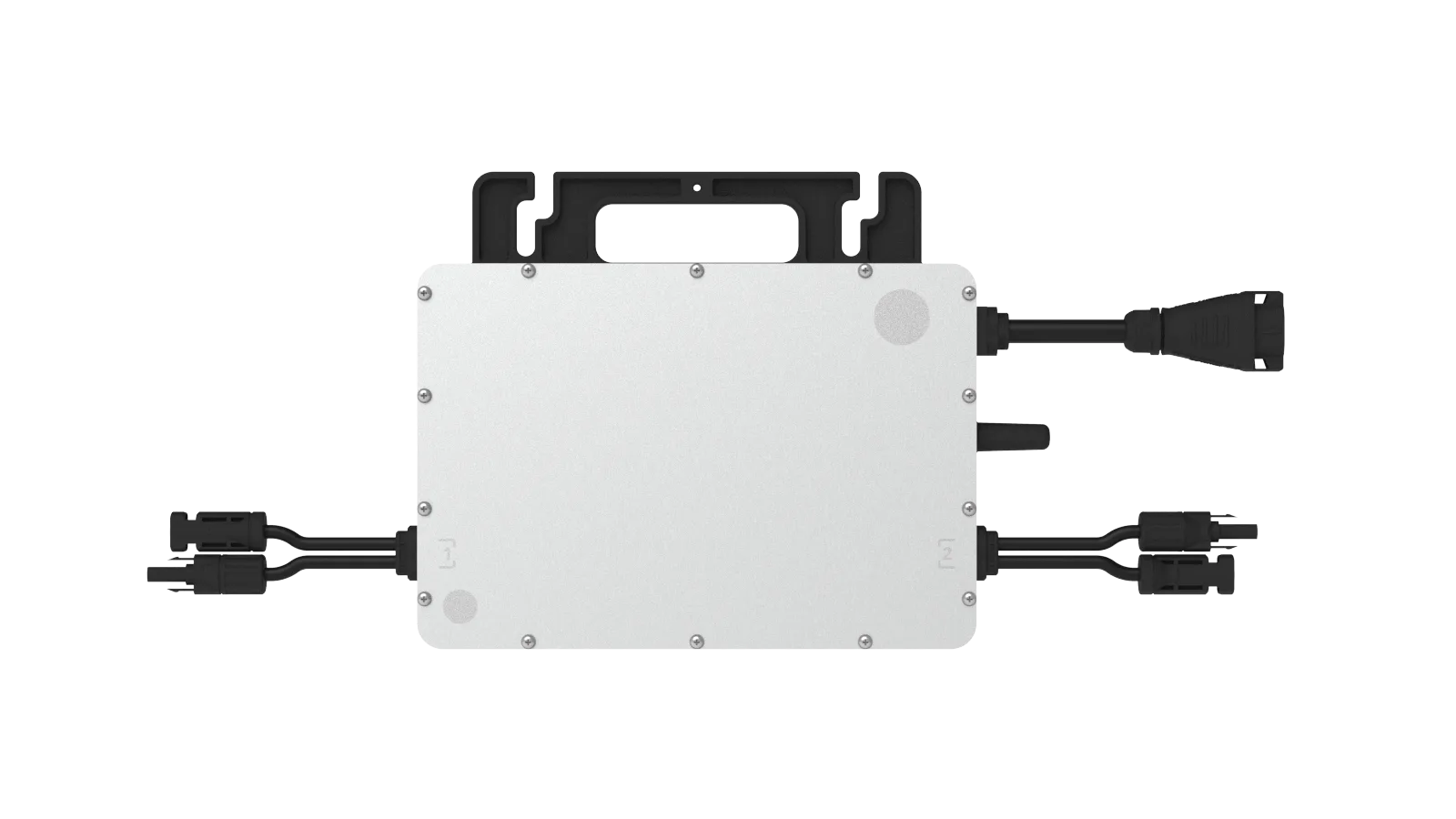

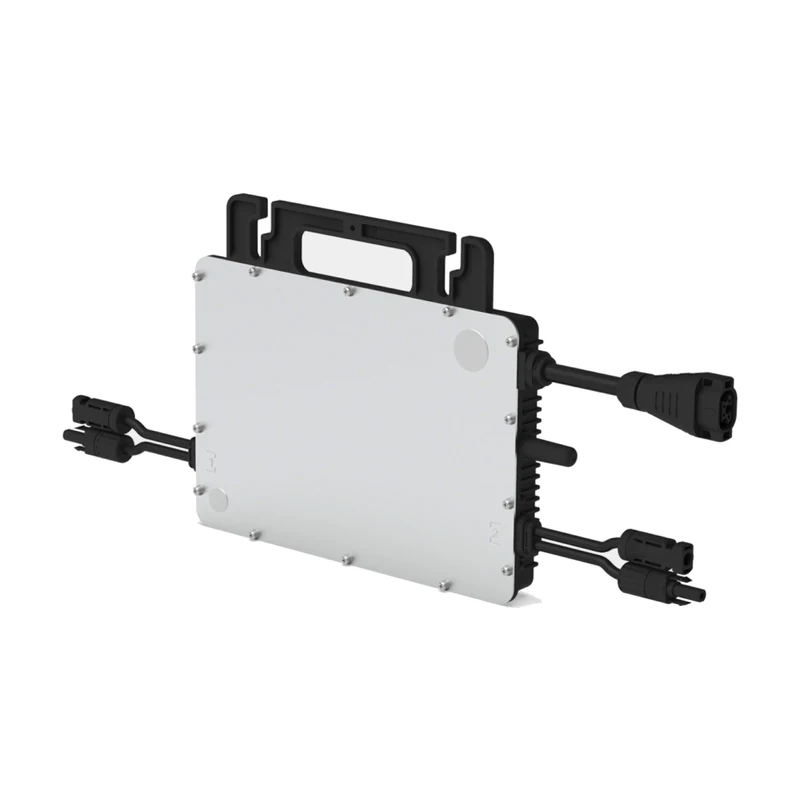

Hoymiles HMS-800-2T-NA 2-in-1 Microinverter | 800W Peak Output for 360-600W Solar Panels
$261.00
8 people are viewing this product right now
Optimize your solar system with the Hoymiles HMS-800-2T-NA 2-in-1 Microinverter. Supports 360-600W panels, independent MPPT, and Sub-1G wireless monitoring.
High-Powered Module, Rooftop Safety Compliance, Independent MPPT Monitoring, 2-in-1 Design, Stable Sub-1G Communication.
The Hoymiles HMS-800-2T-NA 2-in-1 Microinverter is designed for high-powered solar panels ranging from 360W to 600W, making it one of the top-performing 2-in-1 microinverters on the market. Each unit supports two solar panels with independent MPPT for optimized energy harvest and module-level monitoring, ensuring maximum power production for residential and commercial PV installations.
With a maximum DC voltage of 65V, the microinverter complies with PV Rapid Shutdown requirements and meets NEC-2017, NEC-2020 and CEC-2021 standards for safety. Its advanced Sub-1G wireless solution ensures stable and reliable communication with the Hoymiles DTU gateway, allowing effortless remote monitoring, maintenance, and performance tracking from anywhere via the S-Miles Cloud platform.
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| Commonly Used Module Power (W) | 320 to 540+ |
| Maximum Input Voltage (V) | 65 |
| Maximum Input Current (A) | 2 × 14 |
| Number of MPPTs | 2 |
| Rated Output Power (VA) | 800 |
| Nominal Output Voltage / Range (V)* | 240/211–264; 208/183–228 |
| CEC Peak Efficiency | 96.70% |
| Enclosure Rating | IP67 (Outdoor – NEMA 6) |
| Warranty | 25 years |
| Weight | 7.05 lbs |
|---|---|
| Dimensions | 7.09 × 10.28 × 1.38 in |
| MPN | HMS-800-2T-NA |
