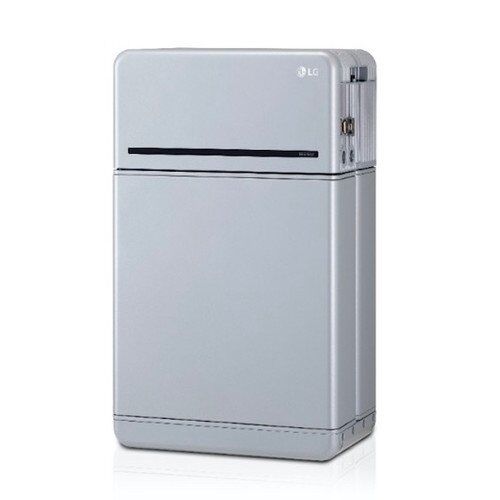

LG-RESU-10H-Prime 16kWh Lithium-ion Battery
Original price was: $5,499.25.$4,459.59Current price is: $4,459.59.
17 people are viewing this product right now
LG-RESU-10H-Prime 16kWh Lithium-ion Battery
The RESU10H Prime battery pack designed for photovoltaic systems is an easily adaptable energy storage solution.
The smartest choice of first home battery for daily use, enough capacity to back up critical loads during peak hours and emergencies;

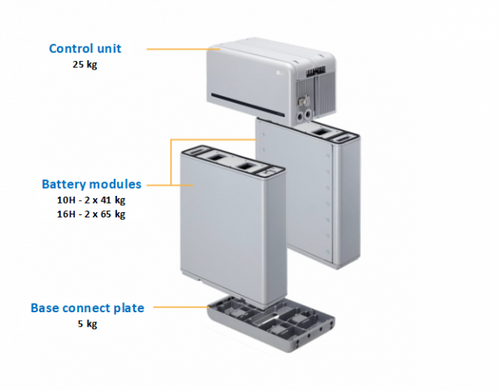

Unique modular design, RESU Prime can be divided into a battery control unit and two battery modules. Allows for easier transportation, handling and installation;
On-site maintenance The detachable Contrai unit can be replaced on-site, saving maintenance time;
RESU Monitor remotely monitors battery conditions in real time and proactively diagnoses anomalies, allowing installers to take quick and accurate corrective actions.
ELECTRICAL FEATURES
Usable energy: 9.6 kWh @77°F (25°C)
Voltage range
Charge: 420-450VDC
Discharge: 350-410VDC
Max. Charge/discharge current: 14.3A – 350V
Max. Charge/discharge: 5 KW
Power Peak power (discharge only): 7KW for 10 sec
Peak current (discharge only): 20A for 10 sec
Communication interface: RS485/CAN
DC Protection: Circuit breaker, fuse, DCDC converter
Connection method: Spring loaded connector
User interface: LEDs for normal and fault operation
Protection features: Overvoltage/overcurrent/short circuit/Reverse polarity
Scalability: Maximum 2 in parallel
Specifications:
111 Kg
Size: 504 mm x 817 mm x 295 mm
Voltage Rating: 400 V
Battery Type: Lithium-Ion
Total Energy: 9.6 kWh
Usable Energy: 9.6 kWh
Maximum Power: 5 kW
Peak Power: 7 kW
Enclosure Rating/IP Rating: IP55
Communication Interface: CAN & RS485
As a reminder, batteries should be installed soon after they are delivered to avoid any issues with insufficient charge at time of install.
Installer Certification is required to purchase LG Energy Solution RESU home batteries (Gen 2 RESU and Gen 3 RESU Prime products require separate certifications). Visit the RESU Resource Page to take the certification test.
RESU 10H Prime (Gen 3) high voltage residential energy storage.
*LG Warranty Limitations Exist
***All Battery / Storage products purchased from BayWa r.e. have a limited 30 day return policy. Returns must be in original packaging and unopened. A 15% restocking fee and return shipping charges will be deducted from amount credited for authorized returns.***
Modular design allows RESU Prime to be(more…)
