OSCAL PM200 200 W Portable Solar Panel | Foldable Monocrystalline ETFE
$259.99
42 people are viewing this product right now
- Rated power: 200 W, monocrystalline cells, ETFE laminate
- Voc 25.2 V / Isc 11.42 A, sized for OSCAL PowerMax solar inputs
- Unfolded 53.6 x 235 cm; folded 53.6 x 61.8 cm
- Weight: 7 kg (15.43 lb)
- Warranty: 2 years (OSCAL)
FREE SHIPPING within the continental USA (48 contiguous states). Not available to Alaska, Hawaii, Puerto Rico or other non-contiguous locations.

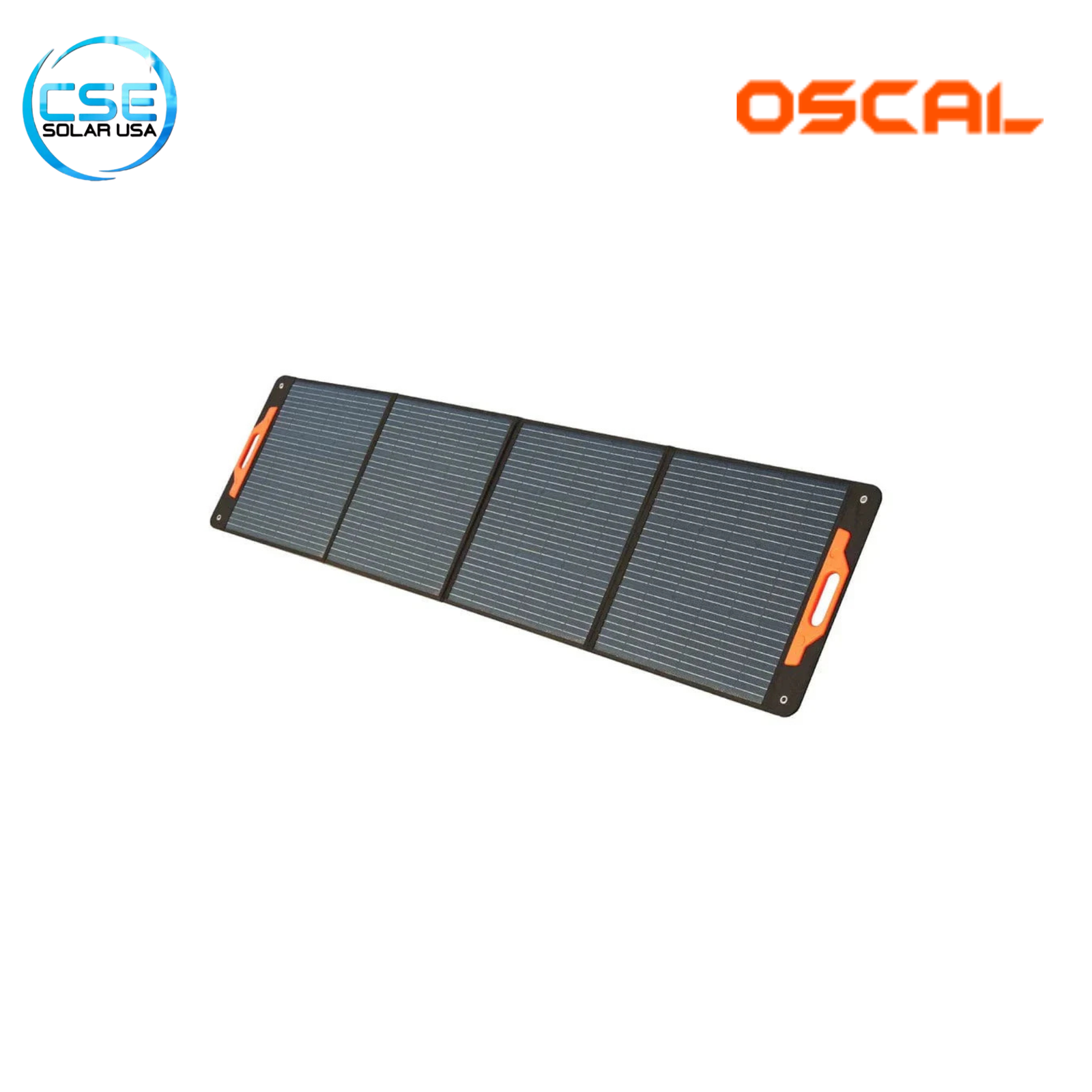

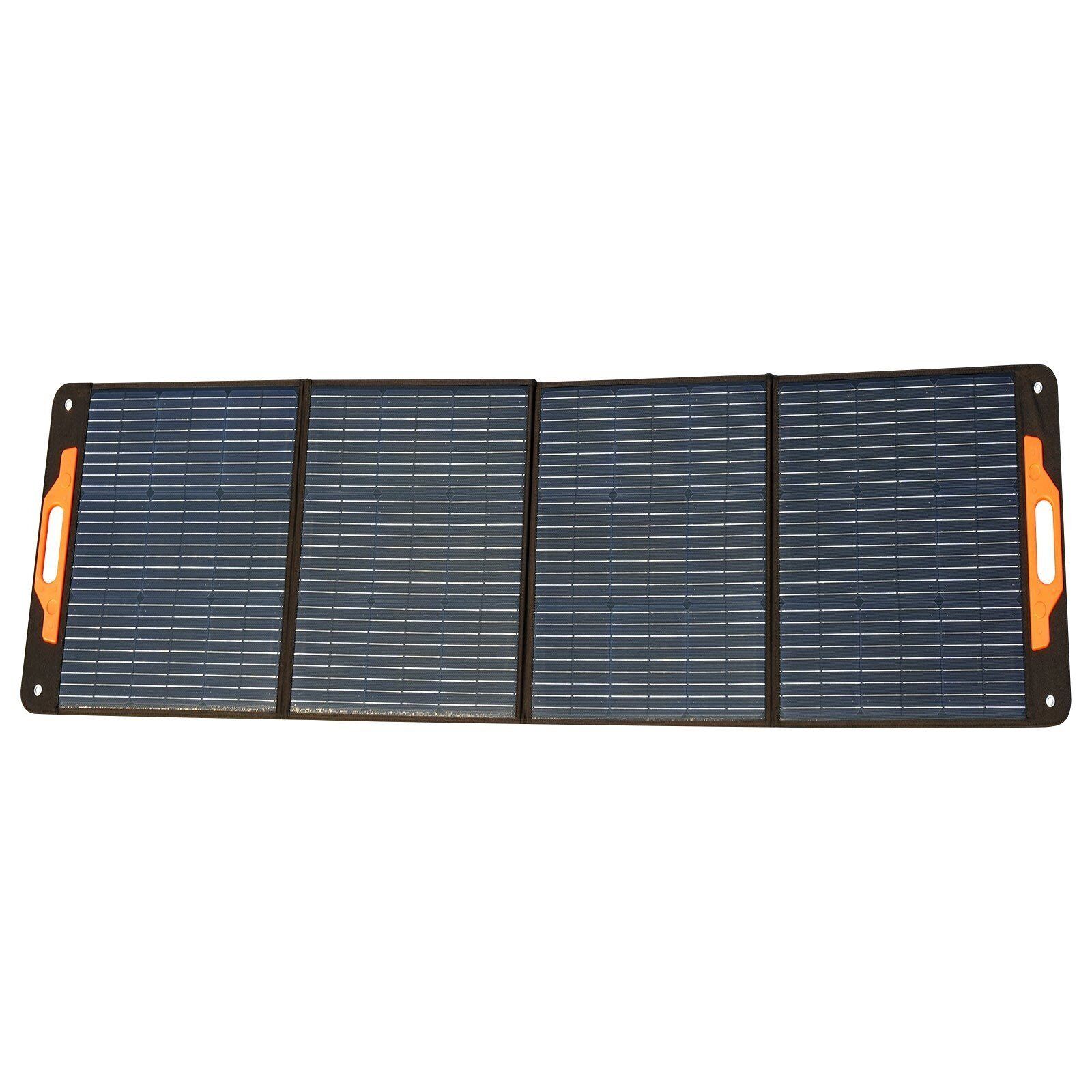

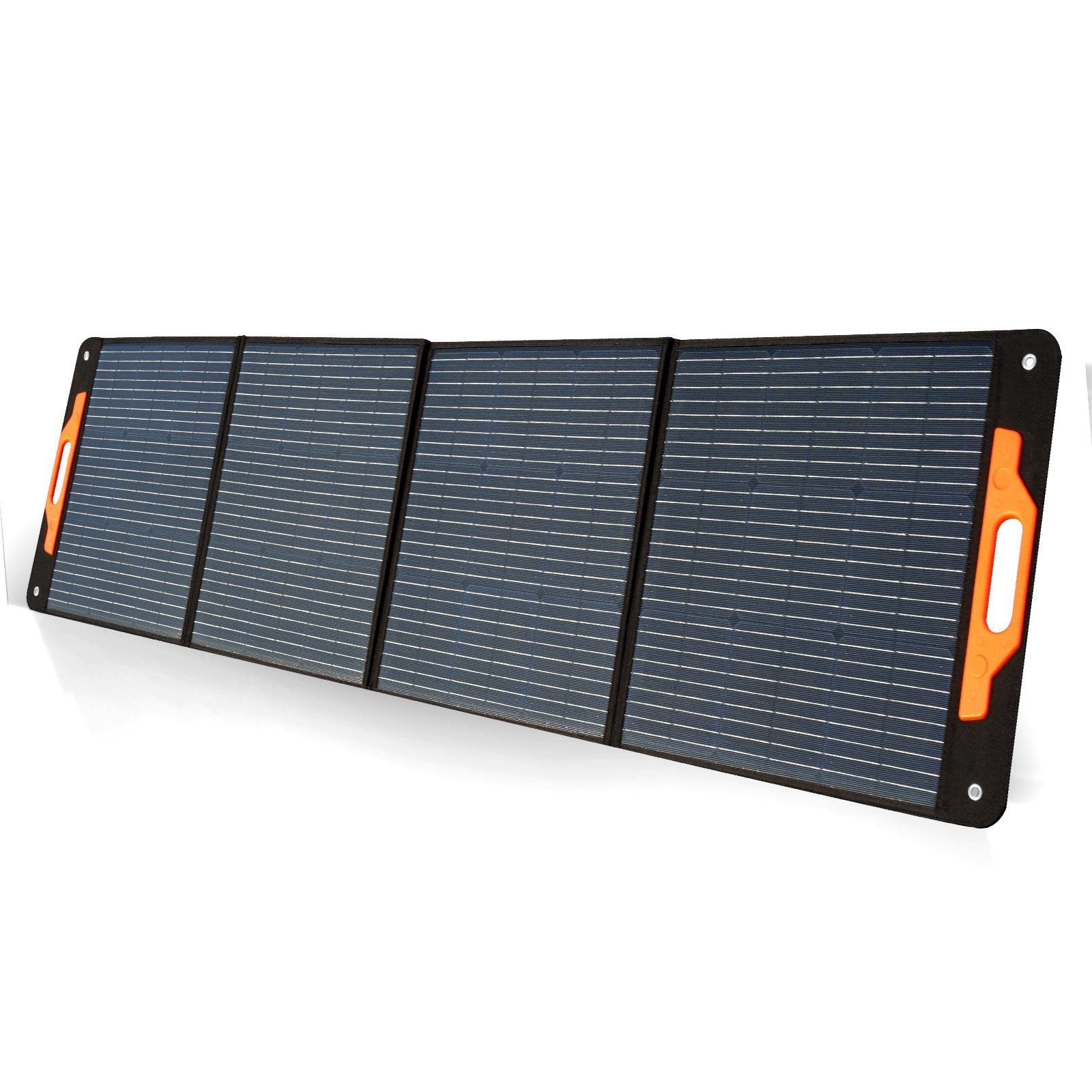

OSCAL PM200 200 W Portable Solar Panel
The OSCAL PM200 is a 200 W foldable solar panel built with monocrystalline silicon cells under a long-lasting ETFE laminate. It unfolds to 53.6 x 235 cm, folds to a 53.6 x 61.8 cm carry size and weighs 7 kg (15.43 lb), so one person can set it up in seconds to recharge an OSCAL PowerMax power station from the sun.
With a 25.2 V open-circuit voltage and 11.42 A short-circuit current it matches the solar inputs of the PowerMax 1800 SE, 2400, 3600 and 6000, and multiple panels can be combined to reach each station’s solar input limit. OSCAL covers the PM200 with a 2-year warranty. CSE Solar USA is an authorized OSCAL distributor.
FREE SHIPPING within the continental USA (48 contiguous states). Free shipping does not apply to Alaska, Hawaii, Puerto Rico or other non-contiguous locations; contact CSE Solar USA for a quote to those destinations.
Key features
- 200 W rated output, monocrystalline silicon cells
- ETFE laminate for light transmission and outdoor durability
- Cell efficiency 21.7 % or higher; OSCAL rates MPPT efficiency up to 95 %
- Voc 25.2 V, Isc 11.42 A, sized for OSCAL PowerMax solar inputs
- Folds to 53.6 x 61.8 cm; 7 kg (15.43 lb)
- Operates from -10 to 65 C (14 to 149 F)
Specifications (official OSCAL data)
| Model / SKU | PM200, OSCAL SKU PM200 |
|---|---|
| Rated power | 200 W |
| Cell type | Monocrystalline silicon |
| Cell lamination | ETFE (ethylene tetrafluoroethylene) |
| Cell efficiency | 21.7 % or higher |
| MPPT efficiency (OSCAL) | Up to 95 % |
| Open-circuit voltage (Voc) | 25.2 V (not less than 23.94 V) |
| Short-circuit current (Isc) | 11.42 A (not less than 10.85 A) |
| Operating temperature | -10 to 65 C (14 to 149 F) |
| Unfolded size | 53.6 x 235 cm (21.1 x 92.5 in) |
| Folded size | 53.6 x 61.8 cm (21.1 x 24.3 in) |
| Weight | 7 kg (15.43 lb) |
| Warranty | 2 years (OSCAL) |
What’s included
- 1 x OSCAL PM200 solar panel
Compatible OSCAL PowerMax stations ship with a solar charging cable; check the input connector of your station before ordering adapters.
Applications
- Camping and overlanding: recharge a PowerMax 1800 SE or 2400 during the day.
- Home backup: keep a PowerMax 3600 or 6000 topped up during extended outages.
- Cabins and boats: lightweight, foldable solar that stores flat when not in use.
Dimensions and weight
| Unfolded | 53.6 x 235 cm (21.1 x 92.5 in) |
|---|---|
| Folded | 53.6 x 61.8 cm (21.1 x 24.3 in) |
| Weight | 7 kg (15.43 lb) |
Warranty
2-year OSCAL warranty on the PM200 solar panel (OSCAL support centre). Warranty service is handled by OSCAL; keep your proof of purchase. CSE Solar USA is an authorized OSCAL distributor.
Shipping
FREE SHIPPING within the continental USA (48 contiguous states). Free shipping does not apply to Alaska, Hawaii, Puerto Rico or other non-contiguous locations; contact CSE Solar USA for a quote to those destinations.
Official OSCAL documentation
Frequently asked questions
Which power stations does the PM200 work with?
OSCAL recommends 200 W or 400 W panels for the PowerMax series. The PM200’s 25.2 V Voc sits inside the 10-60 V solar input range of the PowerMax 1800 SE and 2400 and the 12-150 V range of the PowerMax 6000.
Can I connect more than one panel?
Yes. Combine panels up to the solar input limit of your station: 800 W for the PowerMax 1800 SE and 2400, 1,600 W for the PowerMax 3600 and 2,400 W for the PowerMax 6000.
How much does it weigh?
7 kg (15.43 lb), folding to 53.6 x 61.8 cm for transport.
Is shipping free?
Yes, within the continental USA (48 contiguous states). Alaska, Hawaii, Puerto Rico and other non-contiguous destinations are quoted separately.
| Weight | 15.43 lbs |
|---|---|
| Dimensions | 24.3 × 21.1 in |
| MPN | PM200 |
| Rated power | 200 W |
| Cell type | Monocrystalline silicon, ETFE laminate |
| Open-circuit voltage | 25.2 V |
| Short-circuit current | 11.42 A |
| Weight | 7 kg (15.43 lb) |
| Warranty | 2 years (OSCAL) |
