Product Description
Expand your home’s energy capacity with the Tesla Powerwall 3 Expansion Unit, engineered to pair seamlessly with your existing Powerwall 3 system. This add-on battery delivers an additional 13.5 kWh of usable storage—perfect for homeowners who need more backup power, greater solar utilization, or support for growing energy demands.
The expansion unit does not include an inverter, as it connects directly to the main Powerwall 3, using its integrated inverter for operation. For installation, a Wall Mount & Harness Kit is required and sold separately. Whether you’re preparing for longer outages or upgrading your system capacity, this expansion module is designed to scale effortlessly with your home energy needs.
Key Features & Benefits
-
✅ 13.5 kWh Additional Energy Storage – Expand your total system capacity
-
✅ No Additional Inverter Needed – Uses Powerwall 3’s built-in inverter
-
✅ Wall Mount & Harness Kit Available – Required for installation (sold separately)
-

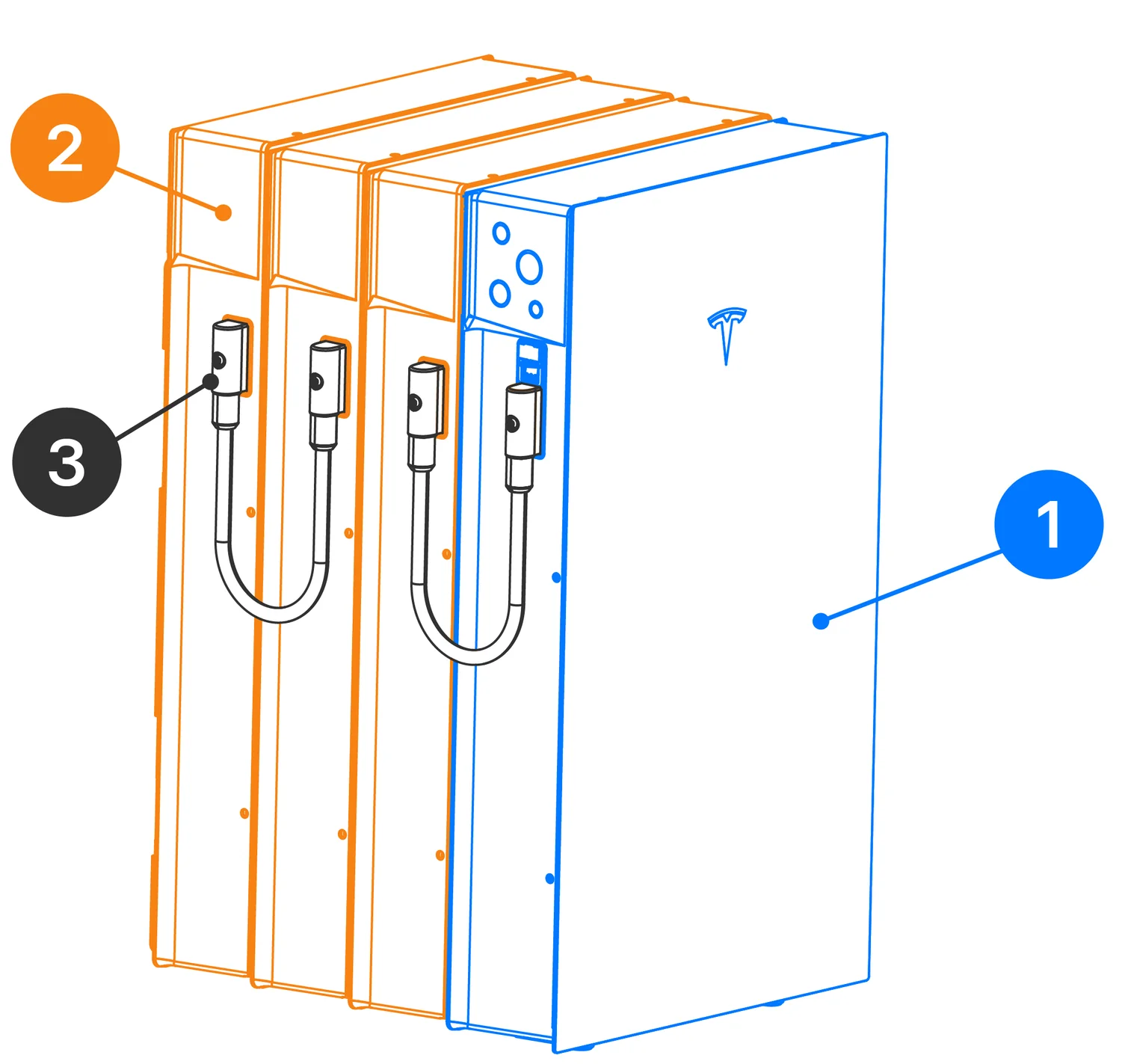

✅ Modular, Stackable Design – Add multiple expansion units as needed
-
✅ Reliable Whole-Home Backup Support – Extend protection during outages
-
✅ Sleek, Matching Design – Aligns perfectly with Powerwall 3 aesthetics
-
✅ Backed by a 10-Year Warranty – Long-term performance assurance from Tesla
Specifications
Specification | Details |
---|---|
Usable Energy | 13.5 kWh |
Power Output | N/A (relies on Powerwall 3 inverter) |
Voltage | 120/240V Split-Phase |
Inverter | Not included (must connect to Powerwall 3) |
Backup Capability | Yes – when installed with Powerwall 3 |
Scalability | Supports multiple expansion units |
Mounting | Wall or floor mount (mount kit required) |
Installation Kit | Wall Mount & Harness Kit (sold separately) |
Warranty | 10 Years |
Shipping Info
-
Dimensions: 43.25 in (H) × 24 in (W) × 6.25 in (D)
-
Weight: 287 lbs
