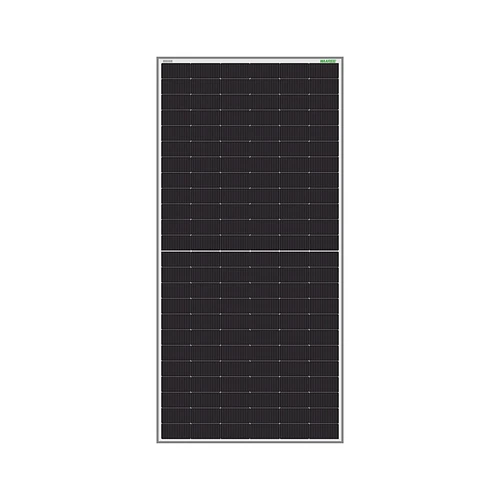

Waaree BiN-08-590 Elite Series 590W N-Type TOPCon Bifacial Solar Panel – Pallet Pricing (36 Panels | 21.24kW) – New Jersey

The Waaree BiN-08-590 590W solar panel pallet is the highest bin of the Elite Series that CSE Solar USA stocks in New Jersey: 36 modules on the 30 mm frame for 21.24 kW DC per pallet. It is the Waaree pallet to specify when the design calls for maximum power per module and per pallet, and it competes directly with the 590 W N-type pallets from other Tier 1 makers CSE carries.

Datasheet values for the 590 W bin (30 mm edition). 590 W at STC and 445.5 W at NOCT; 22.84% module efficiency; 52.90 V open-circuit, 14.05 A short-circuit, 44.29 V / 13.32 A at maximum power; temperature coefficients −0.30 %/°C (Pmax), −0.26 %/°C (Voc), +0.046 %/°C (Isc); NOCT 43 ± 2 °C; 144 N-type TOPCon half-cells, framed dual glass, 2278 × 1134 × 30 mm, 32.5 kg, 1500 V / 30 A. Waaree’s rear-side table shows 679 W at a 15% bifacial gain and up to 767 W at 30%.

590 W or 585 W. Both are 36-panel, 30 mm-frame pallets from the same New Jersey stock. The BiN-08-585 pallet costs less per pallet and gives 21.06 kW; this 590 W pallet adds 180 W per pallet and the higher efficiency bin. The 35 mm-frame, 31-panel options are the BiN-08-570, BiN-08-575 and BiN-08-580. Full range on the Waaree brand page.

Pallet, pickup and ordering. 36 new A-grade modules, 12-year product / 30-year linear power warranty, EXW a CSE-controlled New Jersey pickup location, freight quoted separately, full pallet only. Submit an order request; CSE confirms availability, pickup point and freight before any payment is due. The 30 mm-edition datasheet (February 2026) is linked under Documents & Downloads; installation manual and warranty statement on request.

Specifications (Waaree Elite Series BiN-08 datasheet, 30 mm edition)

Documents & Downloads

Installation manual and warranty documentation available on request.

Pallet ordering

Sold by the full pallet only. Prices are per pallet, EXW a CSE-controlled pickup location; freight is quoted separately. Submit an order request and our team confirms availability, pickup point and freight before any payment is due.
