Canadian Solar TOPHiKu6 CS6.1-54TM-450H 450W Black on Black 108 Half-Cell Mono Solar Panel N-Type TOPCon
Original price was: $289.00.$159.95Current price is: $159.95.
29 people are viewing this product right now
Canadian Solar, 450W PV Module, 1550mm (~61 in) (+) / 1100mm (39.4in) (-) PV Wire, MC-4 or T6, 35mm Black Frame on Black Back-Sheet, BOB, 108 TOPCon Cells, 25A Max Fuse, 1000VDC, No PTC, 25/30 Warranty, CS6.1-54TM-450H
Product Specifications
General Information
- Brand: Canadian Solar
- Model: TOPHiKu6 CS6.1-54TM-450H
- Type: Monocrystalline Solar Panel
- Cell Configuration: 108 Half-Cells
- Color: Black on Black

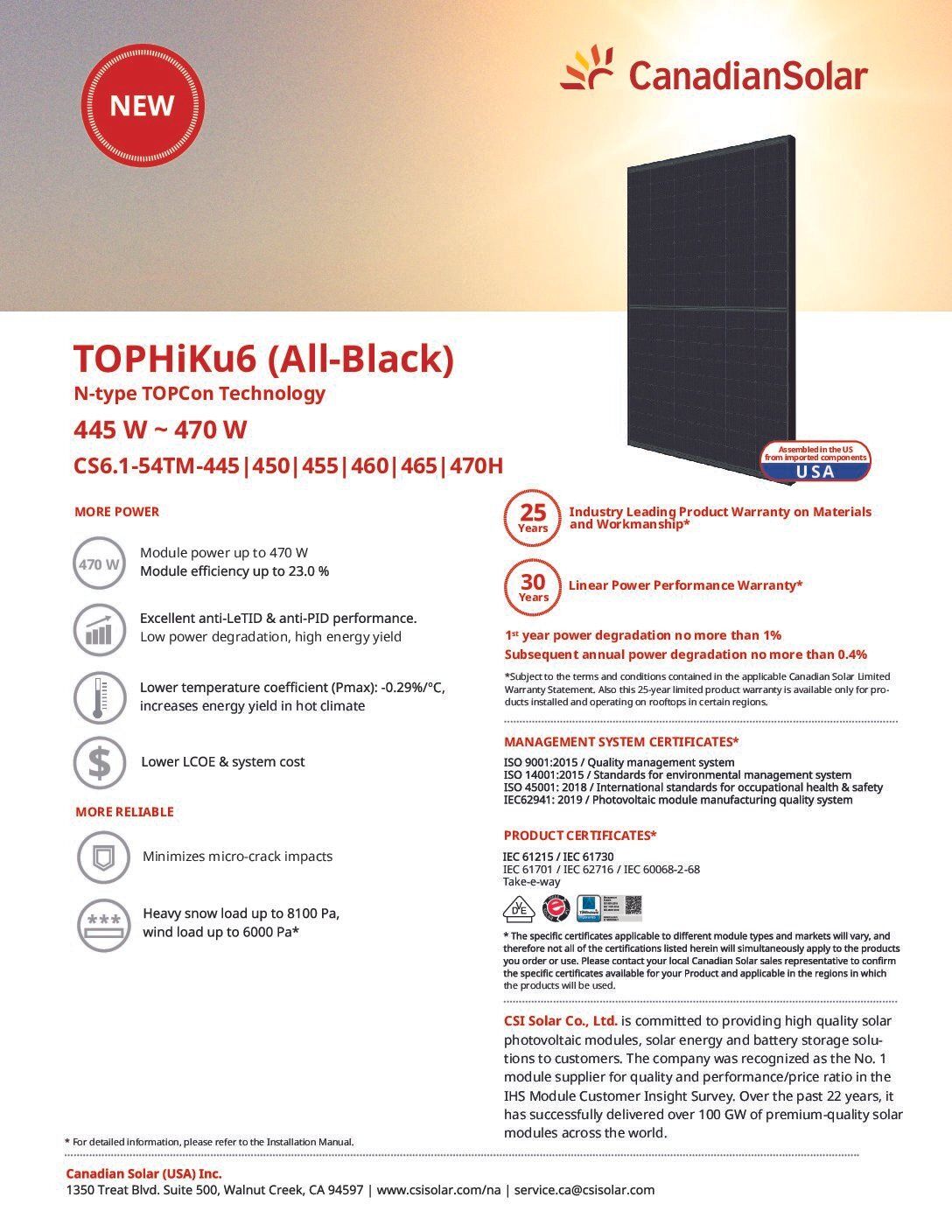

- Spec Sheet (Created 3/15/2024)
Electrical Characteristics
- Maximum Power (Pmax): 450 W
- Maximum Power Voltage (Vmpp): 40.16 V
- Maximum Power Current (Impp): 11.21 A
- Open Circuit Voltage (Voc): 47.0 V
- Short Circuit Current (Isc): 11.76 A
- Module Efficiency: Approximately 21.3%
Dimensions & Weight
- Dimensions (L x W x H): 1754 mm x 1096 mm x 30 mm (69.1 in x 43.2 in x 1.18 in)
- Weight: Approximately 20.5 kg (45.2 lbs)
Design & Construction
- Cell Type: N-Type TOPCon (Tunnel Oxide Passivated Contact)
- Frame Material: Anodized aluminum alloy
- Glass: High-transparency, low iron, tempered glass
- Backsheet: High-quality polymer backsheet
- Junction Box: IP68 rated, with bypass diodes
Temperature Coefficient
- Temperature Coefficient of Pmax: -0.33%/°C
- Temperature Coefficient of Voc: -0.29%/°C
- Temperature Coefficient of Isc: 0.040%/°C
Performance & Warranty
- Power Output Warranty: 25 years (90% for the first 10 years; 80% for the next 15 years)
- Product Warranty: 10 years
Certifications
- Certifications:
- IEC 61215
- IEC 61730
- ISO 9001:2015
- ISO 14001:2015
- OSHA compliant
Applications
- Residential and commercial solar energy systems
- Rooftop installations
- Ground-mounted solar farms
Features
- High energy yield: Advanced N-Type TOPCon technology enhances light absorption and efficiency, improving energy production.
- Durability: Excellent mechanical load resistance, capable of withstanding wind loads of up to 2400 Pa and snow loads of up to 5400 Pa.
- Aesthetic Design: All-black appearance blends seamlessly with rooftops, appealing to homeowners and commercial installations.
The Canadian Solar TOPHiKu6 CS6.1-54TM-450H solar panel is an excellent choice for those looking to harness solar energy efficiently and aesthetically. With advanced technology, robust construction, and long warranties, it stands out in the solar market, catering to both residential and commercial needs.
| Weight | 50.7 lbs |
|---|---|
| Dimensions | 70.9 × 44.6 × 1.38 in |
| MPN | CS6.1-54TM-450 |
Disclaimer: While we strive to keep our item documents updated, item documents may have been updated by our manufacturers. Please note the date the document was created - for the most up-to-date item details, please refer to the manufacturer's website.
