The Enphase Communications Kit 2 is a wired communications kit. It provides wired control communication between an IQ Gateway (or Envoy S Metered), IQ Battery 5P and IQ System Controller 3/3G. Enphase states that it can upgrade PV-only sites to grid-tied or grid-forming systems where no IQ Combiner 5/5C is present, and that an IQ Battery 5P can be added without replacing an existing IQ Combiner, IQ Gateway or Envoy S Metered. That applies only to the gateway and combiner models listed under compatibility below.
In the box

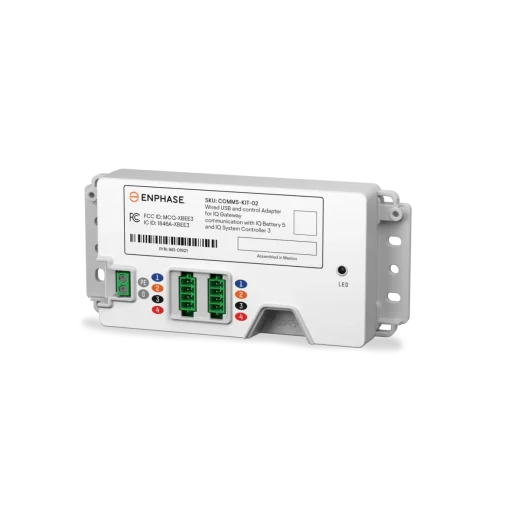

- Control adapter, pre-mounted in a NEMA 3R enclosure with two DIN rails
- Ground terminal block for the control cable shield
- IQ Battery CT clamp
- USB Type-A to Type-C cable
- Power jumper for the IQ Gateway, spare control header and zip ties
Specifications
| Model | COMMS-KIT-02 |
|---|---|
| Communication | Wired control communication |
| Power | 5 V, 500 mA, from a USB Type-A port on the IQ Gateway or Envoy S Metered |
| Enclosure (W × H × D) | 368 × 371 × 183 mm (14.48 × 14.6 × 7.2 in), NEMA 3R, suitable for outdoor installation |
| Control adapter (W × H × D) | 152 × 69 × 25 mm (5.98 × 2.71 × 0.98 in) |
| Weight | 3.265 kg (7.1 lb) |
| Ambient temperature | −40 to 45 °C (−40 to 113 °F) |
| Humidity / altitude | 85% RH; up to 2,600 m (8,530 ft) |
| Warranty | 5-year limited warranty |
Compatibility and limitations
- Compatible with IQ System Controller 3/3G, IQ Battery 5P, IQ Gateway, Envoy S Metered and IQ Combiner 3/3C/3-ES/3C-ES/4/4C.
- Supports IQ6, IQ7 and IQ8 Series microinverters with those gateways and combiners, and M215/M250 microinverters with Envoy S Metered.
- Not needed with IQ Combiner 5/5C, which includes this function.
- Not compatible with earlier generations of IQ Battery or IQ System Controller.
Manufacturer documentation: Download Manufacturer Datasheet (PDF)
