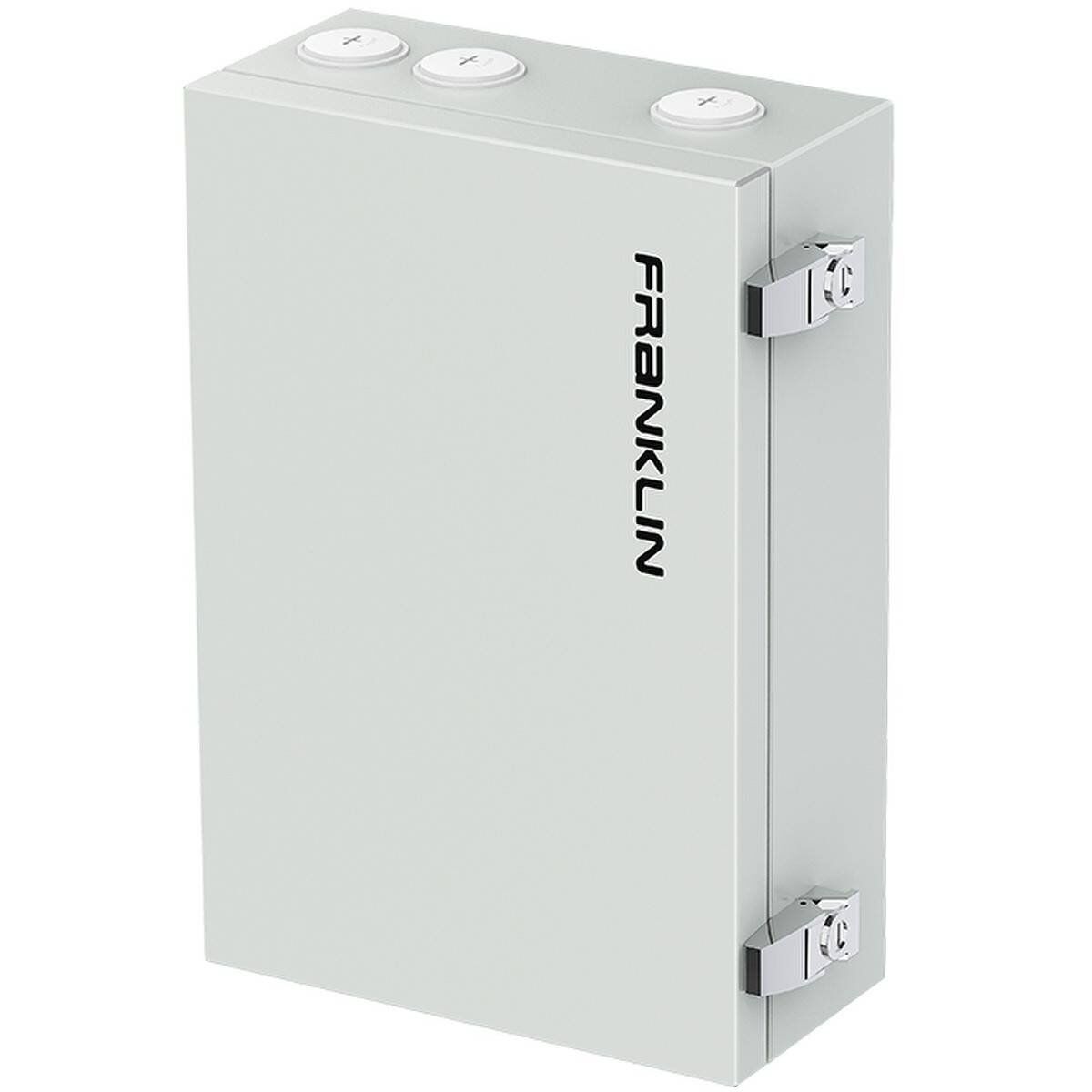

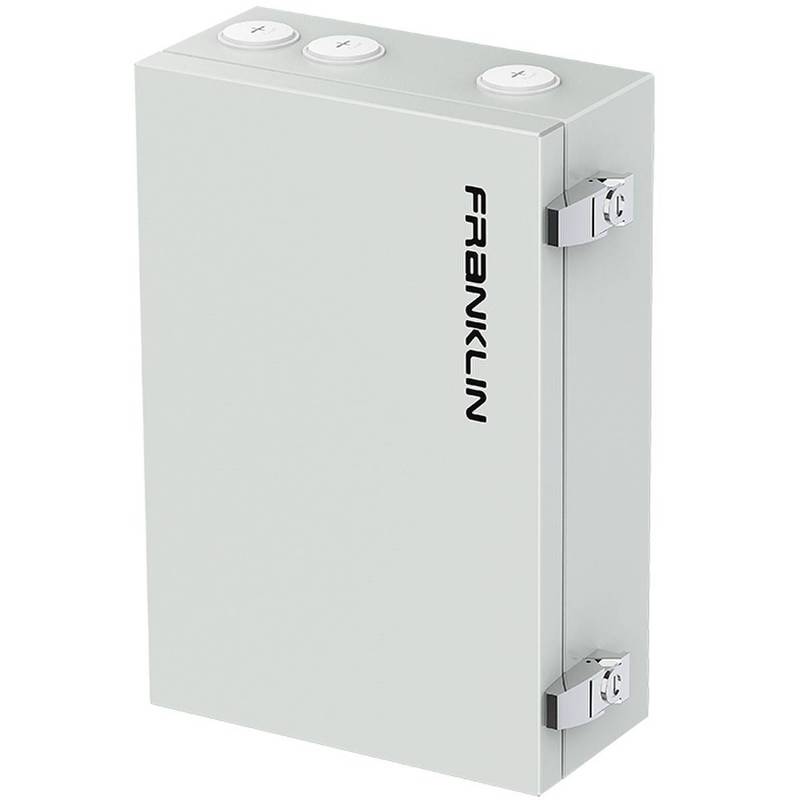

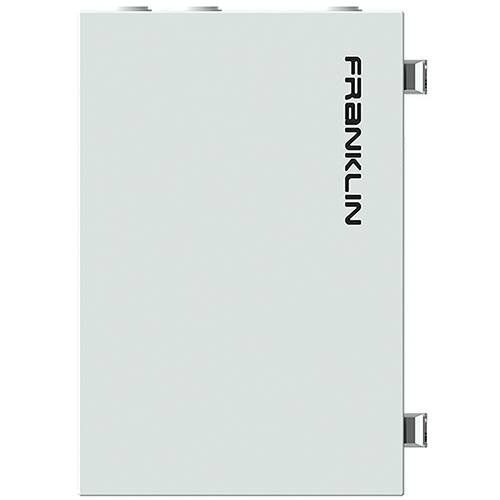

FranklinWH, ACCY-RCV1-US, aPbox – Optional junction for remote or oversized PV system measurement and control
Original price was: $1,225.25.$1,125.95Current price is: $1,125.95.
20 people are viewing this product right now
aPbox – Optional junction for remote or oversized PV system measurement and control. 120/240Vac, 65A max.
- Manufacturer Part Number: ACCY-RCV1-US
- Shipping Weight: 27 lb
- Shipping Dimensions: 21 x 17 x 10 in
- Remotely and automatically manage a solar system
There are circumstances in which a solar (PV) system cannot be connected through the aGate X solar breaker, either on grid side or load side. The FranklinWH aPbox is a junction that provides an intelligent solution , linking those PV systems into the Franklin Home Power architecture for ease of management and control.
When installing a Franklin Home Power (FHP) system alongside PV system, there are multiple PV installation con ? gurations which require different methods to connect them with a home energy management system such as the FHP. The aPbox is designed to help installers address those issues. It is also designed to protect the aPower X battery from overcharging while maximizing the utilization of photovoltaics.
The aPbox has built-in meters and current transformers (CTs)to measure electricity. It can also connect and disconnect the solar systems as conditions require.
Remote solar system
An existing solar system is far from the aGate X installation location and changing the power line wiring will increase overall costs. An aPbox can bemused for easier connection without changing the power line route. Newly added solar systems can also use aPbox for control or metering. An aPbox can disconnect the solar system when it is over generating power in an Off-grid or blackout situation, or when excess generation can’t be exported to the grid due to regulatory limitations
Oversized solar system
The total power of a solar system exceeds the maximum continuous current of 64A for the 80A solar circuit breaker in the aGate X. Panels providing the excess can be connected to load-side of the aGate X. and the aPbox will bemused for metering and control.
Over generating solar system
The generated power of the solar system exceeds the total continuous power of the aPower X batteries installed. To prevent the entire solar system from being shut down. the excess production will be connected to load-side and aPbox will be used for metering and control.
Flexible Configuration- Flexibly arrange the power generated by the solar system to realize the maximum utilization of solar energy
- Product Datasheet | Download
- Easily connect remote solar systems to the aGate X. saving labor costs and shortening project time
- One aGate X can control up to 2 aPbox units. a maximum of 130Acontrollable solar current
- Automatically manage your solar system. In Off-grid or blackout scenario. it will automatically control the over generating solar system
aPbox – Optional junction for remote or oversized PV system measurement and control. 120/240Vac, 65A max.
- Manufacturer Part Number: ACCY-RCV1-US
- Shipping Weight: 27 lb
- Shipping Dimensions: 21 x 17 x 10 in
- Remotely and automatically manage a solar system
There are circumstances in which a solar (PV) system cannot be connected through the aGate X solar breaker, either on grid side or load side. The FranklinWH aPbox is a junction that provides an intelligent solution , linking those PV systems into the Franklin Home Power architecture for ease of management and control.
When installing a Franklin Home Power (FHP) system alongside PV system, there are multiple PV installation con ? gurations which require different methods to connect them with a home energy management system such as the FHP. The aPbox is designed to help installers address those issues. It is also designed to protect the aPower X battery from overcharging while maximizing the utilization of photovoltaics.
The aPbox has built-in meters and current transformers (CTs)to measure electricity. It can also connect and disconnect the solar systems as conditions require.
Remote solar system
An existing solar system is far from the aGate X installation location and changing the power line wiring will increase overall costs. An aPbox can bemused for easier connection without changing the power line route. Newly added solar systems can also use aPbox for control or metering. An aPbox can disconnect the solar system when it is over generating power in an Off-grid or blackout situation, or when excess generation can’t be exported to the grid due to regulatory limitations
Oversized solar system
The total power of a solar system exceeds the maximum continuous current of 64A for the 80A solar circuit breaker in the aGate X. Panels providing the excess can be connected to load-side of the aGate X. and the aPbox will bemused for metering and control.
Over generating solar system
The generated power of the solar system exceeds the total continuous power of the aPower X batteries installed. To prevent the entire solar system from being shut down. the excess production will be connected to load-side and aPbox will be used for metering and control.
Flexible Configuration- Flexibly arrange the power generated by the solar system to realize the maximum utilization of solar energy
- Product Datasheet | Download
- Easily connect remote solar systems to the aGate X. saving labor costs and shortening project time
- One aGate X can control up to 2 aPbox units. a maximum of 130Acontrollable solar current
- Automatically manage your solar system. In Off-grid or blackout scenario. it will automatically control the over generating solar system
| Weight | 27 lbs |
|---|---|
| Dimensions | 21 × 17 × 10 in |
| MPN | ACCY-RCV1-US |
