FranklinWH Agate-X AGT-R1V2 | Energy Management System

Product Overview

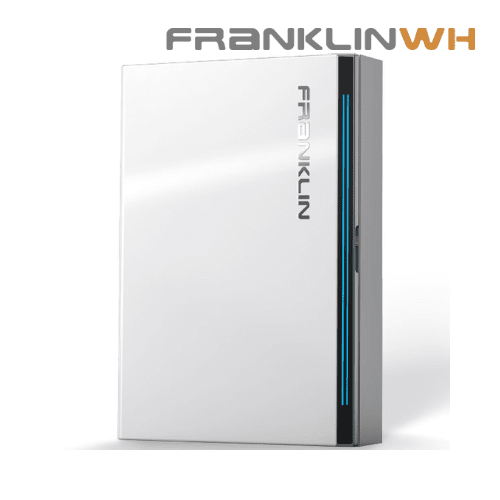

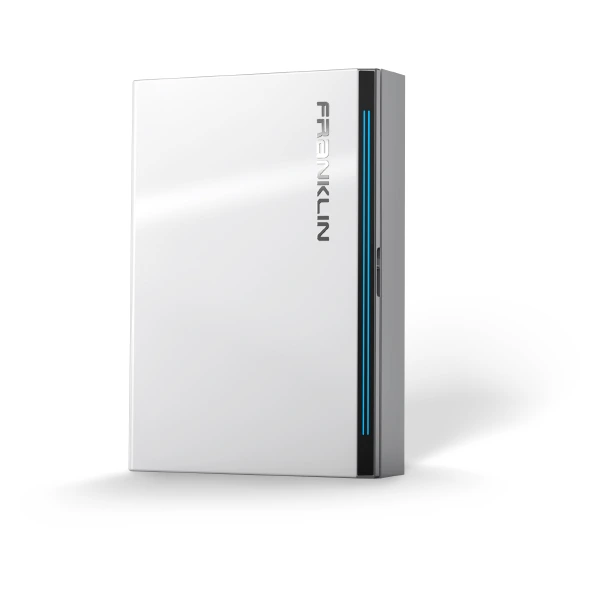

The FranklinWH aGate X (AGT-R1V2-US) is the centralized “smart” controller for the Franklin Home Power system (specifically the “aGate 1.3” revision). It connects your solar, grid, batteries, and generator into a unified microgrid, automatically detecting outages and seamlessly switching to backup power. You can monitor and manage your entire home energy ecosystem directly from the FranklinWH App.

Key Features

• Avoid Panel Upgrades. 280A Busbar. A significant upgrade over the original V1 model, the aGate X (V2) features a 280 A busbar. This increased capacity often eliminates the need for a Main Panel Upgrade (MPU) when installing solar and batteries, saving homeowners thousands of dollars in installation costs while handling higher continuous loads.
• Microgrid Interconnect. Seamless Backup. The aGate X serves as a Micro-grid Interconnect Device (MID), capable of isolating your home from the grid in milliseconds during an outage. It creates a stable local grid for your solar and batteries to operate, ensuring critical appliances like refrigerators and routers stay powered without interruption.
• Universal Compatibility. Smart Control. This unit is “inverter agnostic,” meaning it works with any solar inverter brand (AC-coupled). It also supports optional Smart Circuits and Generator Modules (specifically V2 compatible), allowing you to integrate standby generators and intelligently shed non-essential loads during outages to extend battery runtime.

Product Specifications

• Busbar Rating: 280 A

• Max Supply Fault Current: 22 kA

• Grid Input OCPD: 200 A Max

• Generator Input OCPD: 200 A Max

• Solar Input OCPD: 80 A Max

• Work Modes: Self-Consumption, Time of Use, Emergency Backup

• Communication: Ethernet, WiFi, 4G LTE, Bluetooth

General Data

• Dimensions (H x W x D): 31.5″ x 21.7″ x 6.3″ (800 x 550 x 160 mm)

• Weight: 38.6 lbs (17.5 kg)

• Warranty: 12 Years
