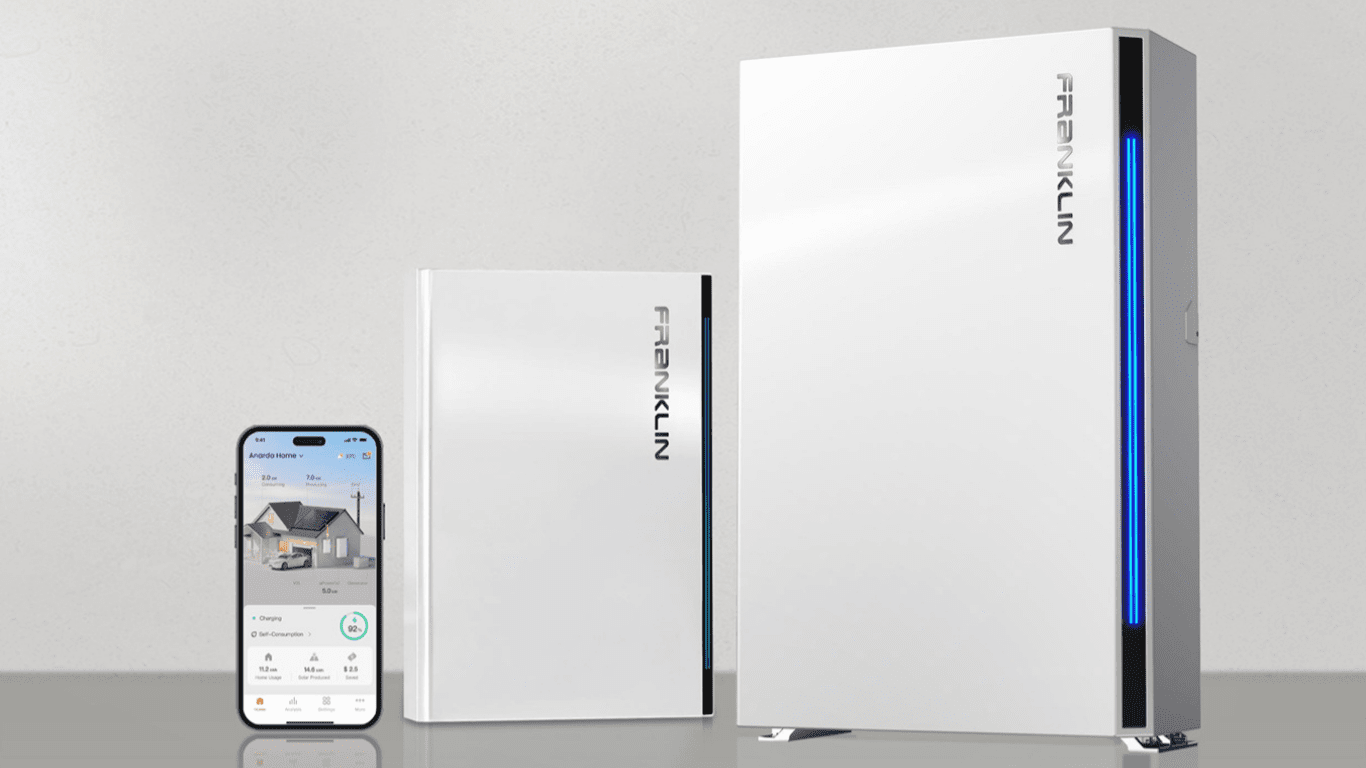

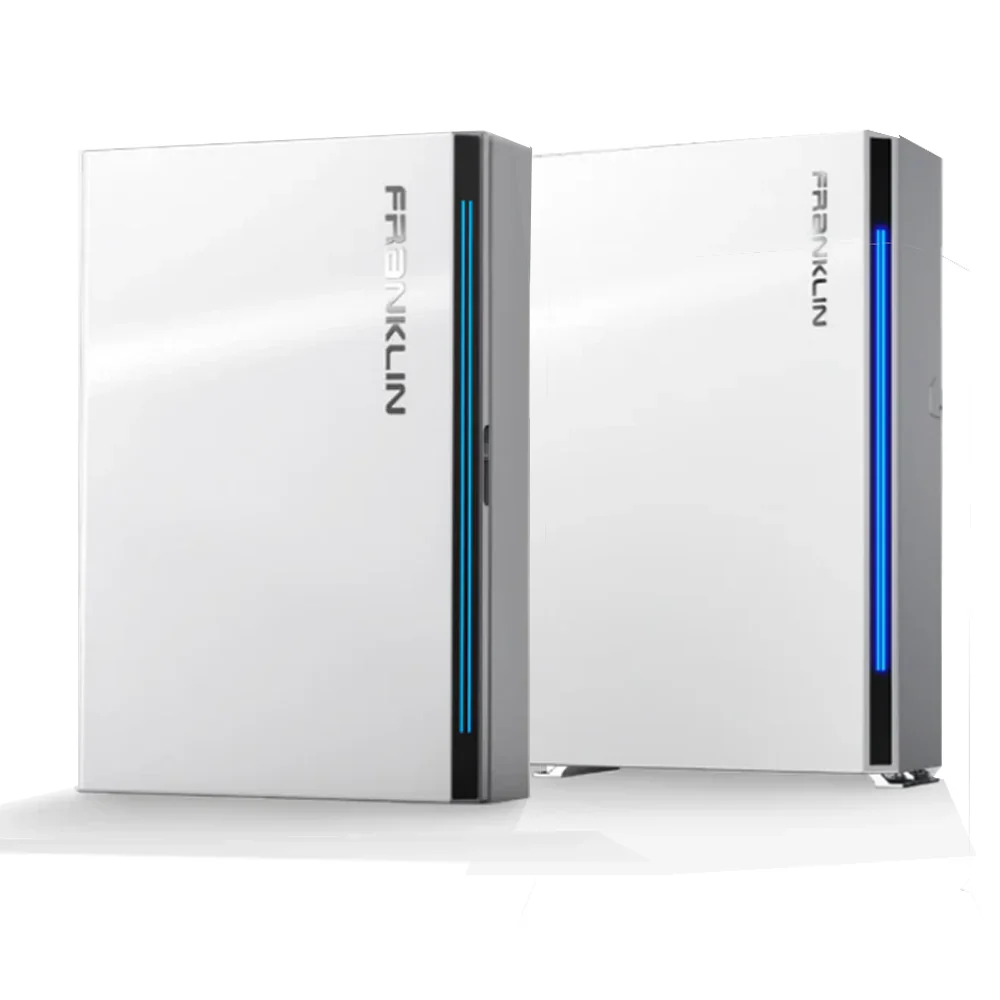

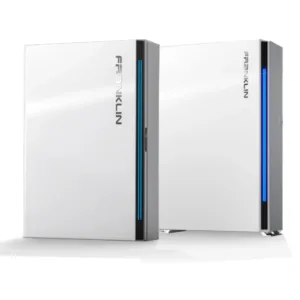

FranklinWH aPower 2 + aGate X + FranklinWH App | Whole Home Energy Solution
$11,675.99
24 people are viewing this product right now
Warranty
-

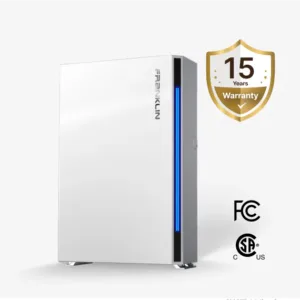

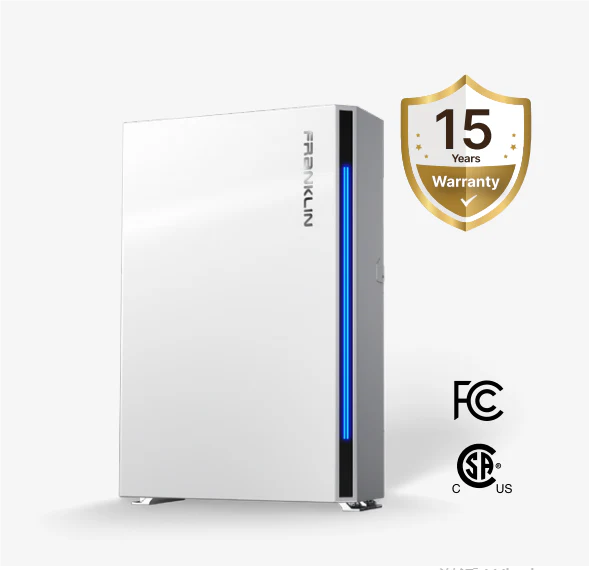

aPower 2: 15 Years
-

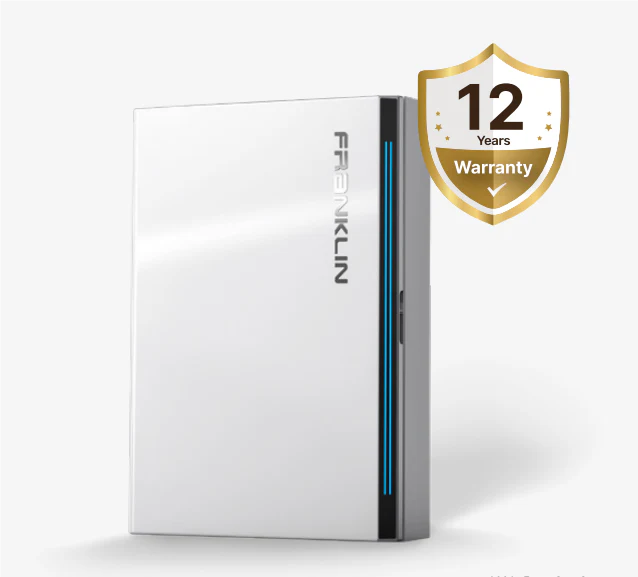

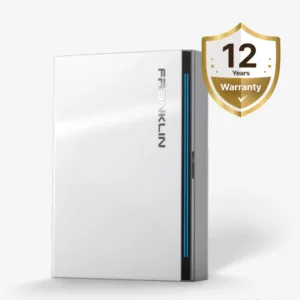

aGate X: 12 Years

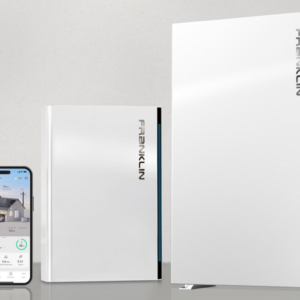

FranklinWH aPower 2 + aGate X + FranklinWH App | Whole Home Energy

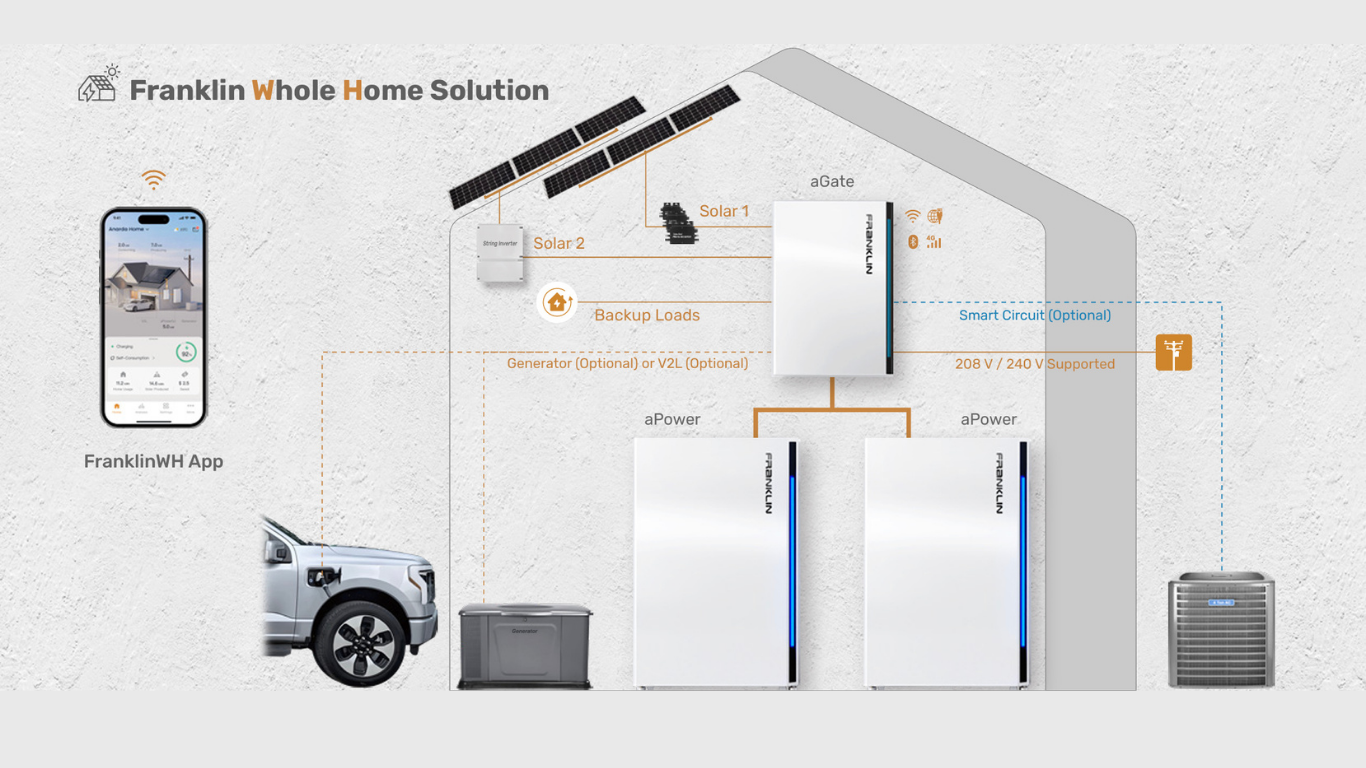

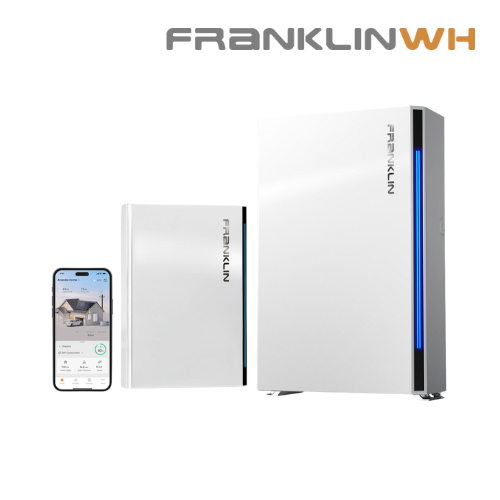

The FranklinWH Whole Home Energy Solution combines the aPower 2 battery, aGate X smart controller, and the FranklinWH App to create a fully integrated, intelligent microgrid for your home. This ecosystem manages solar, grid, battery, and generator power seamlessly, ensuring your home remains powered during outages while optimizing energy usage for maximum savings.
Product Specifications
-
Chemistry: Lithium Iron Phosphate (LFP)
-
Switchover Time: < 16 ms (Grid to Backup)
-
Solar Compatibility: Universal AC-Coupled (Compatible with SolarEdge, Enphase, etc.)
-
Generator Integration: Native support for standby generators (up to 200A)
-
Round Trip Efficiency: 90%
-
Noise Emission: < 30 dBA (Fan-less cooling)
Management (FranklinWH App)
-
Control Modes: Self-Consumption, Time-of-Use, Backup, Storm Hedge
-
Monitoring: Real-time visibility of generation, consumption, and grid status
General Data
aPower 2 Battery
-
Dimensions: 45.2″ x 29.5″ x 11.8″ (1149 x 750 x 300 mm)
-
Weight: 357 lbs (162 kg)
-
Mounting: Wall or Floor Mount
aGate X
-
Dimensions: 31.5″ x 21.7″ x 6.3″ (800 x 550 x 160 mm)
-
Weight: 50 lbs (23 kg)
-
Enclosure: NEMA 3R / IP67 (Indoor/Outdoor)
Frequently Asked Questions
Q1: What makes the aPower 2 different from other batteries? The aPower 2 offers a massive 10 kW continuous power output, roughly double that of many competitors, allowing it to easily run heavy loads like AC units.
Q2: Will my solar panels work during a power outage? Yes. The aGate X creates a local microgrid that allows your solar panels to continue generating power and recharging the battery even when the utility grid is down.
Q3: Do I need to replace my existing solar inverter? No. The system is AC-coupled and works with any existing solar inverter brand (e.g., SolarEdge, Enphase) without needing to replace your current equipment.
Q4: Can I use a generator with this system? Yes. The aGate X features native integration to automatically start standby generators when battery levels are low, and it also supports portable generators.
Q5: How expandable is the system? Absolutely. You can connect up to 15 aPower 2 units to a single aGate X for a total capacity of 225 kWh, allowing the system to grow with your energy needs.
Key Features
- Powerful Whole-Home Backup. With the aPower 2 delivering a massive 10 kW of continuous power, this solution is designed to back up your entire home, not just a few lights. It can easily run heavy inductive loads like central air conditioners, well pumps, and electric stoves simultaneously, ensuring your lifestyle remains uninterrupted during grid outages.
- Intelligent Control Center. The aGate X acts as the brain of the operation. It seamlessly integrates your solar, grid, and generator power, switching to backup mode in milliseconds when the grid fails. Its robust 280A busbar often removes the need for expensive main panel upgrades, while built-in smart circuit controls allow you to automatically shed non-essential loads to extend battery runtime.
- Total Control at Your Fingertips. The FranklinWH App puts the power in your hands. You can monitor real-time energy flow, schedule “Smart Circuits” to shed heavy loads during outages to extend battery life, and use the “Storm Hedge” feature to automatically fully charge your batteries when severe weather alerts are detected by the National Weather Service.

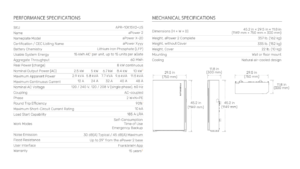

aPower 2 Specifications

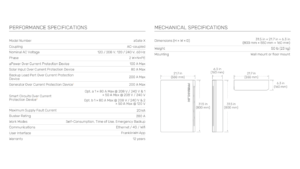

aGate X Specifiacations
| Weight | 407 lbs |
|---|---|
| Dimensions | 18.1 × 51.2 × 76.7 in |
| MPN | FWH-AGATEX-APOWER2 |
