Qcells Q.VOLT H7.6SX 7.6 kW Hybrid Inverter for Q.HOME CORE | SSDW-00007
Request Pricing & AvailabilityRequest a Quote
19 people are viewing this product right now
The Qcells Q.VOLT H7.6SX (SSDW-00007) is the 7.6 kW hybrid inverter at the center of the Qcells Q.HOME CORE energy storage system. It manages solar and a Q.SAVE battery stack of 10, 15 or 20 kWh, supports DC- or AC-coupled designs, and provides backup power together with the Q.HOME HUB.

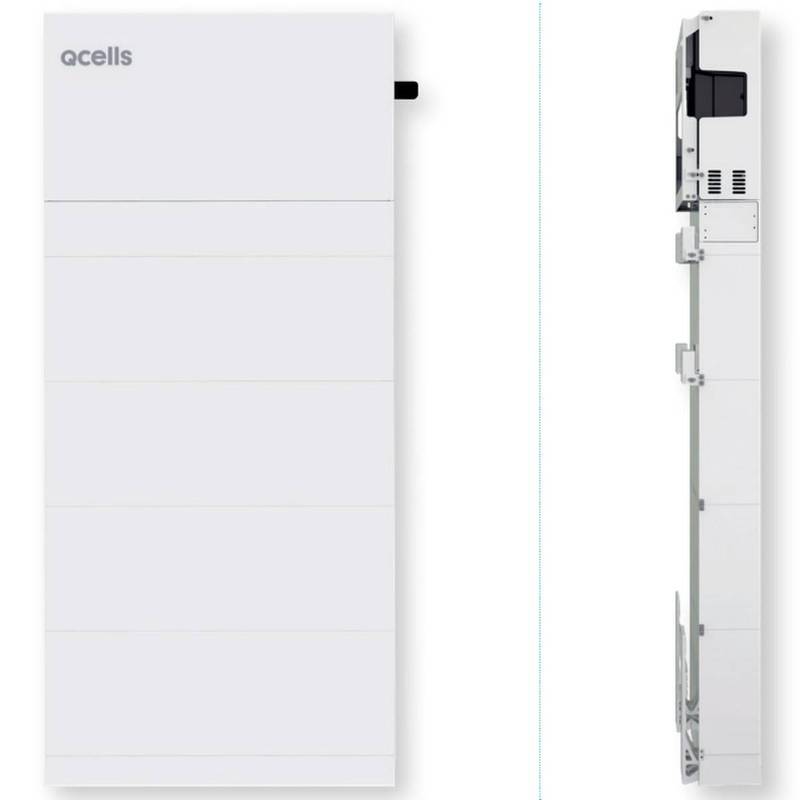

The Qcells Q.VOLT H7.6SX is a transformerless hybrid inverter for 240 V residential systems. It is the power-conversion unit of the Qcells Q.HOME CORE platform: one Q.VOLT connects to one Q.SAVE battery stack, and the Q.HOME HUB adds automatic transfer to backup, generator connection and parallel operation of up to four inverters.
Role in the Q.HOME CORE system
- One Q.VOLT per Q.SAVE battery stack; each stack is one BMS-G2 plus 2, 3 or 4 battery modules (10, 15 or 20 kWh).
- The battery DC and communication cables come pre-connected on the inverter side; only the BMS end is connected on site.
- Q.HOME HUB 200SX: used for backup with automatic transfer, generator integration and multi-inverter systems.
- Built-in rapid-shutdown transmitter for use with compatible Qcells or APsmart RSD-D module-level receivers (sold separately).
| Model | Q.VOLT H7.6SX |
|---|---|
| Catalog number | SSDW-00007 |
| Max PV power | 15,200 W |
| Max DC input power | 11,400 W |
| Max DC voltage | 550 V (360 V nominal) |
| MPPT voltage range | 90–500 V (120 V start-up) |
| MPP trackers | 3, one string each · 16 A per MPPT (20 A short-circuit) |
| AC output (nominal and max continuous) | 7,608 VA · 240 V / 60 Hz · 31.7 A |
| Battery max output | 7,600 W · 54 A max charge/discharge current |
| Efficiency | CEC 97.5% · max 98.0% |
| Protection | Integrated AFCI · integrated PV rapid-shutdown transmitter |
| Communication | RS485, CAN, Wi-Fi, dry contact · revenue-grade metering (ANSI C12.20) |
| Enclosure | NEMA 4X |
| Operating temperature | -13 to +140 °F |
| Dimensions | 33.1 × 15.7 × 5.7 in |
| Weight | 75 lb |
Certifications
As listed by Qcells for the Q.VOLT H7.6SX: UL 1741-SB 3rd edition (PCS import-only), UL 1699B, CSA C22.2, IEEE 1547-2018, FCC Part 15 B, California Rule 21 and Hawaii Rule 14. UL-listed PV rapid-shutdown equipment for NEC 2020/2023 690.12 when installed with compatible receivers.
What is included
- Q.VOLT H7.6SX inverter with metal cover and wall bracket
- Mounting screws, expansion bolts and gaskets
- Grounding (PE) cable between the inverter and the BMS
- AC circuit breaker, ferrules, 8-pin terminal block with 120 Ω resistor and cable protective guard
- Documentation and warranty card
Not included
- Q.SAVE battery modules, BMS-G2 and battery base
- Q.HOME HUB 200SX and any external CTs
- Module-level rapid-shutdown receivers
- Installation, AC wiring and conduit
Installation requirements
- Qcells states that installation, commissioning and service must be performed by licensed electricians who meet state and local requirements.
- Commissioning is done through a web browser or the Qcells mobile app.
- Installation, permitting, AC wiring, conduit and breakers not listed as included are not part of this product.
Warranty
Covered by the Qcells Q.HOME CORE limited warranty. Qcells requires product registration and a connection to the Qcells monitoring portal to keep warranty coverage. CSE confirms the warranty terms that apply to your equipment before your order is processed.
Qcells documentation
- Q.HOME CORE system datasheet (Qcells, Rev08, May 2025)
- Q.HOME CORE installation and operation manual (Qcells)
- Q.HOME CORE limited warranty (Qcells)
- Qcells Q.HOME CORE product page
Shipping
Freight and delivery details are confirmed with your order.
Planning a Q.HOME CORE system?

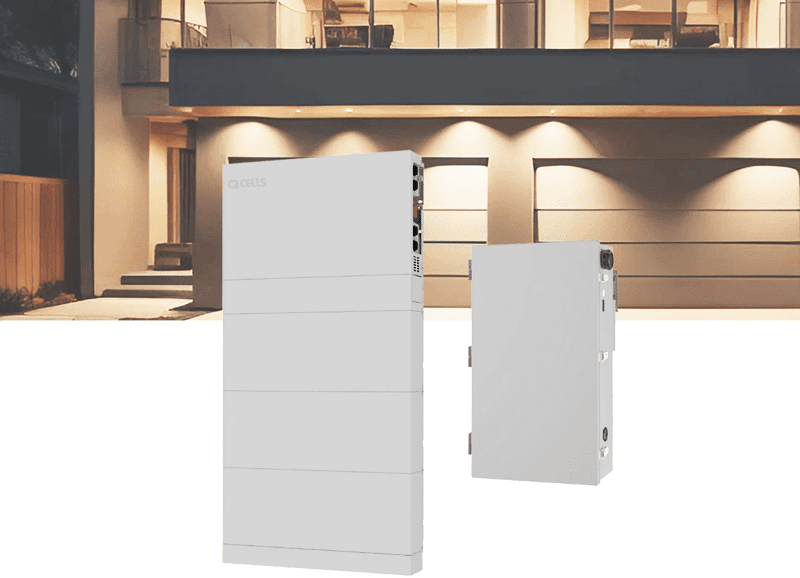

Q.HOME CORE equipment works as one system: a Q.VOLT inverter, a Q.SAVE battery stack (BMS, base and 2 to 4 battery modules) and, for backup with automatic transfer, the Q.HOME HUB. Send CSE your existing equipment, backup goals and delivery ZIP and we will confirm the correct, complete bill of materials. Contact CSE Solar USA.
| Weight | 75 lbs |
|---|---|
| Dimensions | 33.1 × 15.7 × 5.7 in |
| MPN | HQCAESS1117 |
