Fronius Primo 11.4-1 208-240, 11.4kW single phase, string inverter

Fronius Primo 11.4-1 208-240, 11.4kW single phase, string inverter

• • Manufacturer Part Number: 4.210.076.800

• • Power Output: 11400 Watts

• • Voltage: 208 Volt 240 Volt

• • Manufacturer Warranty: 10 Years

• • Performance Warranty: 10 years

• • Shipping Weight: 82.5 lb

• • Shipping Dimensions: 20.1 x 28.5 x 8.9 in

Fronius, Primo 11.4-1 208/240 TL Grid Tied Inverter, 1-Ph, 11.4kW, 208/240VAC, 60Hz, 600VDC, DC Discon, 4 Fused i/p on MPPT#1, no Fused i/p on MPPT#2, 10 Yr Warr, integrated WiFi/Ethernet Datamanager, Arc-Fault Protection, UL-1741-SA, NOT CA Rule 21 Compliant, 4,210,076,800

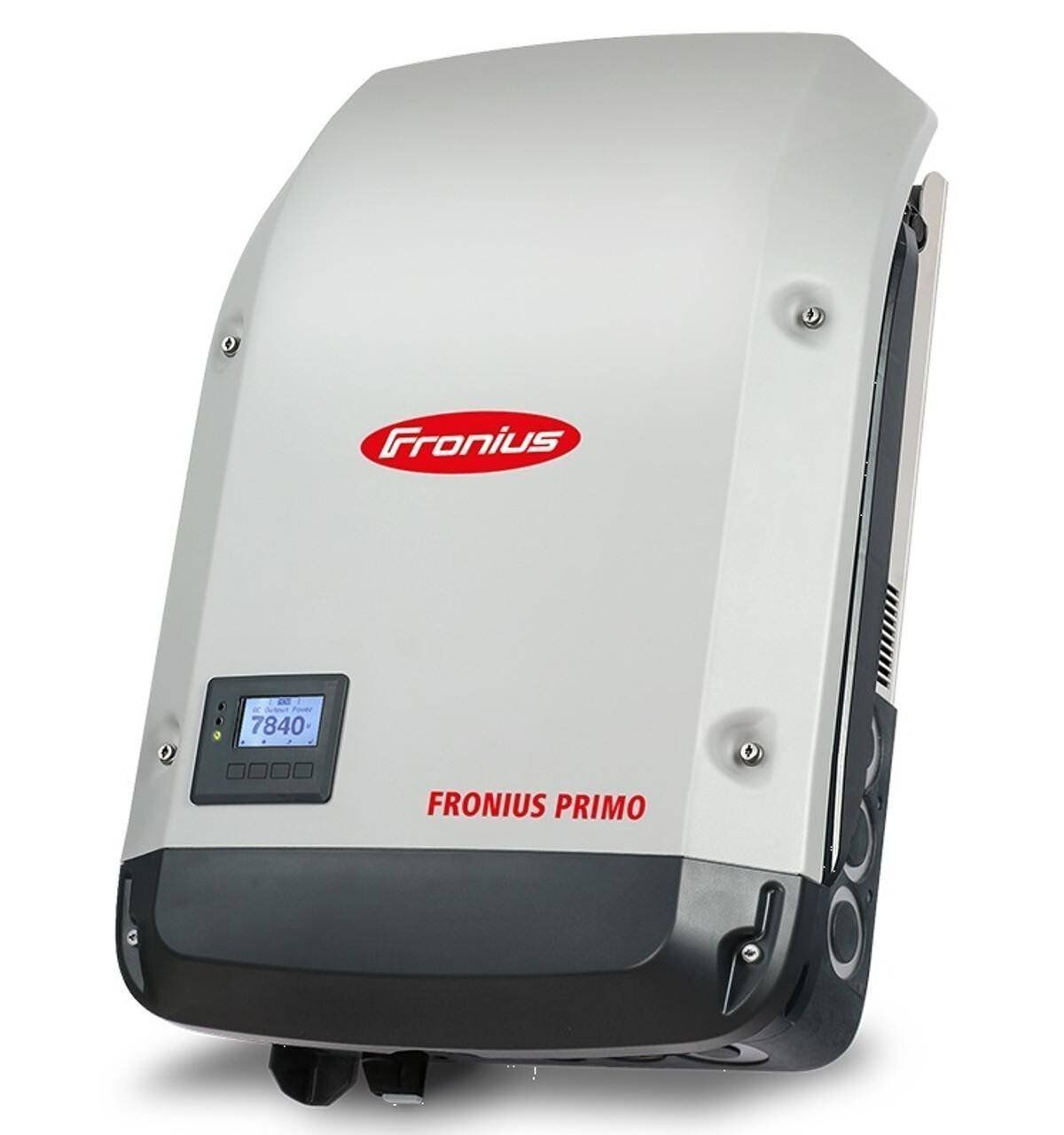

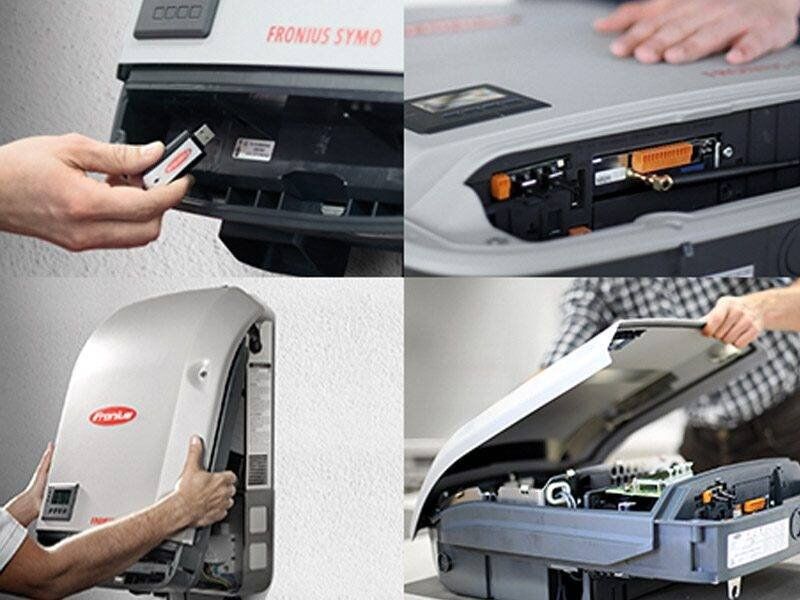

The transformerless Fronius Primo is the perfect compact single-phase inverter for residential applications, with power categories ranging from 3.8 kW to 15.0 kW. The SnapINverter hinge mounting system is included in the sleek design, allowing for lightweight, stable, and convenient installation. Dual powerpoint trackers, high device voltage, a broad input voltage range, Wi-Fi and SunSpec Modbus interface, and Fronius’ online and mobile monitoring platform Fronius Solar.web are just a few of the integrated features that set the Fronius Primo apart from the competition. The Fronius Primo also integrates a Revenue Grade Metering alternative and works smoothly with the Fronius Rapid Shutdown Box for a secure NEC 2014 solution.

Download FRO-P-11.4-1-208-240 Datasheet.pdf

Download FRO-P-11.4-1-208-240 Install Manual.pdf
