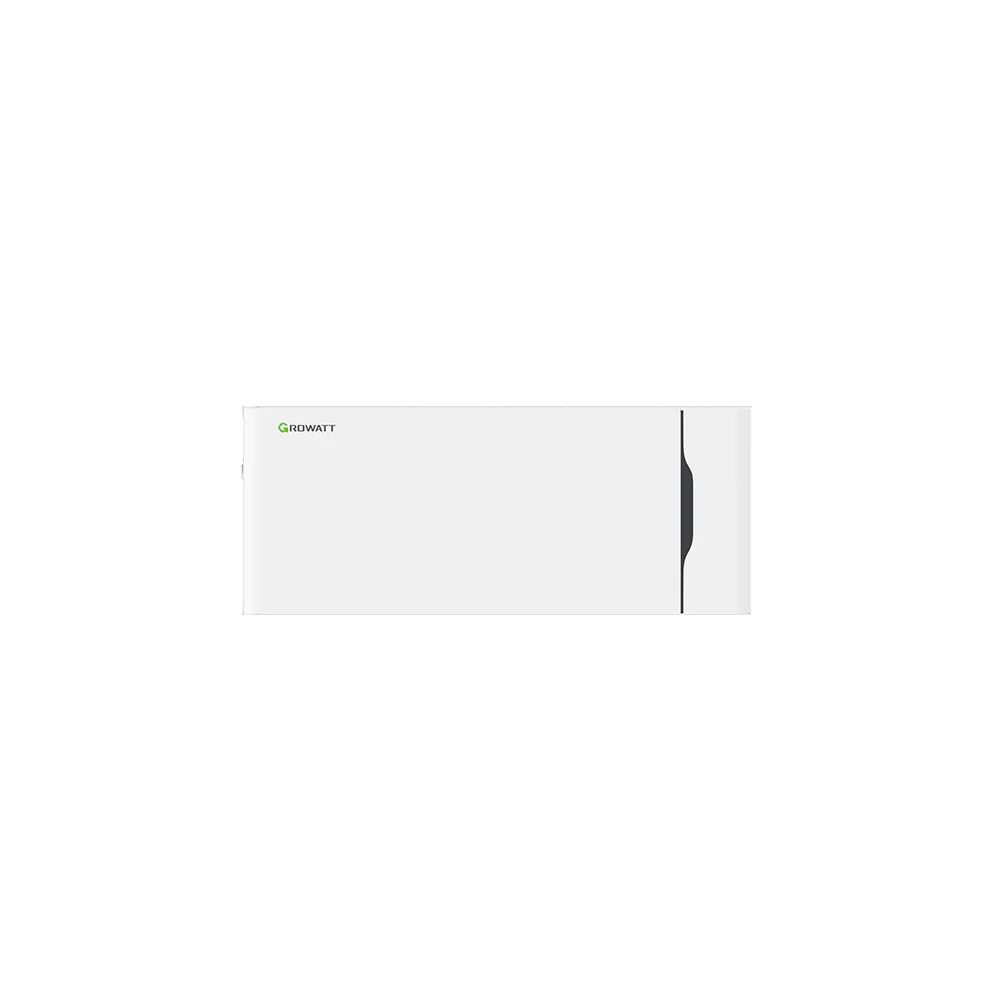

Growatt ALP 5.0L-E2-US LV 48V 5.0kWh Stackable Battery Module
$1,355.00
13 people are viewing this product right now
- Max. 220A continuous charge/discharge current
- Flexible capacity options, 5kWh to 320kWh, Max. 8 packs in parallel (Max. 8 clusters in parallel);
- Excellent safety of cobalt free LiFePO4 battery
- Easy installation with modular and stacked design
- Module capacity 100Ah, DOD 92%
- IP 66/ Type 4X suitable for outdoor installation
- Wall mounted or floor installation
Growatt’s new ALP LV battery covers a wide range of capacities, offering scalability up to 40.0kWh per Control Box, and whole system up to 160kWh. The APL battery is compatible with Growatt SPH 10000TL-HU-US 48V 10.0kW Split-Phase Hybrid inverter and SPF series Off-grid inverters, such as Growatt SPF 6000T/ 12000T DVM-MPV Off-grid inverters, can support off-grid systems with power outputs of 3kW to 30kW. The ALP battery system has excellent performance and a fair price. These solutions are suitable for a wide range of applications, including grid-tied residences, solar installations, remote off-grid locations, and commercial establishments across the country.
The stackable design of the ALP LV battery system makes it easier to install with internal plugs, requiring no extra cable connections, while with all the external cables integrated into one plug, its connection to the inverter is much more simplified.
Product Overviews:
| Manufacturer | Growatt |
| Type | LiFePO4 Low Voltage |
| Battery Capacity | 5.0kWh |
| Nominal Voltage | 51.2V |
| Nominal Charge/Discharge Current | 220A |
| Easy Scalable | Easy scale up to 160kWh |
| Dimensions(W*D*H) | 28.0*7.3*23.2inch (710*185*295mm） |
| Weight | 101.5lbs ( 46kg ) |
| Installation | Wall-mounted or Floor Installation |
| IP Protection | IP66/NEMA Type 4X |
| Certificate | UL1973+FCC, UN38.3, CE, ROHS |
| Warranty | 10 Years |
Key Features:
- Easy Installation:
– Stacked installation without the cable connection
– Module automatic recognition
– IP65 for outdoor installation - Safety and Reliability:
– Cobalt-free LiFePO4 battery
– High cycle stability and long lifespan
– Soft start to defend the system from surges
– Whole system warranty - Smart O&M
– Auto under-voltage wakeup
– Remote diagnosis and upgrade
Product Specifications
- Nominal Voltage: 51.2V
- Operating Voltage: 46.4~57.6V
- Nominal Charge/Discharge Current: 75A
- DOD: 92%
- Cycle Life: >6000 cycles
- IP Protection IP66/NEMA Type 4X ( Indoor installation )
- Communication Protocol: CAN
- Connect style: Parallel
- Mult-cluster ALP battery system in parallel: Max. 4 clusters( Max. 160kWh )
Application scenarios :
- 48V Applications
- Residential Power Systems
- Home Solar Systems
- Cabins & Tiny Homes
- Off-Grid Homesteads
- Emergency Power
- Whole Home Backup
- Lead Acid Replacement
| Weight | 101.5 lbs |
|---|---|
| Dimensions | 28.0 × 7.3 × 23.2 in |
| MPN | S-ALP5K-US |
