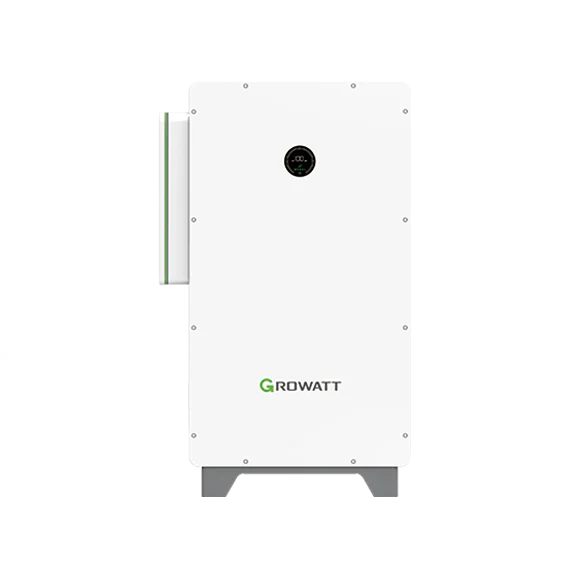

Growatt WIT 100K-HU-US Hybrid 3Phase 480Vac Inverter With Backup Function

Growatt WIT 50-100K-HU-US Hybrid 3Phase 480Vac Inverter With Backup Function.

Product Overview

Manufacturer Growatt
Type 3-phase Hybrid Storage Inverter
Max PV Input 156 KW
Max Output 100kW/110kVA
Nominal AC voltage/range 480V, -15%~+10%
MPP Trackers 10
Max Battery charge/discharge current 151.3A
Max Efficiency 98.2%
Types of battery Li-ion
Electronics Protection Degree IP66/NEMA 4X
Warranty 10 years
Communications: RS485/CAN, WiFi//4G/LAN(OPT)
Certificate: UL1741:2021, UL1741 SA/SB:2020, IEEE1547:2018, IEEE1547.1:2020, HECO Rule14, E-5000, CSIP, SA17-SA18, UL1998:2018, CEC, FCC Part 15, CSA C22.2.107.1

Key Features
Scalable system configuration, extend to 300kW
Support UPS function and black start
100% unbalanced load when backup
110% continuous AC overloading capacity
Support remote control of DG
Grid-support functions
PV Input Data
Max.PV Power Input: 156KW
Start voltage: 195V
Max.DC Voltage: 1100V
MPPT nominal voltage/range: 550V, 180V-800V
No. of PV Strings per MPPT: 2
Max. input current per MPPT: 32A
Max. short-circuit current per MPPT: 40A

Output Data
AC nominal power: 100kW
Nominal AC voltage/range: 480V, -15%~+10%

Battery Data
Battery voltage range: 750-1000V for 3P3W / 820-1000V for 3P4W
Continuous charging and discharging power: 113.5kW
Max charging and discharging current: 62.3kW
Type of battery: Li-ion

Advanced Protection & Safety
PV reverse polarity protection
Battery reverse protection
AC/DC surge protection: Type II
Insulation resistance monitoring
Ground fault monitoring
Grid monitoring
Residual-current monitoring unit
AC short-circuit protection
String monitoring
Anti-islanding protection
PID protection
AFCI function: Opt

General data
Dimensions( W/H/D ): 33.5/53.1/20.1inch (850/1350/510mm)
Weight: 160kg/352.7Ibs
Protection degree: IP66/NEMA 4X
Display: OLED+LED/WIFI+APP
Communication: RS485/CAN, WiFi//4G/LAN(OPT)
Warranty: 5 Years, 10 Years (OPT)

About Growatt

Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. Founded in 2010, the company has grown rapidly to become a trusted brand in the renewable energy industry, with a presence in over 100 countries and regions around the world.

Growatt’s innovative products are designed to maximize energy efficiency and enable customers to reduce their carbon footprint while saving money on energy bills. The company’s range of solar inverters includes both string and central inverters, which are suitable for a wide range of applications, from residential rooftops to large-scale commercial and utility-scale projects.

In addition to solar inverters, Growatt also offers a range of energy storage solutions, including lithium-ion batteries and hybrid inverters. These products allow customers to store excess energy generated by their solar panels and use it when needed, further reducing their reliance on grid power.

With a commitment to innovation and customer service, Growatt is dedicated to providing reliable, high-quality products and solutions that meet the evolving needs of the renewable energy industry.
