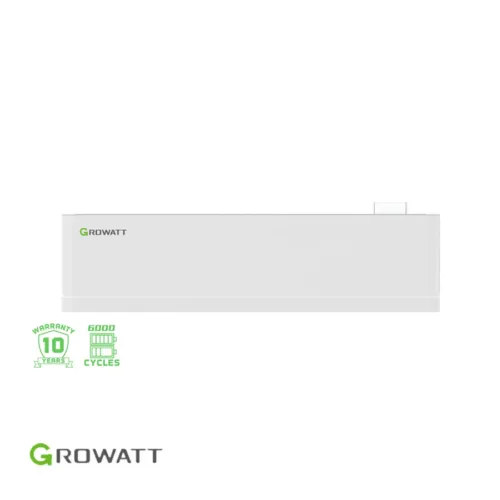

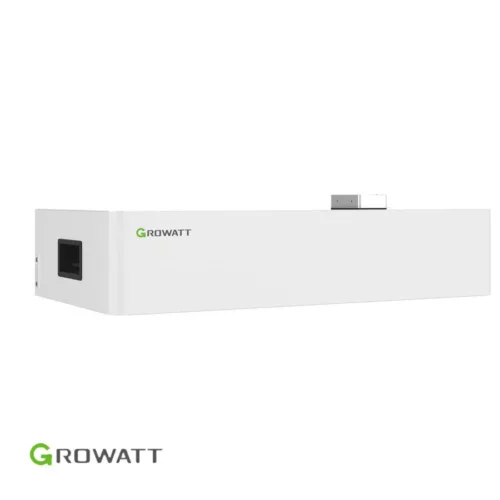

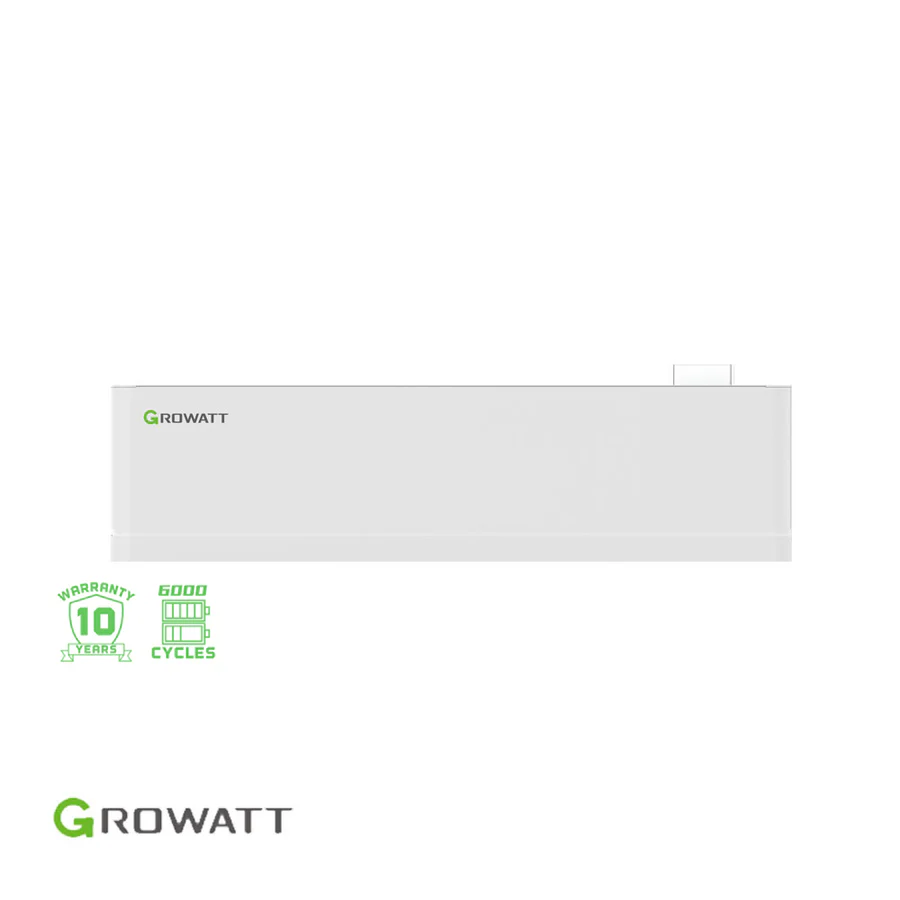

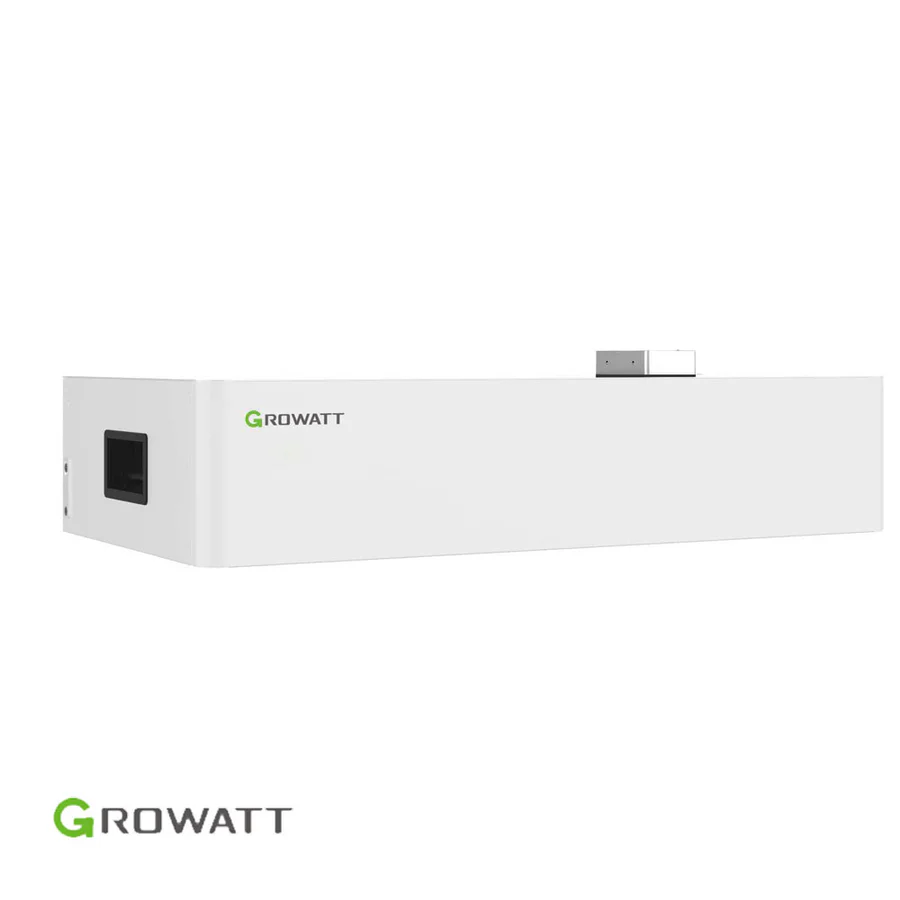

Growatt AXE 5.0kWh Low Voltage Battery Storage System
$1,575.00
12 people are viewing this product right now
- Excellent safety of cobalt free LiFePO4 battery
- Compatible with Growatt SPF series Off-Grid inverter
- Flexible capacity options, 5kWh to 400kWh
- Stacked installation without cable connection
- Remote firmware upgrade
Growatt’s new AXE LV battery covers a wide range of capacities, from 5kWh to 400kWh, which is compatible with Growatt SPF series Off-grid inverters, such as Growatt SPF 6000T/ 12000T DVM-MPV Off-grid inverters, can support off-grid systems with power outputs of 3kW to 30kW.

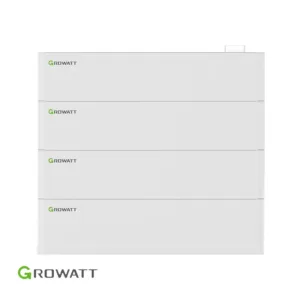

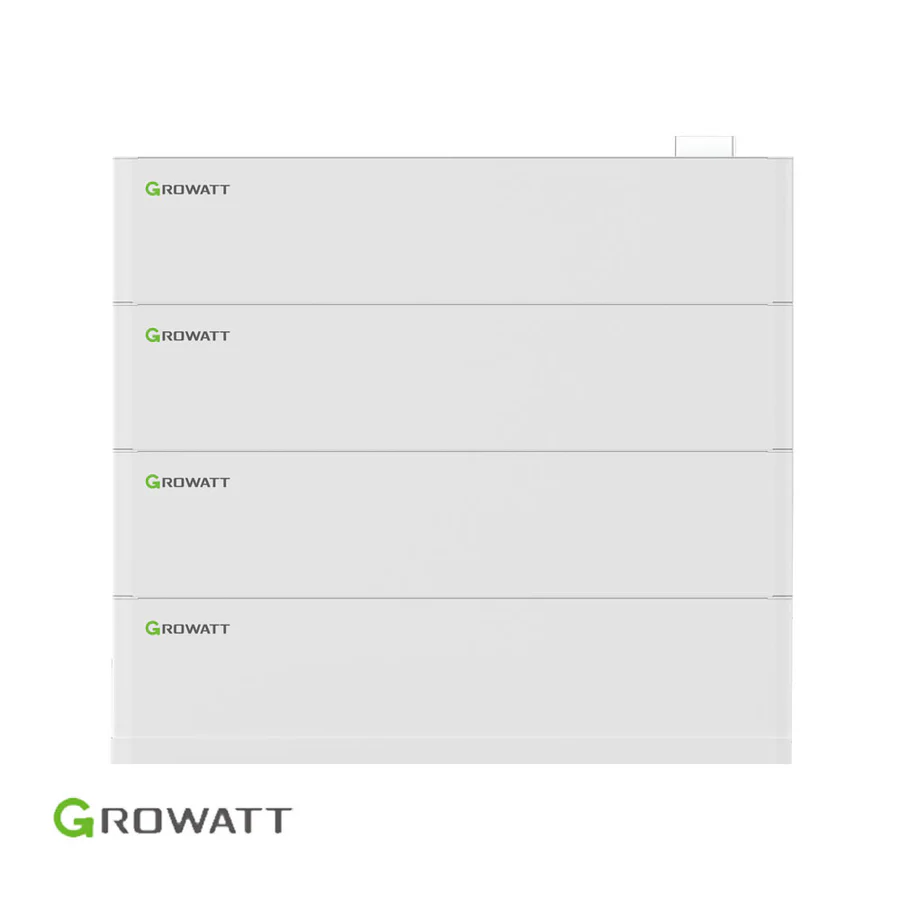

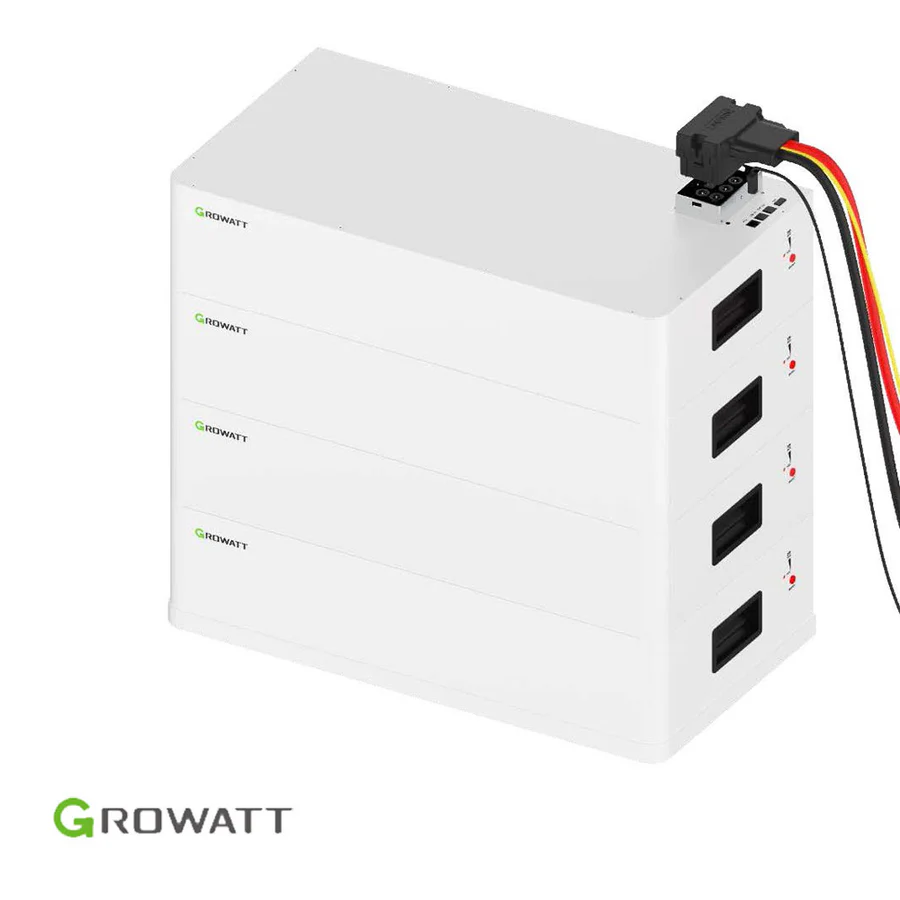

The stackable design of AXE LV battery system makes it more easy to install with internal plugs, requiring no extra cable connections, while with all the external cables integrated into one plug, its connection to the inverter is much more simplified.
Product Overviews:
| Manufacturer | Growatt |
| Type | LiFePO4 Low Voltage |
| Battery Capacity | 5.0kWh |
| Nominal Voltage | 51.2V |
| Nominal Power | 3.0kW |
| Nominal Charge/Discharge Current | 60A |
| Easy Scalable | Easy scale up to 400kWh |
| Dimensions(W*D*H) | 25.6*16.4*6.5inch (650*350*165mm） |
| Weight | 92.4lbs ( 42 kg ) |
| Installation | Indoor Floor Stand |
| IP Protection | IP20/NEMA Type 1 |
| Certificate | UL1973+FCC, UN38.3, CE, ROHS |
| Warranty | 10 Years |
What is included in this AXE 5.0kWh Battery Storage System:Battery Module: 1 * AXE 5.0L-C1 Base Stand: 1 * AXE 5.0L-C1 Pedestal |
Key Features:
- Easy Installation:
– Stacked installation without cable connection
– Module automatic recognition - Safety and Reliability:
– Cobalt-free LiFePO4 battery
– High cycle stability and long lifespan
– Soft start to defend the system from surges
– Whole system warranty - Smart O&M
– Auto under-voltage wakeup
– Remote diagnosis and upgrade
Product Specifications
- Nominal Voltage: 51.2V
- Operating Voltage: 48~57.6V
- Nominal Power: 3kW
- Peak Power: 4.5kW @3s
- Nominal Charge/Discharge Current: 60A
- DOD: 92%
- Cycle Life: >6000 cycles
- IP Protection IP20/NEMA Type 1 ( Indoor installation )
- Communication Protocol: RS485, CAN
- Connect style: Parallel
- Mult-cluster AXE battery system in parallel: Max. 8 clusters( Max. 400kWh )
| MPN | S-AXE5-US |
|---|
