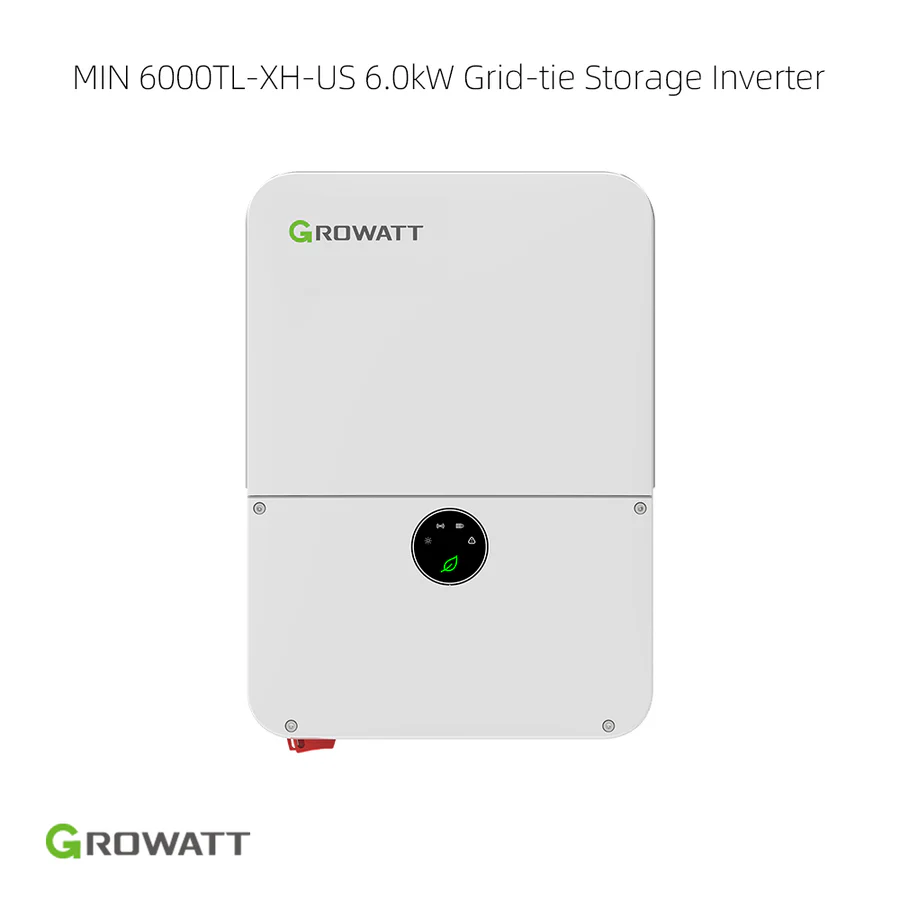

Growatt MIN 3800~11400TL-XH-US Series Grid-tie Storage inverter
$899.00 – $1,649.00
27 people are viewing this product right now
- Battery Ready for DC Coupled and AC Coupled systems
- Certificated UL9540 with Growatt ARO/APX battery system.
- High yields:
– DC/AC Ratio up to 2.0
– MPPT trackers up to 4
– Max. efficiency 98.5% - With backup power and dark start operations
- Support RSD and AFCI
- Support multiple energy management modes:
– Self-consumption;
– Zero Export;
– TOU and Off-grid - Comply with UL1741SA/SB, CA Rule 21 & HECO
- V1/V2 pairs with ATS for Partial home backup, V3 pairs with SYN for whole home backup
The Growatt MIN Series Grid-Tie Storage Inverter is high-performance and cost-effective . It offers 9 power models: 3.0kW, 3.8kW, 5.0kW, 6.0kW, 7.6kW, 8.2kW, 9.0kW, 10kW, and 11.4kW, which meets most of residential system requirements. The Growatt MIN series inverter has three versions :V1, V2, and V3, allowing users to build a perfect home energy storage system with Growatt ARO / APX batteries according to their specific household energy storage needs.

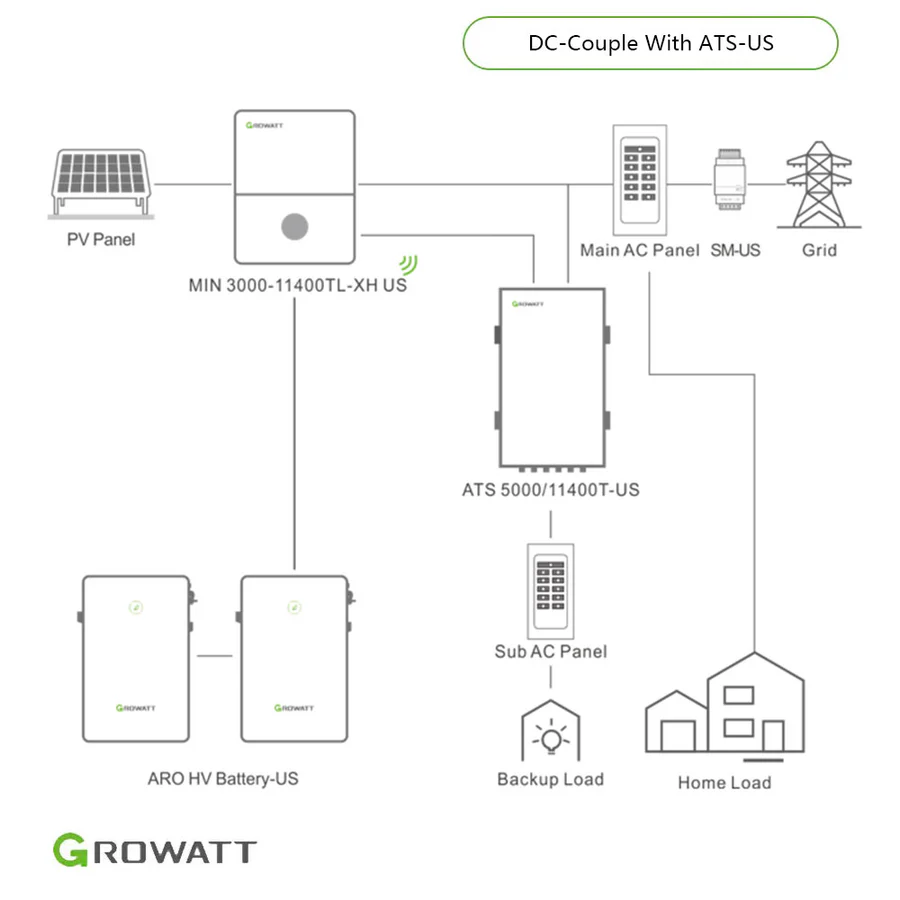

1. Partial Backup System
MIN Series Inverter (V1 / V2) + Growatt ARO/APX Battery + Growatt ATS + Smart Meter

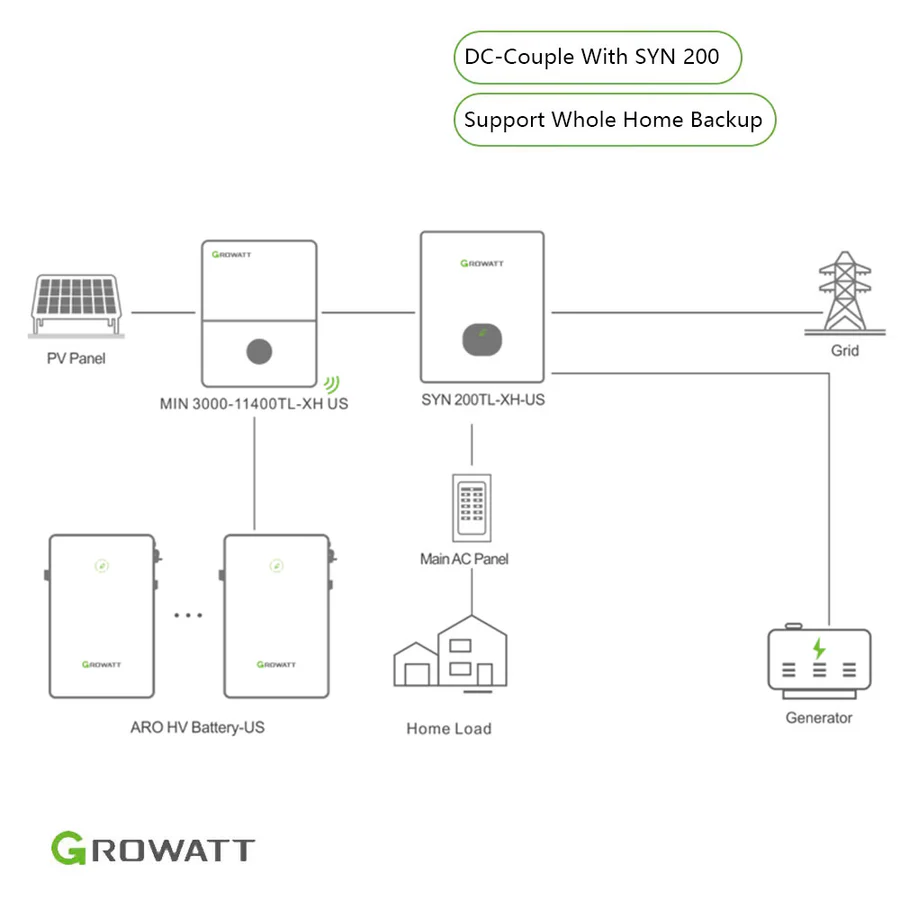

2. Whole-Home Backup System
MIN Series Inverter (V3) + Growatt ARO/APX Battery + Growatt SYN (11A / 13A)
It can support multiple energy management modes based on households energy requirement: Self-consumption: Zero Export, TOU (Time of Use), Off-grid
The WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.
Key Features:
- Leading Functions:
– Whole home backup
– Dark start operation
– Support RSD, AFCI, and RGM meter - High Yields:
– DC/AC Ratio up to 2.0
– Max. efficiency 98.3% - System Compatibility
– DC-Coupled and AC-Coupled systems
– Self-consumption, Zero Export, TOU, and Off-Grid
– UL1741SA/SB, CA Rule 21 & HECO
Specs for MIN 3000TL-XH-US ~MIN 7600TL-XH-US
Specs for MIN 8200TL-XH-US ~MIN 11400TL-XH-US
GENERAL DATA
- Dimensions(W*H*D): 15.8*25.2*7.4 inch( 400*638*187mm)
- Weight: 33lb ( MIN 3000~7600TL-XH-US)
45lb (MIN 8200~11400TL-XH-US ) - Installation: Indoor, Outdoor, Wall-mounted
- Monitoring Module: WiFi+ LAN, 4G(Optional)
MIN 7600-11400TL XH-US UL1747 SA
MIN 8200-11400TL-XH-US UL1741SB
| Growatt | MIN 11400TL-XH-US 11.4kW Grid-tie Storage Inverter, MIN 10000TL-XH-US 10kW Grid-tie Storage Inverter, MIN 7600TL-XH-US 7.6kW Grid-tie Storage Inverter, MIN 6000TL-XH-US 6.0kW Grid-tie Storage Inverter, MIN 5000TL-XH-US 5.0kW Grid-tie Storage Inverter, MIN 3800TL-XH-US 3.8kW Grid-tie Storage Inverter, MIN 3000TL-XH-US 3.0kW Grid-tie Storage Inverter |
|---|
