GROWATT MIN 7600TL-XH US, AC HYBRID INVERTER WITH RGM, CELL CARD, TIGO TRANSMITTER INTEGRATED, 7600W

HYBRID INVERTER! OFF-GRID, ON-GRID OR BOTH!

Flexible, reliable clean energy to power your home, business, tiny house, RV, cabin, boat, vacation rental, off grid locations, beachside venues, parks and more.

Supports backup power and dark start operations with rapid shutdown solution & AFCI integration. (Inverter Only, Battery is not included).

Built-in 4G/Wi-Fi Comm. with APP. IoT integrated Cloud and monitoring.

Growatt MIN-7600TL-XH-US 15.2kW AC Hybrid Inverter w/ RGM, Cell Card & Tigo Transmitter Integrated

Manufacturer Part#: MIN-7600TL-XH-US

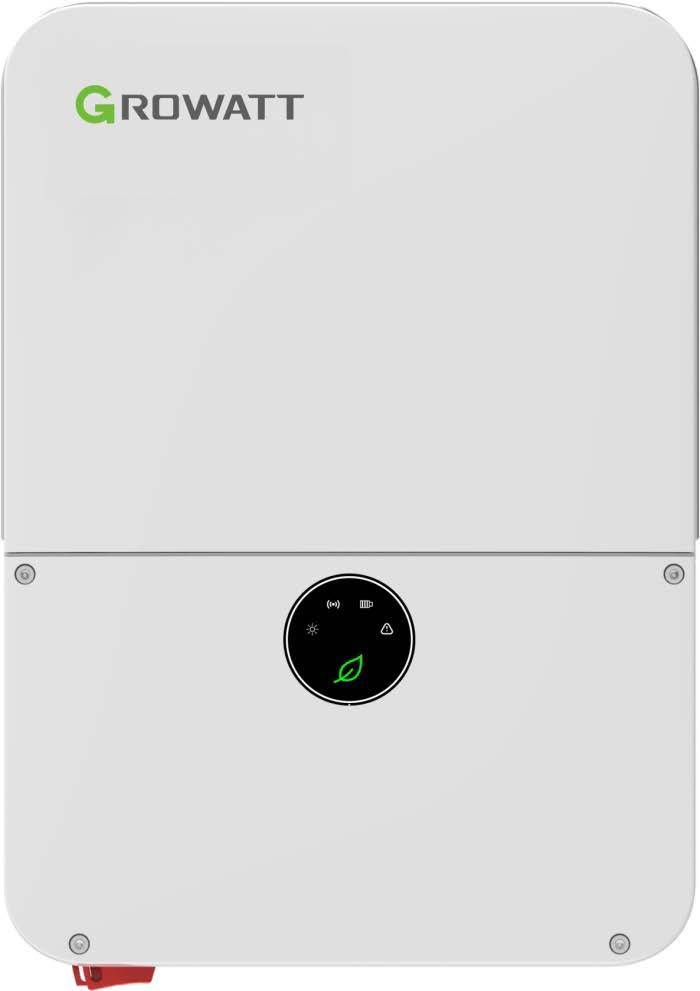

Growatt MIN 7600TL-XH-US Hybrid Inverter

Overview:
Elevate your solar system with the cutting-edge Growatt MIN 7600TL-XH-US, a remarkable smart inverter solution designed for battery-ready rooftop solar systems. This compact unit boasts an impressive efficiency rating of 98.4%, ensuring optimal performance in converting solar energy into usable power for your home.

Key Features:

Communication: Equipped with WiFi, LAN Integrated Communication Module, and Tigo Transmitter for seamless connectivity.
Battery Compatibility: Ready for both DC Coupled and AC coupled systems, supporting backup power and dark start operations.
Advanced Functionality: Features Rapid shutdown solution, AFCI integration, and Integrated EMS for versatile energy management modes.
Compliance: UL1741SA, CA Rule 21, and HECO compliant, ensuring safety and reliability.
Monitoring: Built-in 4G/Wi-Fi Communication with APP, IoT integrated Cloud for efficient monitoring and control.

Note:
The Growatt MIN series inverters paired with ARO HV series batteries provide the optimal storage solution, as endorsed by Growatt as of 06/29/22. Kindly consult the manufacturer for the latest compatibility details.

Specifications:

Manufacturer: Growatt
Model: MIN 7600TL-XH US (WiFi/LAN+TIGO)
Rated Power Output: 7600W
Dimensions: 569mm x 400mm x 170.5mm
Weight: 17.4kg
Warranty: 10 years craftsmanship warranty

Technical Details:

Inverter Type: Hybrid inverter
Efficiency: 98.4%
DC Power Rating: 15200W
AC Power Rating: 7600W
AC Voltage Range: 208V: 183-229V / 240V: 211-264V
AC Grid Frequency: 60Hz
Number of DC String Inputs: 6
Communication: RS485 included, WiFi/4G Optional
Enclosure Rating: NEMA4X (IP65)
Operating Temperature Range: -25°C to +60°C
Operating Humidity: 0-95%

Compliances:
IEEE1547, CA Rule21, HECO Compliant, FCC Part15 Class B, UL1741, UL1741SA, CSA C22.2, UL1699B, UL1741 CRD

For a comprehensive overview, detailed documents, and updated specifications, please refer to the manufacturer’s official website.
