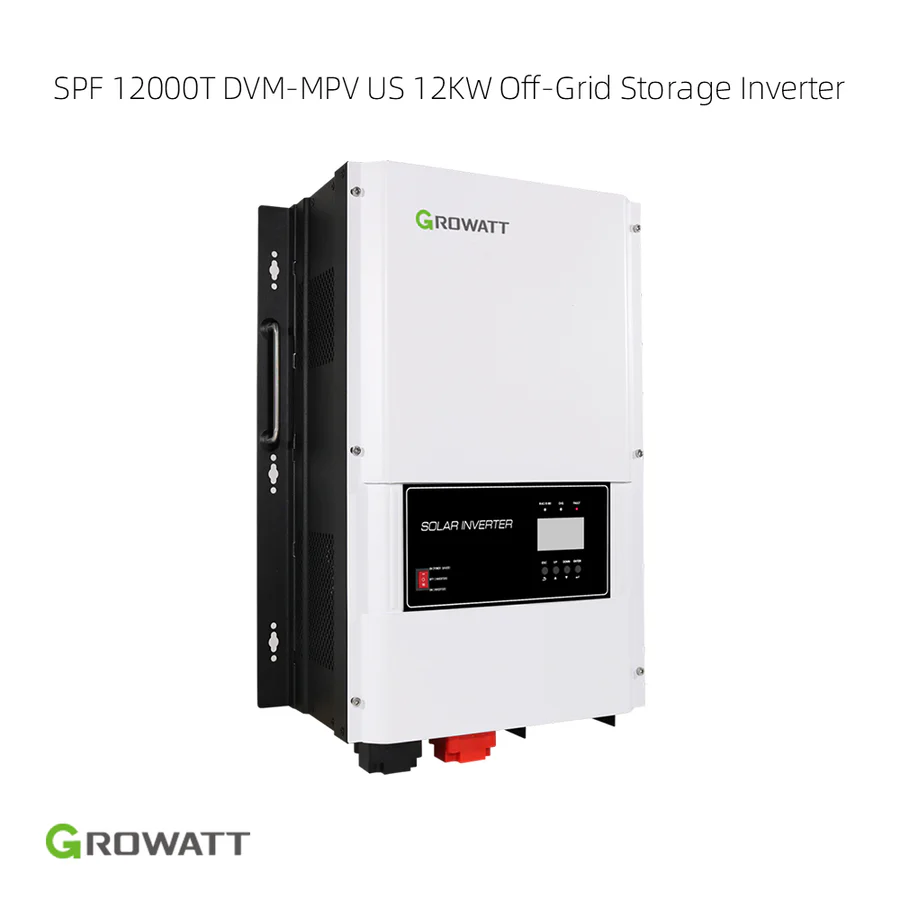

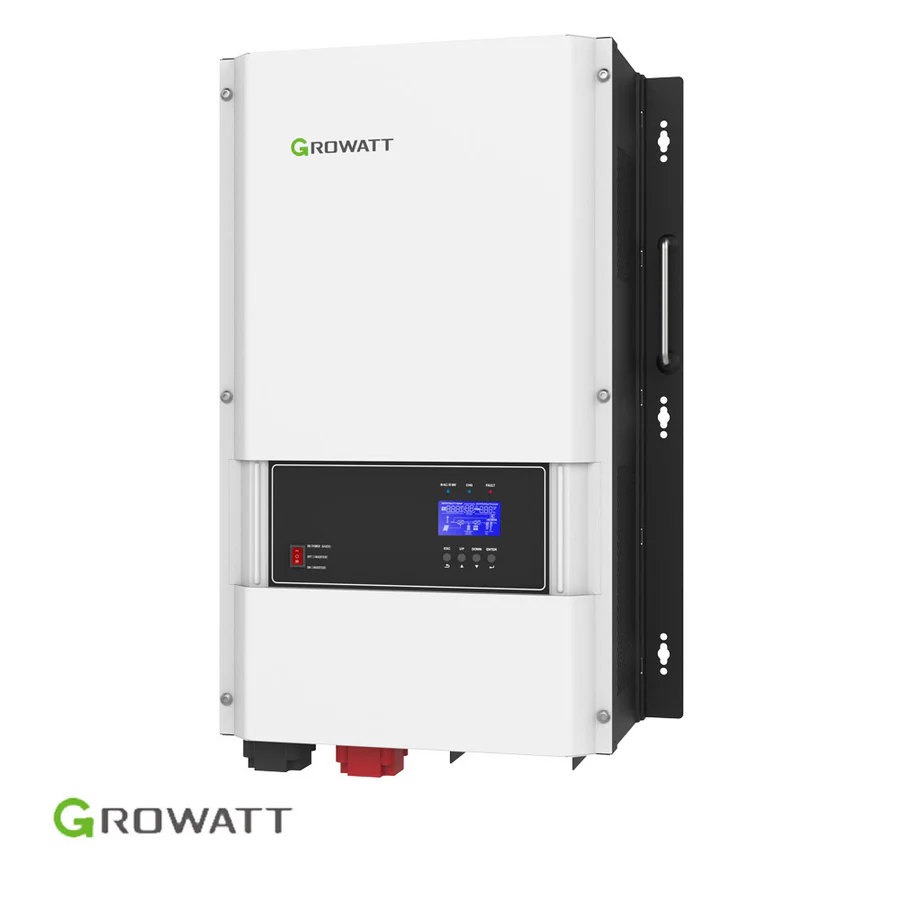

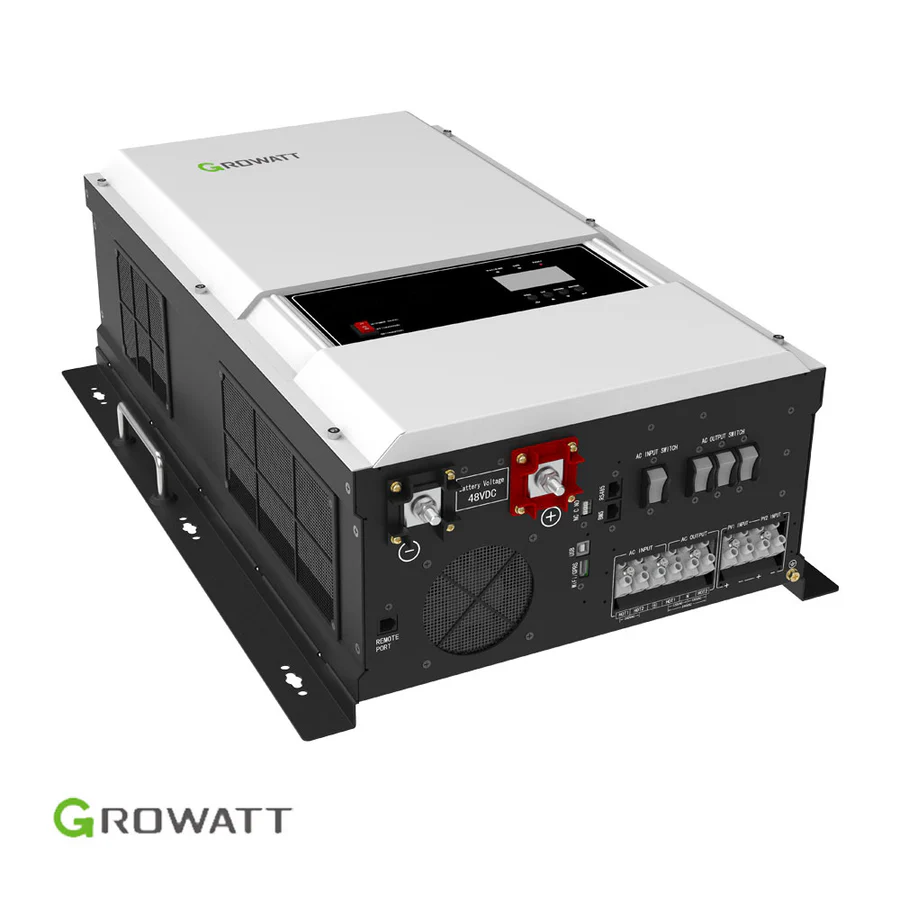

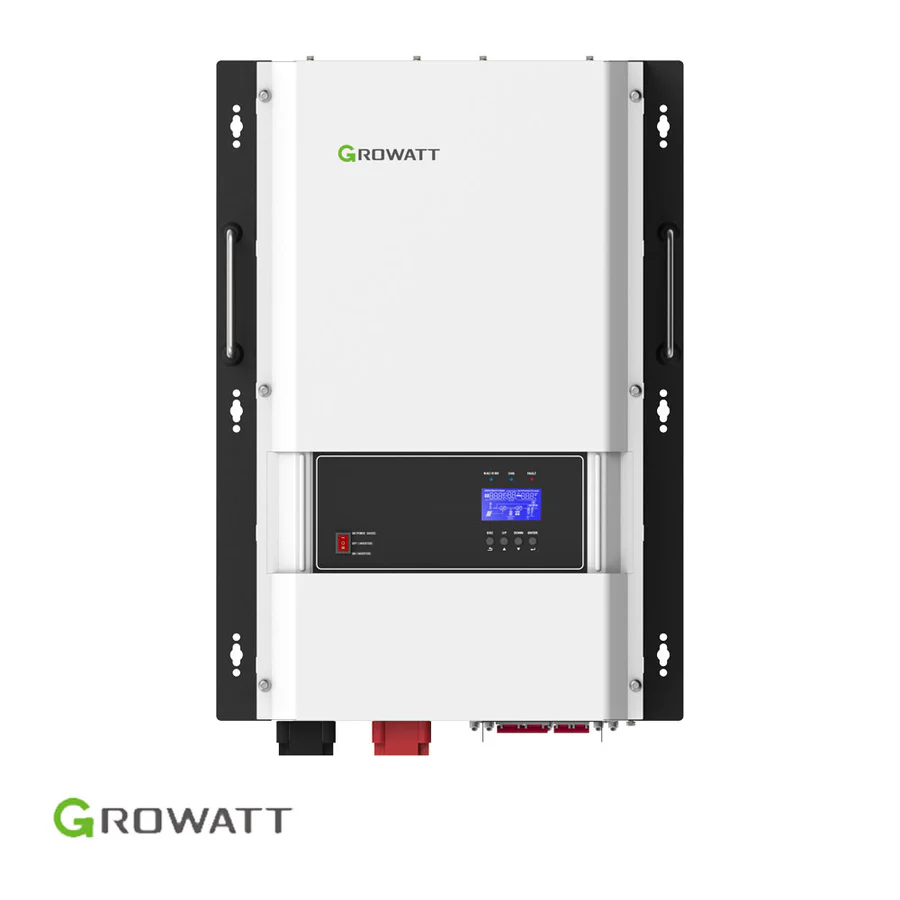

Growatt SPF 12000T 12.0kW Split-Phase Off-Grid Storage Inverter | DVM-US MPV

The Growatt SPF 12000T DVM-US MPV, is a 12kW Split Phase Off-Grid Inverter designed to provide reliable and efficient power for off-grid solar systems. With its advanced Dual Maximum Power Point Tracking (DVM) technology, this inverter can maximize the energy output of your solar panels, ensuring you get the most out of your system. The SPF 12000T is also equipped with a range of protection features, including over-voltage, under-voltage, over-temperature, and short-circuit protection, ensuring your system stays safe and operational even in adverse conditions. With its compact and user-friendly design, the Growatt SPF 12000T is an all-in-one unit that can provide power via solar array, 48v battery bank, or generator/utility

Product Overviews:

Key Features:

• Scalable & Flexible:
  – Multi-customized modes for diverse scenarios
  – Support Multiple power sources
  PV, Battery, Diesel generator, and utility
  – Compatible with lithium, lead-acid, and GEL batteries
• High Yields:
  – Output power factor up to 1.0
  – 2 times peak power ability
  – Dual voltage output
• Smart & Reliable
  – Support WiFi and GPRS Communication for remote monitoring
  – PV keeper platform for local commissioning
  – Built-in low-frequency transformer

Product Specifications:

 Inverter Output

• Rated Power: 12.0kW
• Surge Rating: 36kW
• Inverter Efficiency(Peak): >85%
• Transfer Time 10ms( max )

AC Input

• Voltage: 240VAC
• Max Charging Current: 100A

Solar Charger

• Maximum PV Charge Current: 120A
• Maximum PV Array Power: 7.0kW
• Maximum PV Array Open Circuit Voltage: 250VDC
• MPPT Range@ Operating Voltage: 60~245VDC
• Maximum Efficiency : >97.5%

GENERAL DATA

• Dimensions(W*H*D):  14.96/25.59/8.86 inches( 380*650*225mm)
• Weight: 165.3 lbs ( 75kg )
• Installation: Indoor, Wall-mount
• Protection Degree: IP20
