Growatt SYN 200-XH-US 13A For Whole home backup | 200A Circuit Breaker and Smart meter integrated | Generator Port | Paired with Growatt MIN series Inverter V3

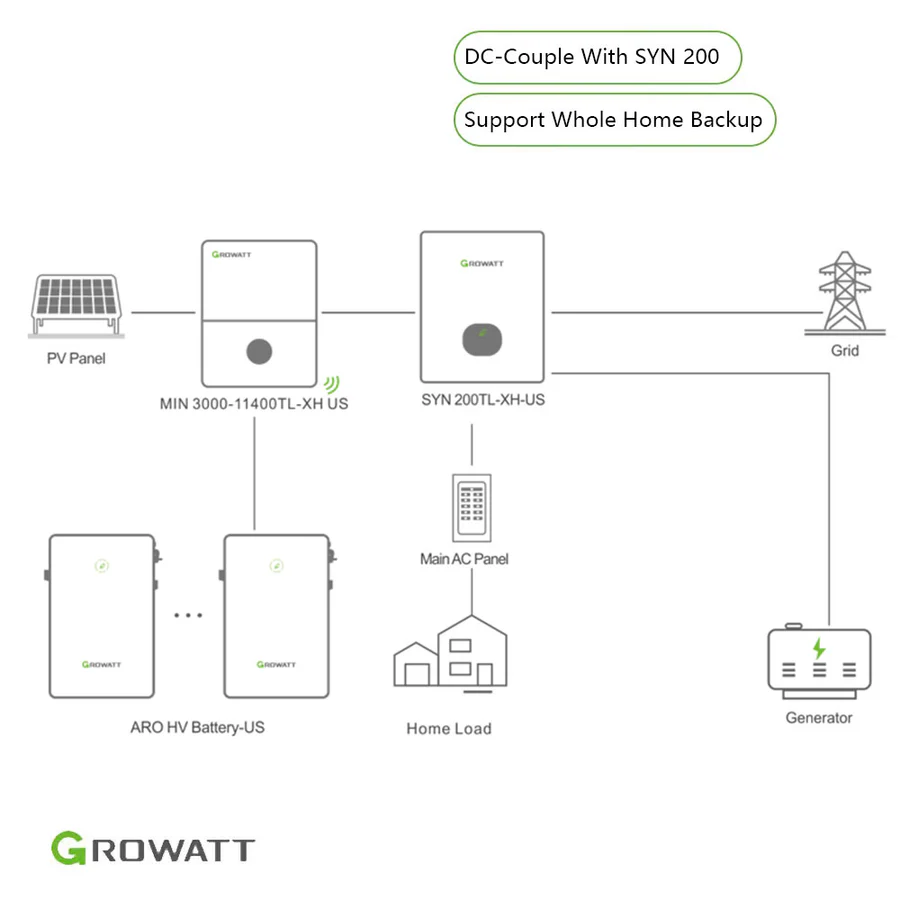

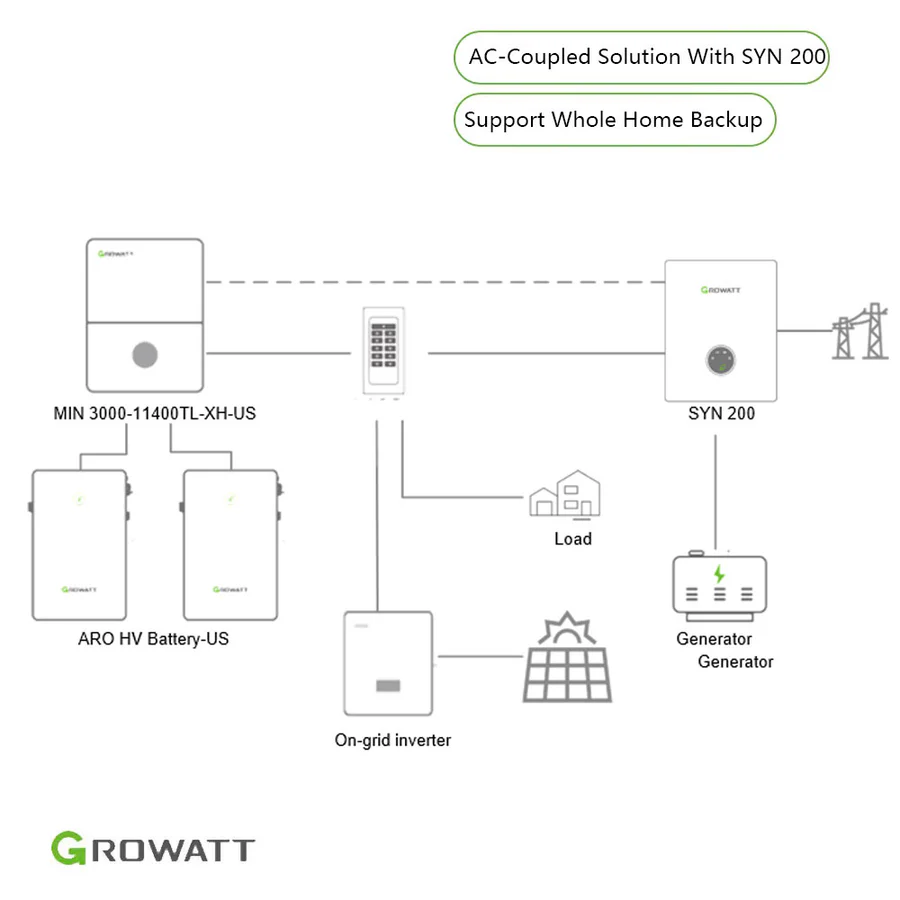

The Growatt SYN 200-XH-US 13A is an advanced smart backup solution designed for whole-home power protection and energy independence. Engineered to pair seamlessly with the Growatt MIN Series Grid-Tie Inverter V3, this intelligent system ensures reliable backup performance when integrated with the Growatt APX HV Battery or ARO HV Battery.

Built for convenience and efficiency, the SYN 200-XH-US 13A features a 200A circuit breaker and smart meter integrated directly into the system, eliminating the need for external breakers. A split-phase transformer is included, supporting 120V/240V split-phase output for complete home coverage.

With its remote wake-up capability, generator port, and intelligent switching technology, the system automatically transitions between grid and backup power, maintaining uninterrupted energy supply during outages. Designed for simplified installation and operation, it’s the perfect addition to any Growatt home battery storage setup.

Key Features

Backup Capability: Designed for whole-home power backup to keep your essential loads running during outages. Fast switching between grid-tie and off-grid modes in under 0.5 seconds, ensuring uninterrupted power supply.

Easy Operation: Integrated 200A circuit breaker on the grid side eliminates the need for external breakers.Features a built-in split-phase transformer for stable 120V/240V output, offering simple installation and setup.

Application Flexibility: Supports connection with up to three inverters, expanding system scalability and backup capacity. Includes a dedicated generator port for enhanced energy security. Equipped with remote wake-up and intelligent control functions for seamless management and monitoring.
