HomeGrid BusBar Pair for Sol-Ark 15K Inverters | Stack’d System Compatible
$85.00
36 people are viewing this product right now
Connect your HomeGrid Stack’d Series battery to a Sol-Ark 15K inverter with high-conductivity copper busbars. Supports 4/0 cables for safe, efficient power transfer.

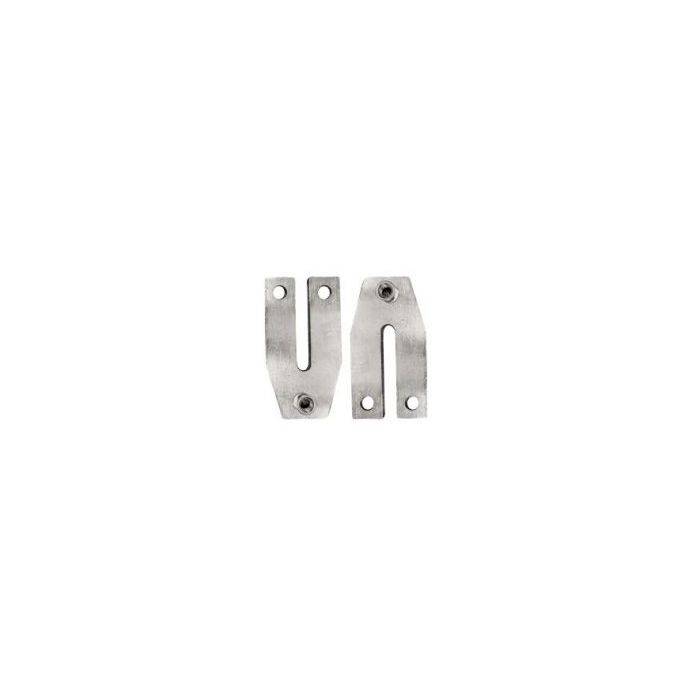

HomeGrid Stack’d Busbar pair for Sol-Ark 15k Hybrid Inverter
Unlock the full performance of your Sol-Ark 15K inverter with this HomeGrid Stack’d Busbar Pair, designed for seamless power delivery and easy installation. Capable of handling 4/0 battery cables, this busbar set provides a clean, secure, and high-capacity connection between your HomeGrid battery systems with Sol-Ark inverters.
Built to meet the demands of high-output energy storage, these heavy-duty copper busbars maintain maximum conductivity and system efficiency — allowing your inverter to draw the full potential from a single Stack’d Series battery. Simply mount the pair on the Sol-Ark 15K battery landings to create a compact, low-resistance link that supports the inverter’s full power range.
For larger systems, multiple Stack’d units can be connected in parallel to increase total energy capacity and output power. This flexibility allows users to customize their setup to match their energy needs and backup requirements.
| Material | High-conductivity Red Copper (T2) |
| Surface Finish | Nickel-plated for corrosion resistance |
| Electrical Resistivity | ≤ 0.0177 Ω·m |
| Tensile Strength | ≥ 215 N/mm² |
| Vickers Hardness | ≥ 55 HV |
| Ampacity @ 25 °C | 620 A |
| Ampacity @ 40 °C | 500 A |
| Compatibility | Sol-Ark 15K Inverter |
| Connection Hardware | M8 (5/16″) nut for HomeGrid Stack’d Battery connection |
| Weight | 10 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
| MPN | Sol-Ark 15K Busbar Pair |
