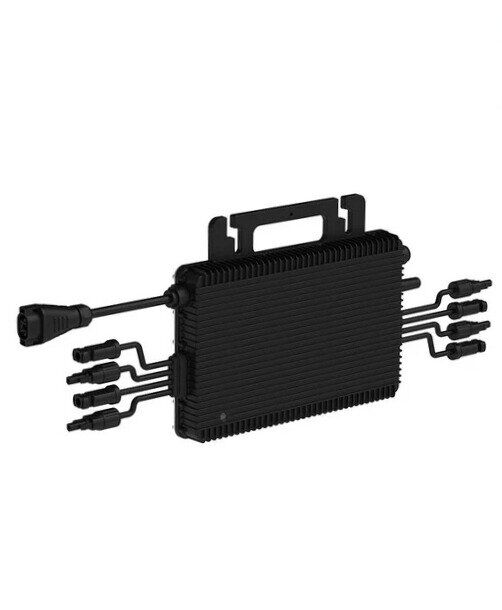

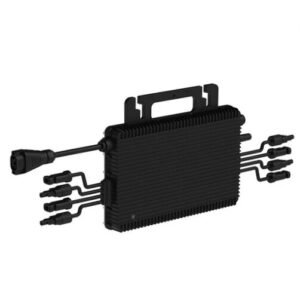

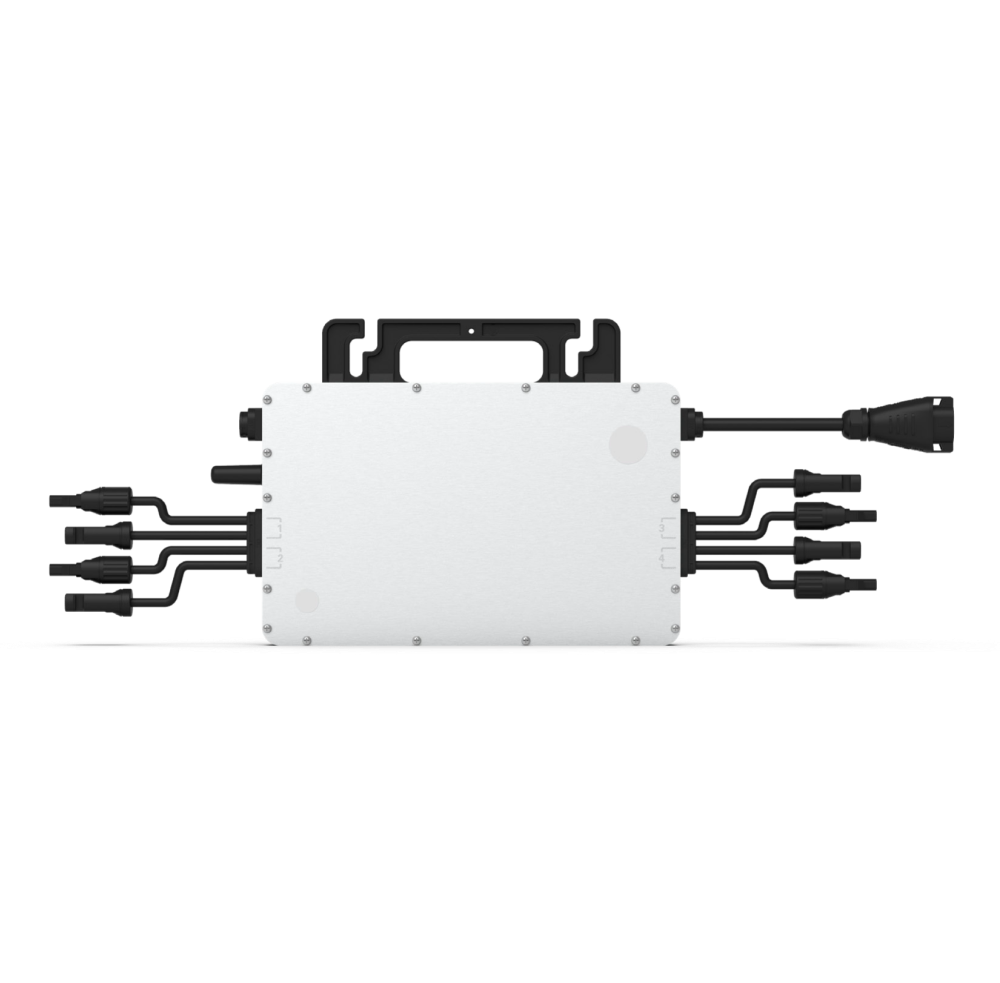

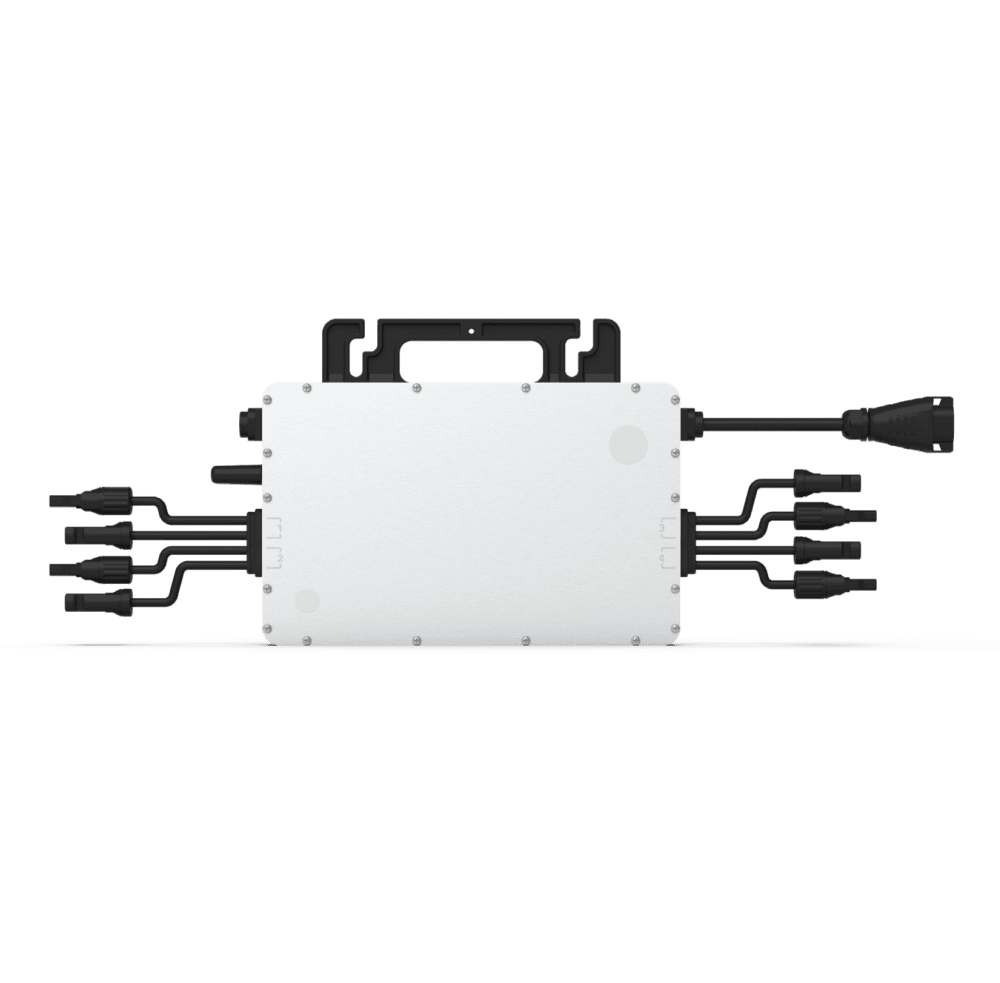

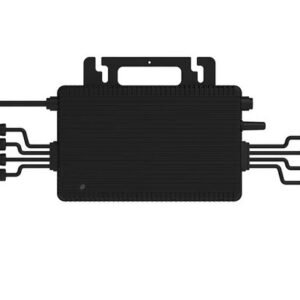

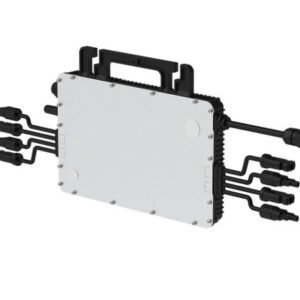

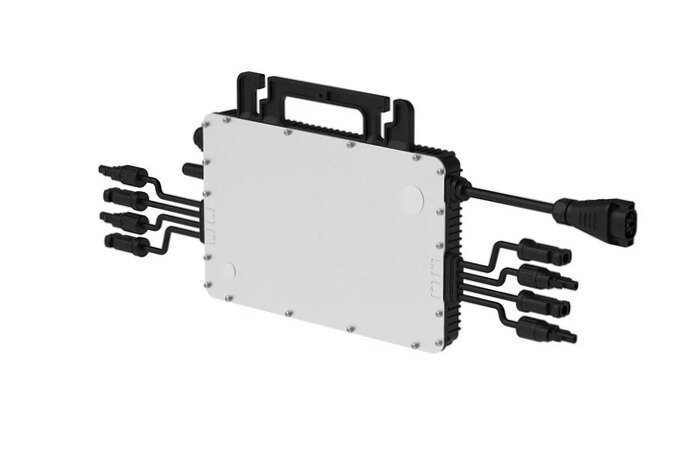

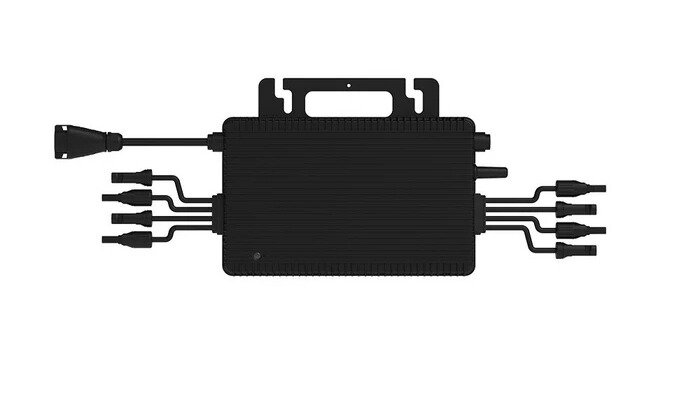

Hoymiles HM-1200NT | 4-in-1 Solar Microinverter 1200W Output | Grid Tied MPPT Solar
$367.50
34 people are viewing this product right now
Hoymiles HM-1200NT delivers 1200W peak output and 4-in-1 flexibility with advanced MPPT tracking for powerful, efficient solar systems.
1200W Output, 96.7% CEC Efficiency, Module Power, RV Rapid Shutdown, Easy Installation, Outdoor-NEMA6.
The Hoymiles HM-1200NT 4-in-1 Microinverter delivers exceptional efficiency and reliability for residential and commercial solar systems. Designed to connect up to four PV modules, each with an independent MPPT channel, it ensures maximum energy harvest even under partial shading or panel mismatch conditions.
Built for safety and compliance, the grid tie inverter meets NEC-2017, NEC-2020 (Article 690.12), and CEC-2021 Sec 64-218 PV Rapid Shutdown standards. It also supports reactive power control and complies with UL 1741, IEEE 1547, and CA Rule 21, ensuring smooth grid interaction and superior performance.
With a maximum DC input voltage of 60V, a peak AC output of 1200W, and Sub-1G wireless communication for stable data transfer, the HM-1200NT combines intelligent design with proven Hoymiles engineering. It’s the ideal choice for scalable, high-performance solar systems that demand both power and precision.
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| Maximum Input Voltage | 60V |
| MPPT Voltage Range | 16~60V |
| Maximum Input Current | 2 × 11.5A |
| Number of MPPTs | 2 |
| Number of Inputs per MPPT | 2 |
| Peak Output Power (VA) | 600 |
| Max. Continuous Output Power (VA) | 590 |
| CEC Peak Efficiency | 96.7% |
| CEC Weighted Efficiency | 96.5% |
| Nominal MPPT Efficiency | 99.8% |
| Enclosure Rating | IP67 |
| Warranty | 25 Years |
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), CA Rule 21 (240 Vac), CSA C22.2 No.107.1-16, FCC Part 15B, FCC Part 15C |
| Weight | 7.39 lbs |
|---|---|
| Dimensions | 6.93 × 11.2 × 1.30 in |
| MPN | HM-1200NT |
