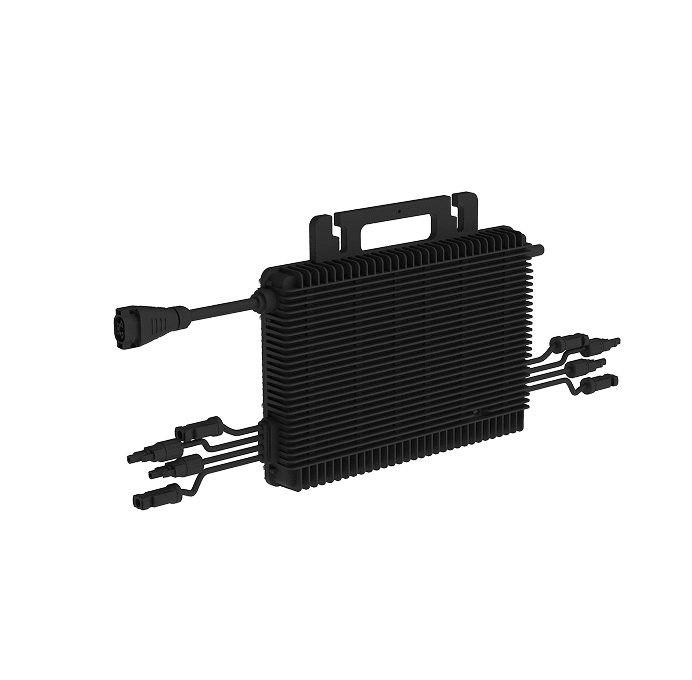

Hoymiles HMS-1600-4T-NA PV Microinverter – 1600W Output, 4 MPPT Inputs, for 320–540W+ Solar Panels
$347.50
47 people are viewing this product right now
Maximize solar efficiency with the Hoymiles HMS-1600-4T-NA 4-in-1 single-phase microinverter. Grid-tie design, 1600W output, MPPT, and rapid shutdown safety.
Advanced solar technology, Optimized power conversion, Smart energy tracking, Grid-compliant performance, Enhanced safety design, Stable wireless connectivity, Durable outdoor enclosure.
Available on backorder
The Hoymiles HMS-1600-4T-NA Microinverter is an advanced single-phase, grid-tie solution engineered for high-efficiency performance with high-powered solar panels. With a 4-in-1 configuration, it supports up to four PV modules (320–540W+ each), offering exceptional flexibility and scalability for both residential and commercial solar systems.
Each input operates with its own independent MPPT, ensuring optimized energy harvest and module-level performance tracking. With a peak AC output of 1600W and a maximum DC input voltage of 65V, the HMS-1600-4T-NA guarantees strong output stability and enhanced safety.
Built to meet PV Rapid Shutdown requirements, this model fully complies with NEC 2017 & 2020 and CEC 2021 safety standards. The integrated Sub-1G wireless communication ensures reliable, interference-free data transfer with the Hoymiles DTU gateway, enabling seamless system monitoring and remote control.
Durable, compact, and weather-resistant, the HMS-1600-4T-NA Pv microinverter combines power efficiency, smart communication, and NEC-compliant protection, making it a reliable single-phase grid-tie microinverter for modern rooftop solar installation.
Key Features of the Hoymiles HMS-1600-4T-NA 1600W PV Microinverter
Plug-and-Play Setup – Quick installation process reduces setup time and labor costs for faster commissioning.
1600W High-Performance Output – Deliver efficient AC power conversion for high-output solar modules (up to 540W+ each).
4-in-1 Compact Design – Connect up to four panels per unit, maximizing energy generation and minimizing total system costs.
Comprehensive Safety Compliance – Supports PV Rapid Shutdown and meets NEC 2017 & 2020 for safe rooftop operation.
Individual MPPT Optimization – Each module operates independently to improve total system yield and simplify maintenance.
Reliable Sub-1G Connectivity – Provides strong and stable data communication for both residential and commercial installations.
Reactive Power Regulation – Compatible with UL1741, UL1741 SB, and IEEE 1547 grid standards for advanced grid-tie performance.
External Antenna Support – Ensures extended wireless range and improved signal strength with the Hoymiles DTU gateway.
Durable IP67 Protection – Weatherproof, dustproof, and built for long-lasting reliability in harsh outdoor environments.
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| Input Data (DC) | |
| Maximum Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16–60 |
| Maximum Input Current (A) | 4 × 14 |
| Number of MPPTs | 4 |
| Number of Inputs per MPPT | 1 |
| Output Data (AC) | |
| Peak Output Power (VA) | 1600 |
| Maximum Continuous Output Power (VA) | 1440 |
| Maximum Continuous Output Current (A) | 6 / 6.92 |
| Maximum Units per 10 AWG Branch | 4 / 3 |
| Efficiency | |
| CEC Peak Efficiency | 96.7% |
| Nominal MPPT Efficiency | 99.8% |
| Warranty | 25 Years |
| Weight | 12.26 lbs |
|---|---|
| Dimensions | 8.58 × 13.03 × 1.60 in |
| MPN | HMS1600-4T-NA |
