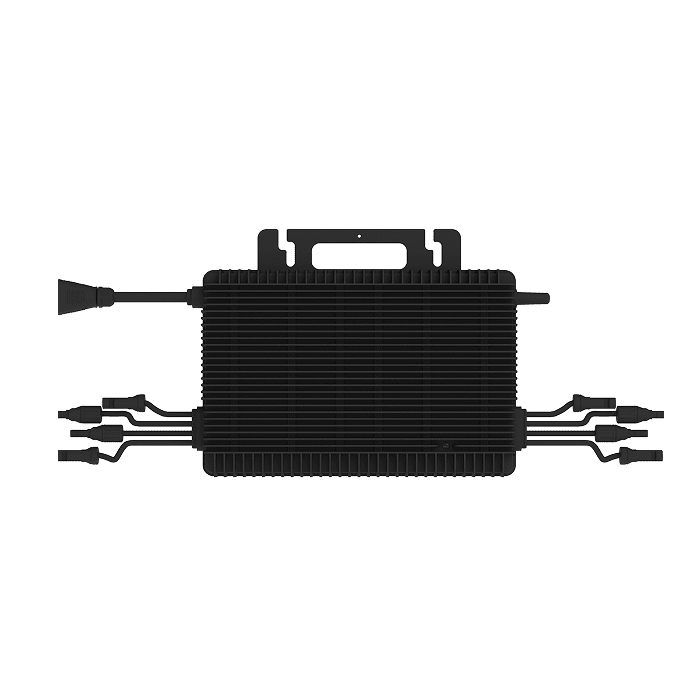

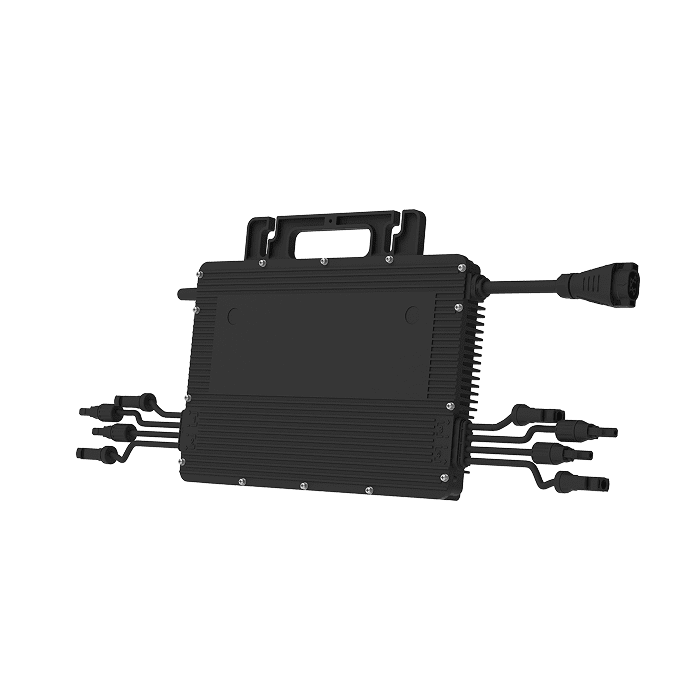

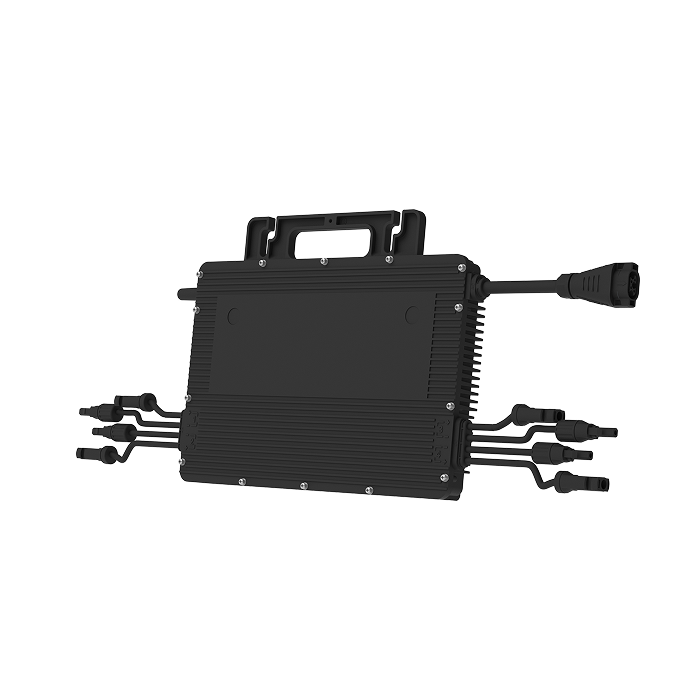

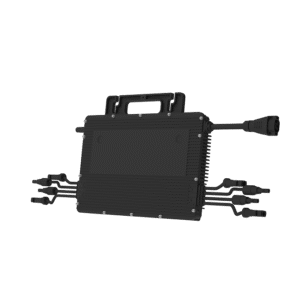

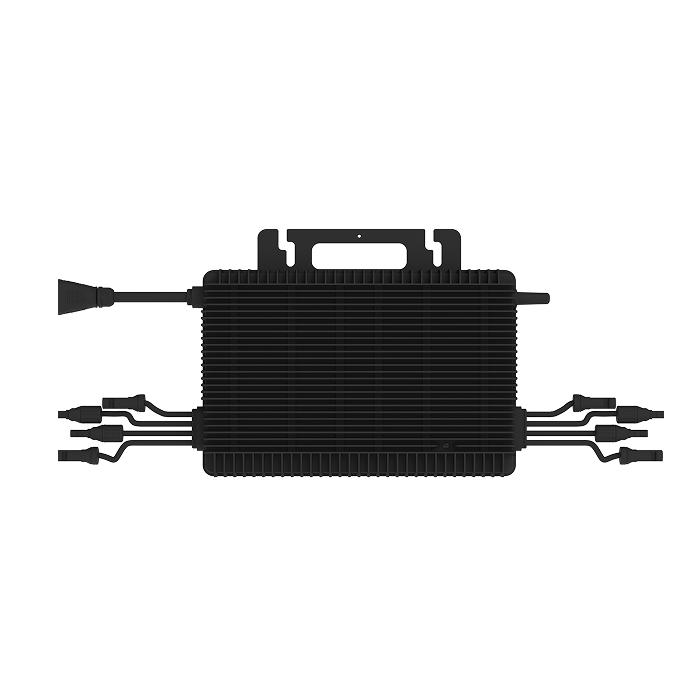

Hoymiles HMS-2000-4T-NA Microinverter – 2000W Output, 4 MPPT Inputs, for 400–670W+ Solar Panels
$357.00
21 people are viewing this product right now
High-efficiency Hoymiles HMS-2000-4T 4-in-1 microinverter with 2000W output, 4 MPPT inputs, and support for 400–670W+ high-power solar panels.
High-Power Output, Cost-Effective 4-in-1 Design, Independent MPPT Monitoring, Reactive Power Compliance Rapid Shutdown Safety, Stable Wireless Communication
The Hoymiles HMS-2000-4T-NA Microinverter delivers outstanding performance for modern high-powered solar panels, offering one of the most efficient 4-in-1 microinverter solutions available today. Designed to handle module powers from 400W to 670W+, this unit supports up to four PV modules, each operating with an independent MPPT to ensure maximum energy harvest and optimized system performance.
With a peak AC output of 2000W and a maximum DC input voltage of 65V, the HMS-2000-4T-NA ensures both powerful output and enhanced safety. Built to comply with PV Rapid Shutdown requirements, it meets NEC 2017 & 2020 (Article 690.12) and CEC 2021 (Section 64-218) standards.
The microinverter also features module-level monitoring, enabling real-time performance insights and quick maintenance when needed. Compact, reliable, and engineered for high efficiency, the Hoymiles HMS-2000-4T-NA is an ideal choice for residential and commercial solar installations seeking maximum yield and safety compliance.
Key Features of the Hoymiles HMS-2000-4T-NA Microinverter
Plug-and-Play Installation – Quick and effortless setup with simple plug-and-play connectivity for faster commissioning.
High-Powered 2000W Performance – Delivers superior conversion efficiency for today’s high-output solar modules (up to 670W+ each).
4-in-1 Design for Maximum Value – Connect up to four panels per microinverter for the most cost-effective and scalable solar solution.
Enhanced Safety with PV Rapid Shutdown – Fully compliant with NEC 2017 & 2020 (Article 690.12) standards for rooftop solar safety.
Independent MPPT & Module-Level Monitoring – Optimize power generation from each panel and simplify performance tracking and maintenance.
Stable Sub-1G Wireless Communication – Reliable, interference-free data transmission ensures consistent system performance.
Reactive Power Control & Full Compliance – Certified under UL1741, UL1741 SB, and IEEE 1547 for smart grid compatibility.
External Antenna for Stronger Signal – Improves wireless range and ensures stable communication with the Hoymiles DTU gateway.
Built for Durability – Robust NEMA 6 / IP67-rated enclosure for superior protection against dust, water, and harsh outdoor conditions.
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| Input Data (DC) | |
| Number of PV Inputs | 4 |
| Module Power Range (W) | 400 to 670+ |
| Maximum Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16–60 |
| Maximum Input Current (A) | 4 × 16 |
| Output Data (AC) | |
| Peak Output Power (VA) | 2000 |
| Maximum Continuous Output Power (VA) | 1918 |
| Maximum Continuous Output Current (A) | 7.99 | 9.22 |
| Nominal Output Voltage (V) | 240 | 208 |
| Nominal Output Voltage Range (V) | 240/211–264 | 208/183–228 |
| Nominal Frequency / Range (Hz) | 60 / 55–65 |
| Maximum Units per Branch (10 AWG) | 3 | 2 |
| Warranty | 25 Years |
| Weight | 12.26 lbs |
|---|---|
| Dimensions | 8.8 × 13.03 × 1.60 in |
| MPN | HMS-2000-4T-NA |
