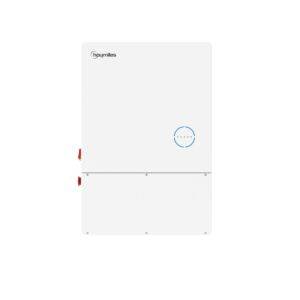

Hoymiles HYS-7.6LV-USG1 7.6kW Hybrid Inverter | Single-Phase On/Off-Grid | 97.6% Efficiency
$3,391.00
34 people are viewing this product right now
Hoymiles HYS-7.6LV-USG1 7.6kW single-phase hybrid inverter with 97.6% efficiency, backup support, and smart monitoring for reliable solar energy storage.
7.6kW Power Output, Dual MPPT Tracking, 150% DC/AC Ratio, 20/240 V Split-Phase Backup, 48 V Battery Compatibility, Arc Fault Protection, Rapid Shutdown Compliance, UL Listed.
Experience next-level solar energy management with the Hoymiles HYS-7.6LV-USG1 7.6kW Single-phase Hybrid Inverter — an advanced solar and battery inverter designed for high efficiency, flexibility, and reliability.
Built with dual MPPT tracking (up to 32A), it optimizes solar harvesting across varied conditions while achieving an impressive 97.6% maximum efficiency. With its 150% DC/AC ratio and split-phase 120/240V support, it seamlessly delivers power to your entire home or critical loads.
The inverter’s intelligent EMS (Energy Management System) allows operation in self-consumption, economic, and backup modes, ensuring optimal performance for every energy scenario. Through the Hoymiles S-Miles Cloud platform, users can monitor real-time performance, manage energy flow, and enhance battery utilization remotely.
Engineered for safety and reliability, it integrates arc fault protection, rapid shutdown, and dry contact control for generator, load, or earth fault management. Compact and wall-mountable, the HYS-7.6LV-USG1 DC hybrid inverter is a powerful, space-saving solution for residential and commercial applications.
| Type | Single-phase hybrid storage inverter |
| Maximum Input Power | 11.52kW |
| Maximum PV Input Voltage | 550V |
| Nominal Input Voltage | 380V |
| MPPT Voltage Range | 125–500V |
| Maximum Input Current | 32 / 32A |
| Number of MPPTs | 2 |
| Number of Inputs per MPPT | 2 |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Max. Charge/Discharge Current | 160 / 160A |
| Max. Output Power (On-Grid) | 7.6kW |
| Max. Output Current | 32A |
| Max. Input Current (On-Grid) | 64A |
| Max. Output Apparent Power (Off-Grid) | 7.6kW |
| Nominal AC Voltage | 120/240V (Split-phase) |
| Max. Continuous Output Current | 32A |
| CEC Peak Efficiency | 97.0% |
| Max. Efficiency | 97.6% |
| Mounting | Wall Mounting |
| Protection Degree | Type 4X |
| Max Parallel Units | 10 |
| Warranty | 10 Years |
Hoymiles Single-phase Hybrid Inverter Datasheet
Hoymiles-Hybrid-Inverter-Warranty-Terms-Conditions
| Weight | 90.4 lbs |
|---|---|
| Dimensions | 29.1 × 19.8 × 7.95 in |
| MPN | HYS-7.6LV-USG1 |
