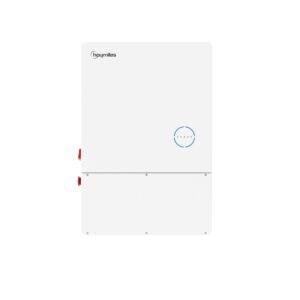

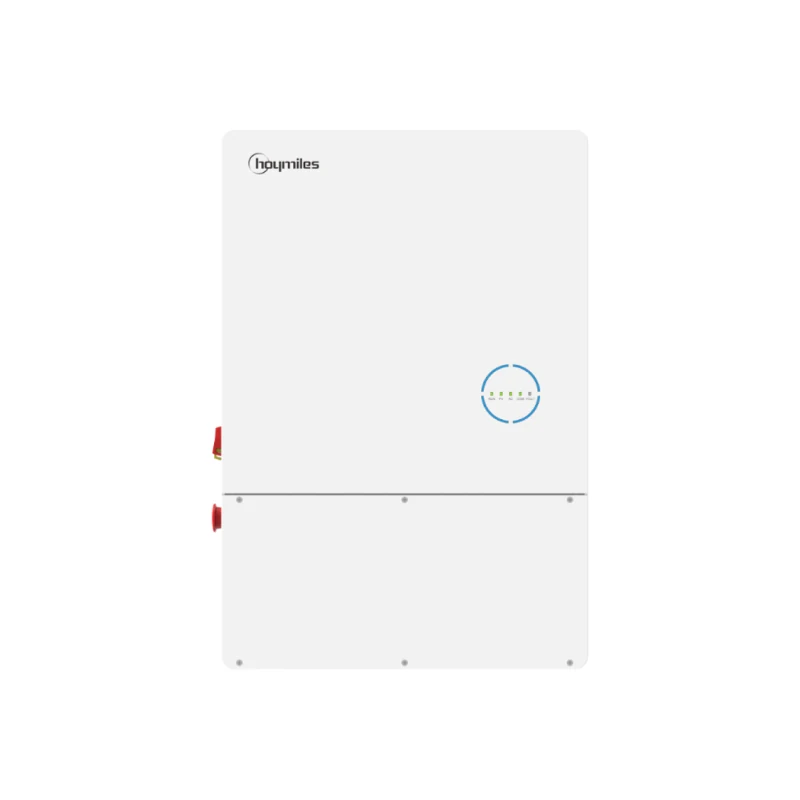

Hoymiles HYS-9.6LV-USG1 9.6kW Hybrid inverter| Split-Phase 120/240V | 48V Battery Compatible
$3,691.00
27 people are viewing this product right now
Get powerful solar performance with Hoymiles HYS-9.6LV-USG1 9.6kW hybrid inverter—97.6% efficiency, dual MPPT, and seamless 120/240V backup.
The Hoymiles HYS-9.6LV-USG1 9.6kW Single-Phase Hybrid Inverter delivers exceptional power, efficiency, and versatility for modern solar-plus-storage systems. Designed for both grid-tied and off-grid applications, it seamlessly integrates with Hoymiles 51.2V battery systems (HBX-10.2LV-USG1) to provide dependable whole-home or critical load backup power.
With dual MPPT trackers supporting up to 32A input current and a DC/AC ratio of 150%, this hybrid inverter maximizes energy harvest and adapts easily to a range of PV configurations. Its high conversion efficiency (up to 97.6%) ensures minimal energy loss and greater overall system performance.
Engineered for real-world reliability, the HYS-9.6LV-USG1 features integrated arc fault protection, rapid shutdown, and dry contact control options for flexible system management — including generator control, load prioritization, or fault alerts.
Supporting 120/240V split-phase output without the need for an external autotransformer, the Hoymiles HYS-9.6LV-USG1 9.6kW solar inverter manages smooth, uninterrupted backup power and effortless wall-mounted installation in both residential and commercial environments.
Key Features of the Hoymiles HYS-9.6LV-USG1 DC Hybrid Inverter
9.6kW Single-Phase Hybrid Inverter for flexible on-grid/off-grid use
Dual MPPT design (32A input current) for optimized solar tracking
Supports 48V battery systems with up to 160A charge/discharge
120/240V backup output without an external autotransformer
High efficiency – 97.6% max, 97.0% CEC
150% DC/AC ratio for higher solar input flexibility
Built-in arc fault protection & rapid shutdown for enhanced safety
Integrated dry contact for generator, load, or fault control
Smart monitoring via Hoymiles S-Miles Cloud platform
Type 4X protection and compact wall-mount design for outdoor durability
| Type | Single-phase hybrid storage inverter |
| Maximum Input Power | 14.4kW |
| Maximum PV Input Voltage | 550V |
| Nominal Input Voltage | 380V |
| MPPT Voltage Range | 125–500V |
| Maximum Input Current | 32 / 32A |
| Number of MPPTs | 2 |
| Number of Inputs per MPPT | 2 |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Max. Charge/Discharge Current | 200 / 200A |
| Max. Output Power (On-Grid) | 9.6kW |
| Max. Output Current (On-Grid) | 40A |
| Max. Input Current (On-Grid) | 80A |
| Max. Output Apparent Power (Off-Grid) | 9.6kW |
| Nominal AC Voltage (Off-Grid) | 120/240V (Split-phase) |
| Max. Continuous Output Current | 40A |
| CEC Peak Efficiency | 97.0% |
| Max. Efficiency | 97.6% |
| Mounting | Wall Mounting |
| Protection Degree | Type 4X |
| Max Parallel Units | 10 |
| Warranty | 10 Years |
| Weight | 90.4 lbs |
|---|---|
| Dimensions | 29.1 × 19.8 × 7.95 in |
| MPN | HYS-9.6LV-USG1 |
