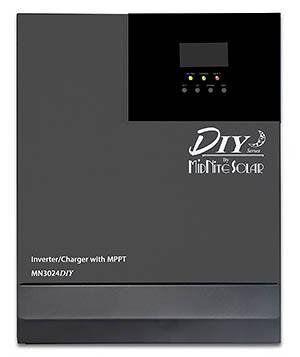

MidNite Solar MN3024DIY 3.0kW Battery-Based Inverter W/ 100V MPPT Charge Controller
Original price was: $799.99.$725.50Current price is: $725.50.
29 people are viewing this product right now
Available on backorder
MidNite, MN3024 DIY Off-Grid Battery Inverter, 3000W, 24Vdc, 120Vac Sinewave, 60Hz, 30A AC input, 1 Yr. Warr, 80A AC Charger, with Built In 100V MPPT Charge Controller, MN3024DIY
Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar. Manufactured for MidNite Solar in China.
SPECIFICATIONS
- System Voltage: 24VDC
- Max Rated Power: 3000W
- Surge Power: 6000W
- Power Factor: 1
- Input Voltage: 120VAC
- Input Voltage Range: 85-140VAC +- 2% Adjustable
- Input/Output Frequency: 60Hz
- Output Voltage: 120VAC +- 5%
- Output Waveform: Pure Sine Wave
- Peak Efficiency: >95%
- Max AC Charging Current: 40A
- Internal Bypass Current: Up to 40A
- Conversion (Bypass and Invert): 10ms
- Max PV Input Power: 1600W
- Max PV Charging Current: 60A
- Max PV Input Voltage: 100V
- Algorithm: MPPT
- MPPT Voltage Range: 30 – 85V
- Battery Type: Lead Acid or Lithium
- Battery Voltage Range: 20 – 33V DC
- Nominal Battery Voltage: 24V
- Operating Temperature: -15C ~ 55C
- Storage Temperature: -25C ~ 60C
- Humidity: 5% ~ 95% (3 Layer Paint Protection)
- Warranty: 1 Year
| Weight | 17 lbs |
|---|---|
| Dimensions | 14.9 × 11.03 × 4.06 in |
| MPN | MN3024DIY |
