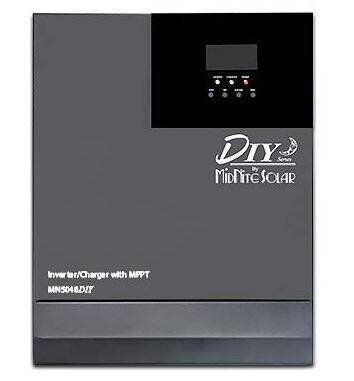

MidNite Solar MN5048DIY 5.0kW Battery-Based Inverter
$1,129.85
41 people are viewing this product right now
Out of stock
MidNite, MN5048 DIY Off-Grid Battery Inverter, 5000W, 48Vdc, 120Vac Sinewave, 60Hz, 63A AC By-Pass, 40A AC Charger, with Built In 500V MPPT Charge Controller, 1 Year Warranty, MN5048DIY
Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar.
Specifications:
- System Voltage: 48VDC
- Max Rated Power: 5000W
- Surge Power: 10000W
- Power Factor: 1
- Input Voltage: 120VAC
- Input Voltage Range: 85-140VAC +- 2% Adjustable
- Input/Output Frequency: 60Hz
- Output Voltage: 120VAC +- 5%
- Output Waveform: Pure Sine Wave
- Peak Efficiency: >95%
- Max AC Charging Current: 40A
- Internal Bypass Current: Up to 63A
- Conversion (Bypass and Invert): 10ms
- Max PV Input Power: 5000W
- Max PV Charging Current: 80A
- Max PV Input Voltage: 500V
- Algorithm: MPPT
- MPPT Voltage Range: 120 – 450V
- Battery Type: Lead Acid or Lithium
- Battery Voltage Range: 40 – 60V DC
- Operating Temperature: -15C ~ 55C
- Storage Temperature: -25C ~ 60C
- Humidity: 5% ~ 95% (3 Layer Paint Protection)
- Warranty: 1 Year
| Weight | 26 lbs |
|---|---|
| Dimensions | 16.93 × 13.31 × 4.96 in |
| MPN | MN5048DIY |
