OSCAL PowerMax 3600 Portable Power Station | 3,600 Wh, 3,000 W (US Standard)
Original price was: $1,799.00.$1,449.00Current price is: $1,449.00.
22 people are viewing this product right now
- Capacity: 3,600 Wh LiFePO4, expandable to 57.6 kWh
- AC output: 3,000 W rated pure sine wave (US standard), 4 outlets
- Solar input: up to 1,600 W; AC input up to 1,800 W
- UPS switchover: 5-8 ms; app control
- Warranty: 5 years (OSCAL)
FREE SHIPPING within the continental USA (48 contiguous states). Not available to Alaska, Hawaii, Puerto Rico or other non-contiguous locations.

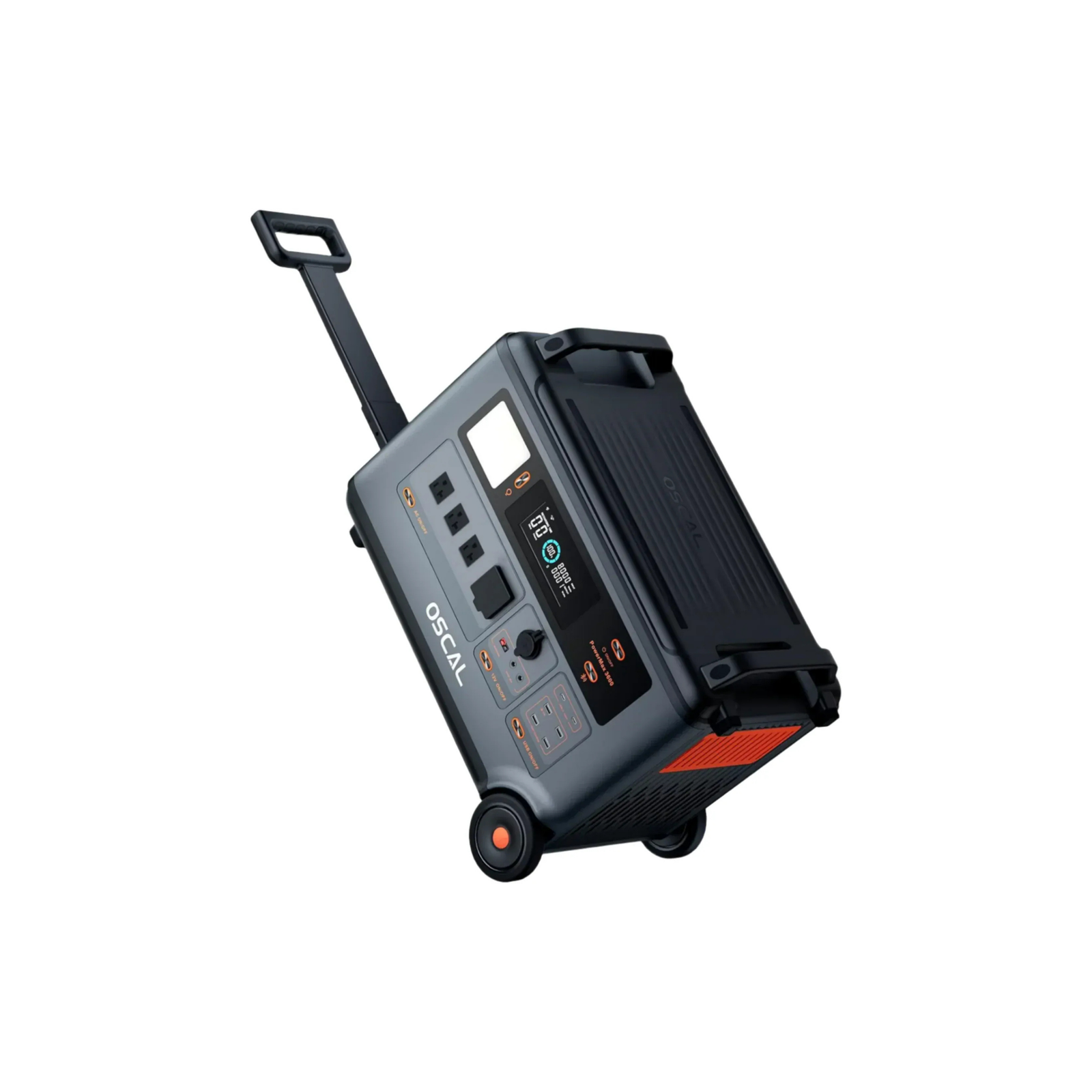

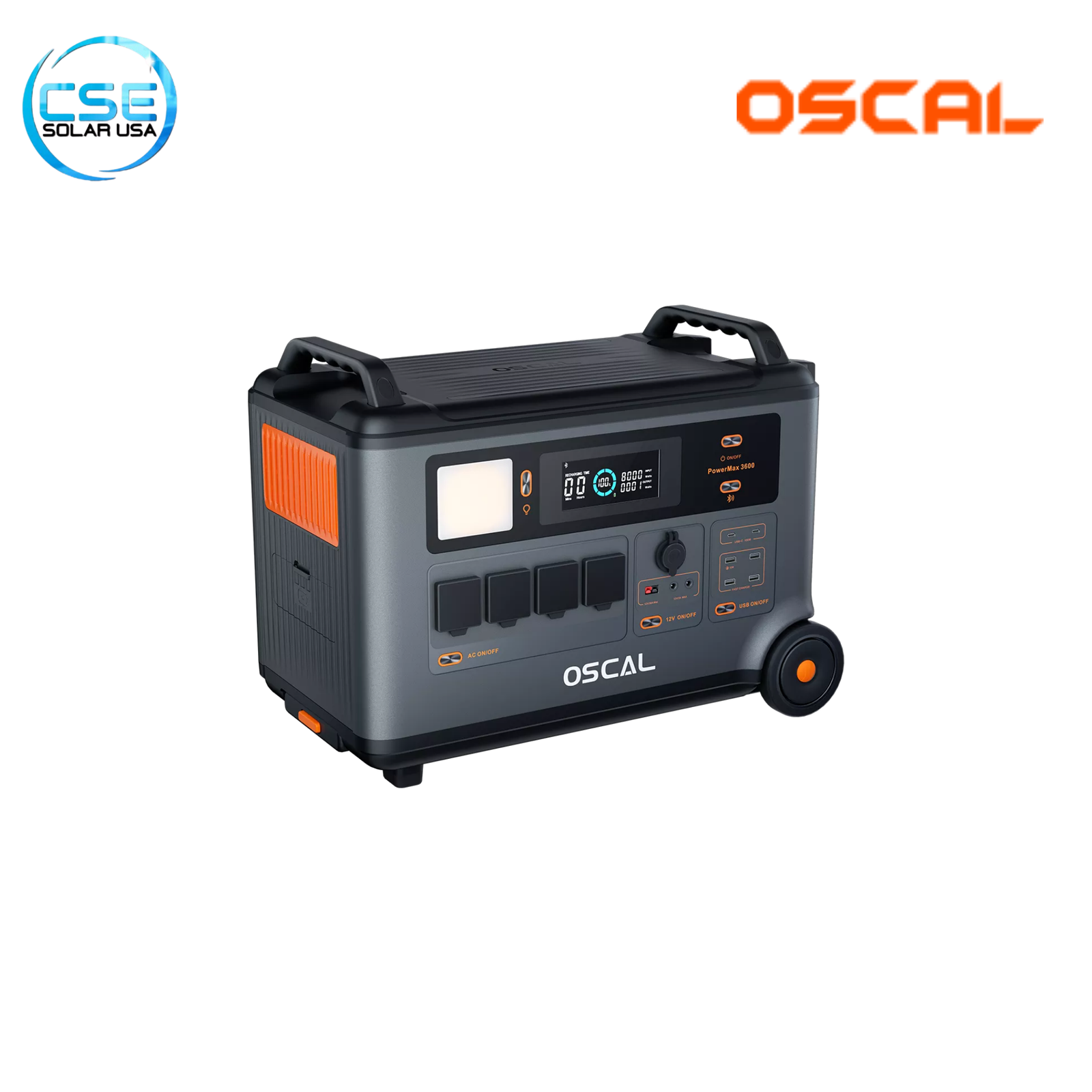

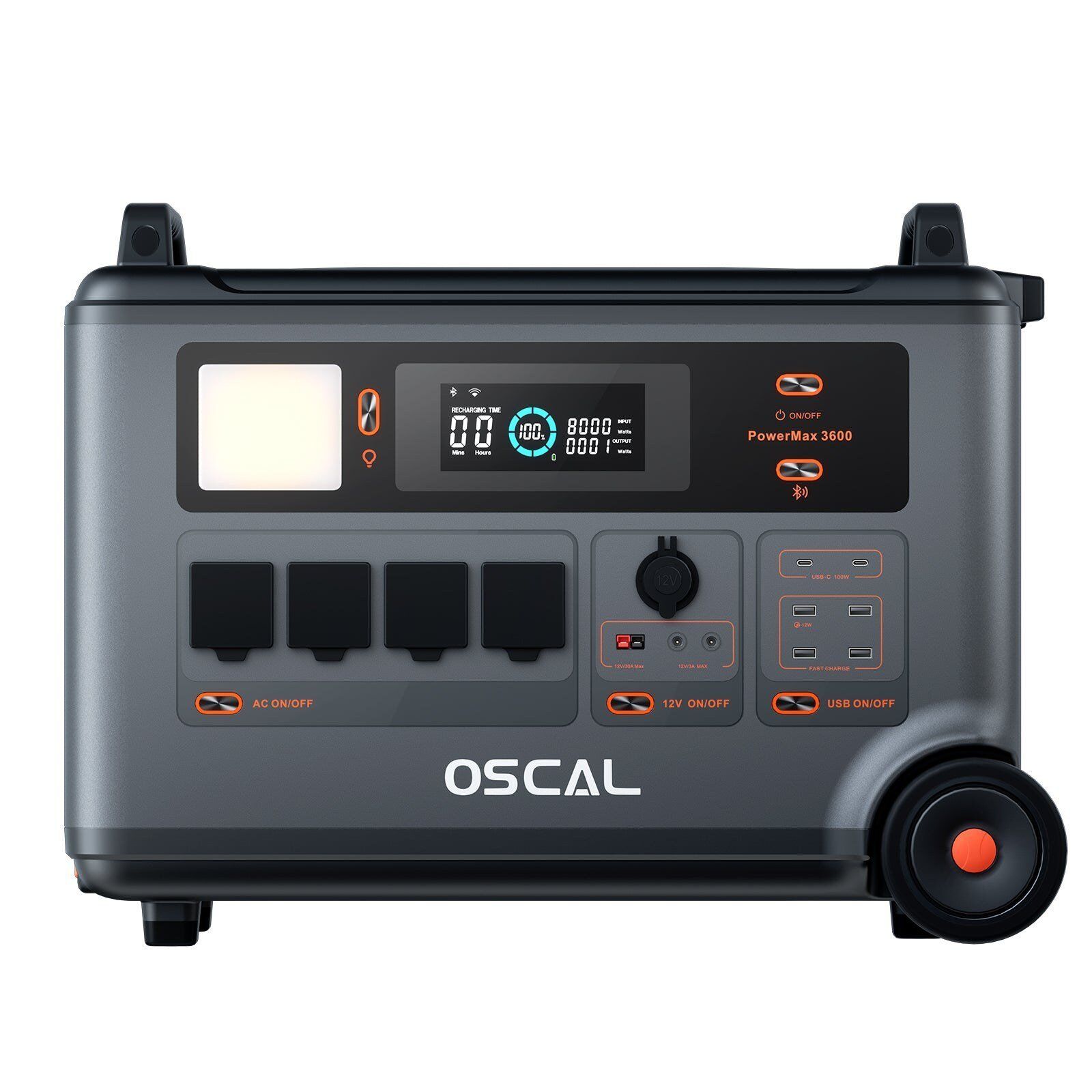

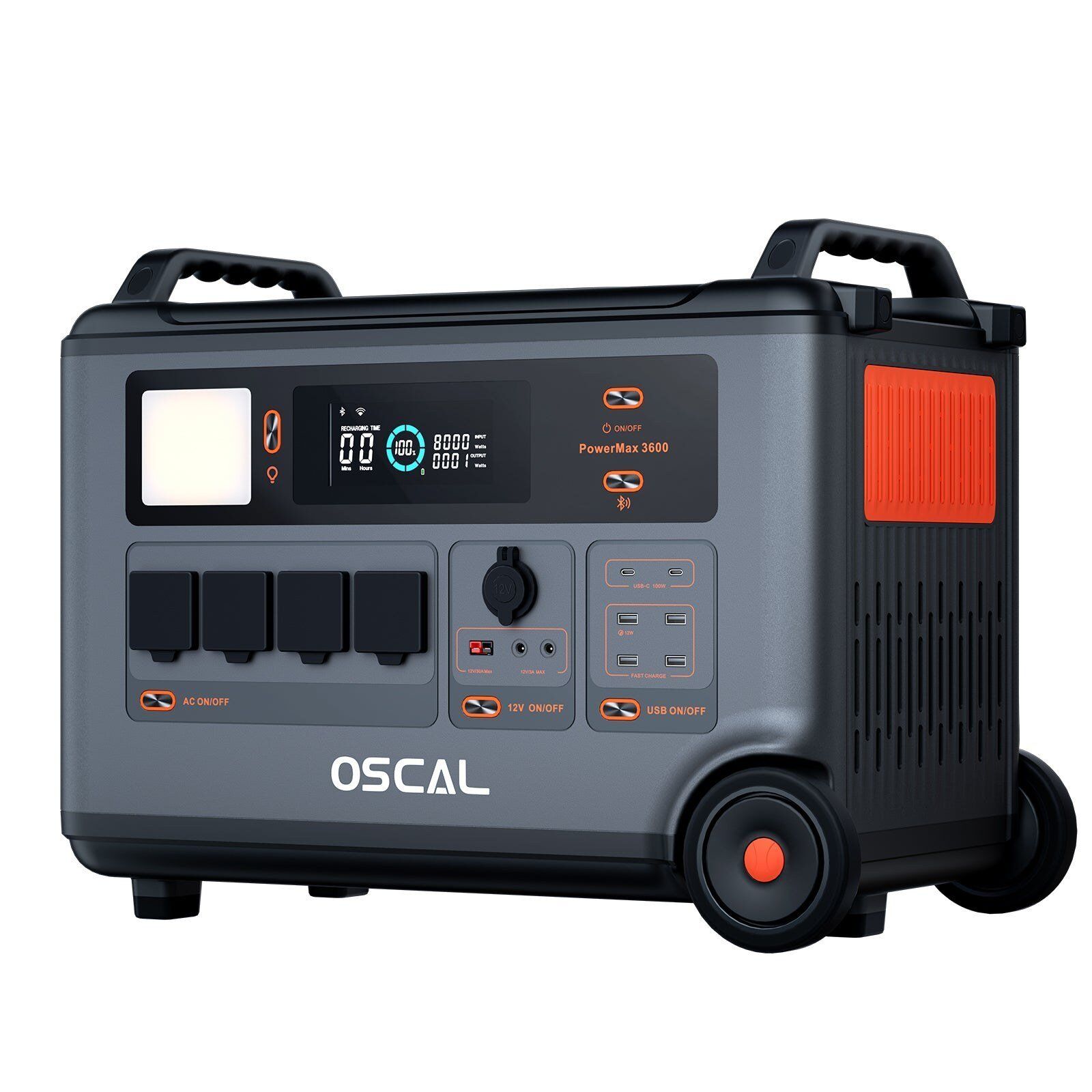

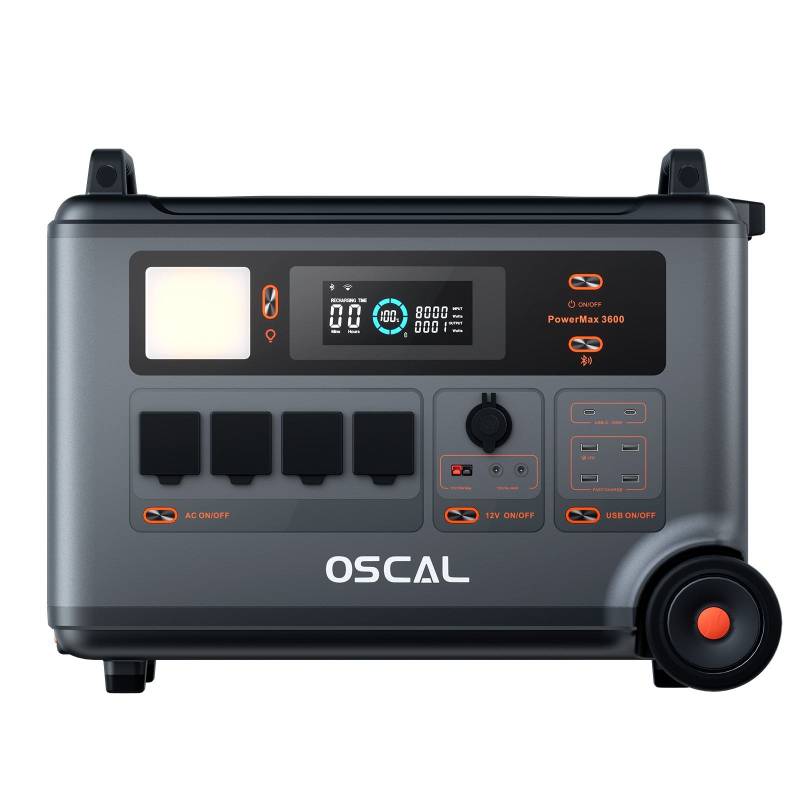

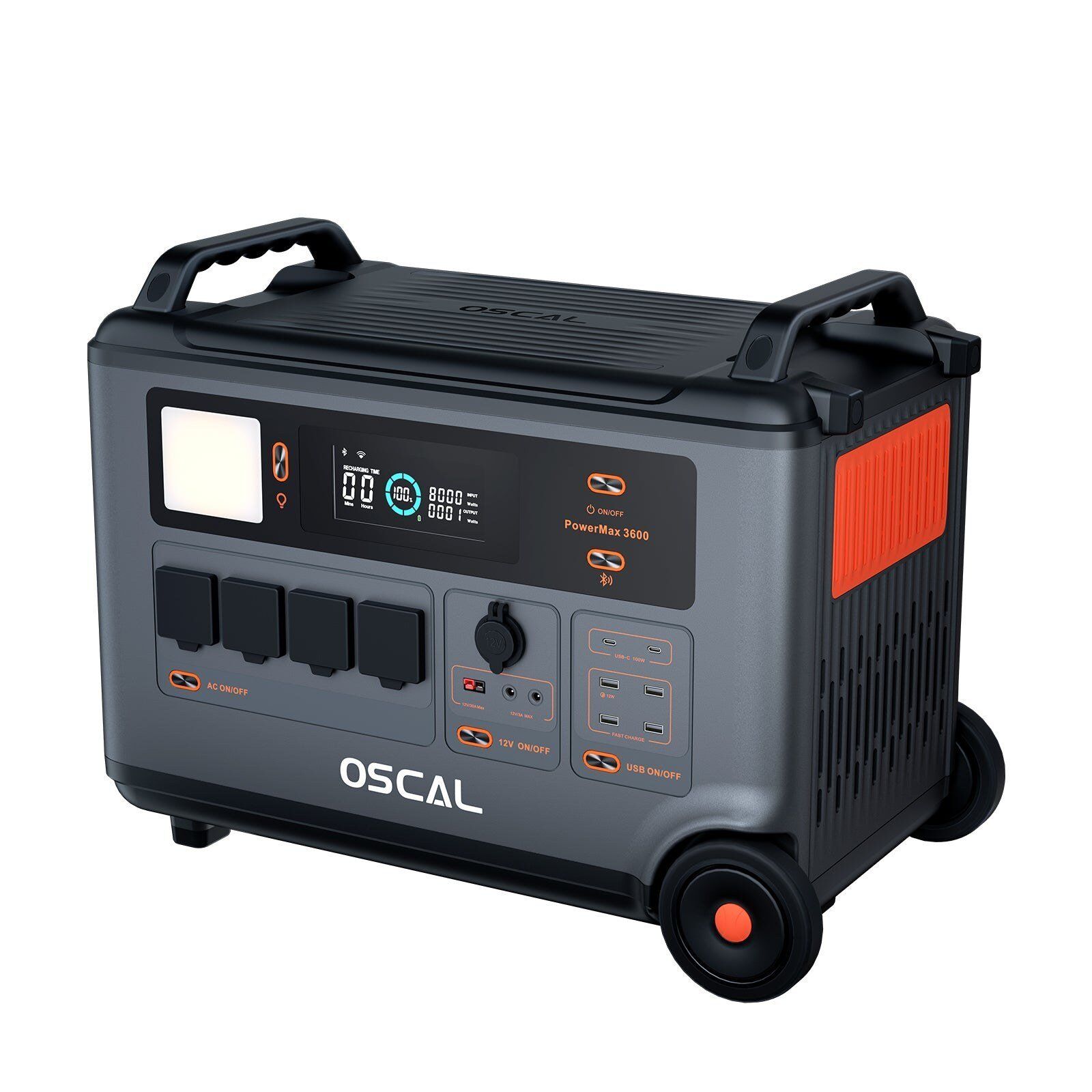

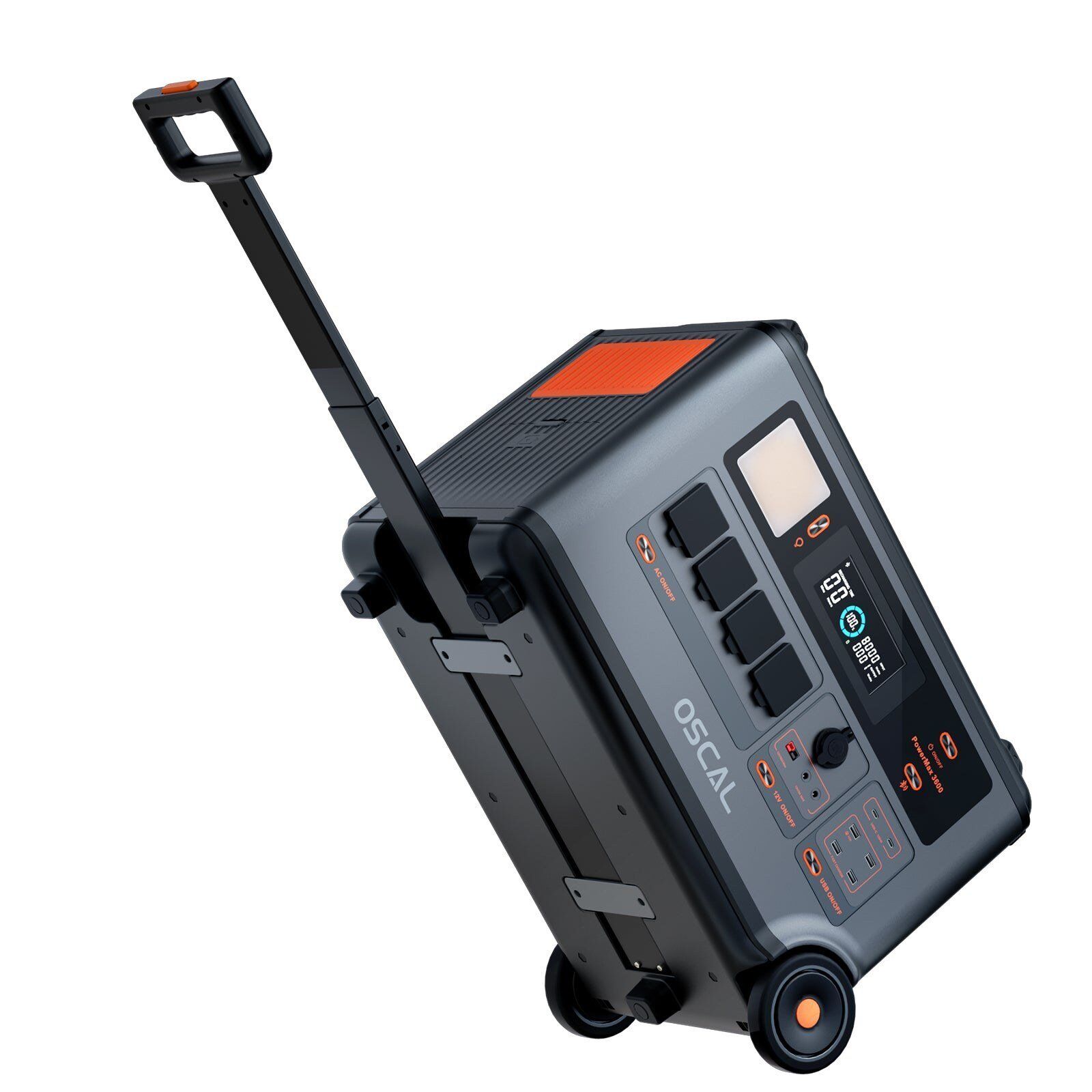

OSCAL PowerMax 3600 Portable Power Station
The OSCAL PowerMax 3600 is a rugged 3,600 Wh LiFePO4 portable power station. The US-standard version delivers 3,000 W of pure sine wave AC power from four outlets, plus USB-A, USB-C 100 W, 12 V car, DC5521 and Anderson outputs. Capacity expands to 57.6 kWh with up to fifteen BP3600 packs, so it scales from camping to whole-home backup.
Built on OSCAL’s rugged-phone heritage, the housing is UL94V-0 fire-retardant, anti-UV and drop-tested to 0.8 m. It recharges from the wall at up to 1,800 W (US standard), from up to 1,600 W of solar, or from a vehicle, and the 5-8 ms UPS switchover keeps sensitive loads running. OSCAL backs it with a 5-year warranty. CSE Solar USA is an authorized OSCAL distributor.
FREE SHIPPING within the continental USA (48 contiguous states). Free shipping does not apply to Alaska, Hawaii, Puerto Rico or other non-contiguous locations; contact CSE Solar USA for a quote to those destinations.
Key features
- 3,600 Wh LiFePO4 battery, 3,500+ cycles to 80 % capacity
- 3,000 W rated pure sine wave AC output (US standard), 4 outlets
- Expandable to 57.6 kWh with up to 15 x BP3600 packs
- AC input up to 1,800 W (US standard); solar input up to 1,600 W
- 14 outputs including 2 x USB-C 100 W and a 378 W Anderson port
- UPS switchover 5-8 ms; app control over Wi-Fi and Bluetooth
- UL94V-0 fire-retardant, anti-UV housing; 0.8 m drop-tested
Specifications (official OSCAL data)
| Model / SKU | PowerMax 3600 (US standard), OSCAL SKU PowerMax3600-US |
|---|---|
| Battery capacity | 3,600 Wh |
| Battery type | LFP (LiFePO4) |
| Cycle life | 3,500+ cycles to 80 % of original capacity |
| Expandable capacity | 3.6 kWh to 57.6 kWh with up to 15 x BP3600 (sold separately) |
| AC output (US standard) | 4 outlets, pure sine wave, 3,000 W rated (OSCAL note: 3,600 W applies to the EU standard) |
| Surge power | 7,200 W (OSCAL specification table) |
| USB-A | 1 x 12 W + 3 x 18 W |
| USB-C | 2 x 100 W |
| DC output | 1 x Anderson 378 W, 2 x DC5521 36 W |
| Car outlet | 120 W |
| AC input (US standard) | 1,800 W max |
| Solar input | 1,600 W max; OSCAL rates about 2.25 h to full under ideal conditions |
| Car input | 120 W max |
| Dual charging | AC + solar or AC + car supported |
| UPS switchover | 5-8 ms |
| App control | Yes, Wi-Fi and Bluetooth |
| Charging temperature | 0 to 50 C (32 to 122 F); ideal 0 to 45 C |
| Discharging temperature | -20 to 55 C (-4 to 131 F); ideal -10 to 45 C |
| Storage temperature | -10 to 45 C (14 to 113 F) |
| Certifications listed by OSCAL (America) | FCC, DOE, CEC, UL; case material UL94V-0 |
| Warranty | 5 years (OSCAL) |
What’s included
- OSCAL PowerMax 3600 power station
- AC charging cable
- Car charging cable
- Solar charging cable
- User manual and warranty card
Not included: BP3600 expansion packs and solar panels (sold separately).
Applications
- Home backup: refrigerators, sump pumps, lighting and medical devices with 5-8 ms UPS switchover.
- Off-grid and RV power: 1,600 W solar input and expandable storage for extended stays.
- Work sites: 3,000 W pure sine wave power for tools with no fuel, noise or fumes.
Dimensions and weight
| Unit size (L x W x H) | 590 x 350 x 441 mm (23.2 x 13.8 x 17.4 in) |
|---|---|
| Unit weight | 98.10 lb (44.45 kg) |
Warranty
5-year OSCAL warranty (OSCAL support centre and OSCAL warranty timeline: power station 60 months). Warranty service is handled by OSCAL; keep your proof of purchase. CSE Solar USA is an authorized OSCAL distributor.
Shipping
FREE SHIPPING within the continental USA (48 contiguous states). Free shipping does not apply to Alaska, Hawaii, Puerto Rico or other non-contiguous locations; contact CSE Solar USA for a quote to those destinations.
Official OSCAL documentation
Frequently asked questions
Why is the US version rated 3,000 W instead of 3,600 W?
OSCAL states that the 3,600 W rating applies to the EU standard. The US and Japan standard units are rated 3,000 W with an AC input of 1,800 W max. Battery capacity is 3,600 Wh on all versions.
How much solar can I connect?
Up to 1,600 W. OSCAL rates a full solar recharge at about 2.25 hours under ideal sunshine and orientation.
Can I expand the capacity?
Yes. Up to fifteen BP3600 packs connect to one PowerMax 3600 for a total of 57.6 kWh.
Is shipping free?
Yes, within the continental USA (48 contiguous states). Alaska, Hawaii, Puerto Rico and other non-contiguous destinations are quoted separately.
| Weight | 98.10 lbs |
|---|---|
| Dimensions | 23.2 × 13.8 × 17.4 in |
| MPN | PowerMax3600-US |
| Capacity | 3,600 Wh (expandable to 57.6 kWh) |
| Rated AC output | 3,000 W pure sine wave (US standard) |
| Battery type | LiFePO4, 3,500+ cycles |
| Solar input | Up to 1,600 W |
| Weight | 98.10 lb (44.45 kg) |
| Warranty | 5 years (OSCAL) |
