OutBack GSLC-PV-300VDC | Prewired for FLEXmax 100
$1,580.65
40 people are viewing this product right now

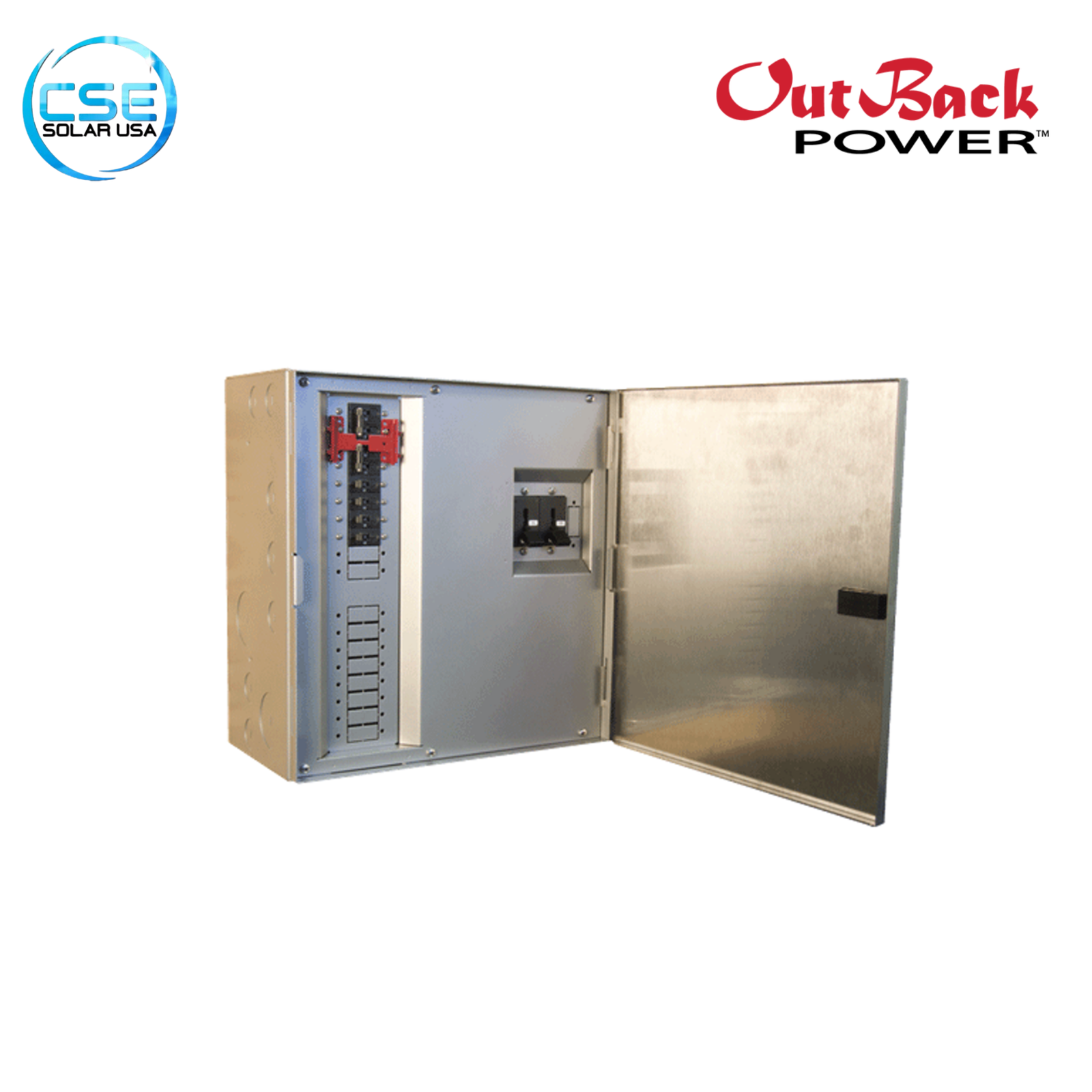

Outback Prewired GSLC-PV-300VDC
The OutBack Power GSLC-PV-300VDC is a specialized, pre-wired load center designed specifically for high-voltage solar arrays using the Radian Series GS8048A inverter and the FLEXmax 100 (FM100) charge controllers.
Unlike standard GSLC models rated for 150V, this unit features 300VDC rated PV breakers, allowing you to take full advantage of the FM100’s higher voltage capability. This enables longer solar strings, reduced wiring costs, and greater system efficiency.
Why Choose the GSLC-PV-300VDC
This load center is the “missing link” for modern high-voltage residential solar. If you are using the FLEXmax 100 charge controllers to run string voltages up to 300V, you cannot use the standard “GSLC175-PV” because its breakers are only rated for 150V. This 300VDC version comes factory-equipped with the correct high-voltage disconnects, saving you from having to gut and rebuild a standard box.
What is Included
-
Enclosure: GSLC Chassis (White Steel).
-
Inverter Protection: 2x 175A DC Disconnects (for GS8048A).
-
Solar Protection: 2x PV Input Disconnects (300VDC Rated) & 2x Battery-side Disconnects for Controllers.
-
AC Bypass: 50A 120/240V Input/Output/Bypass Assembly.
-
Monitoring: FLEXnet DC Battery Monitor + 3x 500A Shunts.
-
Busbars: Heavy-duty busbars for Inverter, PV, Neutral, and Ground.
Frequently Asked Questions
Q1: Can I use this with FLEXmax 80 (FM80) controllers?
No. The breakers in this unit are arranged for the FM100, and it lacks the external GFDI breaker required for the FM60/FM80. If you are using FM80s, buy the standard GSLC175-PV-120/240 instead.
Q2: Does this work with the 4kW Radian (GS4048A)?
This specific model (PV-300VDC) is wired with dual 175A breakers for the 8kW inverter. If you have the 4kW inverter, you technically only need one main breaker. You should look for the GSLC-PV1-300VDC (note the “1”), or you can use this unit and simply leave the second inverter breaker unused.
Q3: Where is the GFDI breaker?
This unit does not have a GFDI breaker. It is designed exclusively for the FLEXmax 100, which has internal ground fault protection. If you use a different controller that needs external GFDI, this box will not be code-compliant out of the box.
Q4: How many charge controllers can I connect?
This unit is pre-wired for two FLEXmax 100 charge controllers.
Q5: Is this unit waterproof?
No. Like all GSLC models, it is NEMA 1 (Indoor Only). It must be installed in a protected environment like a garage or utility room.
If you have any questions about the item or your order, please feel free to message before purchasing. Thank you!
Key Benefits
-
Optimized for FLEXmax 100: Pre-wired to support two FM100 charge controllers. It includes the specific battery busbars and PV input disconnects required for these units.
-
Streamlined Design (No GFDI): Because the FLEXmax 100 charge controllers have built-in Ground Fault protection, this load center removes the bulky external GFDI breaker found in older models, freeing up rail space for other components.
-
Dual Inverter Breakers: Includes two 175A DC breakers to handle the massive current draw of the 8kW Radian GS8048A inverter.
-
Integrated Bypass: Features the standard sliding bypass interlock, allowing you to switch the home to grid power instantly for inverter maintenance
Specifications
Model: GSLC-PV-300VDC
Pre-Wired For: 2x FLEXmax 100 Charge Controllers
PV Voltage Rating: 300 VDC
Inverter Compatibility: Radian GS8048A (8kW)
Main DC Breakers: Dual 175A DC Breakers
AC Bypass: 50A 120/240V Mechanical Interlock
Ground Fault: Not Included (Relies on FM100 internal GFDI)
Battery Monitor: FLEXnet DC (Included)
| Weight | 40 lbs |
|---|---|
| Dimensions | 8.5 × 16 × 17 in |
| MPN | OP-GSLC-PV-300VDC |
