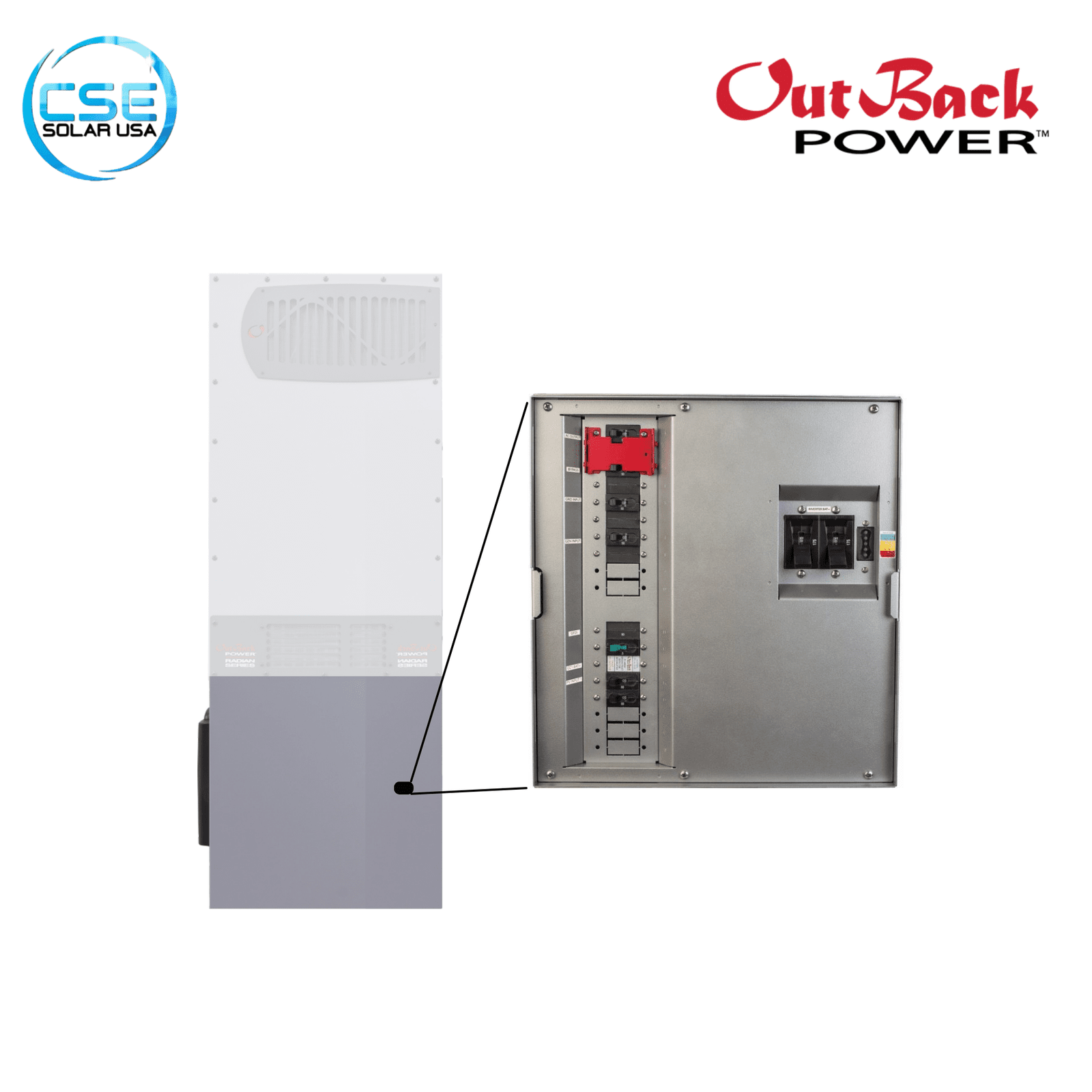

Outback Prewired GSLC175-PV1-120/240

The OutBack Power GSLC175-PV1-120/240 is a fully pre-wired, factory-tested load center designed to make installing a Radian Series inverter faster and compliant with electrical codes. This “PV” version is specifically built for solar-integrated systems. It includes not just the standard AC bypass and battery disconnects, but also the critical Ground Fault (GFDI) protection and circuit breakers needed to connect a solar charge controller.

It is the ideal “all-in-one” balance-of-system solution for the Radian GS8048A or GS4048A inverters when used in split-phase 120/240V applications.

Why Choose the Prewired GSLC175-PV

Installing a sophisticated inverter system used to require hours of cutting wire, bending conduit, and assembling loose breaker panels. The GSLC175-PV1-120/240 eliminates that work. It bolts directly to the bottom of the Radian inverter, creating a seamless system. Because it comes pre-wired from the OutBack factory, you are guaranteed that the internal connections (AC input/output, DC shunt, and bypass logic) are torqued correctly and wired according to UL standards.

What is Included in the Box

• Enclosure: GSLC chassis with knockouts and removable door.

• DC Disconnect: 175A / 125VDC Main Inverter Breaker.

• AC Bypass: 120/240V AC Maintenance Bypass Assembly (50A).

• Solar Protection: 80A GFDI (Ground Fault) Assembly + 80A PV Breaker.

• Monitoring: 500A DC Shunt (for connecting a battery monitor like the FLEXnet DC).

• Busbars: Ground, Neutral, PV Positive, and Battery Positive/Negative busbars.

Frequently Asked Questions

Q1: Does this come with the Charge Controller?

No. This unit includes the breakers and wiring to connect a charge controller (like the FLEXmax 60 or 80), but the Charge Controller itself is sold separately. You will typically mount the controller on the side of this unit using a bracket.

Q2: What does “PV1” mean?

“PV1” typically indicates the unit is pre-wired to support one PV Charge Controller out of the box. If you have a large array requiring two charge controllers, you will need to purchase an additional breaker kit and GFDI bridge to add the second one.

Q3: Can I use this for the 4kW Radian (GS4048A)?

Yes. While the 175A breaker is sized to handle the max surge of the 8kW (GS8048A), it is perfectly safe and compatible to use with the 4kW model as a master disconnect.

Q4: Is the GFDI required?

For almost all residential installations in the USA, yes. The NEC (National Electrical Code) requires a Ground Fault Detector Interrupter for PV systems to prevent fire hazards. Since this unit has it pre-installed, it saves you from buying an expensive external device.

Q5: Can I install this outside?

No. The GSLC enclosure is NEMA 1 rated (Indoor Use Only). It must be installed in a garage, basement, or weather-proof shed. It protects against dust and contact but is not watertight against rain.

If you have any questions about the item or your order, please feel free to message before purchasing. Thank you!
