Qcells Q.SAVE D5.0SX 5 kWh LFP Battery Module for Q.HOME CORE | SSPW-00001
Request Pricing & AvailabilityRequest a Quote
23 people are viewing this product right now
The Qcells Q.SAVE D5.0SX (SSPW-00001) is the 5 kWh lithium iron phosphate (LFP) battery module of the Qcells Q.HOME CORE system. Two, three or four modules stack on one BMS-G2 and base to build a 10, 15 or 20 kWh Q.SAVE battery for the Q.VOLT inverter.
***All Battery / Storage products purchased from CSE SOLAR USA Closeout Policy applies to this item*** have a limited 30 day return policy. Returns must be in original packaging and unopened. A 25% restocking fee and return shipping charges will be deducted from amount credited for authorized returns.***

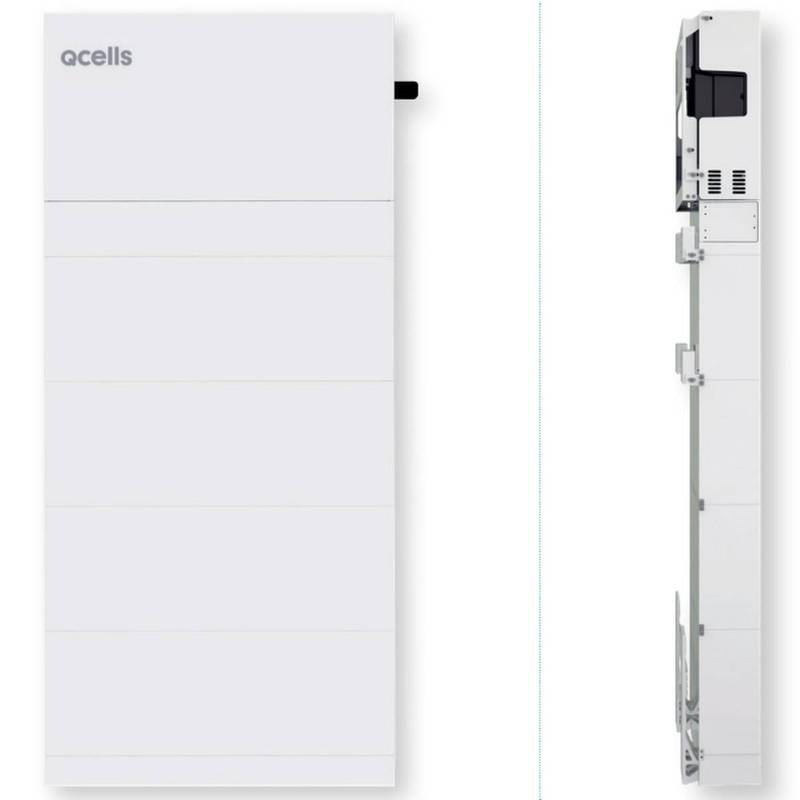

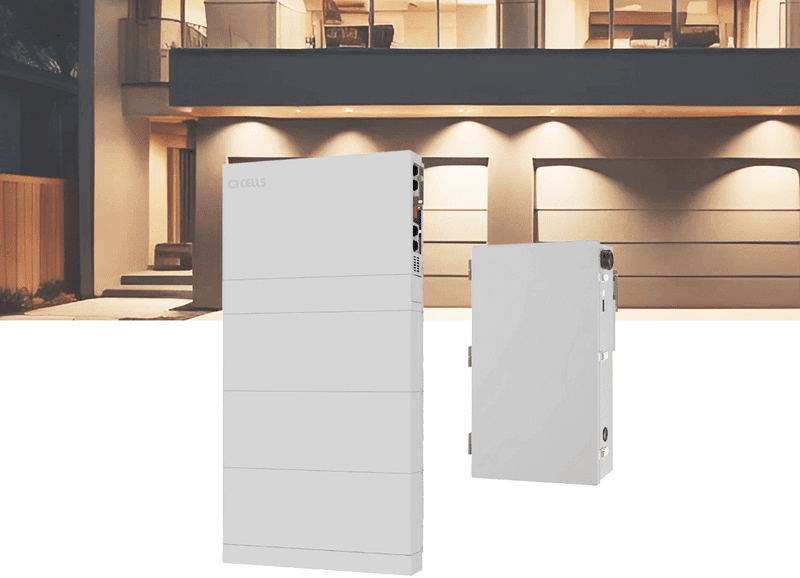

The Qcells Q.SAVE D5.0SX battery module (Qcells internal name BAT50-G2) is the building block of Q.SAVE storage for the Qcells Q.HOME CORE platform. Each module has a nominal energy of 5.0 kWh and uses LFP chemistry.
How modules build a Q.SAVE battery
Qcells defines three Q.SAVE configurations. Each stack is one BMS-G2 battery management system plus 2, 3 or 4 modules on a battery base, connected to one Q.VOLT inverter. A single module is not a Qcells configuration; the maximum is four modules per inverter.
| Q.SAVE D10.0SX | BMS-G2 + 2 battery modules · 10 kWh total · 9 kWh usable · 102.4 V nominal · 5.5 kW max power |
|---|---|
| Q.SAVE D15.0SX | BMS-G2 + 3 battery modules · 15 kWh total · 13.5 kWh usable · 153.6 V nominal · 8.3 kW max power |
| Q.SAVE D20.0SX | BMS-G2 + 4 battery modules · 20 kWh total · 18 kWh usable · 204.8 V nominal · 11.1 kW max power |
| Model | Q.SAVE D5.0SX (BAT50-G2) |
|---|---|
| Catalog number | SSPW-00001 |
| Nominal energy | 5.0 kWh per module |
| Chemistry | Lithium iron phosphate (LFP), 100 Ah |
| Roundtrip efficiency | 95% (Q.SAVE system) |
| Cycle life | 6,000 cycles at 90% DoD (Q.SAVE system) |
| Operating temperature | Charge 32 to 127.4 °F · discharge 14 to 127.4 °F |
| Enclosure | NEMA 4X · natural convection |
| Module dimensions | 33.5 × 11.81 × 5.82 in |
Certifications
Qcells lists the following for the Q.SAVE D10.0SX, D15.0SX and D20.0SX battery system: UN38.3, UL 1642, UL 1973, UL 9540 and UL 9540A; transport Class 9.
What is included
- One Q.SAVE D5.0SX battery module
- Two wall brackets with fixing plates, expansion bolts, gaskets and screws for one module
- Quick installation guide
Not included
- BMS-G2 battery management system (one per stack)
- Battery base and the floor/wall mounting accessory set
- Q.VOLT inverter and Q.HOME HUB
- Installation
Installation requirements
- Qcells states that installation, commissioning and service must be performed by licensed electricians who meet state and local requirements.
- Commissioning is done through a web browser or the Qcells mobile app.
- Installation, permitting, AC wiring, conduit and breakers not listed as included are not part of this product.
Warranty
Covered by the Qcells Q.HOME CORE limited warranty. Qcells requires product registration and a connection to the Qcells monitoring portal to keep warranty coverage. CSE confirms the warranty terms that apply to your equipment before your order is processed.
Qcells documentation
- Q.HOME CORE system datasheet (Qcells, Rev08, May 2025)
- Q.HOME CORE installation and operation manual (Qcells)
- Q.HOME CORE limited warranty (Qcells)
- Qcells Q.HOME CORE product page
Planning a Q.HOME CORE system?
Q.HOME CORE equipment works as one system: a Q.VOLT inverter, a Q.SAVE battery stack (BMS, base and 2 to 4 battery modules) and, for backup with automatic transfer, the Q.HOME HUB. Send CSE your existing equipment, backup goals and delivery ZIP and we will confirm the correct, complete bill of materials. Contact CSE Solar USA.
| Weight | 120 lbs |
|---|---|
| Dimensions | 33.5 × 23.6 × 5.8 in |
| MPN | SSPW-00001 |
