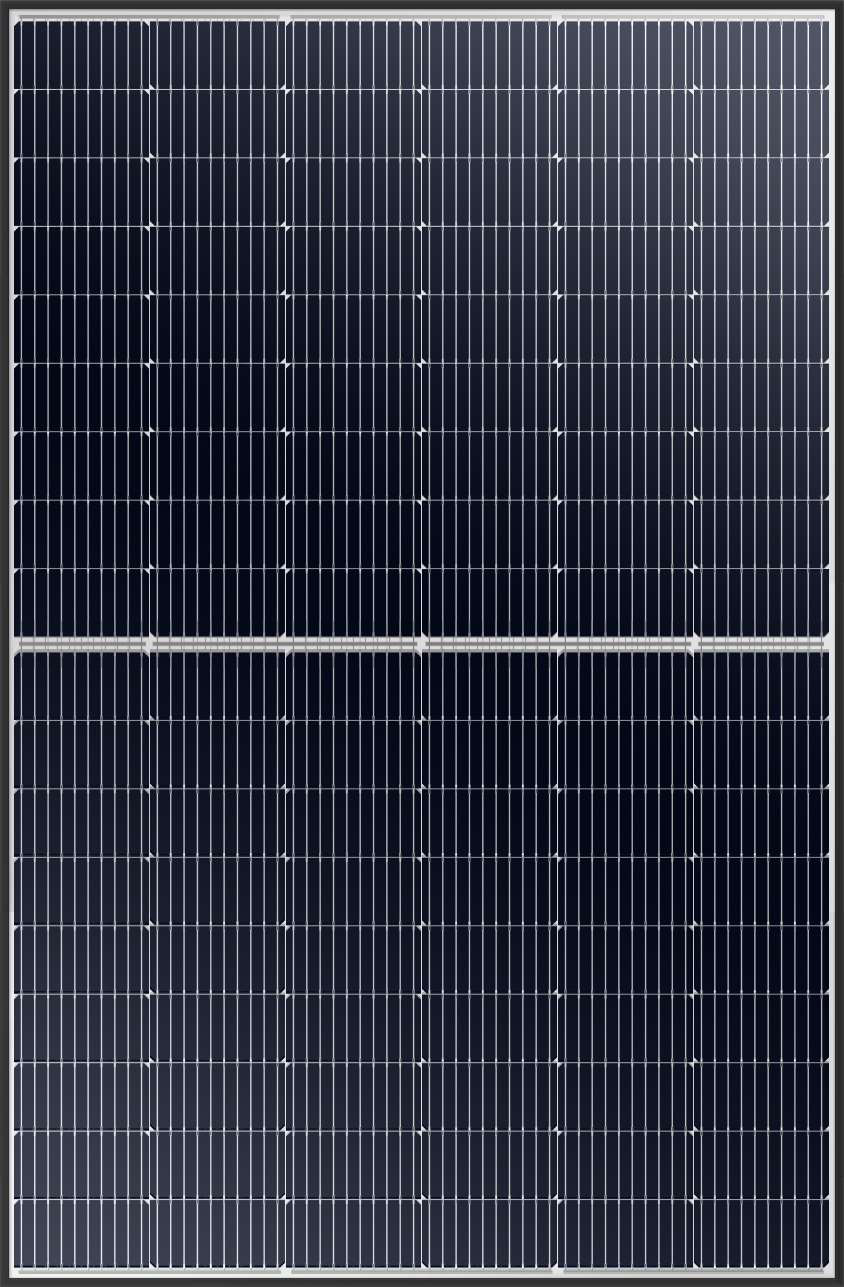

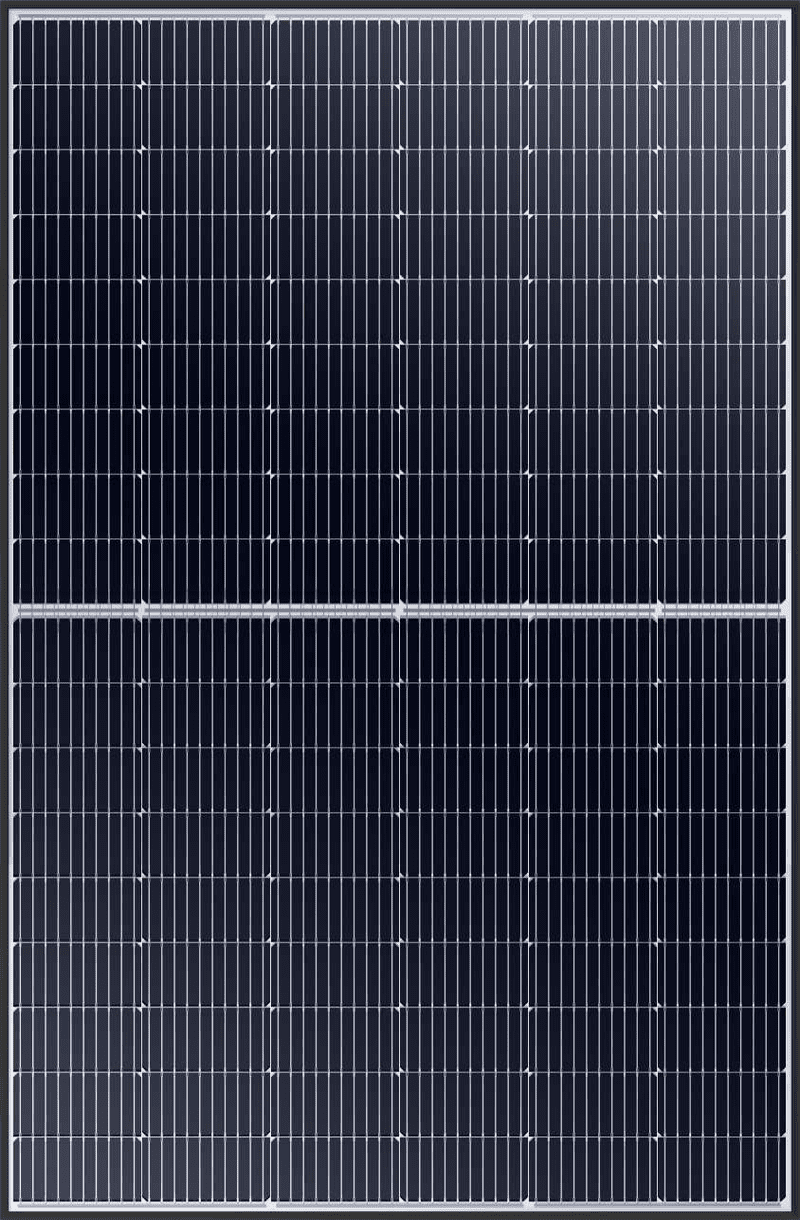

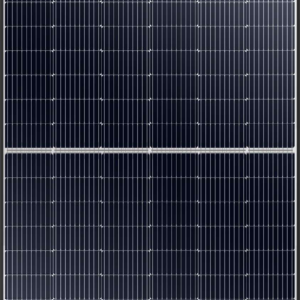

Regitec RMH54/415B1 – 415W PERC Solar Panels – 36 Panels per Pallet • High-Efficiency Mono PERC Module

The Regitec RMH54/415B1 415W PERC Solar Panel is a high-efficiency monocrystalline module engineered for strong performance, long-term durability, and exceptional value. Designed for residential, commercial, and large-scale installations, this panel uses advanced PERC cell technology to deliver higher energy output and excellent low-light performance.

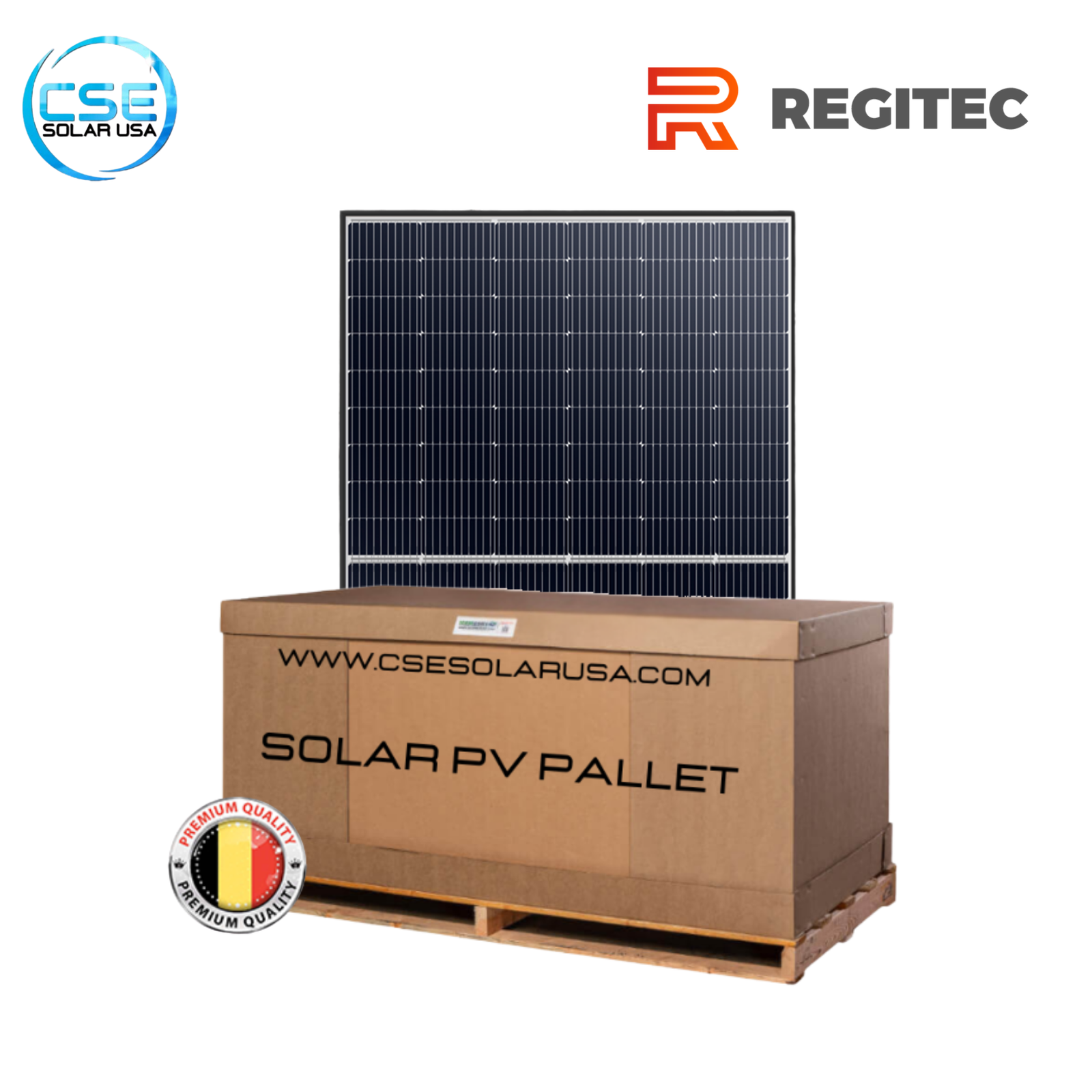

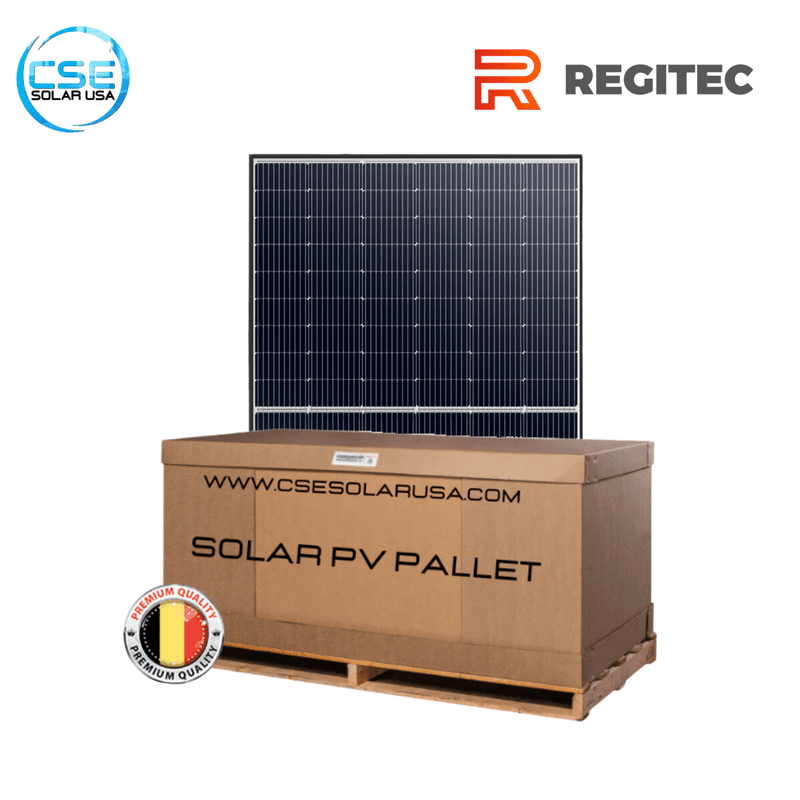

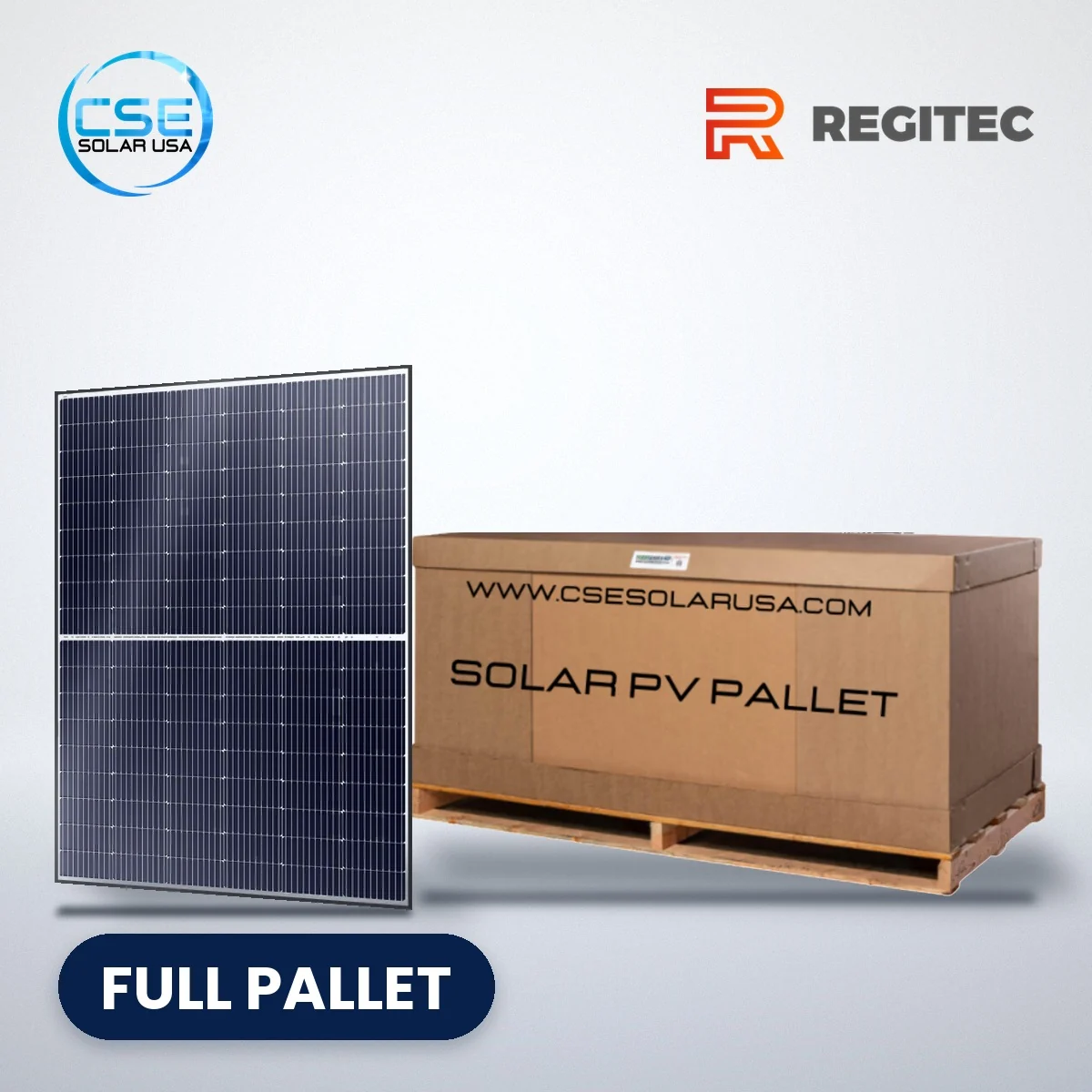

At CSE Solar USA, this product is available exclusively by pallet or container, making it the ideal choice for solar installers, contractors, and large-volume buyers seeking premium modules at competitive pricing. Each pallet includes 36 panels, ensuring efficient shipping, storage, and project planning.

Built with a robust aluminum frame and tempered glass, the Regitec 415W module withstands harsh environmental conditions while maintaining stable, reliable power output for decades.

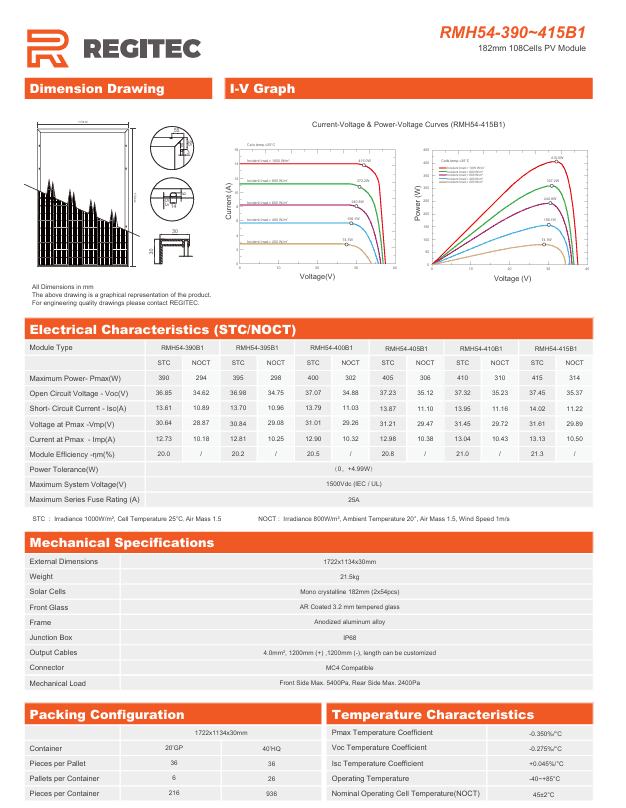

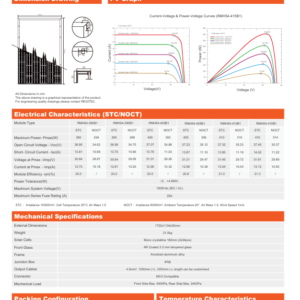

Electrical Characteristics

• Model: RMH54/415B1

• Rated Power (Pmax): 415W

• Cell Type: Monocrystalline PERC

• Module Efficiency: ~21%

• Vmp: ~31V

• Imp: ~13.4A

• Voc: ~37.5V

• Isc: ~14.1A

• Max System Voltage: 1000V / 1500V

Mechanical Specifications

• Dimensions: 67.8 in × 44.7 in × 1.4 in
  (1723 mm × 1134 mm × 35 mm)

• Weight: ~46–47 lbs

• Glass: High-transmission tempered solar glass

• Frame: Anodized aluminum alloy

• Connector Type: MC4 compatible

Durability Ratings

• Operating Temperature: -40°F to +185°F

• Snow Load: Up to 5400 Pa

• Wind Load: Up to 2400 Pa

• Fire Rating: Class C

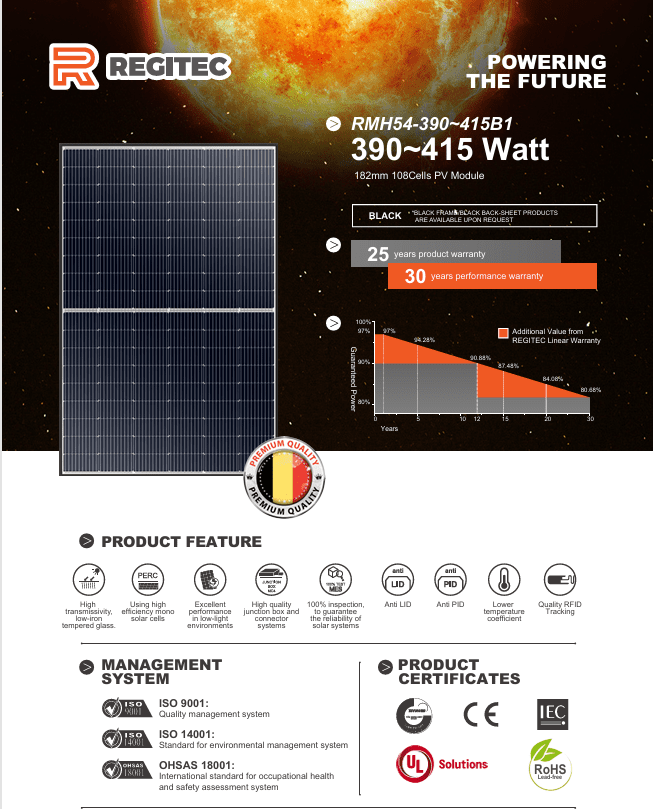

• Warranty: 25-year product and 30-year performance (Regitec datasheet)
