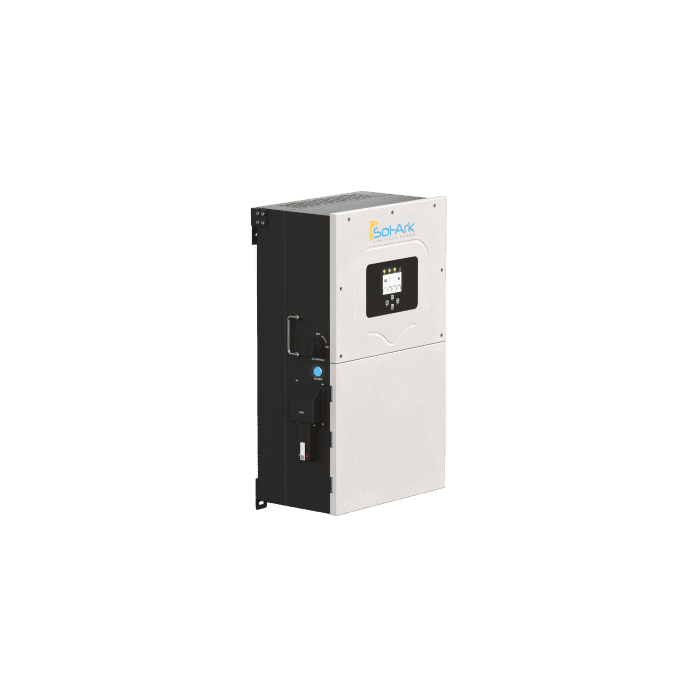

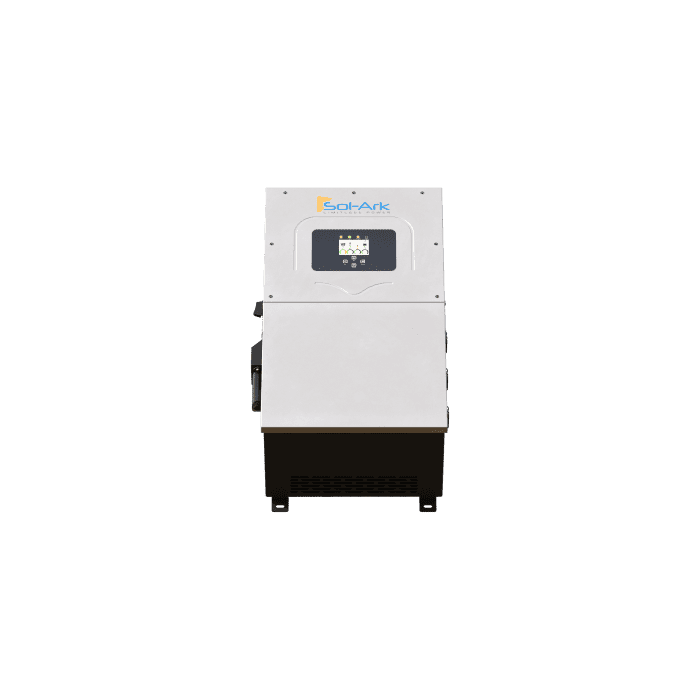

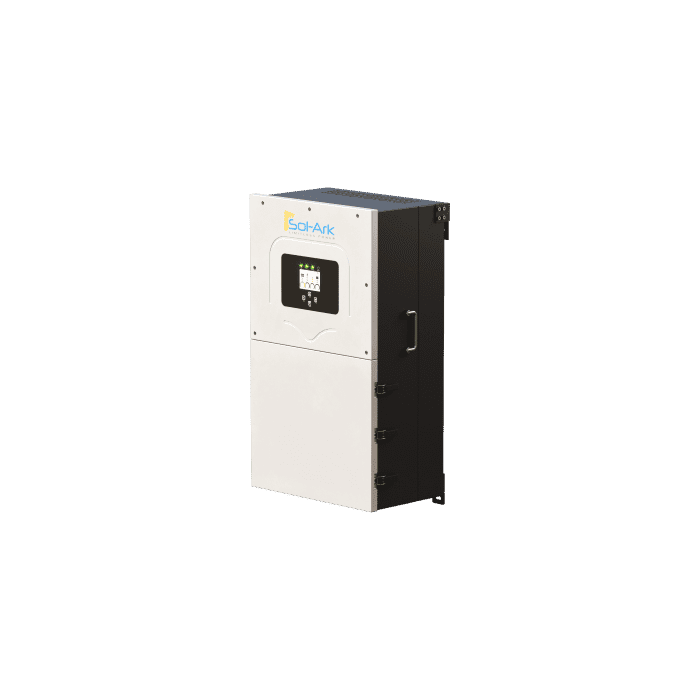

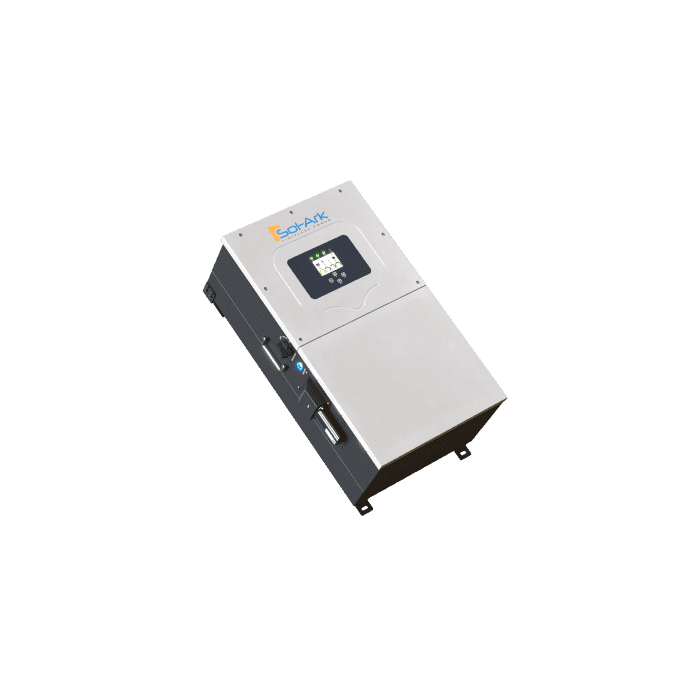

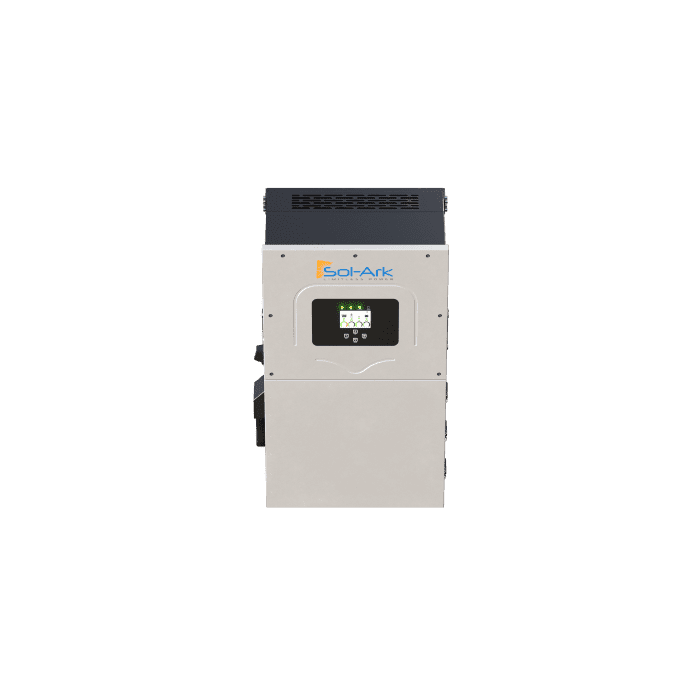

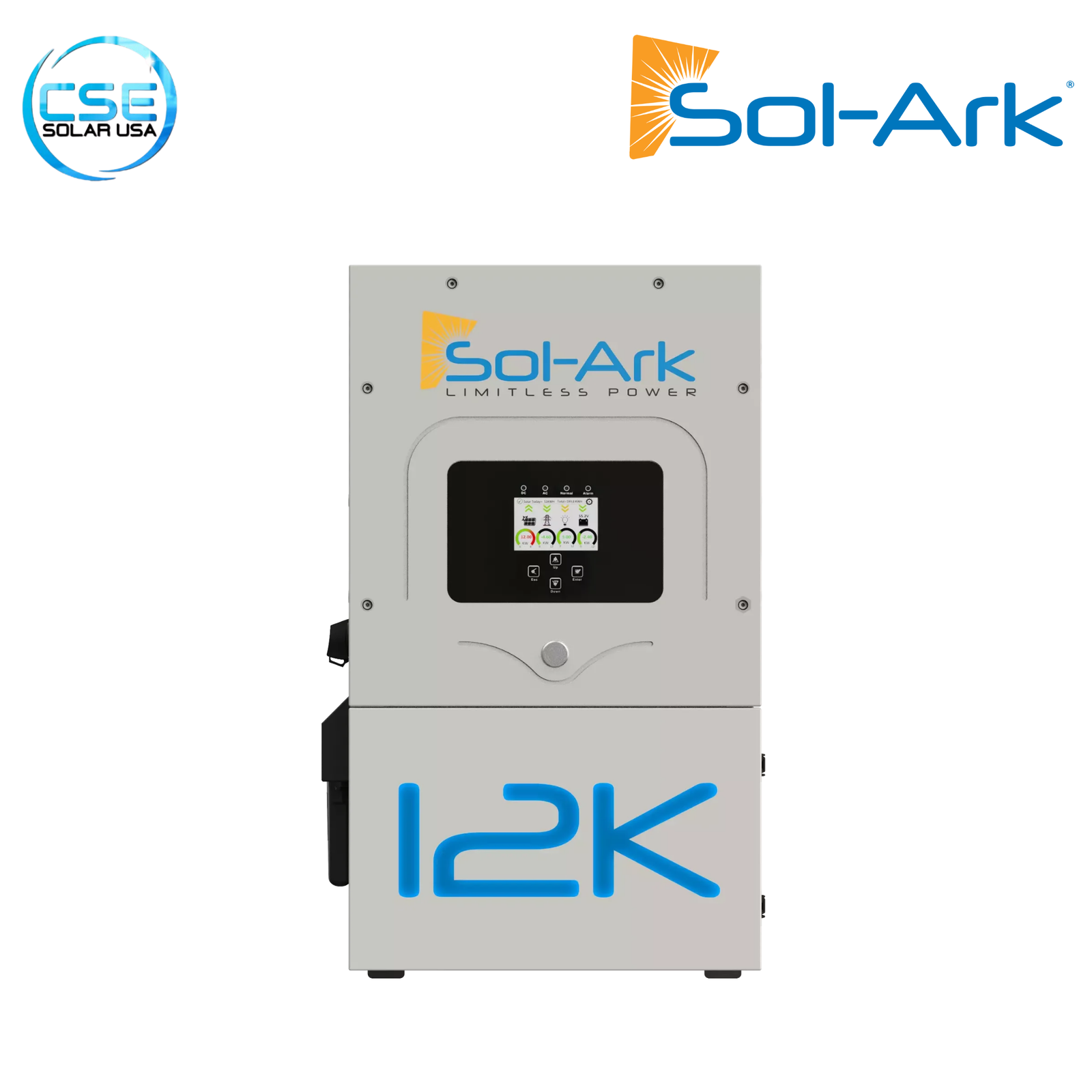

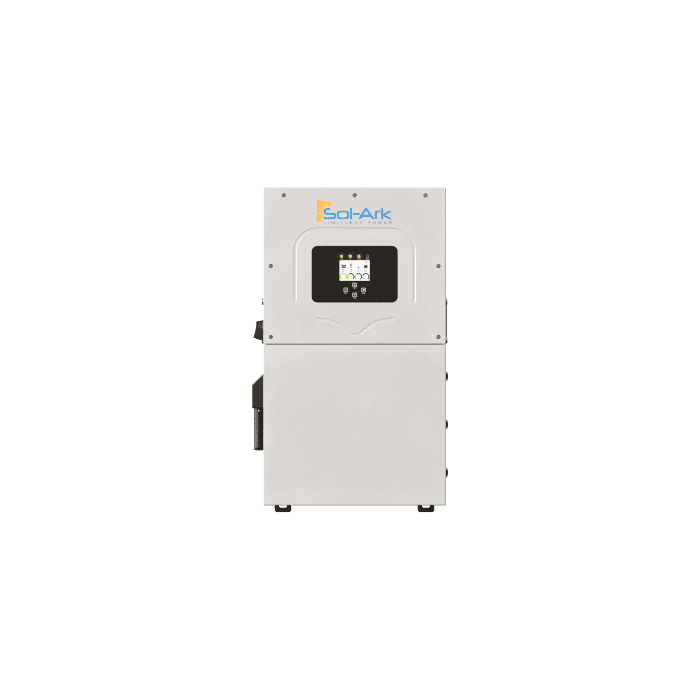

Sol-Ark 12K 48V All-In-One Stackable Hybrid Inverter

The Sol-Ark 12K-2P (also known as the 12K-2P-N) is an advanced all-in-one hybrid inverter designed to power essential loads and larger appliances during outages. With 9kW of continuous power and an integrated transfer switch, it bridges the gap between smaller inverters and whole-home systems, making it ideal for partial-home backup or efficient off-grid cabins.

Product Specifications

• Max PV Input: 13,000 W (500V Max Voc)

• MPPT Trackers: 2 Independent MPPTs

• Battery Charge/Discharge: 185 A

• Surge Power: 16,000 VA (10 seconds)

• Grid Pass-Through: 63 A

• Efficiency: 96.5% (CEC Weighted)

Why Choose Sol-Ark 12K-2P

The Sol-Ark 12K is the “sweet spot” for homeowners who need robust backup power without the price tag of a full 15kW system. It offers enough power to run critical loads—like refrigerators, lights, pumps, and even smaller A/C units—while managing solar and batteries seamlessly. Its battery agnostic design means you aren’t locked into expensive proprietary batteries, giving you freedom and flexibility.

Benefits of Sol-Ark 12K-2P

• Instant Power Transfer: With a 4ms transfer time, it switches to backup power instantly, preventing computers and clocks from resetting during grid blips.

• Flexible Battery Choice: Works with almost any 48V battery on the market, from premium Lithium server racks to budget-friendly lead-acid banks.

• Powerful Solar Charging: Supports up to 13kW of PV input, ensuring you can charge your batteries quickly and keep your home powered even during extended outages.

• Generator Integration: Features a built-in 2-wire start for standby generators, automatically managing them to recharge batteries when solar isn’t enough.

General Data

• Dimensions (H x W x D): 30.0″ x 18.3″ x 10.0″ (762 x 465 x 254 mm)

• Weight: 78 lbs (35.4 kg)

• Enclosure Rating: NEMA 3R / IP65 (Outdoor Rated)

• Cooling: Intelligent Air Cooling

• Operating Temperature: -13°F to 131°F (-25°C to 55°C)

• Stackable: Yes (Up to 8 units)

Frequently Asked Questions

Q1: Is this big enough to run my whole house?

It depends on your energy usage. The 12K provides 9kW of continuous power, which is enough for all essential loads (lights, fridge, internet, well pump) and some larger appliances like a microwave or small A/C. For larger whole-home needs (like central A/C and electric heat), you may need the Sol-Ark 15K or 18K.

Q2: Can I use this without batteries?

Yes. It can function as a grid-tied inverter without batteries, reducing your electric bill. However, you will not have backup power during an outage unless batteries are added.

Q3: Does it work with my existing solar panels?

Yes. The Sol-Ark 12K supports AC Coupling, allowing you to connect your existing grid-tie inverter (like SolarEdge or Enphase) to it, using that energy to charge batteries during an outage.

Q4: Can I add more power later?

Yes. The 12K is stackable. You can parallel up to 8 units to increase your total power output and battery charging capacity as your needs grow.

Q5: Do I need a separate charge controller?

No. The Sol-Ark 12K has two built-in MPPT solar charge controllers, saving you money and simplifying installation.
