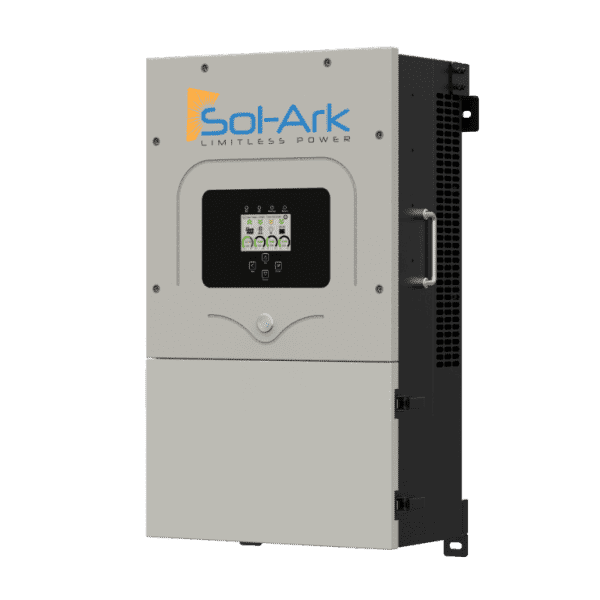

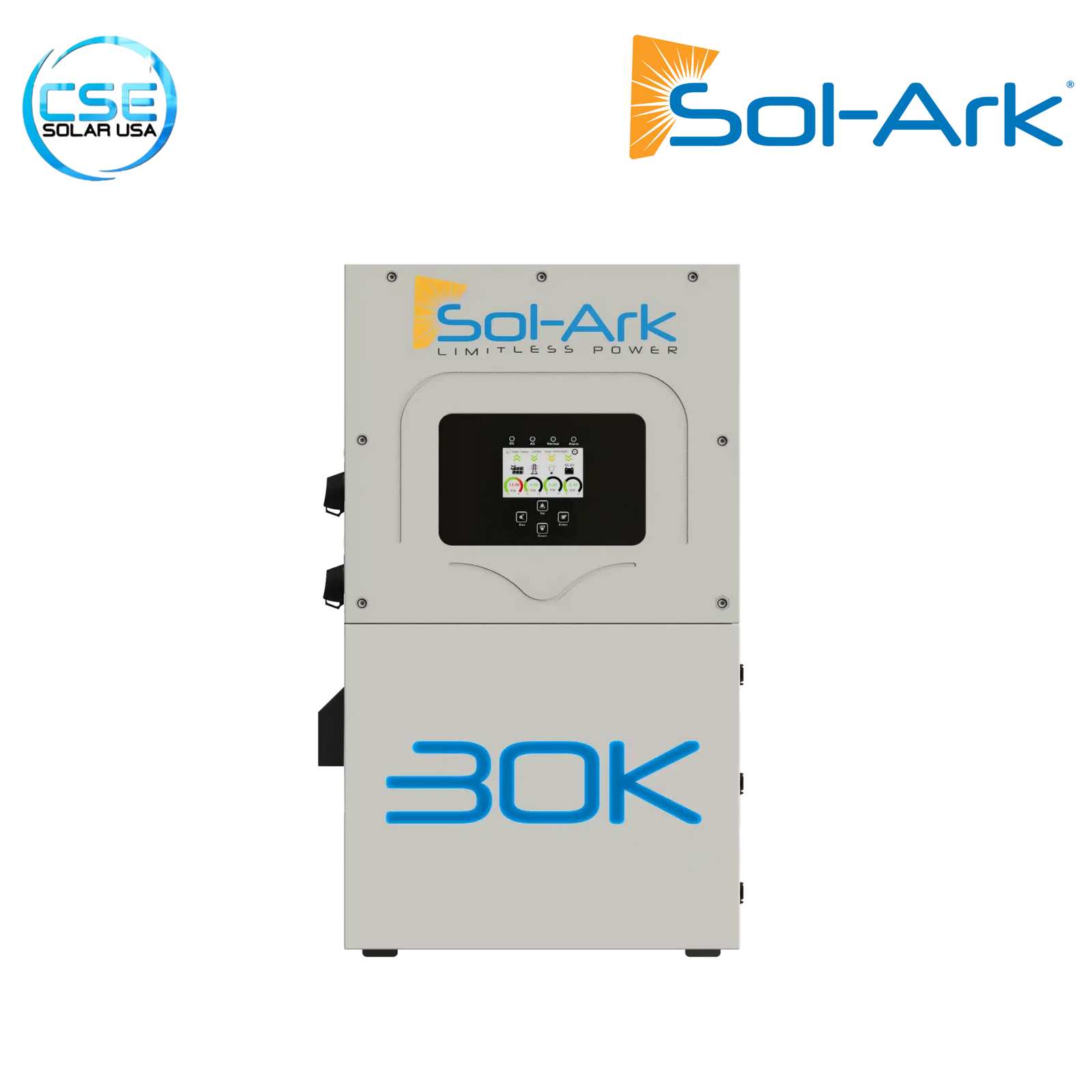

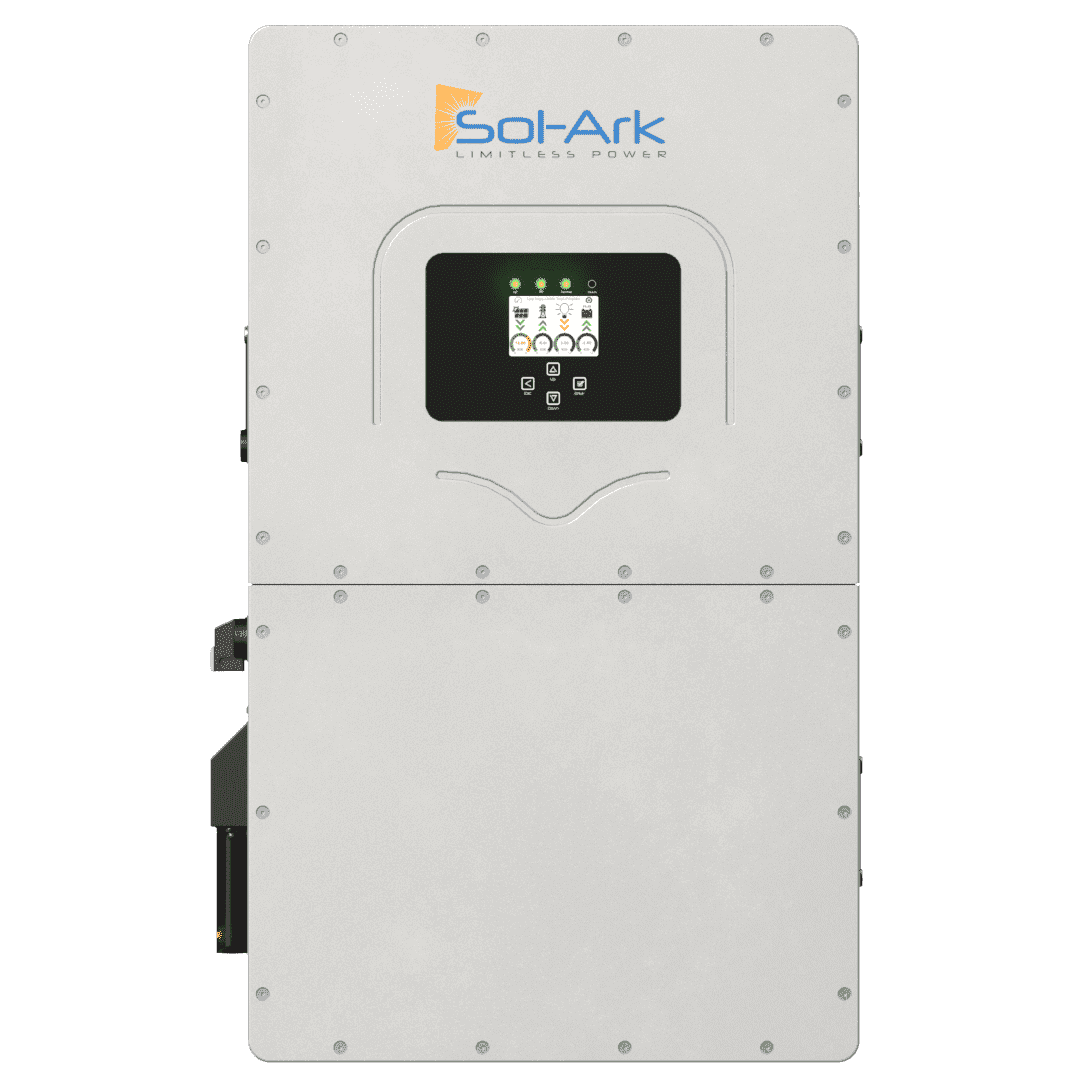

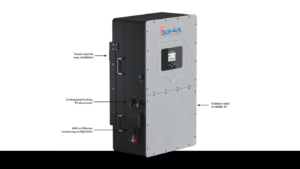

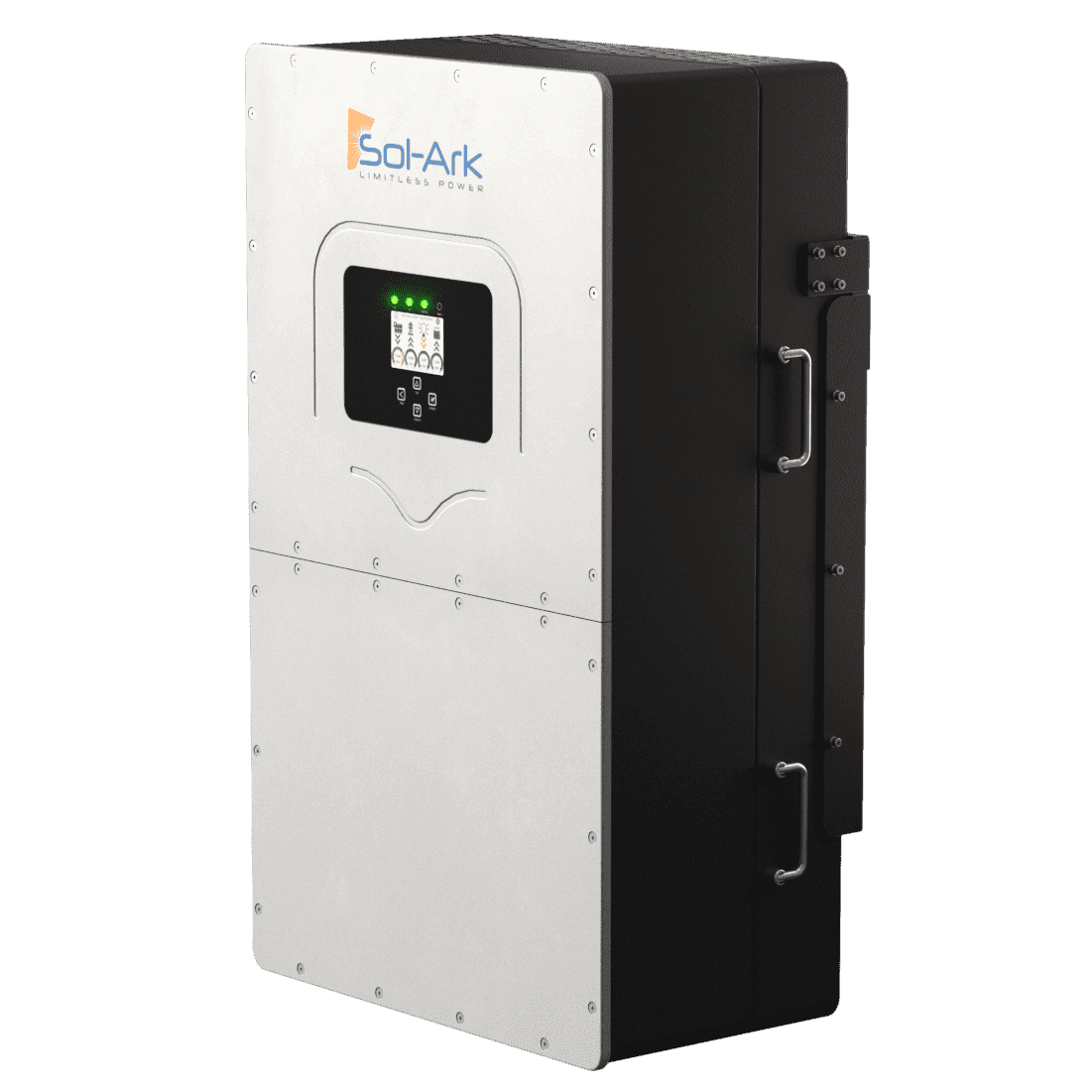

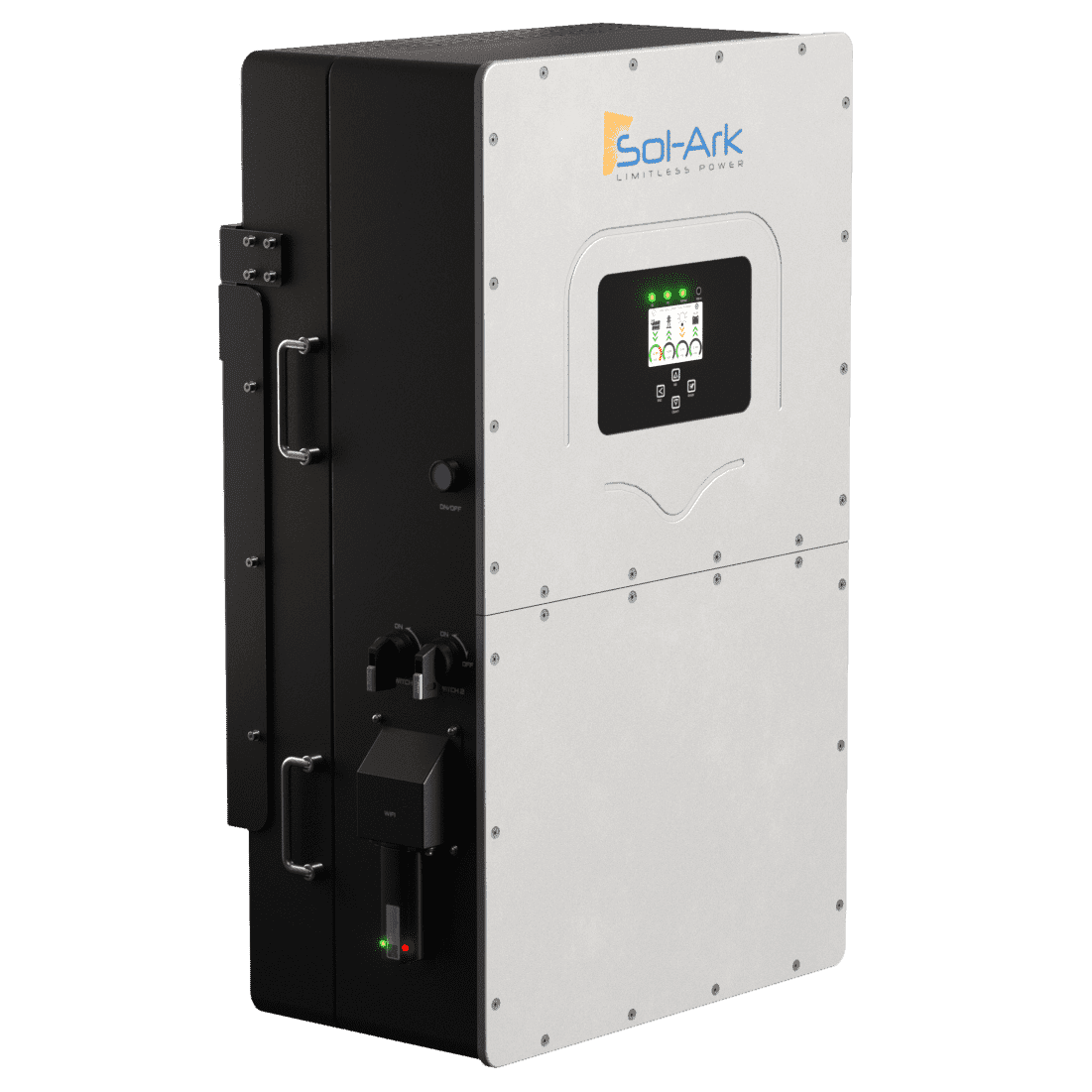

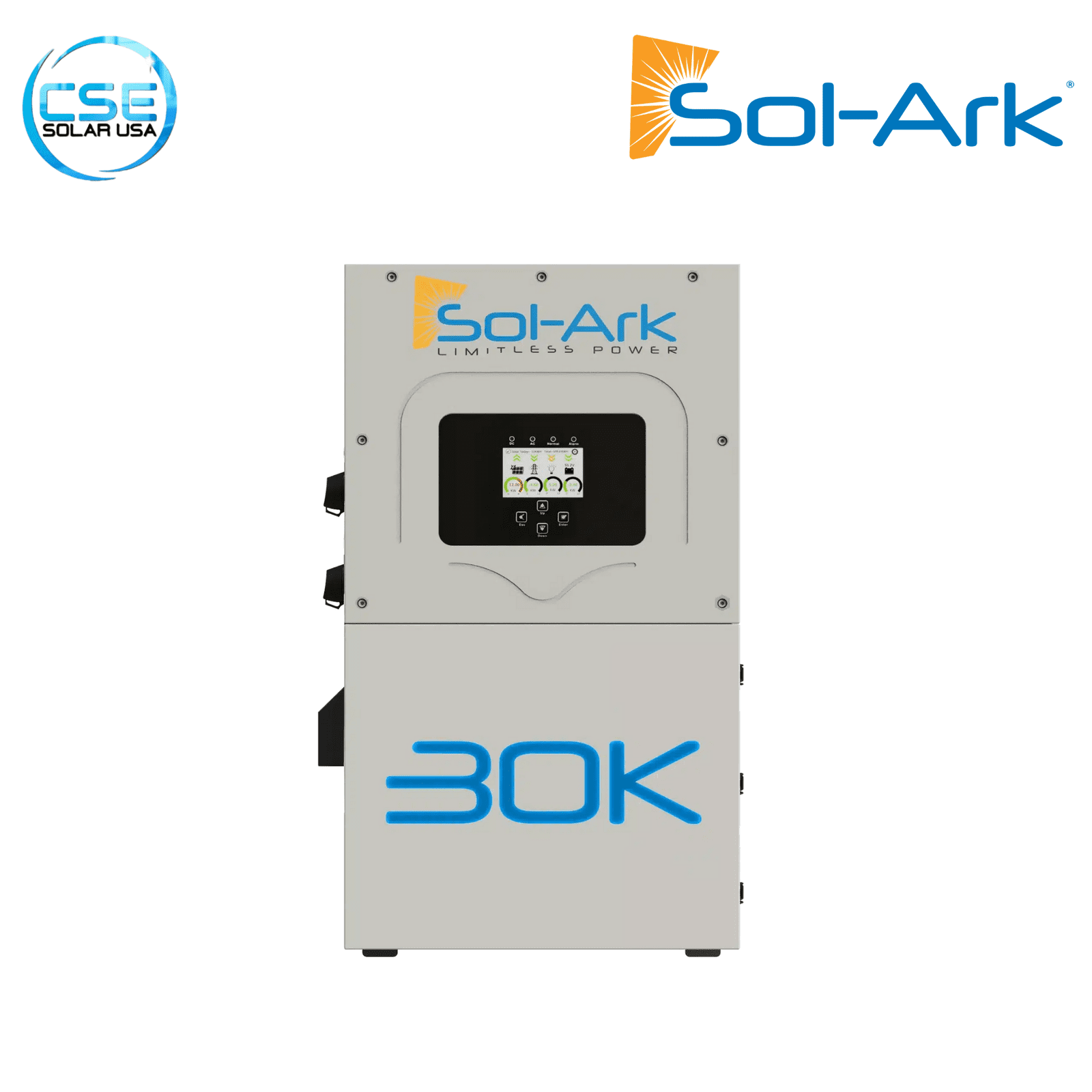

Sol-Ark 30K-3P-208V Commercial Hybrid Inverter

The Sol-Ark 30K-3P-208V is a commercial hybrid inverter designed specifically for light commercial and large residential applications. It delivers native 208V/120V three-phase output without the need for external transformers, streamlining installation and reducing costs. This all-in-one unit integrates a 30kW inverter, MPPT solar charger, and battery management system into a single NEMA 3R enclosure.

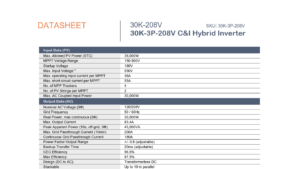

Product Specifications

• Max PV Input: 39 kW (500V Max Voc)

• MPPT Trackers: 4 Independent MPPTs (2 Strings per MPPT)

• Battery Voltage Range: 160V – 500V (High Voltage)

• Max Battery Charge/Discharge: 100 A (50A per input)

• Surge Power: 45 kVA (10 seconds)

• Grid Pass-Through: 200 A

• Efficiency: 96.5% (CEC Weighted)

Why Choose Sol-Ark 30K-3P-208v

The Sol-Ark 30K-3P-208V is the ideal solution for 208V commercial projects because it eliminates the need for expensive and bulky 480V-to-208V step-down transformers. Its native 208V architecture simplifies design and installation, while its “all-in-one” hybrid capability allows for seamless integration of solar, battery storage, and generator backup in a single, scalable unit.

Benefits of Sol-Ark 30K-3P-208v

• Transformerless Design: Connects directly to standard 208V commercial service panels, saving space and thousands of dollars in transformer equipment costs.

• Business Continuity: Features a blazing fast 5ms transfer time, ensuring sensitive commercial equipment (computers, servers, POS systems) stays online without disruption during grid outages.

• Massive Scalability: Supports parallel stacking of up to 10 units, allowing the system to grow from 30kW to 300kW of continuous power to meet increasing energy demands.

• Peak Shaving ROI: Intelligently manages battery usage to reduce peak demand charges, providing immediate financial returns for commercial facilities.

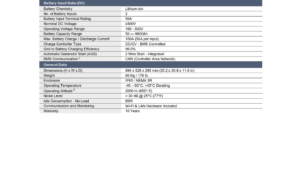

General Data

• Dimensions (H x W x D): 35.2″ x 20.8″ x 11.6″ (894 x 528 x 295 mm)

• Weight: 176 lbs (80 kg)

• Enclosure Rating: NEMA 3R / IP65 (Outdoor Rated)

• Cooling: Intelligent Air Cooling (Fan)

• Operating Temperature: -40°F to 140°F (-40°C to 60°C)

• Certifications: UL1741-SB, IEEE 1547-2018, UL9540, NEC 690.12

Frequently Asked Questions

Q1: Does this inverter need a transformer for 208V applications? No. The Sol-Ark 30K-3P-208V outputs native 120V/208V 3-Phase power, eliminating the need for external transformers commonly required by 480V inverters.

Q2: What kind of batteries does it work with? It is compatible with High Voltage (HV) Lithium-Ion batteries (nominal voltage ≥ 300V). It does not support standard 48V residential batteries.

Q3: How many units can I stack? The system allows for parallel stacking of up to 10 units, creating a massive system with 300kW of continuous power output.

Q4: Can I use this for a home? Yes. While designed for commercial use, it is also an excellent choice for large luxury homes that have 208V 3-phase service or require more power than standard residential inverters can provide.

Q5: Is it suitable for outdoor installation? Yes. The unit is housed in a robust NEMA 3R / IP65 rated enclosure, making it fully capable of withstanding outdoor elements.
