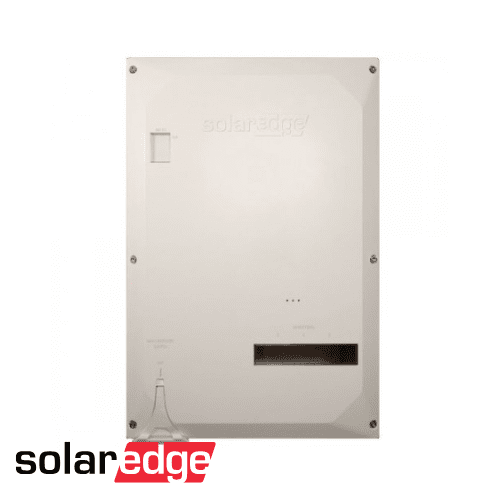

SolarEdge BI-NUSGN-03 Energy Hub Back Up Interface

The SolarEdge Home Backup Interface (BI-NUSGN-03), when used with the SolarEdge Home Hub Inverter, provides intelligent energy management and full backup flexibility. It automatically detects outages and offers seamless transition to backup power. You can track energy usage and control energy flow all from the mySolarEdge App.

Key Features

• Flexible & Durable. Designed for any environment. Designed for versatility, the Backup Interface supports both indoor and outdoor installations with a rugged NEMA 3R rating. It eliminates the need for a separate main service panel upgrade in many scenarios (Main Lug Only). It not only features a compact footprint, but it also impresses with integrated metering and transformation capabilities.
• More Power. The SolarEdge BI-NUSGN-03 Backup Interface is capable of connecting up to three SolarEdge Home Hub Inverters at once. This scalability allows for a massive 30kW of continuous backup power and battery capacity expansion. It includes a built-in 5kW Auto-Transformer to manage split-phase loads, ensuring your 120V appliances run smoothly even when off-grid.
• Backup Confidence. Seamless Transitions. Whether for whole home or partial home backup, the Backup Interface gives you ultimate peace of mind. When outages occur, it is capable of disconnecting from the grid and switching to backup power in under 3 seconds. That means you can enjoy uninterrupted electricity supply from a mix of power sources such as solar, battery, or generator.

Product Specifications

• Supports up to 3 SolarEdge Home Hub Inverters

• < 3 sec switchover time

• Supports generator connection (up to 22.5 kW)

• Supports both whole-home & partial-home backup

• Built-in 5kW Auto-transformer for split-phase balancing

• Integrated SolarEdge Energy Meter (1% accuracy)

• 12 Years Warranty

General Data

Dimensions (W/H/D): 13.88 * 20.59 * 8.62 in / 353 * 523 * 219 mm

Weight: 73 lbs / 33 kg
