Soluna 10kWh HV LFP Battery

Soluna 10kWh HV LFP Battery – Advanced Energy Storage Solution

Description

The Soluna 10kWh High Voltage Lithium Iron Phosphate (LFP) Battery is an efficient and reliable energy storage solution designed for high-performance solar systems. With advanced features, robust build quality, and seamless scalability, it’s ideal for residential and commercial applications.

Key Features:

1. Powerful Energy Storage:
   • Nominal Capacity: 10kWh
   • Usable Capacity: 9kWh (90% Depth of Discharge)
   • Perfect for backup power, load shifting, and energy independence.
2. High Voltage Design:
   • Operates at a nominal voltage of 268.8V, with a usable voltage range of 235.2V–294V, enhancing efficiency and compatibility with advanced inverters.
3. Durable and Compact Build:
   • Physical Dimensions:
     • Height: 38.22 inches
     • Width: 25.74 inches
     • Depth: 8.93 inches
   • Weight: 231.48 lbs
   • Designed for floor-standing installation with an IP55 rating, ensuring protection against dust and water.
4. Advanced Lithium LFP Technology:
   • Known for thermal stability, safety, and long cycle life.
   • Supports over 6,000 cycles at 90% DoD for long-term reliability.
5. Scalability:

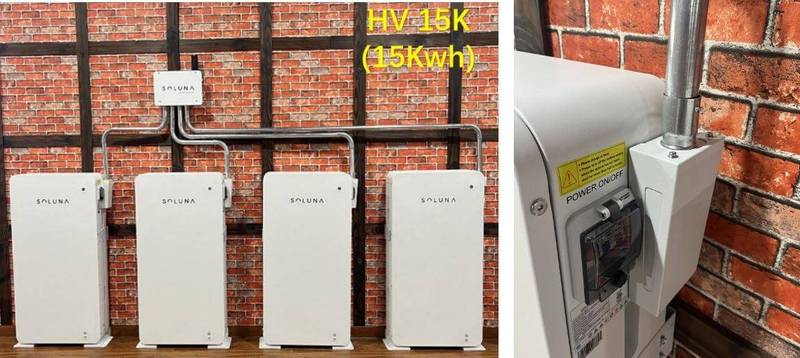

   • Configurable in parallel systems (up to 10 units), enabling customization for growing energy needs.
6. Smart Charging and Discharging:
   • Nominal Current: 20A (Charge/Discharge)
   • Maximum Current: 40A (Charge/Discharge)
7. Reliable and Certified:
   • Certifications: UL1642, UL9540A, IEC62619, UL1973, and CE compliance.
   • Transport Certified: UN38.3 for safe handling and shipping.
8. Eco-Friendly and Safe:
   • Built with natural convection cooling for energy-efficient operation.
   • Class 9 hazardous material rating ensures adherence to strict safety standards.

Operating Conditions:

• Operating Temperature Range: -10°C to 50°C (Recommended: 15°C to 30°C)
• Storage Temperature: -30°C to 60°C
• Humidity Tolerance: 5%–95%
• Maximum Altitude: 2000 meters

Warranty:

• 10-Year Standard Warranty covering product and performance, offering peace of mind and long-term reliability.

Applications:

• Residential and commercial energy storage
• Off-grid power solutions
• Backup power for critical systems
• Energy arbitrage and load management

Why Choose Soluna?

The Soluna 10kWh HV LFP Battery combines cutting-edge technology, robust performance, and unmatched scalability. With its compact design and durable construction, it is the ultimate choice for customers seeking a reliable energy storage solution.

Take your energy storage to the next level with the Soluna 10kWh HV LFP Battery. Contact us today at 702-608-8385 to learn more or place your order.
