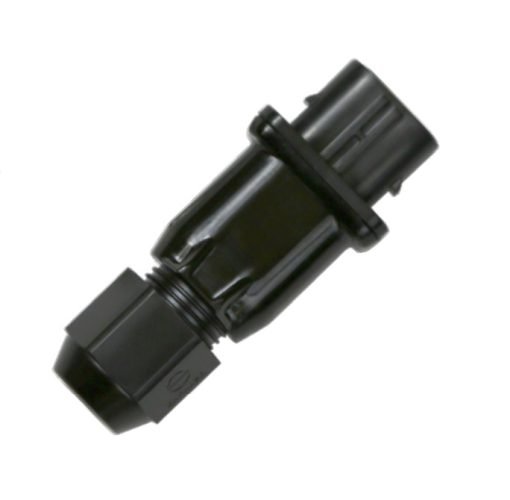

Enphase Field-Wireable Connector (Female) – UL Listed AC Connector for Enphase Q Cable Systems
$12.81
24 people are viewing this product right now
The Enphase Field-Wireable Connector (Female) provides flexible and secure connections for raw Enphase Q Cables, giving installers greater control during system design and installation. This UL-listed female connector ensures safe, field-configurable wiring for both commercial and residential Enphase Energy systems.
Built from high-grade, weather-resistant materials, the AC connector maintains long-term reliability even in harsh outdoor environments. Ideal for custom branch terminations, system expansions, and retrofit installations, the Enphase Female Ac Q cable Connector delivers the flexibility and durability professionals demand.
| Voltage Rating | 600V (connector rated up to 277VAC) |
| Certifications | UL 3003 (raw cable), UL 9703 (assemblies), DG cable approved |
| Conductor Resistance (20°C) | 5.43 Ω/km (12 AWG) |
| Flame Rating | FT4 |
| Compliance | RoHS, CE, OIL RES I, UV resistant |
| Connection Type | Female field-wireable AC connector |
| Material | UV-stabilized, flame-retardant polymer housing |
| Installation | Field-assembled using MC-style crimp tools |
| Use Case | Raw Q Cable terminations, extensions, or branch connections |
| Weight | 2 lbs |
|---|---|
| Dimensions | 2 × 2 × 3 in |
| MPN | Q-CONN-10F |
