RUiXU 10-Slot Battery Cabinet | Pre-Assembled with Busbar | RX6075170
$990.00 Call for AvailabilityCheck Availability
36 people are viewing this product right now

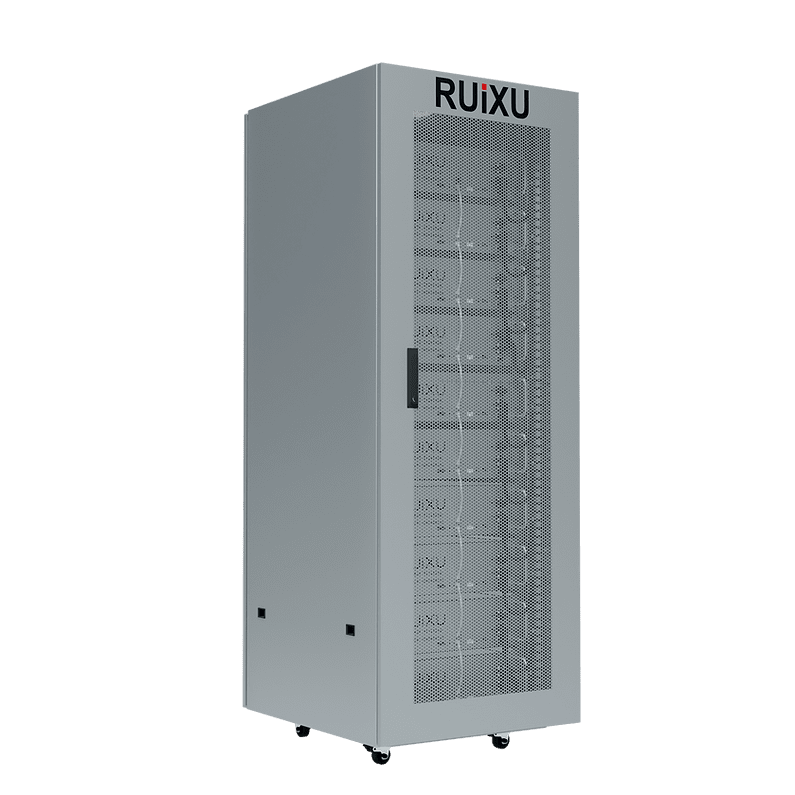

RUiXU 10-slot battery cabinet (RX6075170) for up to ten RX-LFP48100 rack batteries: pre-assembled with busbar and cover, lockable doors and casters. Used in the RUiXU 50 kWh kits.
The RUiXU 10-slot cabinet holds up to ten RX-LFP48100 or RX-LFP48100-H batteries (RUiXU’s RX-50kWh kits). Model RX6075170 per the RUiXU cabinet specification (the RUiXU dealer site writes RX6075177).
| Model | RX6075170 |
|---|---|
| Slots | 10 battery slots (19-inch rails) |
| Dimensions | 23.6 W × 29.5 D × 63.4 H in (69.9 in with wheels) · 600 × 750 × 1612 mm |
| Weight | Approx. 150 kg (330.7 lb) |
| Busbar | Copper ± busbars 25 × 3 mm, M8 bolts, 300 A, with cover |
| Features | Pre-assembled; lockable doors; casters and leveling feet |
RUiXU sells its cabinets together with RUiXU batteries.
RUiXU documentation
- 6-slot / 10-slot battery cabinet specification (RUiXU)
- RX-LFP48100 / RX-LFP48100-H datasheet (RUiXU)
Availability: CSE confirms current availability, lead time and freight for every RUiXU order. Contact CSE Solar USA to check availability or request a quote.
| Weight | 330.7 lbs |
|---|---|
| Dimensions | 23.6 × 29.5 × 69.9 in |
| MPN | RX6075170 |
