AIMS Power KITHY230VBATMS Dual Lithium Battery Cabinet Set | LFP230V96A-M Master + LFP230V96A-S Slave, 230 Vdc, 192 Ah, 44,160 Wh

AIMS Power KITHY230VBATMS Dual Lithium Battery Cabinet Set

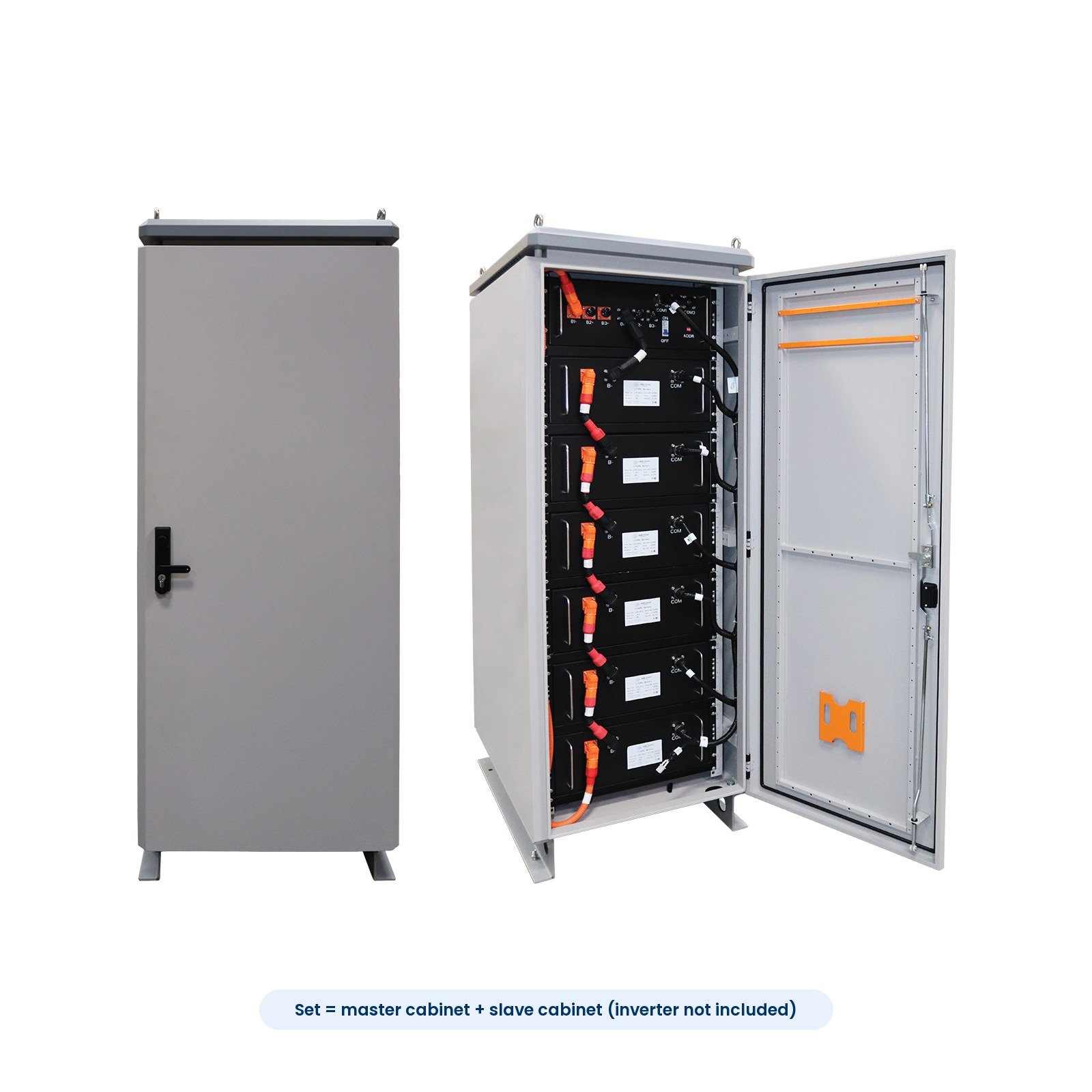

The AIMS Power KITHY230VBATMS is a matched pair of AIMS’ pre-wired 230 V LiFePO4 battery cabinets, one LFP230V96A-M master with the BMS and one LFP230V96A-S slave, forming a 230.4 Vdc, 192 Ah bank with 44,160 Wh of storage for AIMS PIHY4600 and PIHY9600 hybrid inverters. Each cabinet holds six 38.4 V lithium packs wired in series, rated for more than 3,500 cycles, with 50 A charge and discharge, cell balancing, IP54 protection and lifting eye bolts.

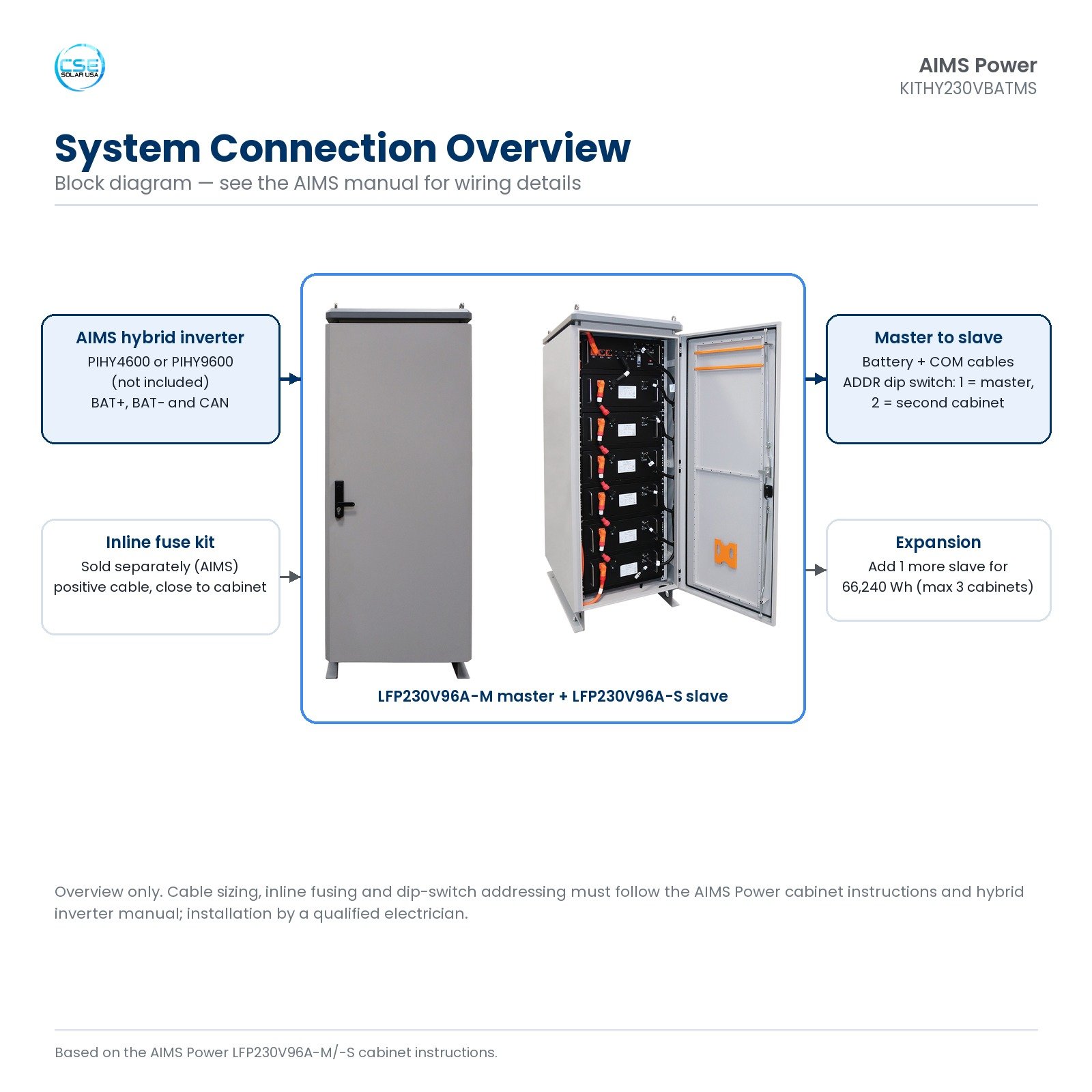

The master’s pre-programmed BMS talks to the hybrid inverter over CAN, so hook-up is three wires: positive, negative and COM. Add one more LFP230V96A-S slave for 66,240 Wh. The set does not include an inverter or the inline fuse kit. CSE Solar USA is an authorized AIMS Power distributor.

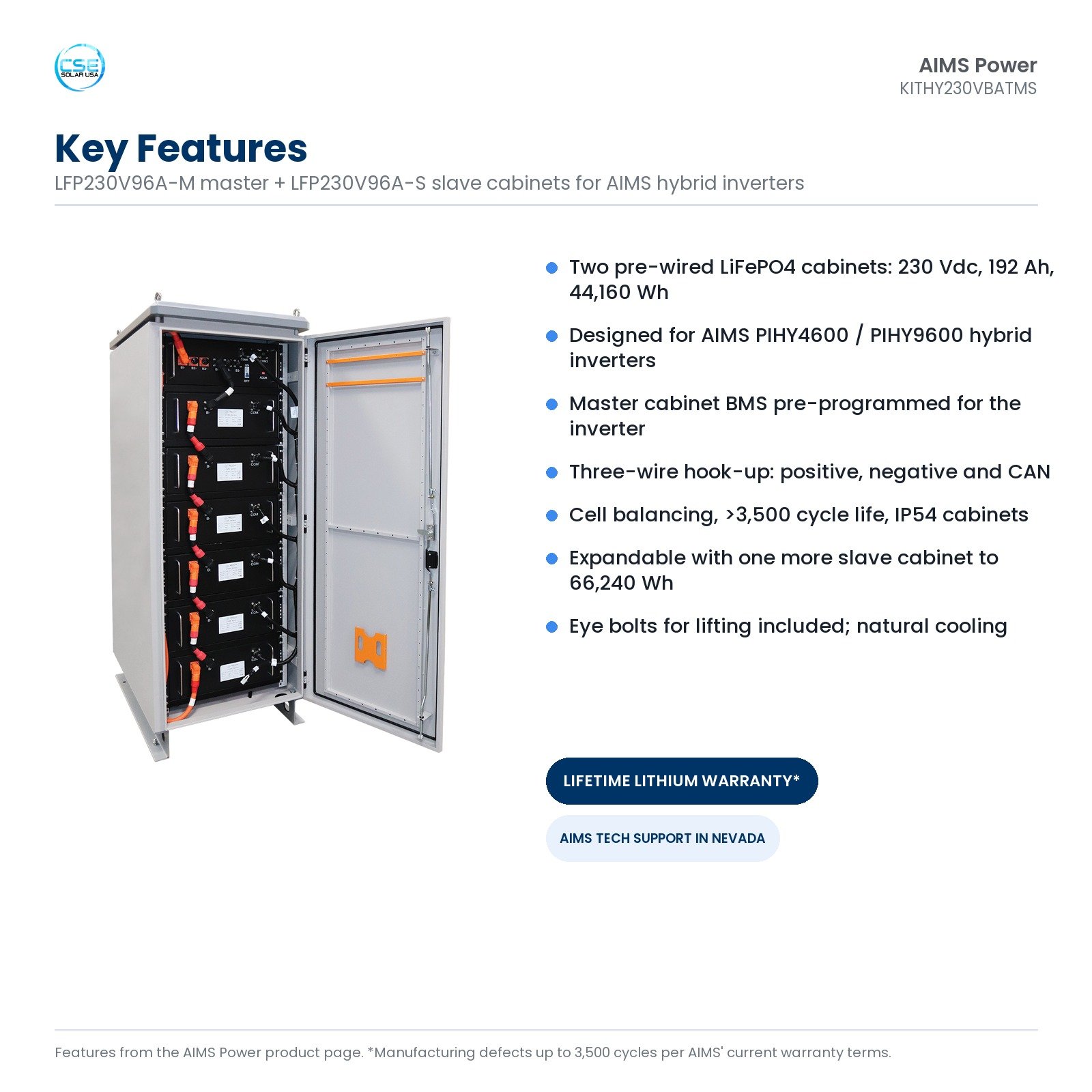

Key features

• Two pre-wired LiFePO4 cabinets: 230 Vdc, 192 Ah, 44,160 Wh
• Designed for AIMS PIHY4600 / PIHY9600 hybrid inverters
• Master cabinet BMS pre-programmed for the inverter
• Three-wire hook-up: positive, negative and CAN
• Cell balancing, >3,500 cycle life, IP54 cabinets
• Expandable with one more slave cabinet to 66,240 Wh
• Eye bolts for lifting included; natural cooling

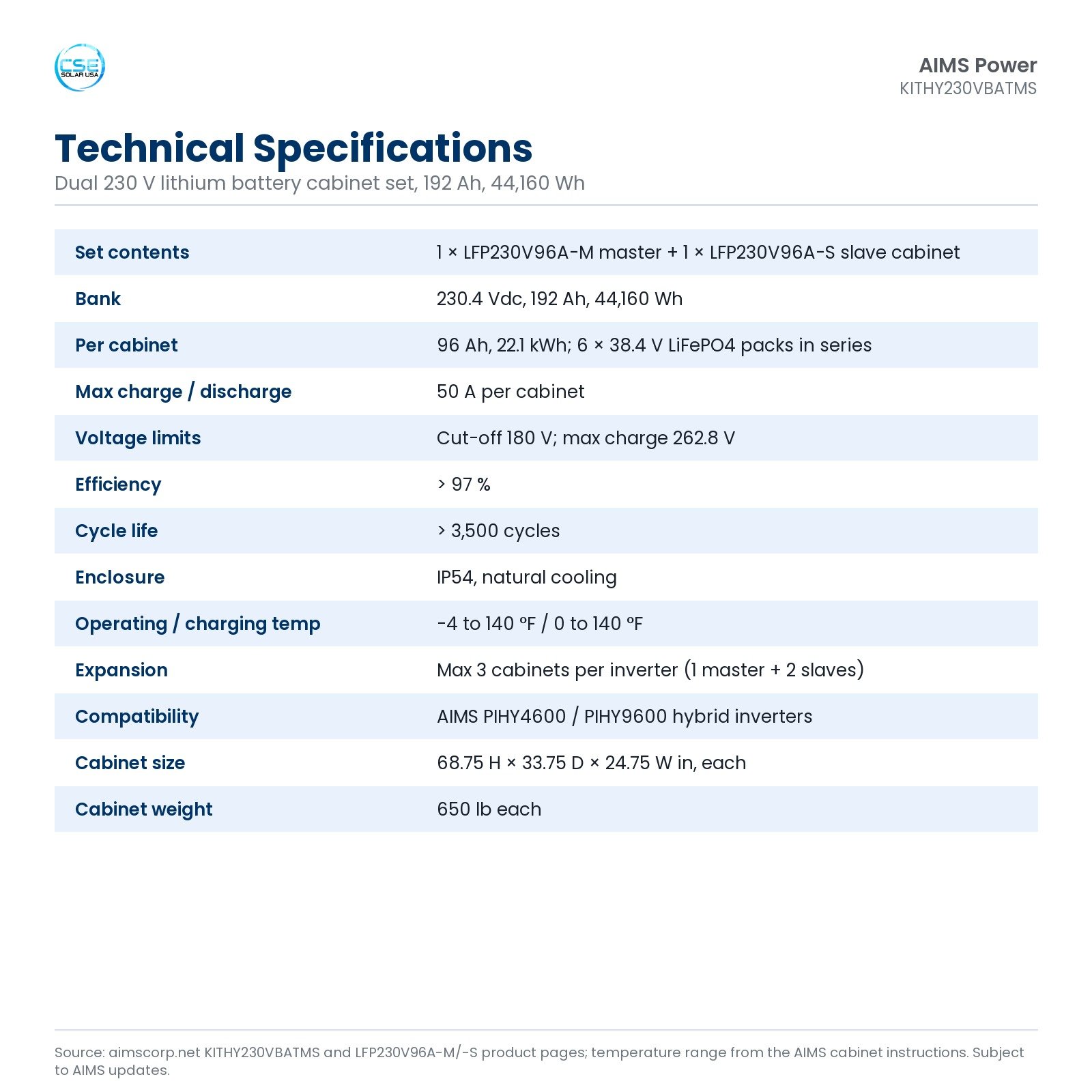

Specifications (official AIMS Power data)

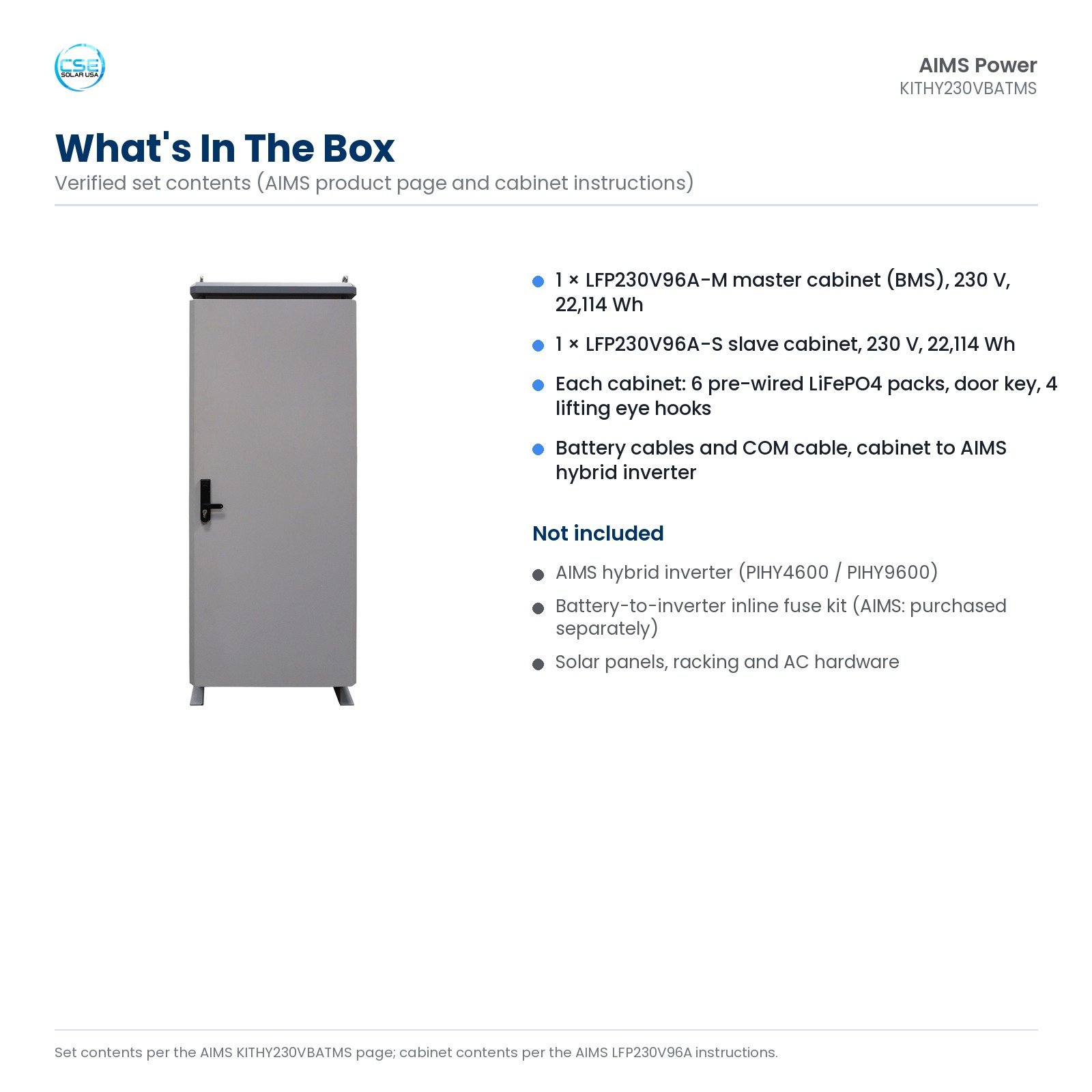

What’s included

• 1 × LFP230V96A-M master cabinet (BMS), 230 V, 22,114 Wh
• 1 × LFP230V96A-S slave cabinet, 230 V, 22,114 Wh
• Each cabinet: 6 pre-wired LiFePO4 packs, door key, 4 lifting eye hooks
• Battery cables and COM cable, cabinet to AIMS hybrid inverter

Not included: AIMS hybrid inverter (PIHY4600 / PIHY9600); Battery-to-inverter inline fuse kit (AIMS: purchased separately); Solar panels, racking and AC hardware.

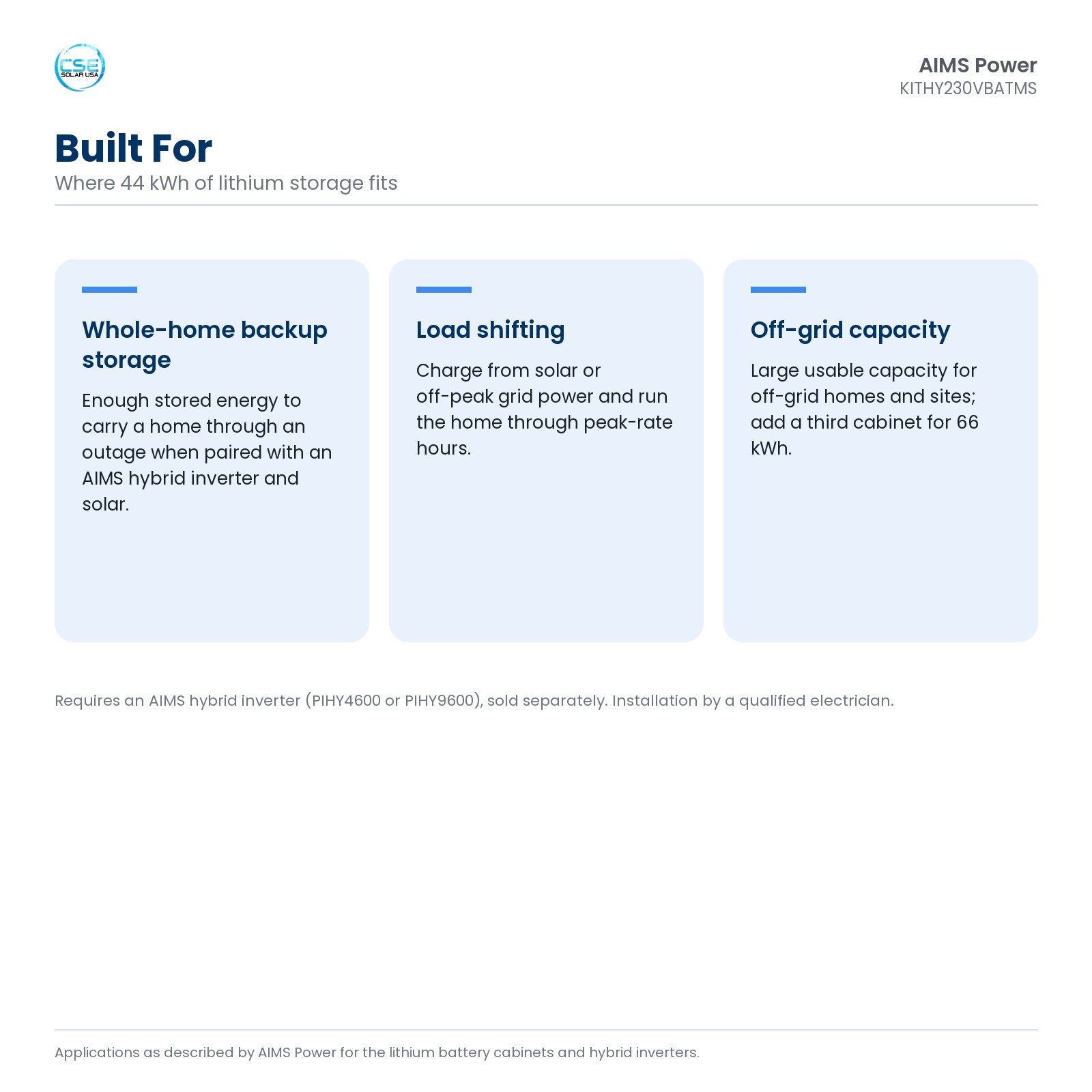

Applications

• Whole-home backup storage: Enough stored energy to carry a home through an outage when paired with an AIMS hybrid inverter and solar.
• Load shifting: Charge from solar or off-peak grid power and run the home through peak-rate hours.
• Off-grid capacity: Large usable capacity for off-grid homes and sites; add a third cabinet for 66 kWh.

Requires an AIMS hybrid inverter (PIHY4600 or PIHY9600), sold separately. Installation by a qualified electrician.

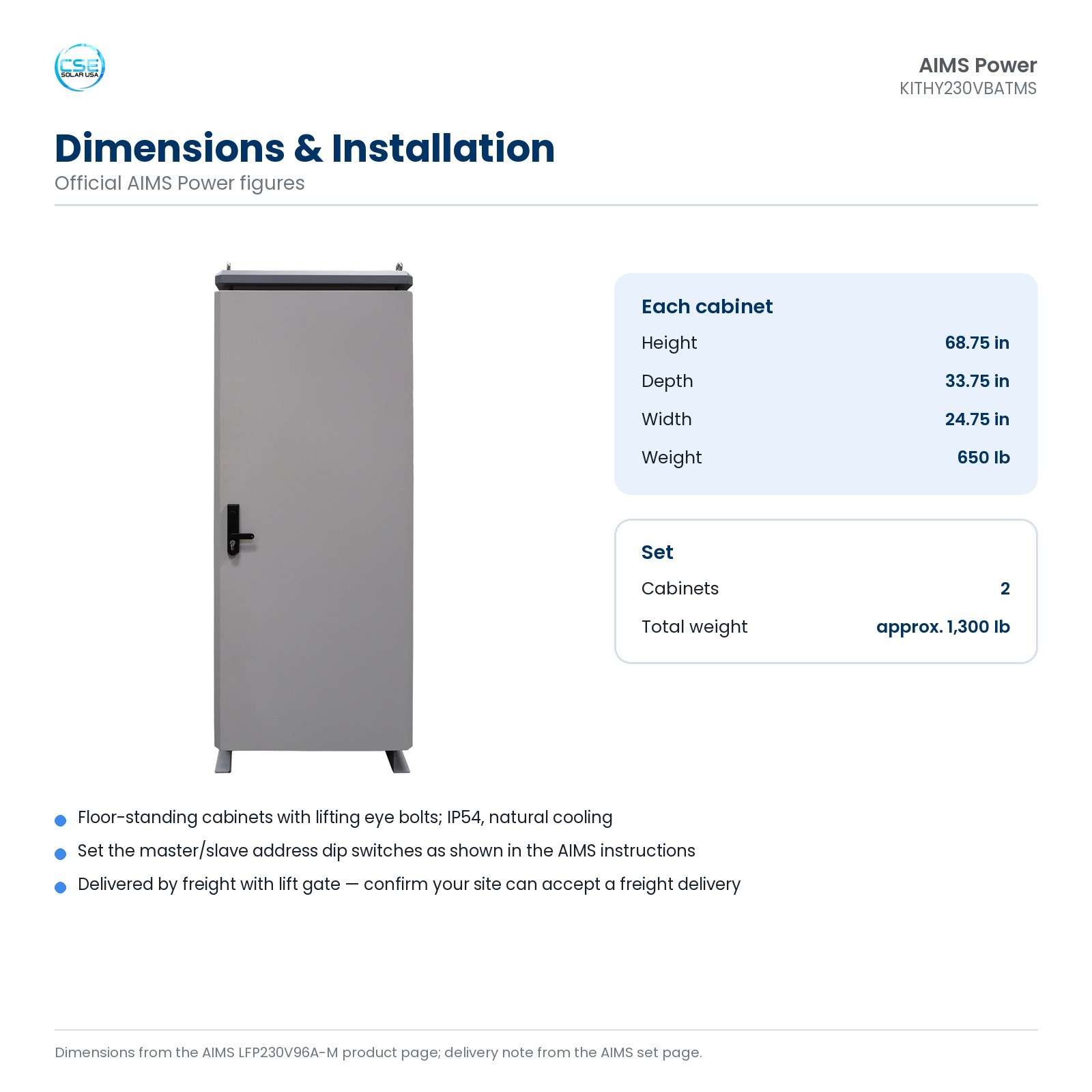

Dimensions and weight

• Floor-standing cabinets with lifting eye bolts; IP54, natural cooling
• Set the master/slave address dip switches as shown in the AIMS instructions
• Delivered by freight with lift gate — confirm your site can accept a freight delivery

Warranty

AIMS lithium battery cabinets carry a lifetime warranty for manufacturing defects up to 3,500 cycles under AIMS’ current warranty terms (orders on or after 1 February 2026); battery warranty service is provided directly by AIMS Power. CSE Solar USA is an authorized AIMS Power distributor.

Shipping

Nationwide Freight Shipping — Request a Freight Quote. Two cabinets, 650 lb each per AIMS, delivered by freight with a lift gate; someone must be available to accept and sign.

Downloads (official AIMS Power documents)

Frequently asked questions

Specifications and included components are taken from the official AIMS Power product page, current warranty policy and manuals for KITHY230VBATMS; subject to AIMS updates.
