AIMS Power PICOGLF10KW48V240VS 10000W Low-Frequency Pure Sine Inverter Charger | 48 Vdc, 120/240 Vac Split Phase
$4,160.00
10 people are viewing this product right now
- Continuous output: 10,000 W
- Surge: 30,000 W (20 s)
- Battery voltage: 48 Vdc
- AC output: 120/240 Vac split phase
- Charger: 100 A
Ordering: freight is quoted by CSE Solar USA. Request a Quote

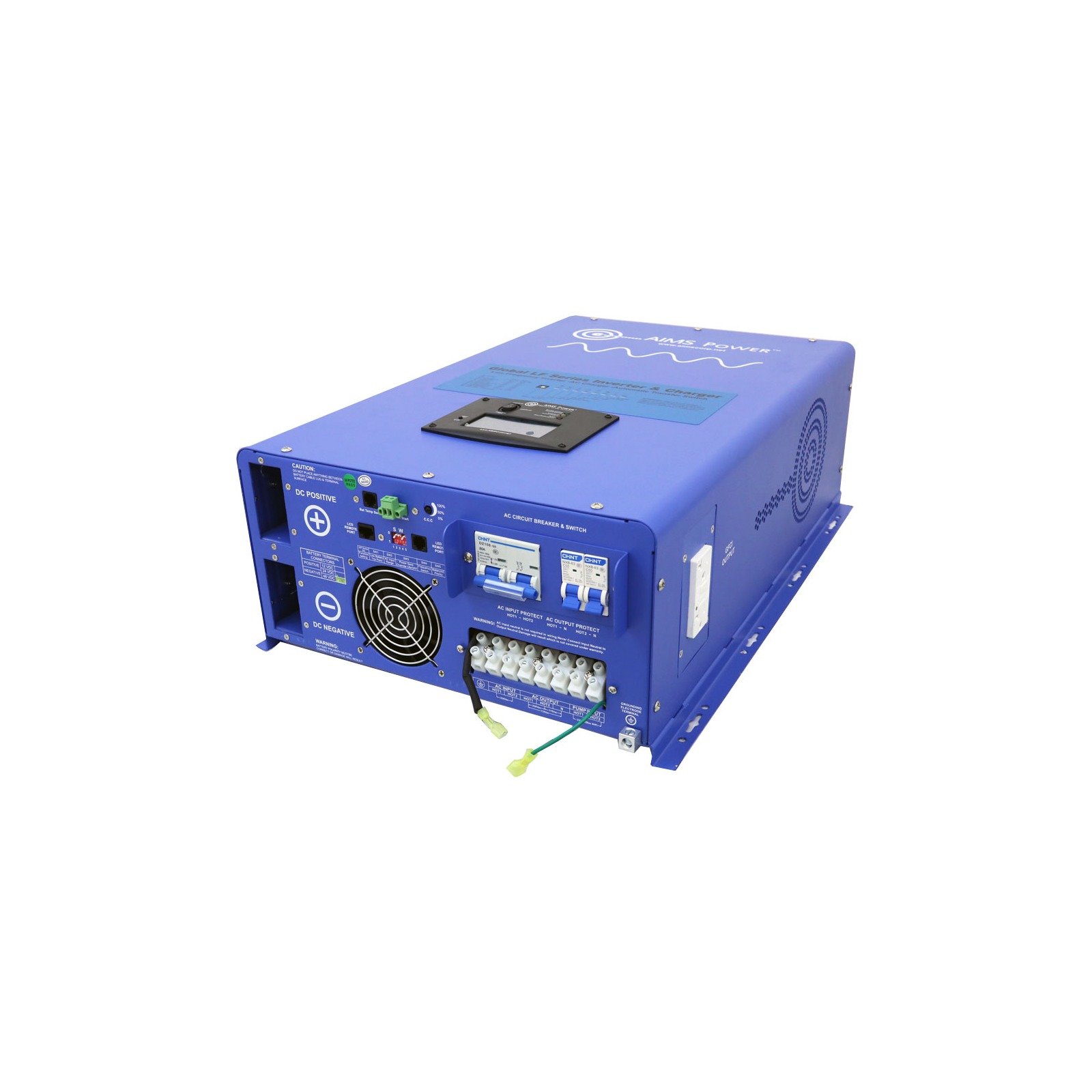

AIMS Power PICOGLF10KW48V240VS 10000W Low-Frequency Pure Sine Inverter Charger
The AIMS Power PICOGLF10KW48V240VS is a 10,000 W low-frequency pure sine inverter charger for homes, businesses and remote sites that need serious 120/240 Vac split-phase capacity from a 48 Vdc battery bank. It surges to 30,000 W for 20 seconds, charges at up to 100 A with an eight-setting four-stage smart charger, and switches loads between the grid or a generator and the batteries in about 10 ms.
A direct-connect terminal block plus two outlets, dual thermally-controlled fans, marine-coated boards, 50/60 Hz selection, battery-priority mode and auto generator start make it a straightforward backbone for backup and off-grid installations. AIMS Power backs it with a 3-year warranty and lifetime tech support. CSE Solar USA is an authorized AIMS Power distributor.

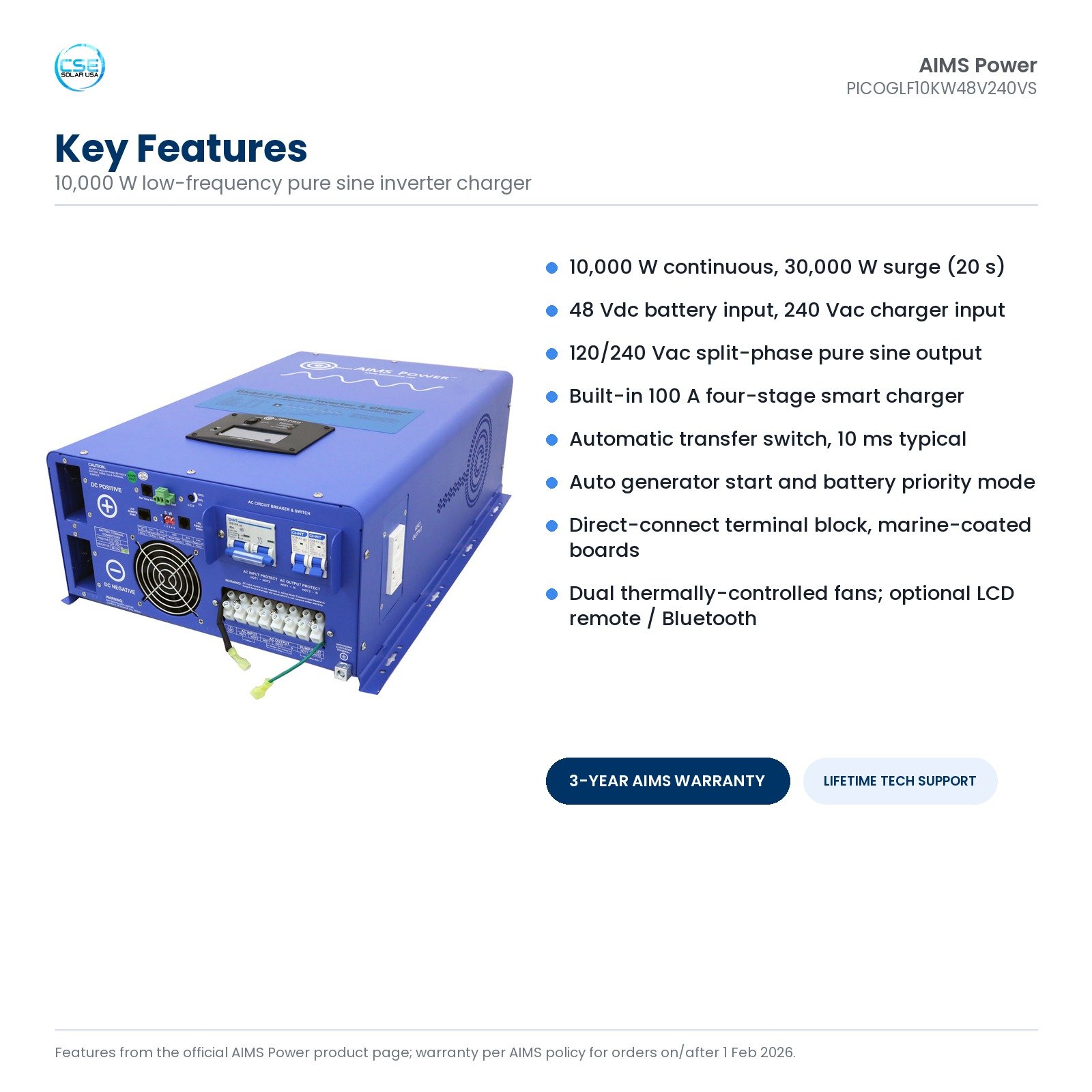

Key features
- 10,000 W continuous, 30,000 W surge (20 s)
- 48 Vdc battery input, 240 Vac charger input
- 120/240 Vac split-phase pure sine output
- Built-in 100 A four-stage smart charger
- Automatic transfer switch, 10 ms typical
- Auto generator start and battery priority mode
- Direct-connect terminal block, marine-coated boards
- Dual thermally-controlled fans; optional LCD remote / Bluetooth

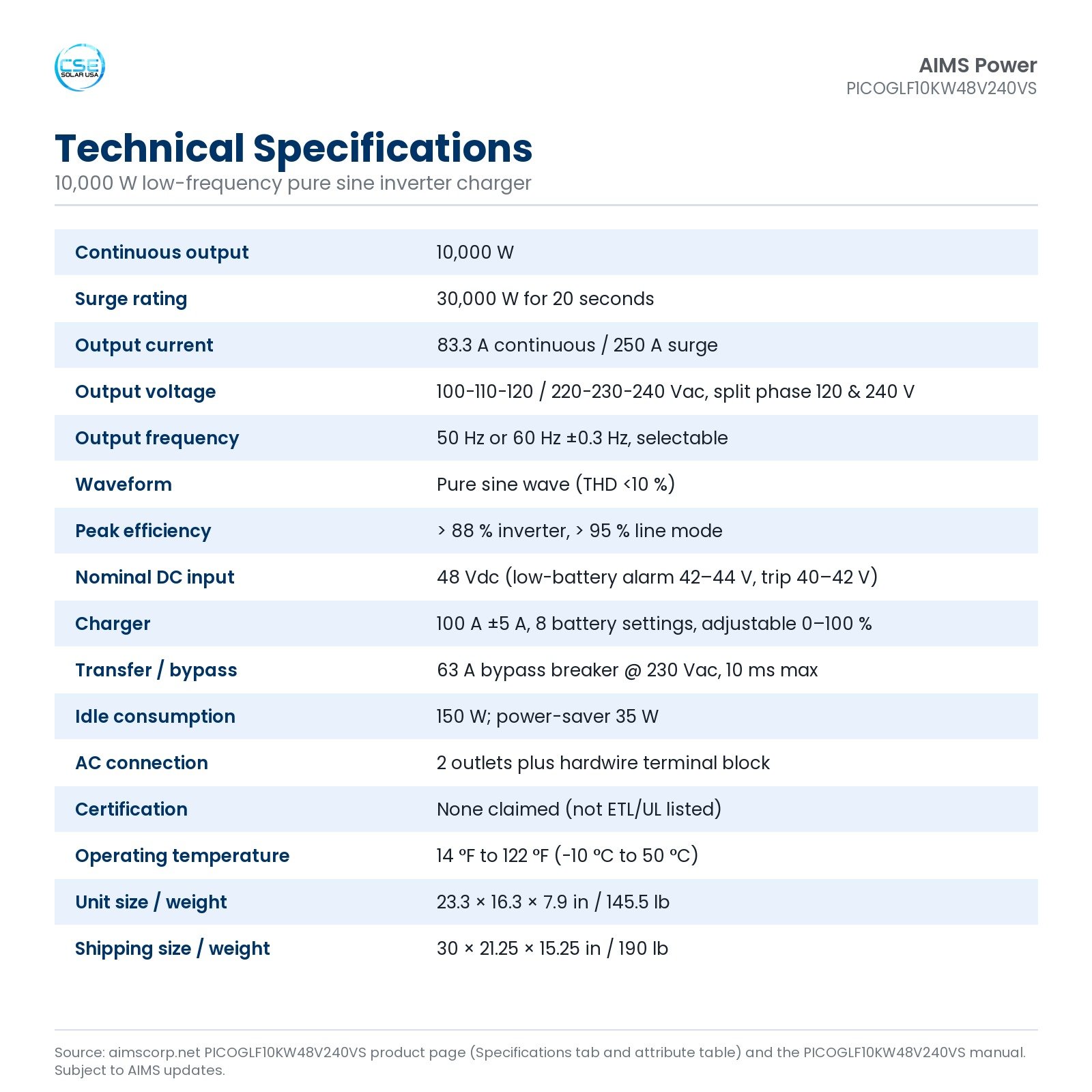

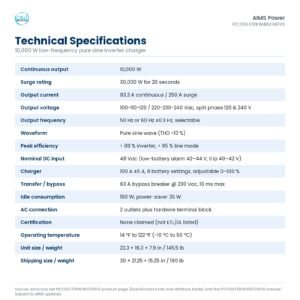

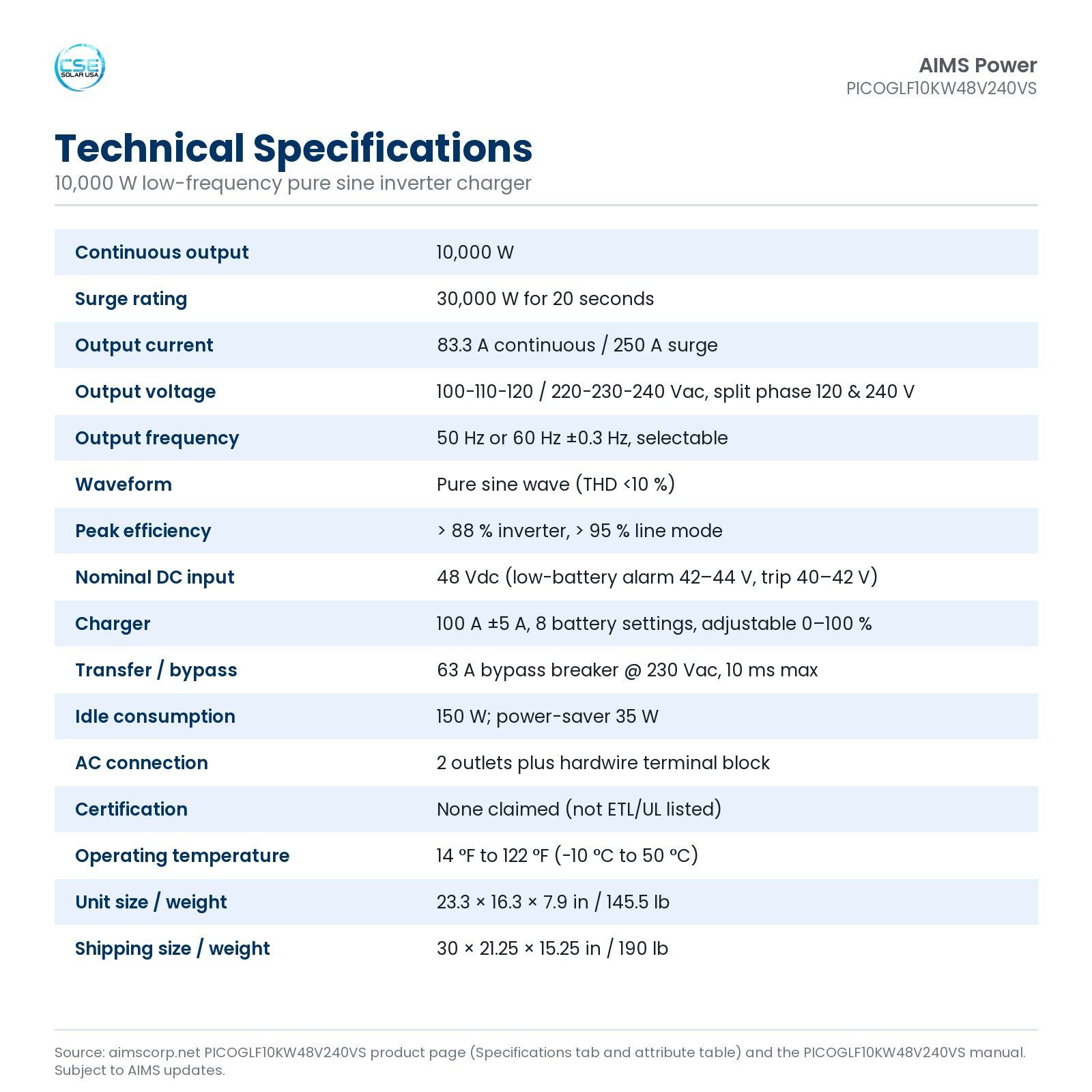

Specifications (official AIMS Power data)
| Continuous output | 10,000 W |
|---|---|
| Surge rating | 30,000 W for 20 seconds |
| Output current | 83.3 A continuous / 250 A surge |
| Output voltage | 100-110-120 / 220-230-240 Vac, split phase 120 & 240 V |
| Output frequency | 50 Hz or 60 Hz ±0.3 Hz, selectable |
| Waveform | Pure sine wave (THD <10 %) |
| Peak efficiency | > 88 % inverter, > 95 % line mode |
| Nominal DC input | 48 Vdc (low-battery alarm 42–44 V, trip 40–42 V) |
| Charger | 100 A ±5 A, 8 battery settings, adjustable 0–100 % |
| Transfer / bypass | 63 A bypass breaker @ 230 Vac, 10 ms max |
| Idle consumption | 150 W; power-saver 35 W |
| AC connection | 2 outlets plus hardwire terminal block |
| Certification | None claimed (not ETL/UL listed) |
| Operating temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Unit size / weight | 23.3 × 16.3 × 7.9 in / 145.5 lb |
| Shipping size / weight | 30 × 21.25 × 15.25 in / 190 lb |

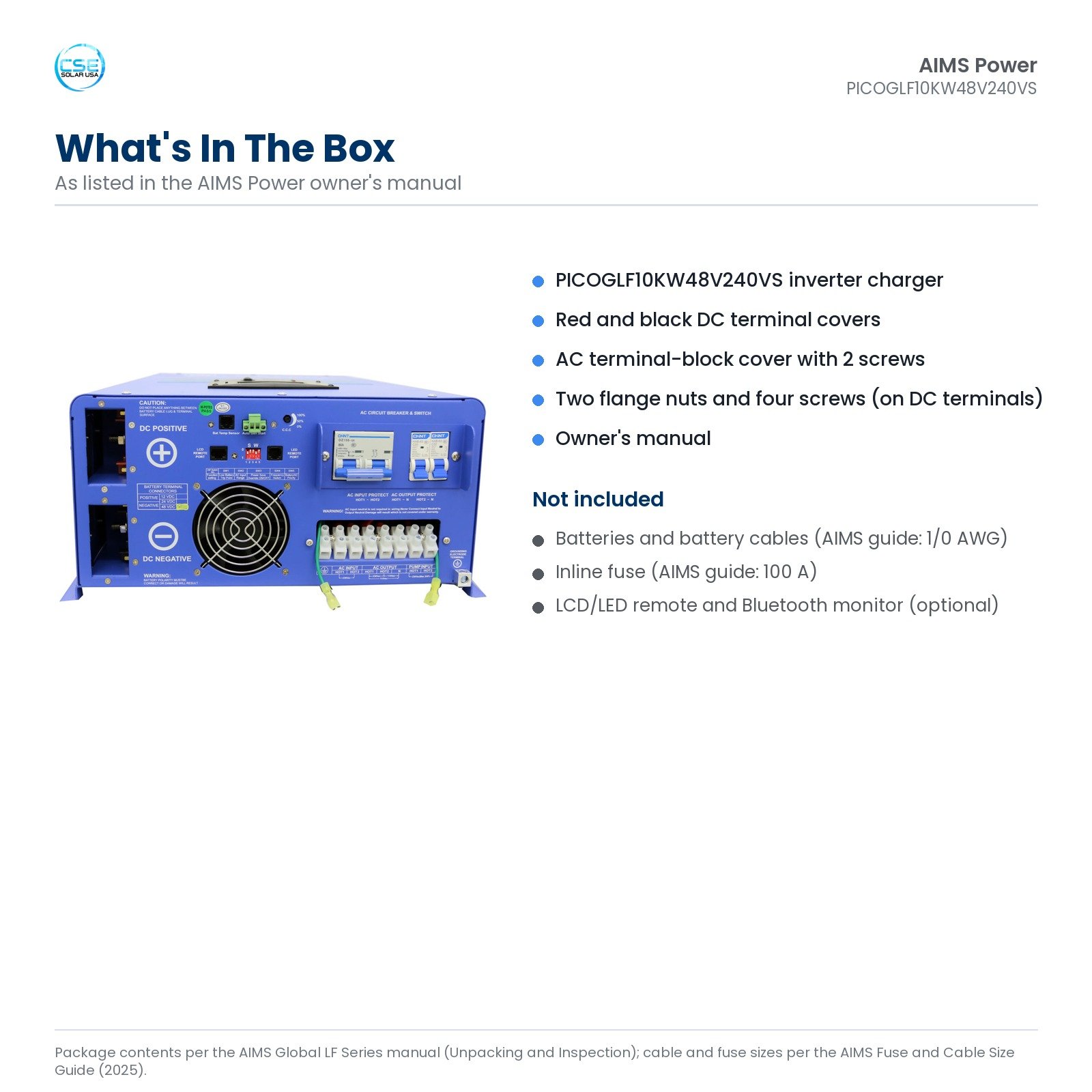

What’s included
- PICOGLF10KW48V240VS inverter charger
- Red and black DC terminal covers
- AC terminal-block cover with 2 screws
- Two flange nuts and four screws (on DC terminals)
- Owner’s manual
Not included: Batteries and battery cables (AIMS guide: 1/0 AWG); Inline fuse (AIMS guide: 100 A); LCD/LED remote and Bluetooth monitor (optional).
Applications
- Whole-home backup: Keeps 120 V and 240 V circuits running from a 48 V battery bank when the grid drops, with a 10 ms transfer.
- Off-grid homes & remote sites: Runs a home, cabin or work site from batteries charged by solar, wind or a generator with auto-start.
- Business & facility backup: Backup for offices, shops and equipment; charges from the grid or a generator and inverts on demand.

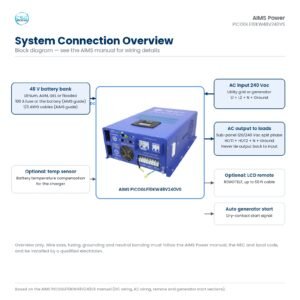

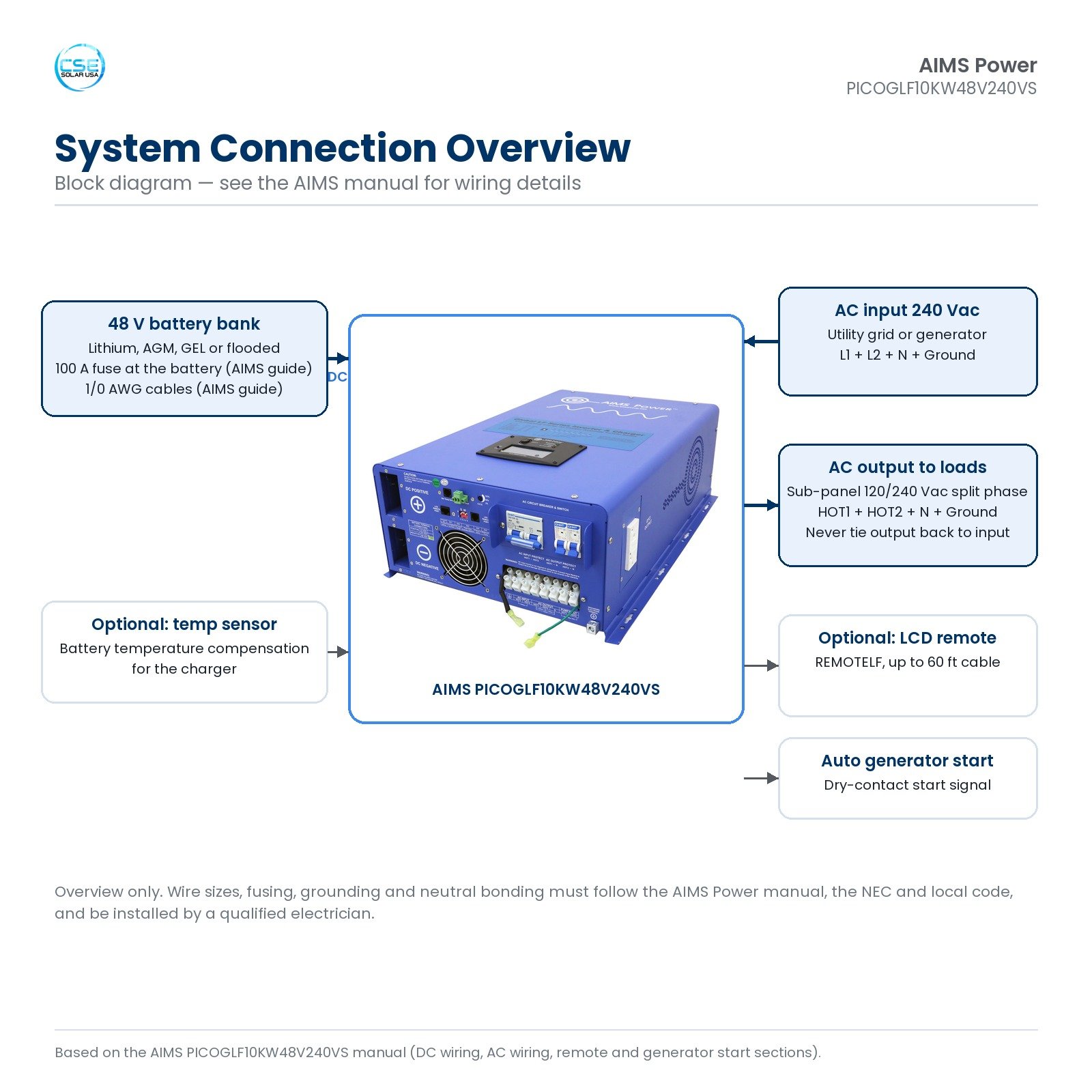

Requires a 48 V battery bank (lithium, AGM, GEL or flooded). Size batteries and wiring to your loads; installation by a qualified electrician.

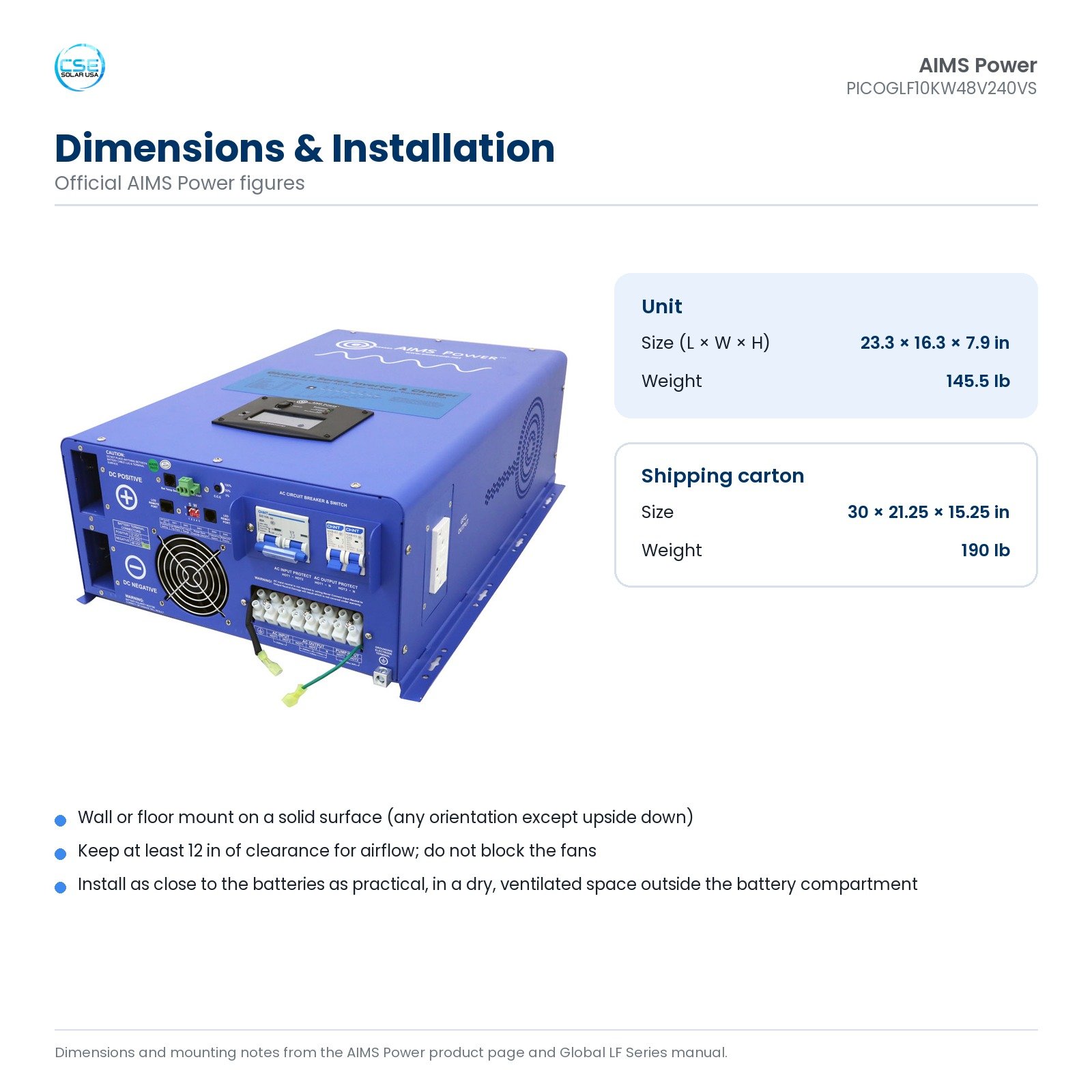

Dimensions and weight
| Unit — Size (L × W × H) | 23.3 × 16.3 × 7.9 in |
|---|---|
| Unit — Weight | 145.5 lb |
| Shipping carton — Size | 30 × 21.25 × 15.25 in |
| Shipping carton — Weight | 190 lb |
- Wall or floor mount on a solid surface (any orientation except upside down)
- Keep at least 12 in of clearance for airflow; do not block the fans
- Install as close to the batteries as practical, in a dry, ventilated space outside the battery compartment
Warranty
3-year AIMS Power warranty on low-frequency inverter chargers (orders on or after 1 February 2026) plus lifetime tech support. Warranty covers the original purchaser; service is handled by AIMS Power in Reno, NV. CSE Solar USA is an authorized AIMS Power distributor.
Shipping
Nationwide shipping. This unit ships on a skid (190 lb); freight quotes on request. Lead times confirmed at order.
Downloads (official AIMS Power documents)
Frequently asked questions
Is the 10 kW model ETL or UL listed?
No. AIMS lists the PICOGLF10KW48V240VS without third-party certification. The ETL-listed units in this family are the 8 kW and 12 kW models.
What is the idle draw?
AIMS rates idle consumption at 150 W, or 35 W in the selectable power-saver (hibernation) mode.
What cable and fuse does AIMS recommend?
1/0 AWG DC cable and a 100 A fuse per the AIMS fuse and cable size guide, with the DC run kept as short as practical.
Does CSE Solar USA sell this as an authorized AIMS Power distributor?
Yes. CSE Solar USA is an authorized AIMS Power distributor, so this unit is covered by AIMS Power’s current warranty and supported by AIMS’ lifetime technical support.
What is the warranty?
AIMS Power covers its low-frequency inverter chargers with a 3-year warranty for orders placed on or after 1 February 2026, plus lifetime tech support. Warranty service is handled by AIMS Power in Reno, Nevada.
Are batteries, cables or a fuse included?
No. The inverter charger ships with its terminal covers, hardware and manual. Batteries, DC cables and the DC fuse or breaker are sold separately; AIMS’ cable and fuse guide is linked in the Downloads section.
How does ordering and shipping work?
Request a quote or an order through CSE Solar USA; we confirm availability and freight before invoicing. Nationwide shipping with freight quotes on request. No free-shipping claim is made for this product.
Specifications and included components are taken from the official AIMS Power product page, current warranty policy and manuals for PICOGLF10KW48V240VS; subject to AIMS updates.
| Weight | 190 lbs |
|---|---|
| Dimensions | 30 × 21.25 × 15.25 in |
| MPN | PICOGLF10KW48V240VS |
| Continuous output | 10,000 W |
| Surge | 30,000 W (20 s) |
| Battery voltage | 48 Vdc |
| AC output | 120/240 Vac split phase |
| Charger | 100 A |
| Warranty | 3 years (AIMS Power) |
