CW Energy 450W All-Black Solar Panel | CWT450-108TNB10 (35 panels per pallet)
$5,734.60 / pallet $0.36/W · 35 panels · 15.75 kW
40 people are viewing this product right now
CW Energy CWT450-108TNB10 450 W all-black N-type TOPCon panels, full pallet of 35 (15.75 kW DC). 23.04% efficiency, 1500 V, 25-year product and 30-year performance warranty. Availability and freight confirmed with your quote.

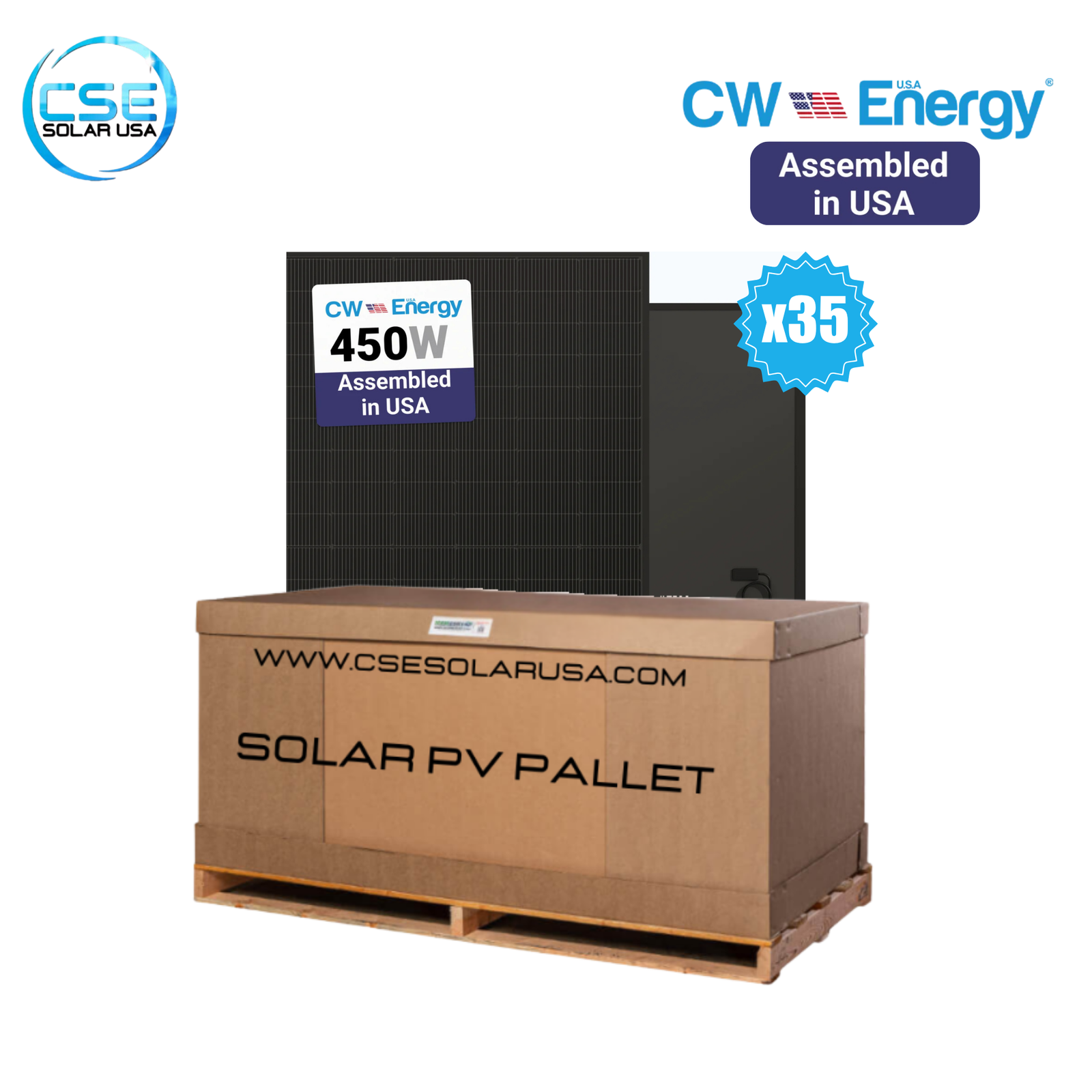

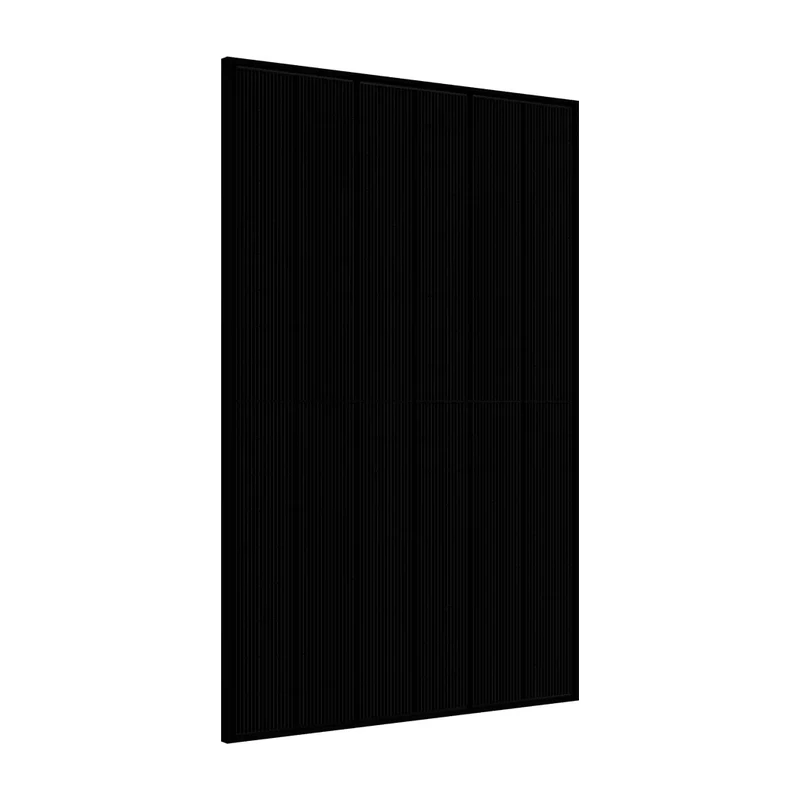

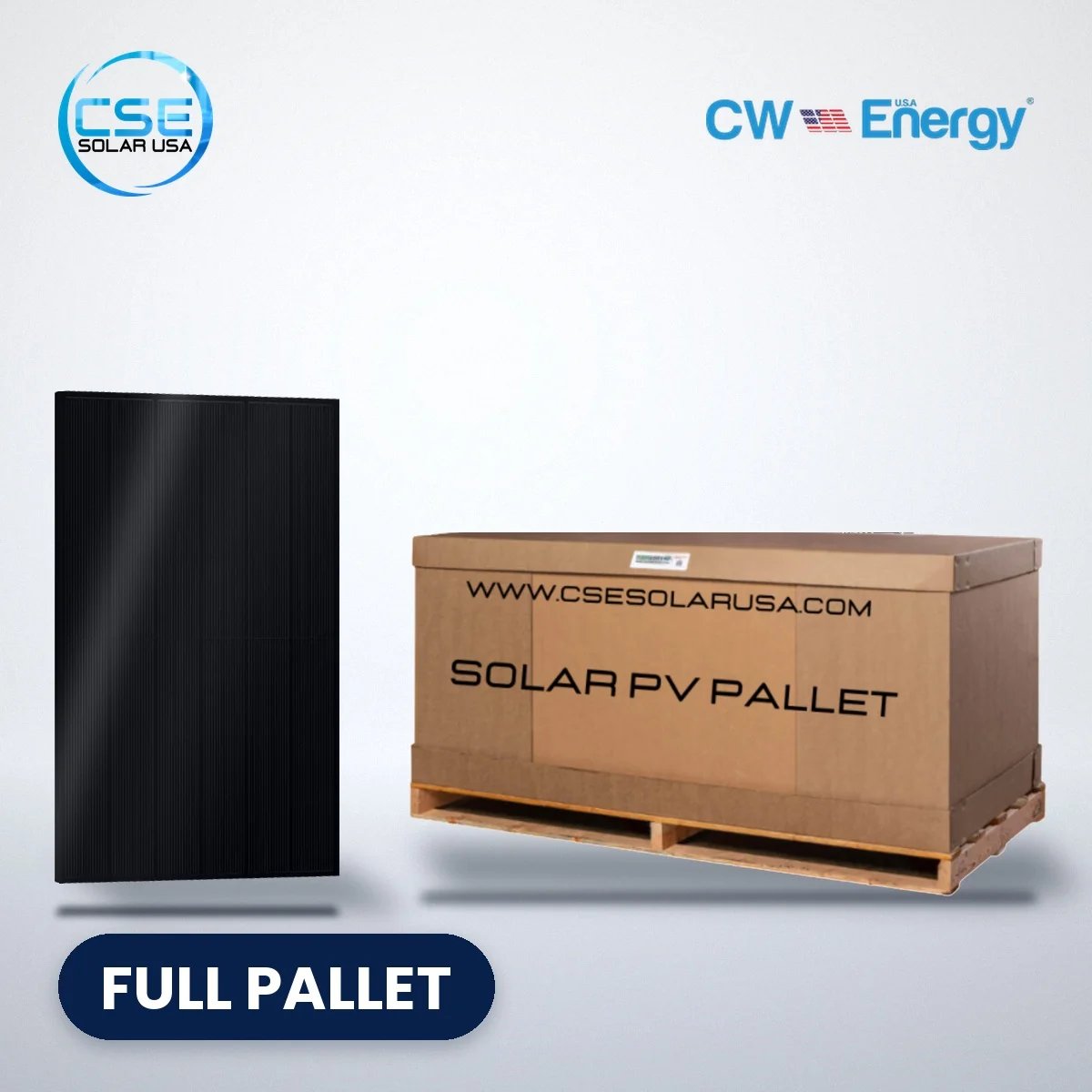

CW Energy CWT450-108TNB10 is a 450 W all-black (Black-on-Black) N-type TOPCon solar module from CW Energy’s High-Efficiency 108TNB10 series (445–450 W). This listing is a full pallet of 35 panels (15.75 kW DC).
The compact 1722 × 1134 mm, 108-cell format and uniform black finish suit residential roofs and light-commercial buildings where appearance matters, while the 23.04% efficiency keeps output high per square foot.
Specifications (CW Energy Black-on-Black datasheet, Ver.2608.25)
| Maximum power (STC) | 450 W (tolerance 0 to +5 W) |
|---|---|
| Module efficiency | 23.04% |
| Voc / Isc | 39.31 V / 14.38 A |
| Vmp / Imp | 33.14 V / 13.58 A |
| Cells | 108 half-cut N-type cells (6 × 18), 16 busbars |
| Construction | Black-on-Black: black frame, black rear side, monofacial |
| Dimensions / weight | 1722 × 1134 × 30 mm / 21.45 kg (47.29 lb) |
| Max system voltage / series fuse | 1500 V DC / 30 A |
| Temperature coefficients | Pmax −0.30 %/°C, Voc −0.26 %/°C, Isc +0.040 %/°C |
| Mechanical load | 2400 Pa / 5400 Pa |
| Junction box / connectors | IP68; Stäubli MC4-EVO2 |
| Packing (datasheet) | 35 panels per pallet (15.75 kW) |
| Warranty | 25-year product warranty and 30-year performance warranty (at least 87.4% at year 30) |
| Certifications | UL 61730-1/-2 and CSA C22.2#61730 (Intertek ETL); IEC 61215, IEC 61730; IEC TS 63209-1 extended stress |
| Manufacturer | CW Enerji, Antalya, Türkiye (per CW Energy certificates); U.S. company CW Energy USA, Inc. |
Documents & Downloads
- CWT450-108TNB10 Black-on-Black datasheet (PDF) (CW Energy USA)
- UL 61730 Intertek ETL Authorization to Mark (PDF) (CW Energy USA)
- 108TNB10 warranty certificate (PDF) (CW Energy USA)
Ordering and availability
Sold by the full pallet (35 panels). Availability, lead time and freight are confirmed with every quote before anything is invoiced; CSE Solar USA does not treat supplier stock as its own inventory. Need the bifacial 108TNB10 version, container quantities or a project quote? Request a CW Energy special order.
| Weight | 47.29 lbs |
|---|---|
| Dimensions | 67.8 × 44.64 × 41.3 in |
| MPN | CWT450-108TNB10 |
